| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_017T01_9000000848_06396cztM0_level2.evt | modeM0/AS1C02_017T01_9000000848_06396cztM0_level2_quad_clean.evt |
| Size (bytes) | 448,133,760 | 130,991,040 |
| Size | 427.4 MB | 124.9 MB |
| Events in quadrant A | 3,125,775 | 883,070 |
| Events in quadrant B | 3,347,055 | 902,920 |
| Events in quadrant C | 3,109,100 | 893,483 |
| Events in quadrant D | 3,556,919 | 843,764 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13274 | 3 |
| B | 0 | 13921 | 2 |
| C | 0 | 13370 | 2 |
| D | 0 | 14424 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6372 | 95 | 1.490898% |
| B | 6372 | 143 | 2.244193% |
| C | 6372 | 95 | 1.490898% |
| D | 6372 | 128 | 2.008788% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

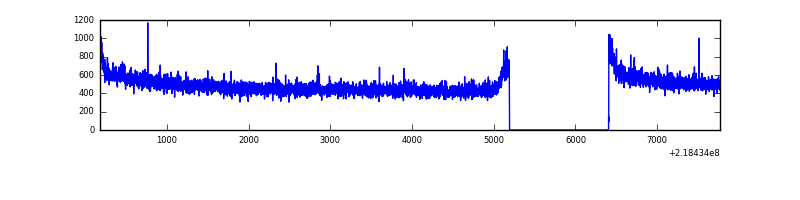

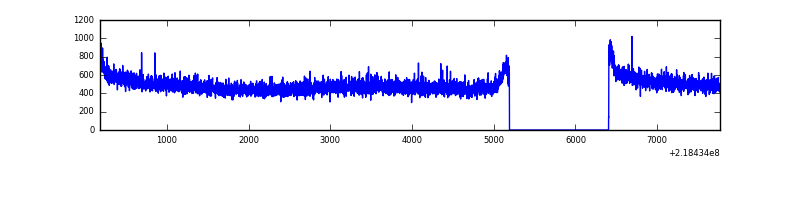

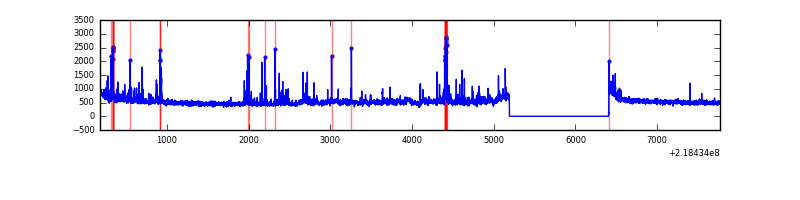

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7587 | 6373 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7587 | 6373 | 5 | 5 | 0.07% | 0.08% |  |
| C | 7587 | 6373 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7587 | 6373 | 34 | 34 | 0.45% | 0.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 44485 | 276.25 | 798 | 783 | 158.2 |
| A | 0 | 226 | 7657 | 43.45 | 798 | 783 | 158.2 |
| A | 12 | 194 | 7617 | 43.2 | 798 | 783 | 158.2 |
| B | 4 | 81 | 95295 | 636.3 | 804 | 788 | 148.5 |
| B | 10 | 246 | 58871 | 391.07 | 804 | 788 | 148.5 |
| B | 0 | 214 | 37128 | 244.67 | 804 | 788 | 148.5 |
| C | 8 | 128 | 12734 | 67.01 | 787 | 791 | 178.2 |
| C | 8 | 112 | 6367 | 31.28 | 787 | 791 | 178.2 |
| C | 13 | 61 | 6120 | 29.9 | 787 | 791 | 178.2 |
| D | 11 | 241 | 199762 | 1059.64 | 781 | 756 | 187.8 |
| D | 2 | 152 | 198189 | 1051.26 | 781 | 756 | 187.8 |
| D | 2 | 33 | 49046 | 257.13 | 781 | 756 | 187.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

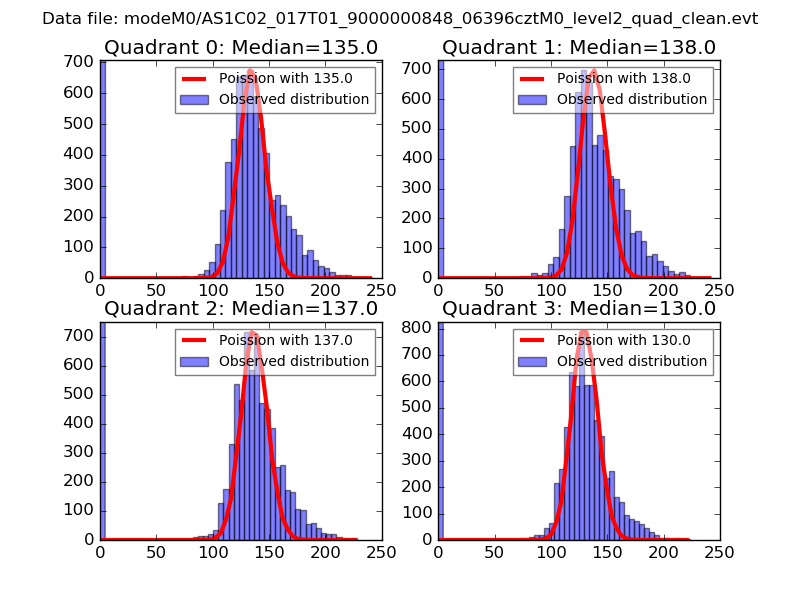

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

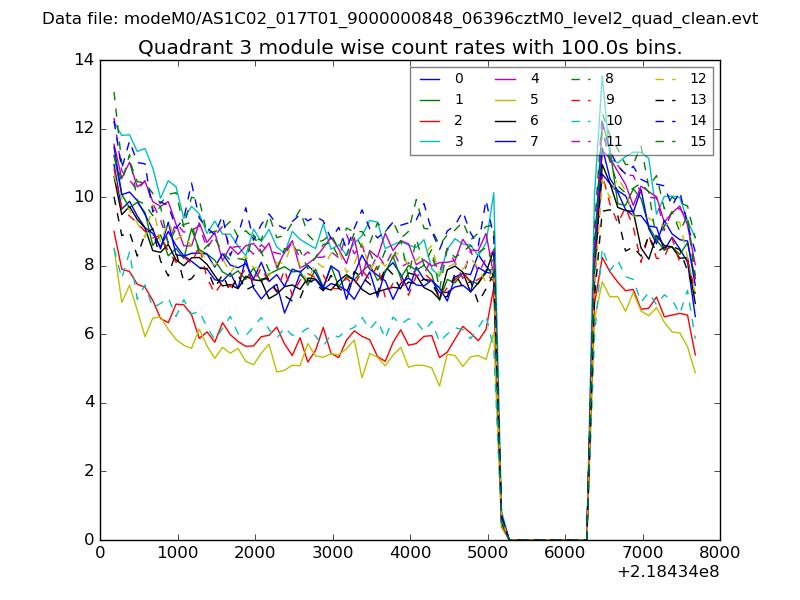

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

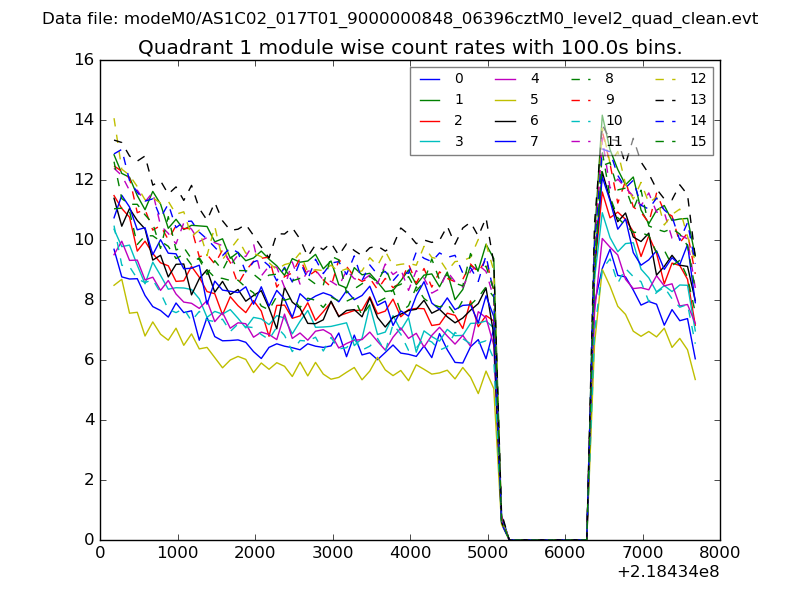

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

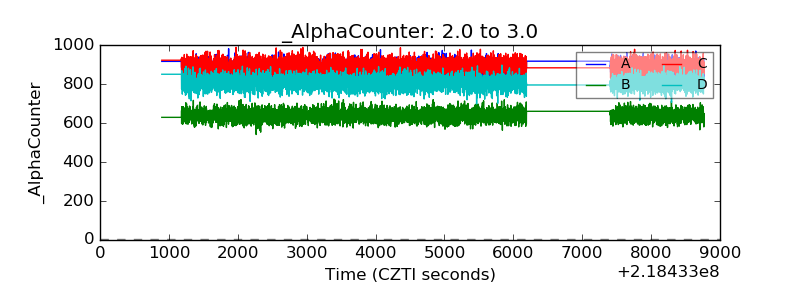

| Alpha Counter |  |

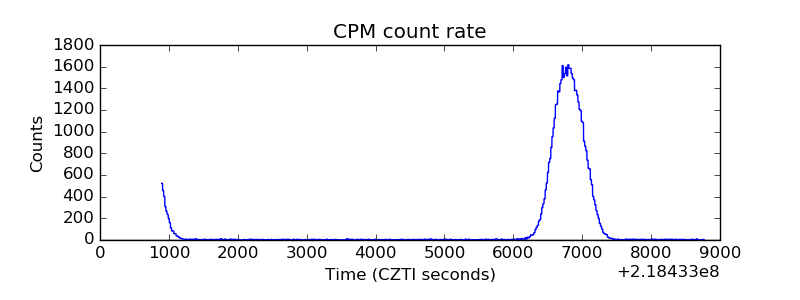

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
