| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_164T01_9000000844_06378cztM0_level2.evt | modeM0/AS1G06_164T01_9000000844_06378cztM0_level2_quad_clean.evt |
| Size (bytes) | 213,796,800 | 45,648,000 |
| Size | 203.9 MB | 43.5 MB |
| Events in quadrant A | 1,540,272 | 294,523 |
| Events in quadrant B | 1,580,383 | 293,658 |
| Events in quadrant C | 1,492,621 | 287,815 |
| Events in quadrant D | 1,641,723 | 278,156 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 66 | 0 |
| B | 0 | 66 | 0 |
| C | 0 | 66 | 0 |
| D | 0 | 66 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6661 | 2 |
| B | 0 | 6755 | 1 |
| C | 0 | 6574 | 1 |
| D | 0 | 6910 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3206 | 12 | 0.374298% |
| B | 3206 | 19 | 0.592639% |
| C | 3206 | 12 | 0.374298% |
| D | 3206 | 36 | 1.122895% |

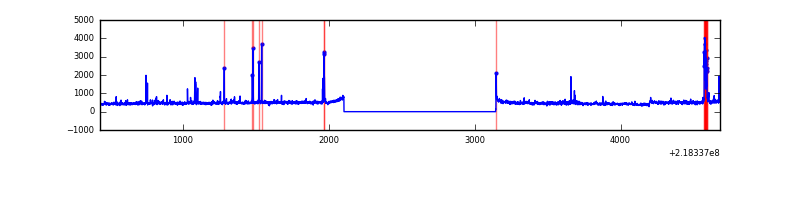

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 4246 | 3207 | 0 | 0 | 0.00% | 0.00% |  |
| B | 4246 | 3207 | 0 | 0 | 0.00% | 0.00% |  |
| C | 4246 | 3207 | 3 | 3 | 0.07% | 0.09% |  |
| D | 4246 | 3207 | 23 | 23 | 0.54% | 0.72% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 43820 | 551.92 | 380 | 372 | 78.7 |
| A | 15 | 174 | 25771 | 322.64 | 380 | 372 | 78.7 |
| A | 15 | 236 | 6617 | 79.33 | 380 | 372 | 78.7 |
| B | 0 | 228 | 56100 | 755.73 | 382 | 373 | 73.7 |
| B | 0 | 219 | 30023 | 402.09 | 382 | 373 | 73.7 |
| B | 12 | 111 | 7491 | 96.53 | 382 | 373 | 73.7 |
| C | 4 | 254 | 31641 | 360.45 | 369 | 370 | 86.8 |
| C | 8 | 128 | 6047 | 65.44 | 369 | 370 | 86.8 |
| C | 1 | 241 | 4595 | 48.7 | 369 | 370 | 86.8 |
| D | 12 | 221 | 80672 | 887.55 | 366 | 355 | 90.5 |
| D | 14 | 34 | 54007 | 592.89 | 366 | 355 | 90.5 |
| D | 2 | 14 | 51751 | 567.96 | 366 | 355 | 90.5 |

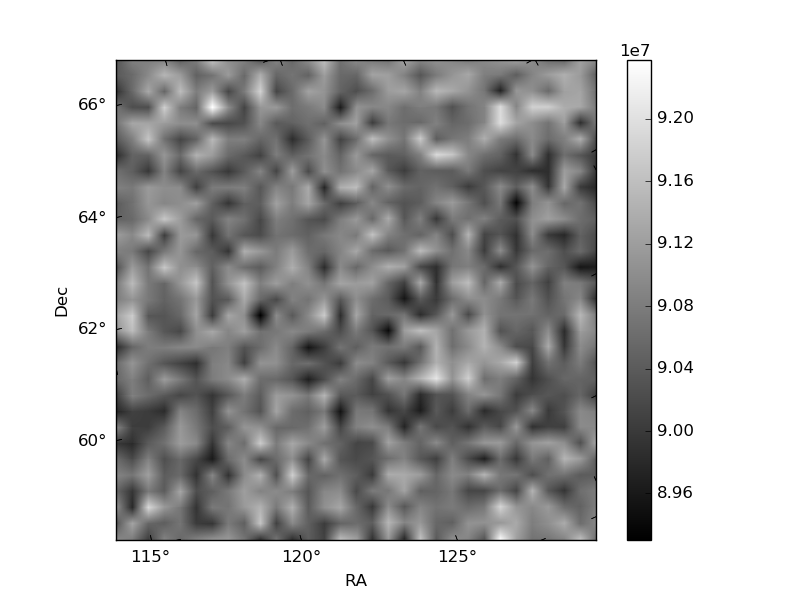

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

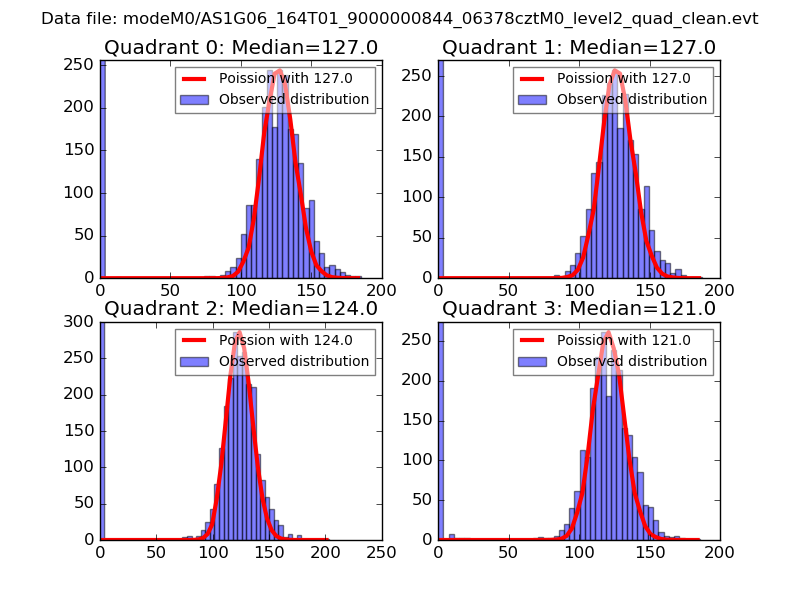

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

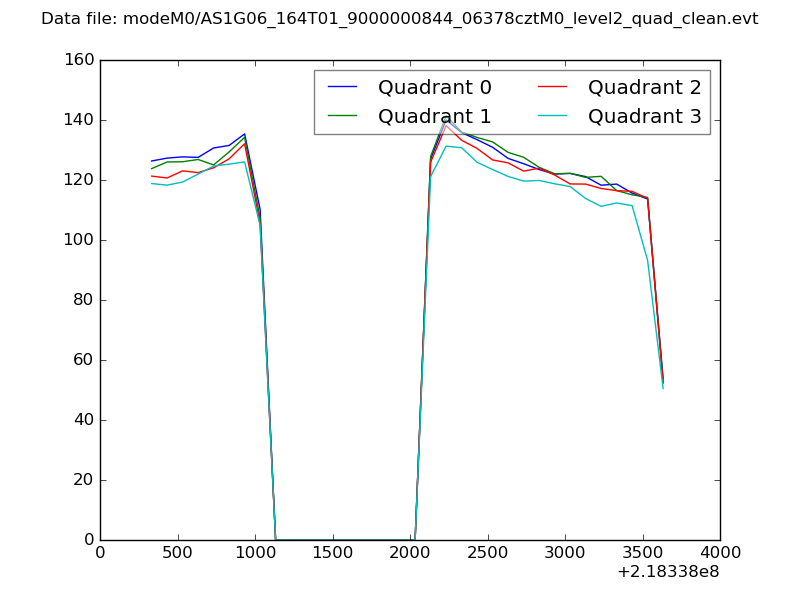

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

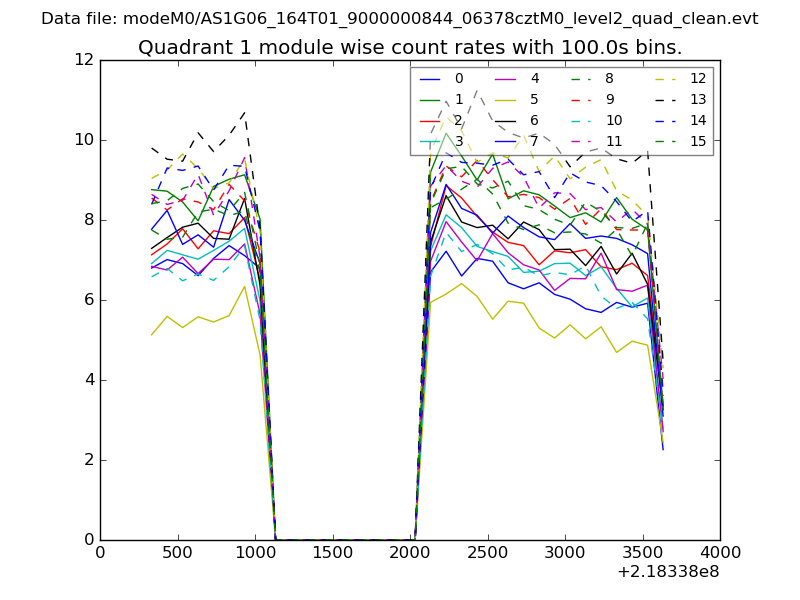

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

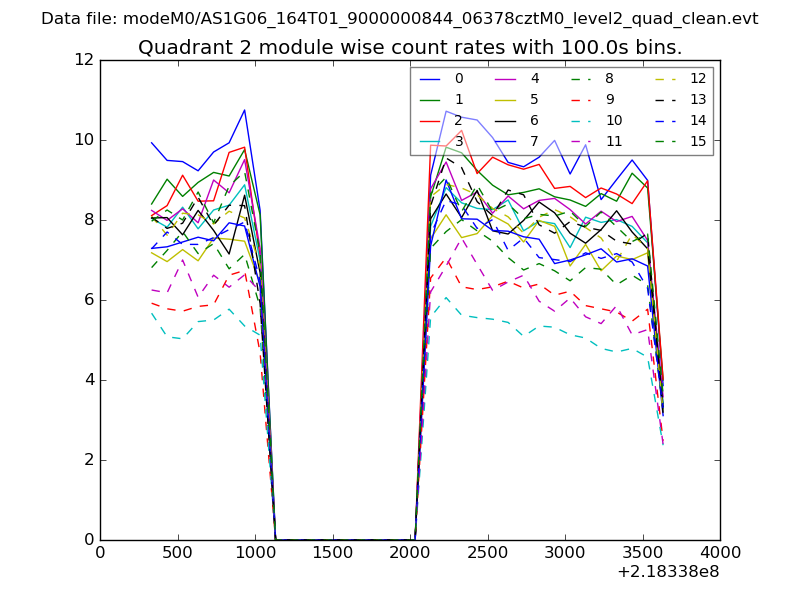

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

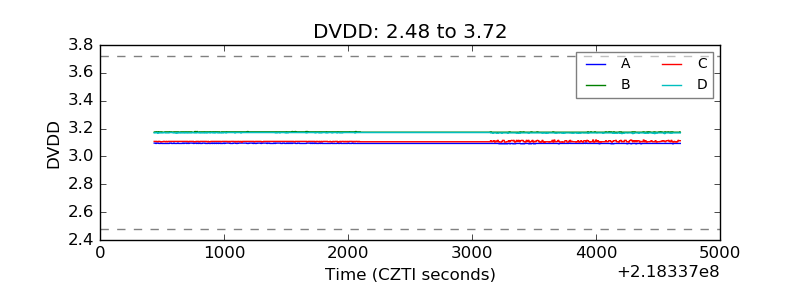

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

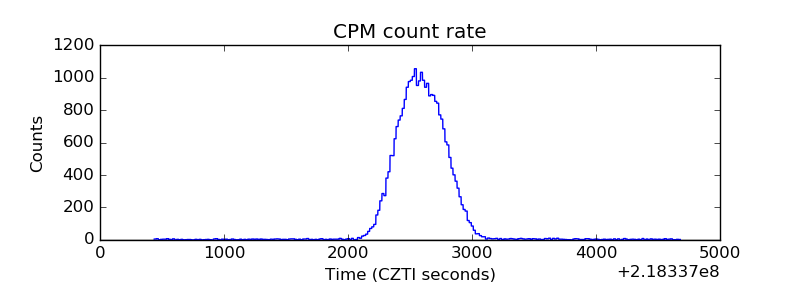

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
