| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_011T01_9000000850_06407cztM0_level2.evt | modeM0/AS1C02_011T01_9000000850_06407cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,578,880 | 76,233,600 |
| Size | 438.3 MB | 72.7 MB |
| Events in quadrant A | 3,190,516 | 462,516 |
| Events in quadrant B | 3,885,299 | 462,111 |
| Events in quadrant C | 3,122,837 | 464,841 |
| Events in quadrant D | 3,259,458 | 446,714 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13923 | 3 |
| B | 0 | 15992 | 2 |
| C | 0 | 13860 | 2 |
| D | 0 | 14365 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6771 | 33 | 0.487373% |
| B | 6771 | 199 | 2.939005% |
| C | 6771 | 27 | 0.398759% |
| D | 6771 | 45 | 0.664599% |

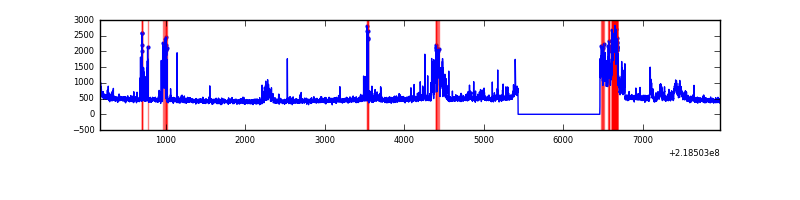

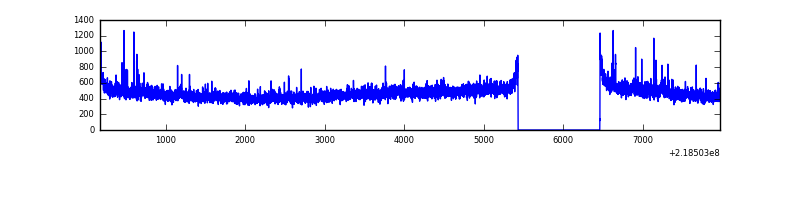

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7801 | 6772 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7801 | 6772 | 94 | 94 | 1.20% | 1.39% |  |
| C | 7801 | 6772 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7801 | 6772 | 12 | 12 | 0.15% | 0.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 93237 | 568.98 | 798 | 779 | 162.5 |
| A | 15 | 174 | 13271 | 76.87 | 798 | 779 | 162.5 |
| A | 12 | 194 | 7599 | 41.97 | 798 | 779 | 162.5 |
| B | 0 | 228 | 492923 | 3173.05 | 801 | 781 | 155.1 |
| B | 8 | 3 | 171342 | 1099.68 | 801 | 781 | 155.1 |
| B | 4 | 81 | 73373 | 468.03 | 801 | 781 | 155.1 |
| C | 1 | 16 | 52680 | 285.83 | 780 | 785 | 181.6 |
| C | 8 | 208 | 20246 | 107.19 | 780 | 785 | 181.6 |
| C | 13 | 61 | 6214 | 29.9 | 780 | 785 | 181.6 |
| D | 2 | 152 | 161298 | 838.82 | 779 | 755 | 191.4 |
| D | 11 | 241 | 64712 | 334.17 | 779 | 755 | 191.4 |
| D | 2 | 14 | 29978 | 152.69 | 779 | 755 | 191.4 |

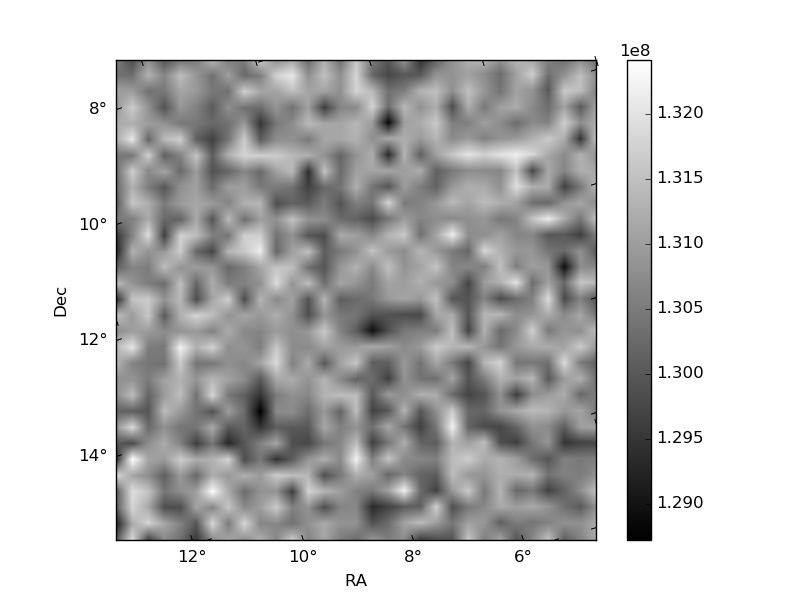

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

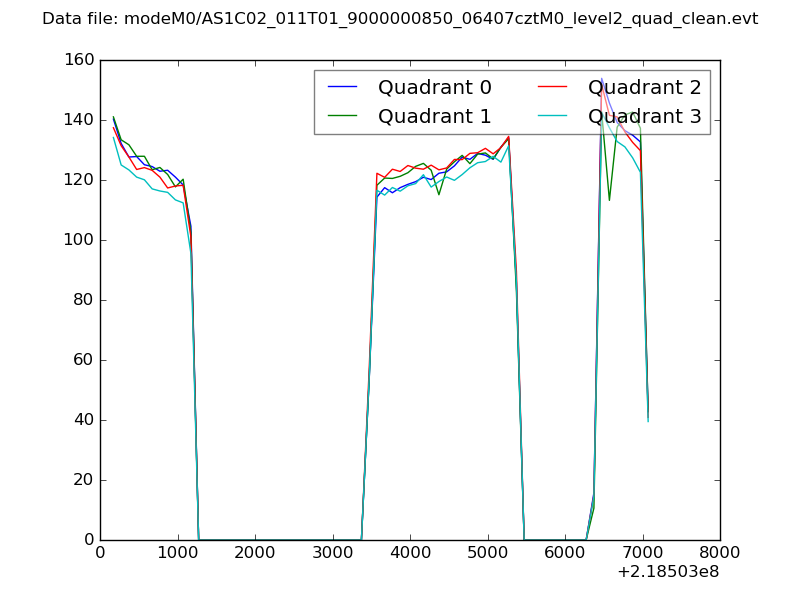

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

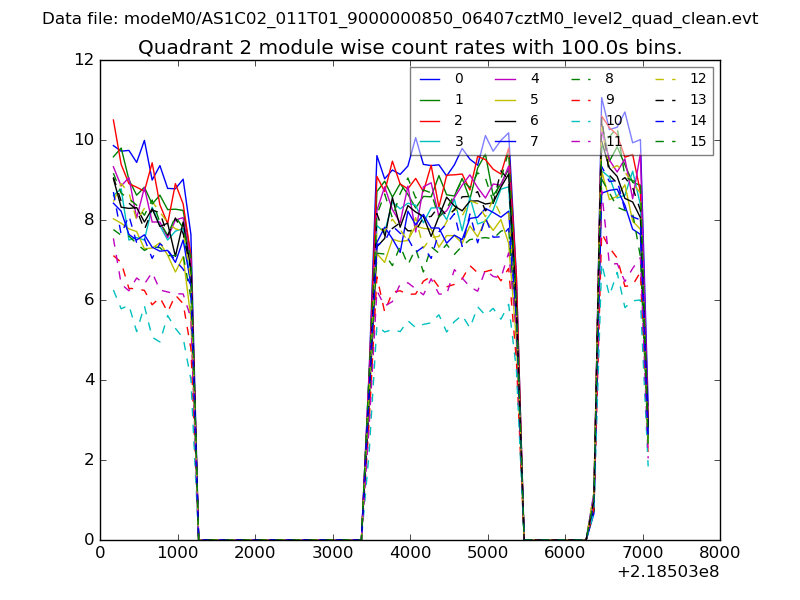

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

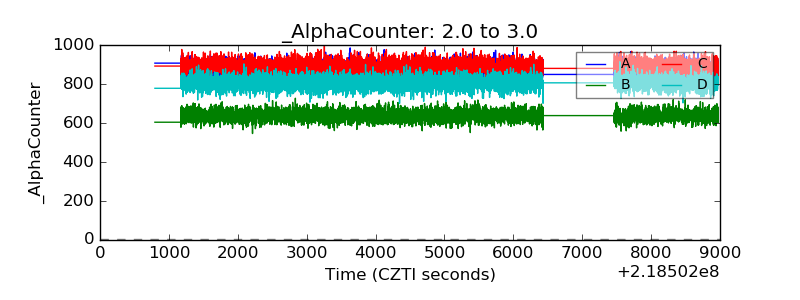

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

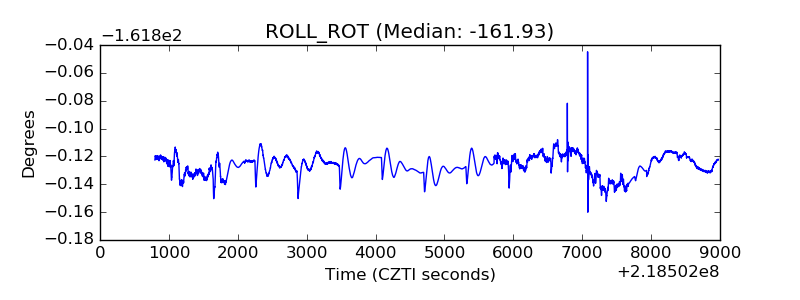

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

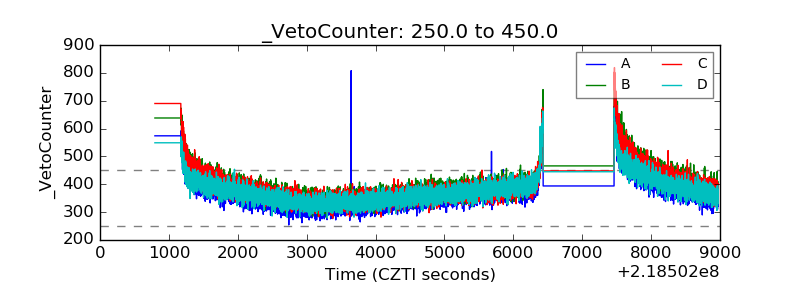

| Veto Counter |  |
