| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_011T01_9000000850_06409cztM0_level2.evt | modeM0/AS1C02_011T01_9000000850_06409cztM0_level2_quad_clean.evt |
| Size (bytes) | 477,426,240 | 75,427,200 |
| Size | 455.3 MB | 71.9 MB |
| Events in quadrant A | 3,388,463 | 451,787 |
| Events in quadrant B | 3,943,433 | 453,869 |
| Events in quadrant C | 3,259,576 | 457,859 |
| Events in quadrant D | 3,396,482 | 437,436 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14423 | 3 |
| B | 0 | 16134 | 2 |
| C | 0 | 14241 | 2 |
| D | 0 | 14745 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6932 | 46 | 0.663589% |
| B | 6932 | 223 | 3.216965% |
| C | 6932 | 40 | 0.577034% |
| D | 6932 | 63 | 0.908829% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9122 | 6934 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9122 | 6934 | 95 | 95 | 1.04% | 1.37% |  |
| C | 9122 | 6934 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9122 | 6934 | 11 | 11 | 0.12% | 0.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 78514 | 451.76 | 851 | 834 | 172.0 |
| A | 15 | 236 | 23737 | 133.2 | 851 | 834 | 172.0 |
| A | 12 | 194 | 8127 | 42.41 | 851 | 834 | 172.0 |
| B | 0 | 228 | 434675 | 2657.32 | 854 | 834 | 163.3 |
| B | 8 | 3 | 110439 | 671.34 | 854 | 834 | 163.3 |
| B | 4 | 81 | 41193 | 247.2 | 854 | 834 | 163.3 |
| C | 1 | 16 | 14250 | 69.88 | 830 | 837 | 192.0 |
| C | 13 | 61 | 6562 | 29.82 | 830 | 837 | 192.0 |
| C | 9 | 54 | 4982 | 21.59 | 830 | 837 | 192.0 |
| D | 2 | 152 | 105405 | 513.04 | 828 | 805 | 203.9 |
| D | 11 | 241 | 93497 | 454.64 | 828 | 805 | 203.9 |
| D | 5 | 97 | 33575 | 160.73 | 828 | 805 | 203.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

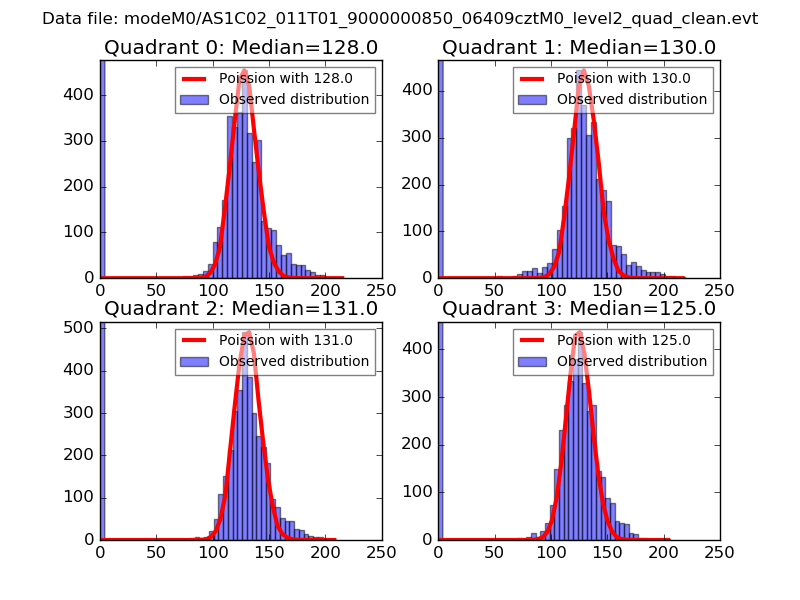

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

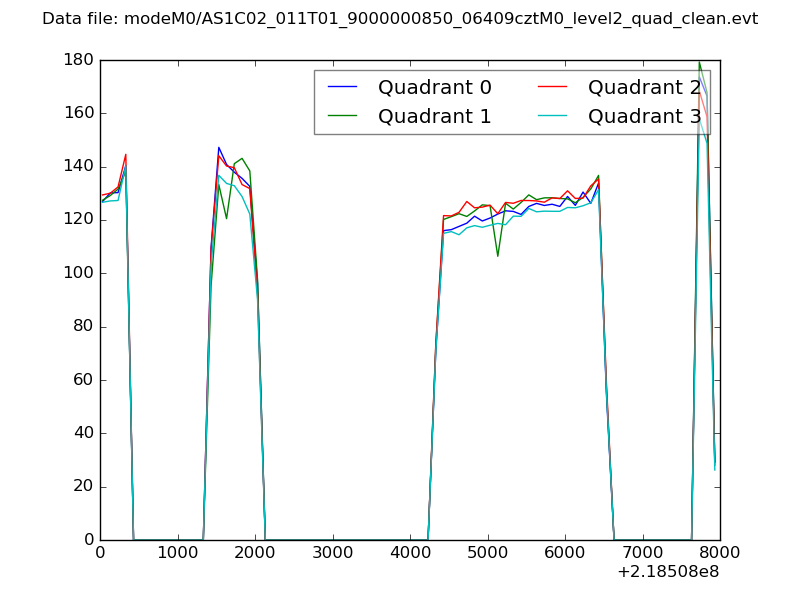

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

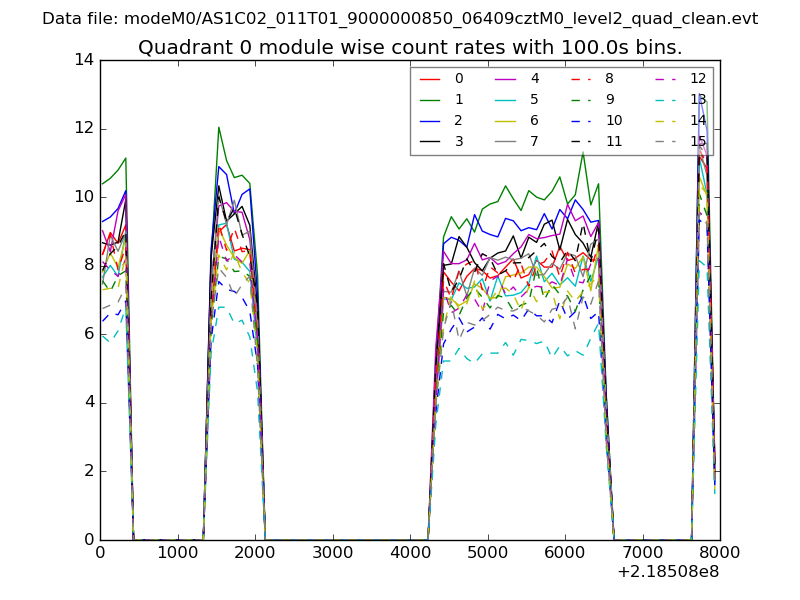

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

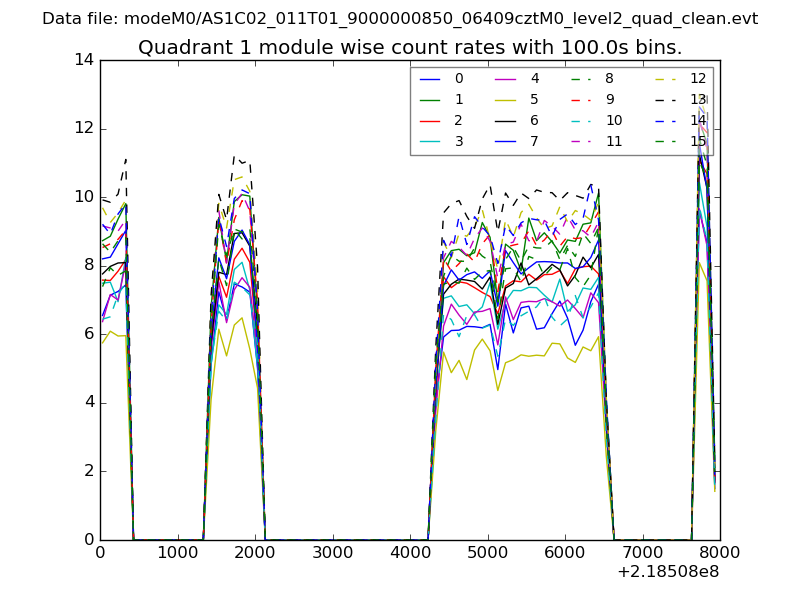

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

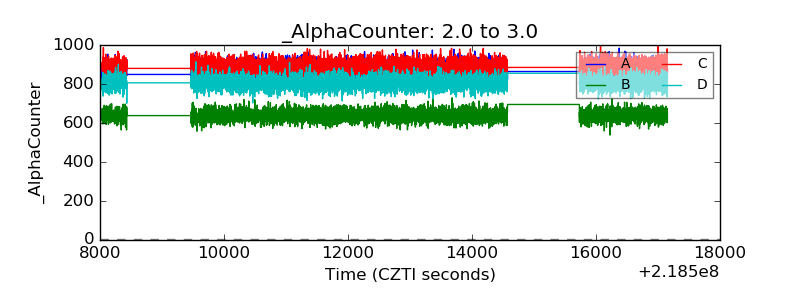

| Alpha Counter |  |

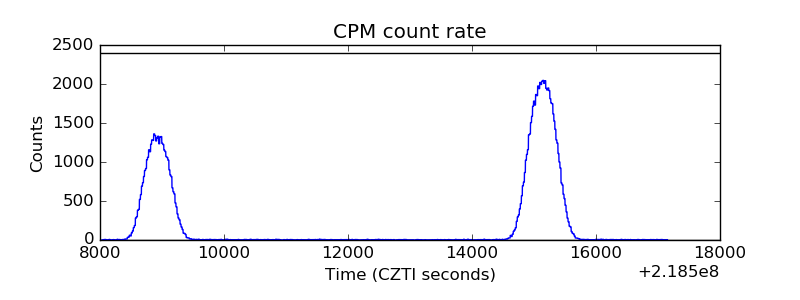

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

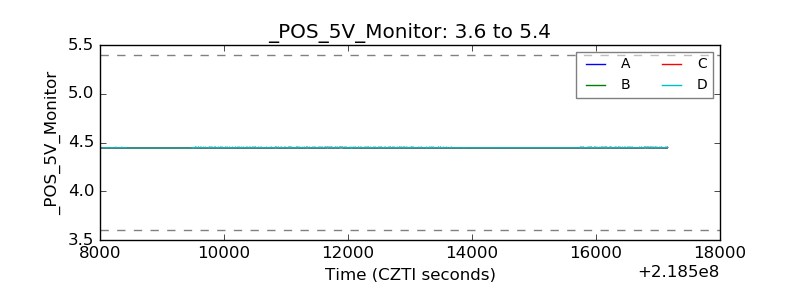

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

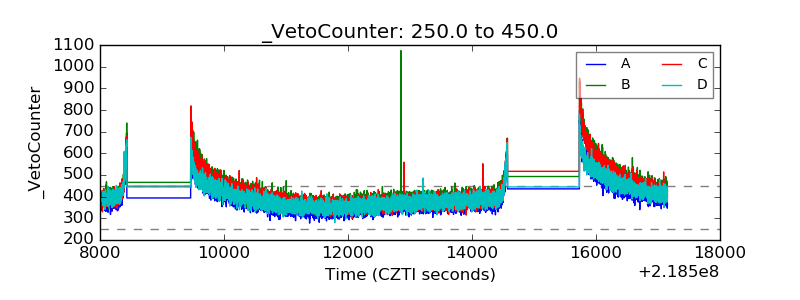

| Veto Counter |  |
