| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_011T01_9000000850_06411cztM0_level2.evt | modeM0/AS1C02_011T01_9000000850_06411cztM0_level2_quad_clean.evt |
| Size (bytes) | 439,614,720 | 63,849,600 |
| Size | 419.2 MB | 60.9 MB |
| Events in quadrant A | 3,188,787 | 375,822 |
| Events in quadrant B | 3,304,709 | 383,098 |
| Events in quadrant C | 3,100,914 | 379,638 |
| Events in quadrant D | 3,300,446 | 364,038 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 126 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13151 | 3 |
| B | 0 | 13455 | 2 |
| C | 0 | 12978 | 2 |
| D | 0 | 13662 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6164 | 53 | 0.859831% |
| B | 6164 | 77 | 1.249189% |
| C | 6164 | 39 | 0.632706% |
| D | 6164 | 60 | 0.973394% |

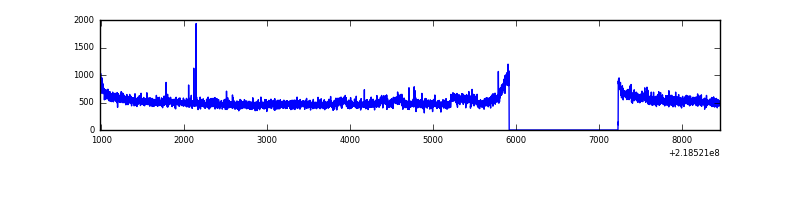

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7479 | 6165 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7479 | 6165 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7479 | 6165 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7479 | 6165 | 9 | 9 | 0.12% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 69208 | 424.1 | 806 | 794 | 161.3 |
| A | 8 | 15 | 11678 | 67.47 | 806 | 794 | 161.3 |
| A | 0 | 226 | 7865 | 43.83 | 806 | 794 | 161.3 |
| B | 4 | 81 | 57434 | 365.93 | 817 | 801 | 154.8 |
| B | 8 | 3 | 29329 | 184.33 | 817 | 801 | 154.8 |
| B | 0 | 219 | 20948 | 130.18 | 817 | 801 | 154.8 |
| C | 1 | 16 | 31540 | 169.52 | 783 | 790 | 181.4 |
| C | 8 | 208 | 6046 | 28.98 | 783 | 790 | 181.4 |
| C | 13 | 61 | 6045 | 28.97 | 783 | 790 | 181.4 |
| D | 2 | 152 | 226165 | 1185.33 | 778 | 755 | 190.2 |
| D | 11 | 241 | 96149 | 501.64 | 778 | 755 | 190.2 |
| D | 5 | 97 | 18805 | 94.92 | 778 | 755 | 190.2 |

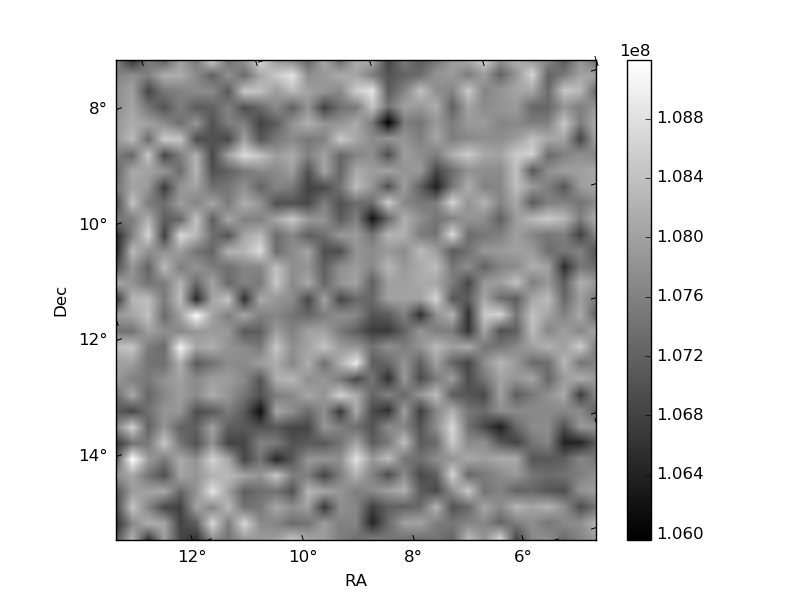

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

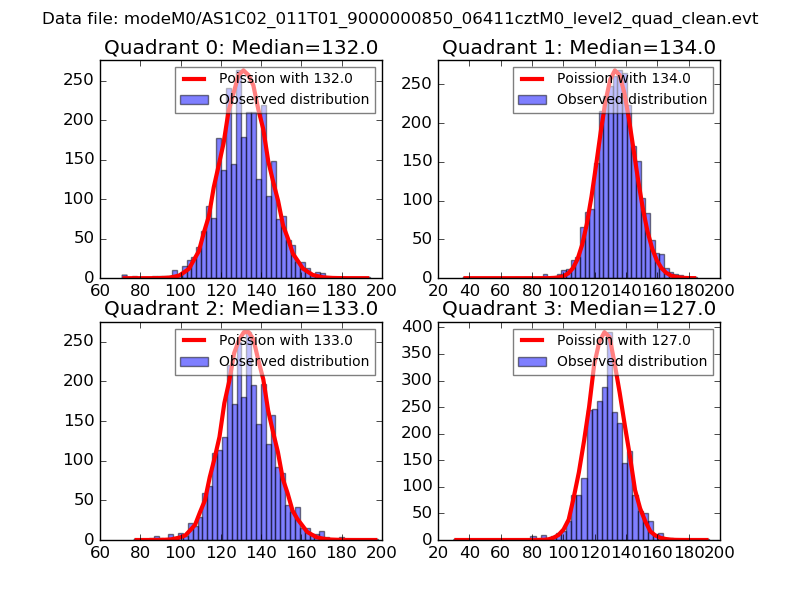

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

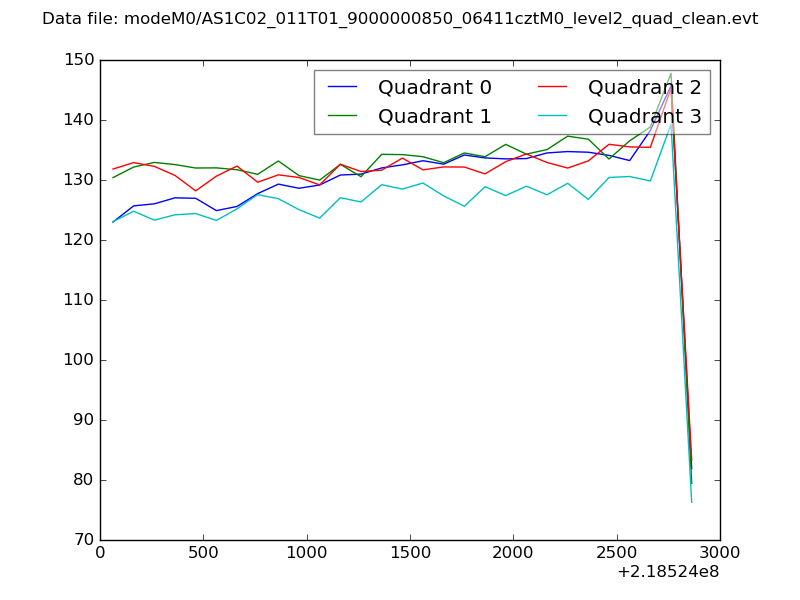

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

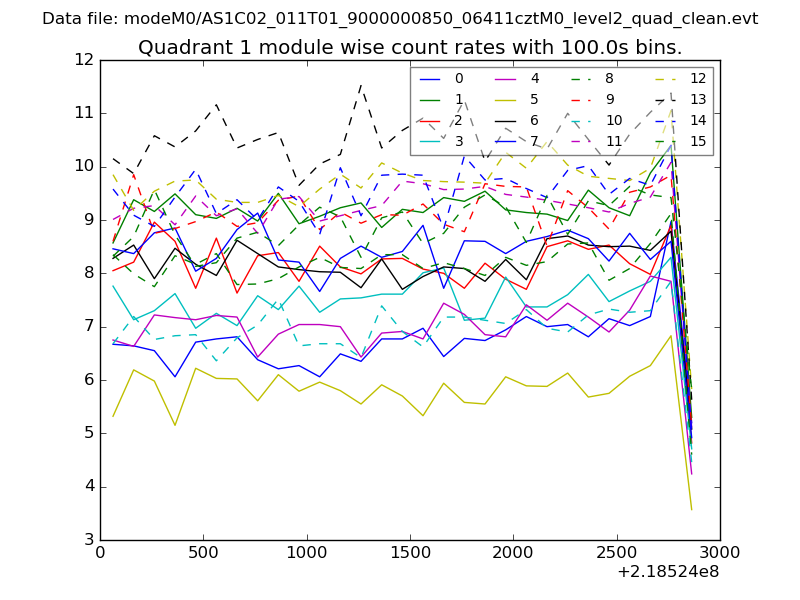

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

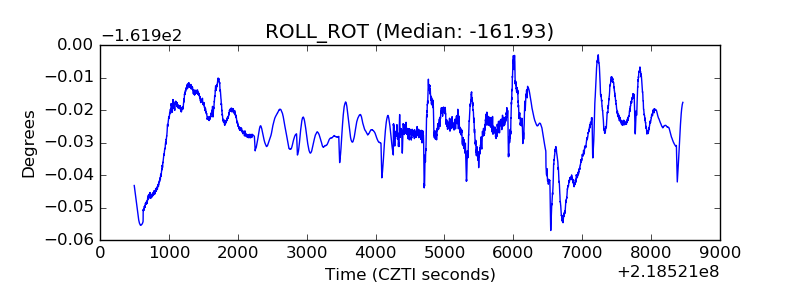

| _ROLL_ROT |  |
| _Roll_DEC |  |

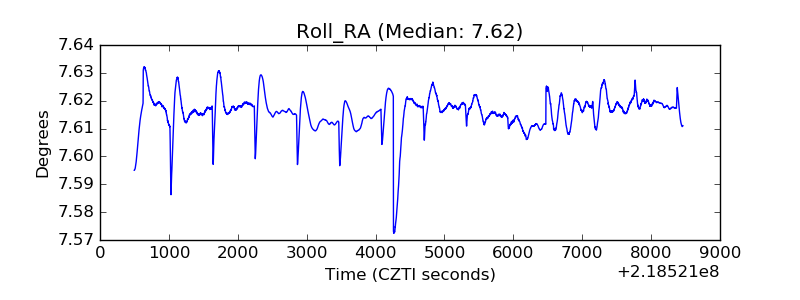

| _Roll_RA |  |
| Veto Counter |  |
