| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_011T01_9000000850_06417cztM0_level2.evt | modeM0/AS1C02_011T01_9000000850_06417cztM0_level2_quad_clean.evt |
| Size (bytes) | 577,488,960 | 92,001,600 |
| Size | 550.7 MB | 87.7 MB |
| Events in quadrant A | 3,613,912 | 583,428 |
| Events in quadrant B | 3,553,918 | 596,591 |
| Events in quadrant C | 3,287,478 | 593,427 |
| Events in quadrant D | 6,545,062 | 510,542 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15634 | 2 |
| B | 0 | 15295 | 1 |
| C | 0 | 14958 | 1 |
| D | 0 | 24201 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7203 | 132 | 1.832570% |
| B | 7203 | 126 | 1.749271% |
| C | 7203 | 40 | 0.555324% |
| D | 7203 | 1064 | 14.771623% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7403 | 7205 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7403 | 7205 | 3 | 3 | 0.04% | 0.04% |  |
| C | 7403 | 7205 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7403 | 7205 | 1020 | 1020 | 13.78% | 14.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 278548 | 1571.51 | 856 | 836 | 176.7 |
| A | 15 | 236 | 31552 | 173.81 | 856 | 836 | 176.7 |
| A | 3 | 1 | 8771 | 44.9 | 856 | 836 | 176.7 |
| B | 15 | 204 | 70497 | 414.51 | 863 | 844 | 168.0 |
| B | 4 | 81 | 53215 | 311.66 | 863 | 844 | 168.0 |
| B | 0 | 219 | 23120 | 132.56 | 863 | 844 | 168.0 |
| C | 8 | 208 | 36815 | 184.73 | 832 | 837 | 194.8 |
| C | 13 | 61 | 6668 | 29.94 | 832 | 837 | 194.8 |
| C | 8 | 222 | 4644 | 19.55 | 832 | 837 | 194.8 |
| D | 13 | 105 | 2879796 | 14475.01 | 792 | 765 | 198.9 |
| D | 7 | 55 | 211663 | 1060.34 | 792 | 765 | 198.9 |
| D | 2 | 152 | 148425 | 742.4 | 792 | 765 | 198.9 |

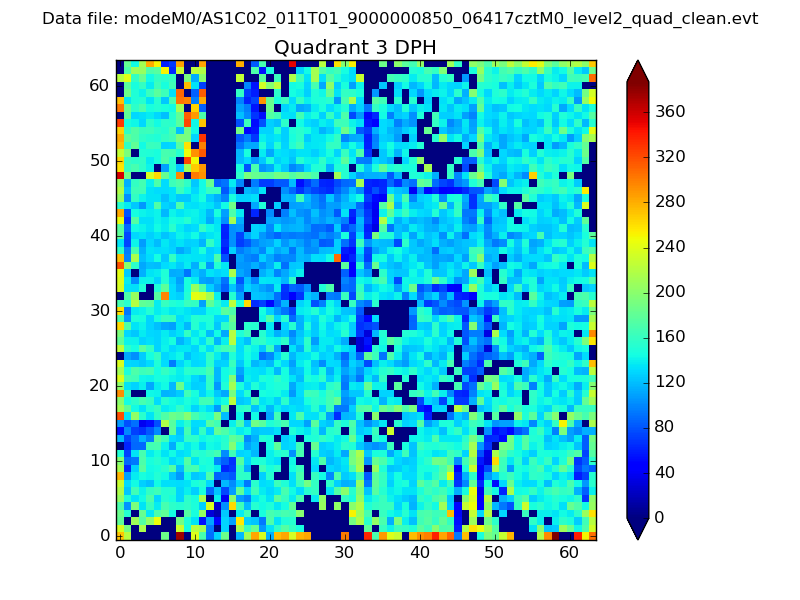

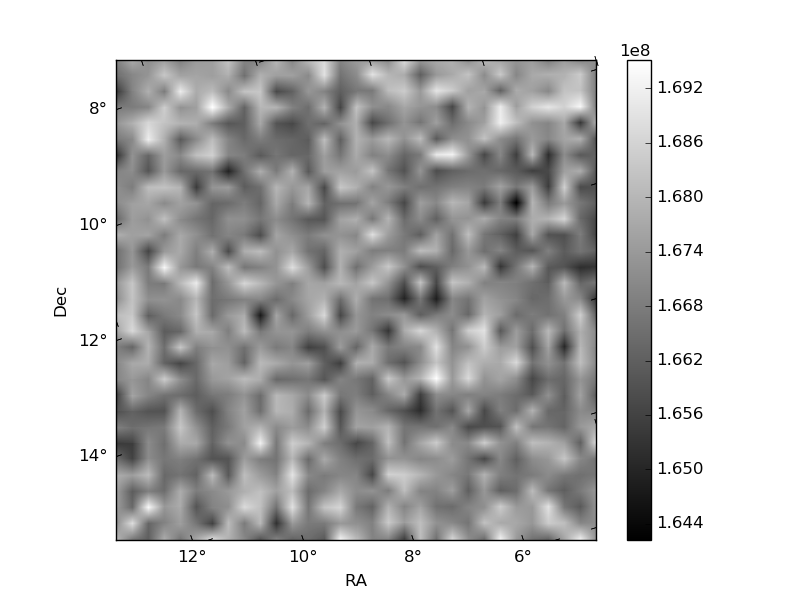

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

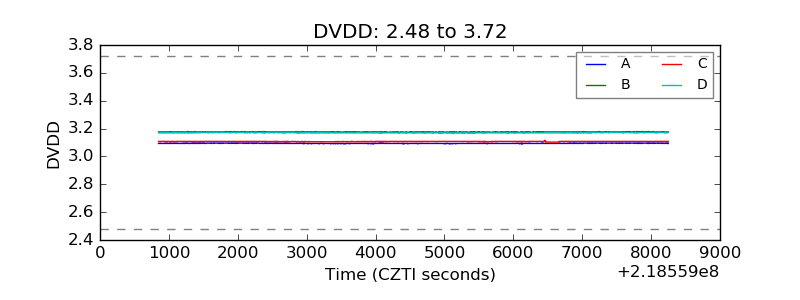

| D_VDD |  |

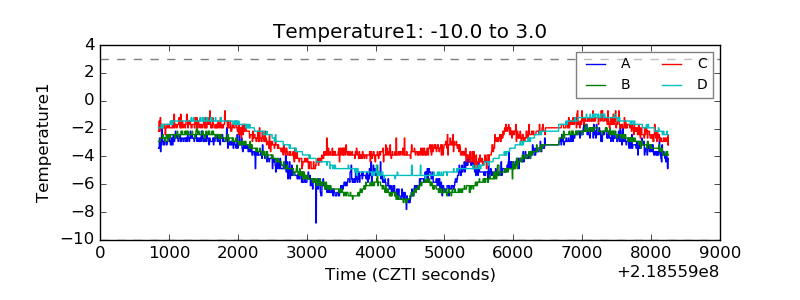

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

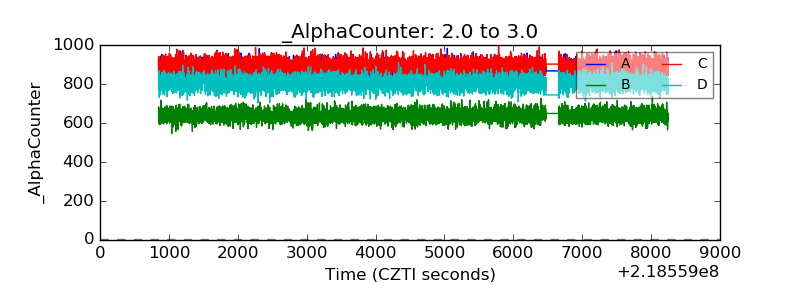

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

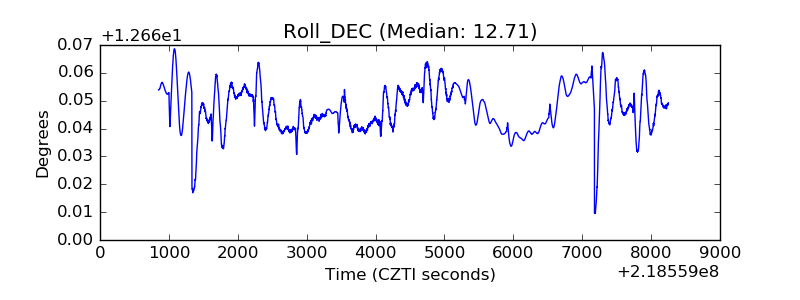

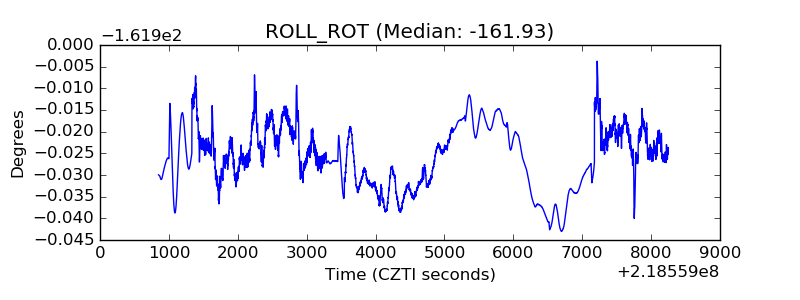

| _ROLL_ROT |  |
| _Roll_DEC |  |

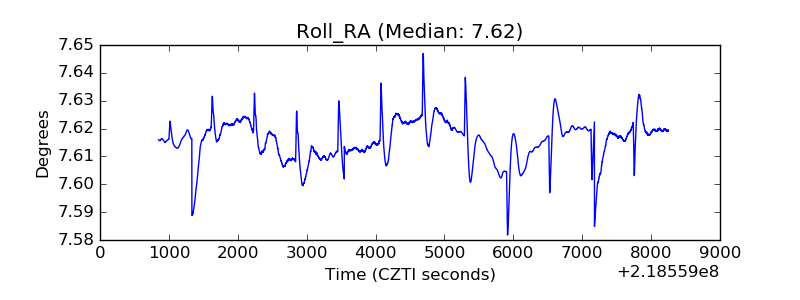

| _Roll_RA |  |
| Veto Counter |  |
