| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_191T02_9000000852_06420cztM0_level2.evt | modeM0/AS1A02_191T02_9000000852_06420cztM0_level2_quad_clean.evt |
| Size (bytes) | 430,957,440 | 79,076,160 |
| Size | 411.0 MB | 75.4 MB |
| Events in quadrant A | 3,135,905 | 479,730 |
| Events in quadrant B | 3,196,107 | 495,079 |
| Events in quadrant C | 3,032,473 | 480,660 |
| Events in quadrant D | 3,222,601 | 463,325 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14050 | 3 |
| B | 0 | 14047 | 2 |
| C | 0 | 13850 | 2 |
| D | 0 | 14447 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6829 | 38 | 0.556450% |
| B | 6829 | 40 | 0.585737% |
| C | 6829 | 29 | 0.424660% |
| D | 6829 | 35 | 0.512520% |

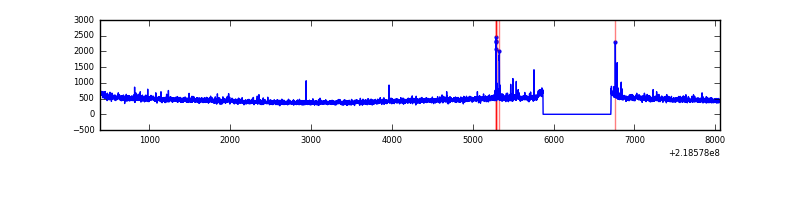

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7669 | 6830 | 6 | 6 | 0.08% | 0.09% |  |
| B | 7669 | 6830 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7669 | 6830 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7669 | 6830 | 4 | 4 | 0.05% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 61701 | 375.08 | 790 | 771 | 162.4 |
| A | 13 | 251 | 22200 | 131.92 | 790 | 771 | 162.4 |
| A | 0 | 226 | 7565 | 41.82 | 790 | 771 | 162.4 |
| B | 4 | 81 | 41599 | 265.29 | 799 | 779 | 153.9 |
| B | 8 | 3 | 21118 | 132.18 | 799 | 779 | 153.9 |
| B | 12 | 111 | 15360 | 94.76 | 799 | 779 | 153.9 |
| C | 9 | 54 | 14651 | 77.4 | 772 | 774 | 179.3 |
| C | 13 | 61 | 5989 | 29.09 | 772 | 774 | 179.3 |
| C | 8 | 222 | 3575 | 15.62 | 772 | 774 | 179.3 |
| D | 2 | 152 | 72586 | 381.36 | 771 | 746 | 188.4 |
| D | 11 | 241 | 59641 | 312.64 | 771 | 746 | 188.4 |
| D | 2 | 136 | 59237 | 310.5 | 771 | 746 | 188.4 |

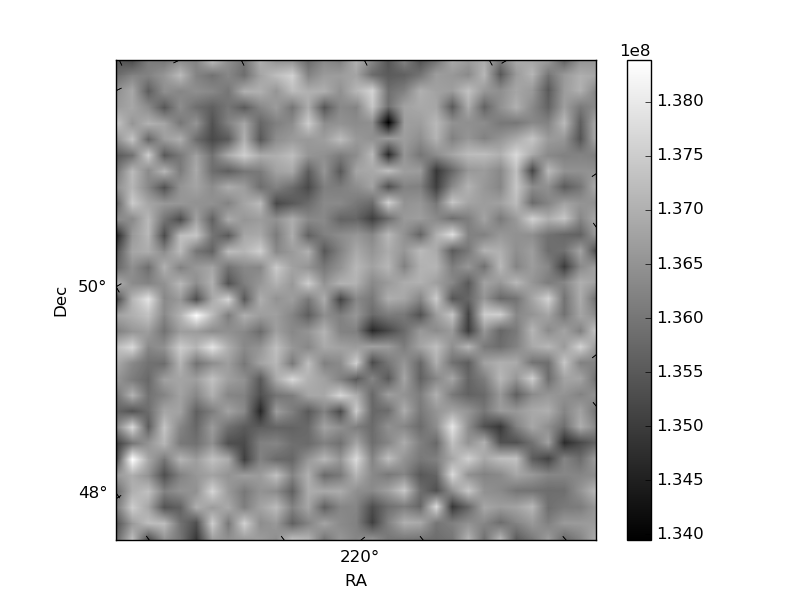

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

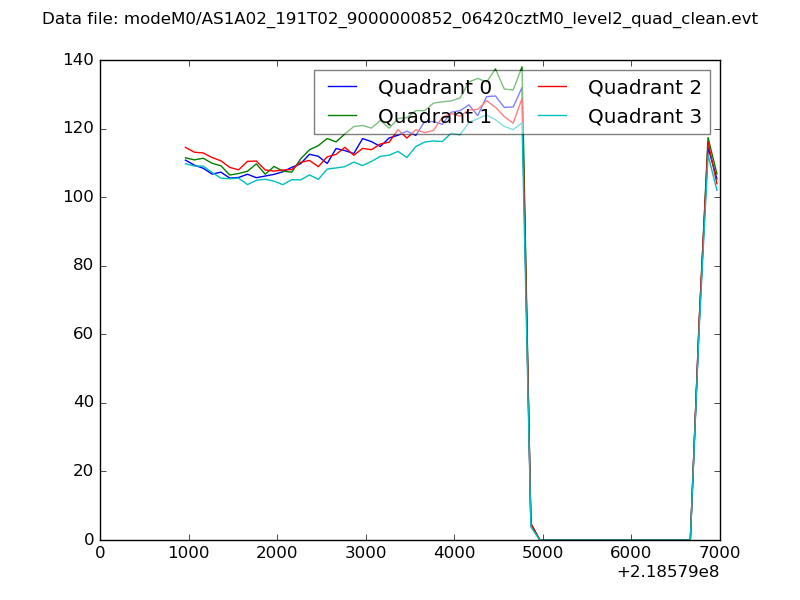

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

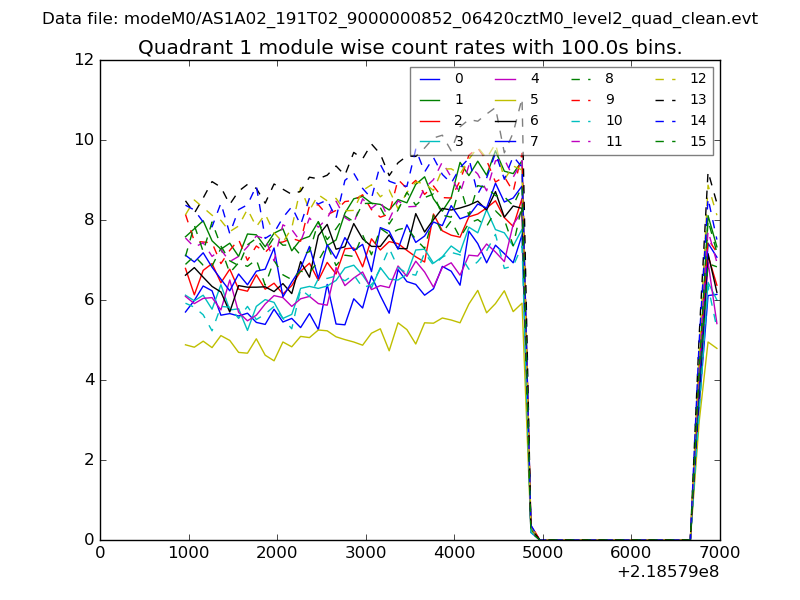

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

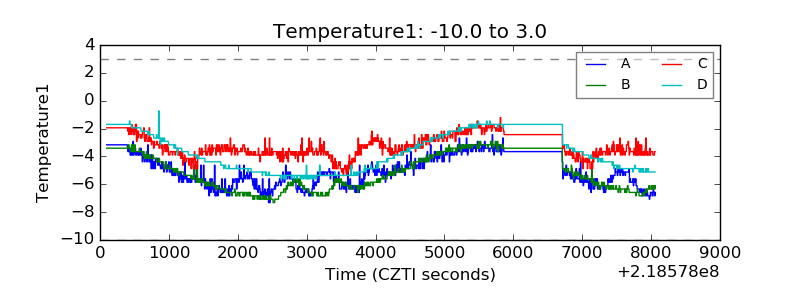

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

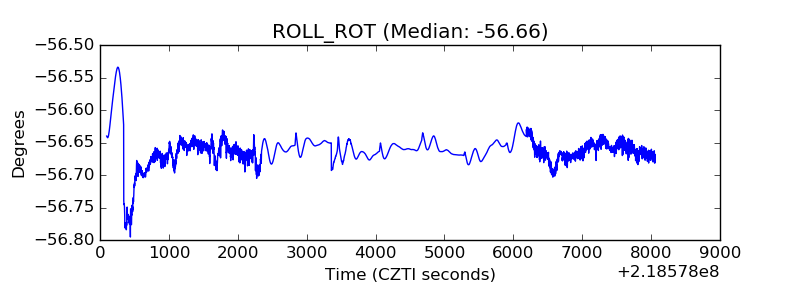

| _ROLL_ROT |  |

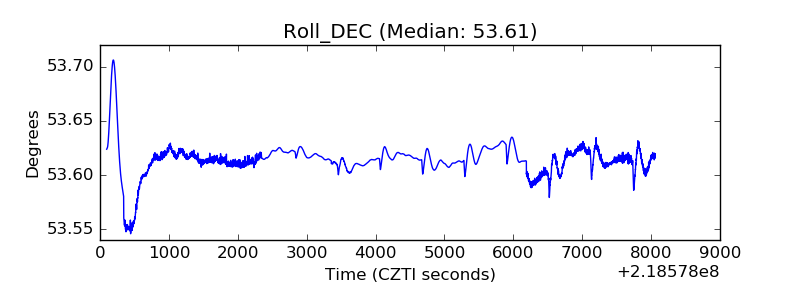

| _Roll_DEC |  |
| _Roll_RA |  |

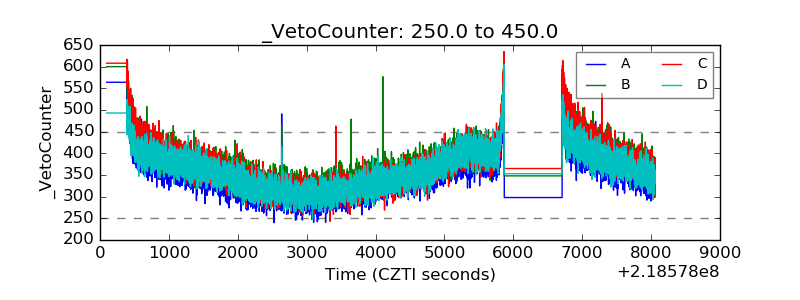

| Veto Counter |  |
