| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_191T02_9000000852_06427cztM0_level2.evt | modeM0/AS1A02_191T02_9000000852_06427cztM0_level2_quad_clean.evt |
| Size (bytes) | 412,125,120 | 85,083,840 |
| Size | 393.0 MB | 81.1 MB |
| Events in quadrant A | 2,824,434 | 544,889 |
| Events in quadrant B | 2,886,026 | 566,742 |
| Events in quadrant C | 2,754,791 | 534,611 |
| Events in quadrant D | 3,600,143 | 503,592 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12523 | 2 |
| B | 0 | 12610 | 1 |
| C | 0 | 12543 | 1 |
| D | 0 | 14902 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6113 | 85 | 1.390479% |
| B | 6113 | 82 | 1.341404% |
| C | 6113 | 38 | 0.621626% |
| D | 6113 | 84 | 1.374121% |

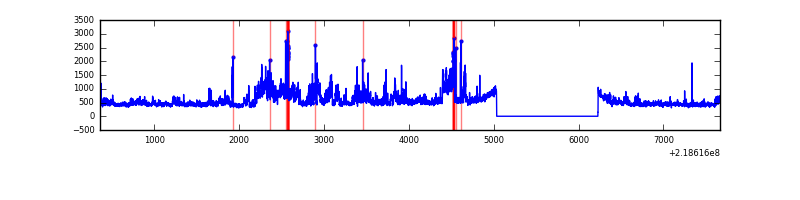

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7308 | 6114 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7308 | 6114 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7308 | 6114 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7308 | 6114 | 28 | 28 | 0.38% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 7480 | 45.97 | 729 | 712 | 147.2 |
| A | 0 | 226 | 6962 | 42.46 | 729 | 712 | 147.2 |
| A | 12 | 194 | 6922 | 42.18 | 729 | 712 | 147.2 |
| B | 4 | 81 | 17069 | 117.6 | 735 | 717 | 139.1 |
| B | 12 | 111 | 14049 | 95.88 | 735 | 717 | 139.1 |
| B | 0 | 219 | 11953 | 80.81 | 735 | 717 | 139.1 |
| C | 1 | 16 | 16058 | 96.19 | 698 | 701 | 159.6 |
| C | 9 | 54 | 15385 | 91.98 | 698 | 701 | 159.6 |
| C | 13 | 61 | 5570 | 30.5 | 698 | 701 | 159.6 |
| D | 11 | 241 | 700116 | 4100.82 | 697 | 675 | 170.6 |
| D | 2 | 152 | 159090 | 928.79 | 697 | 675 | 170.6 |
| D | 2 | 14 | 43965 | 253.81 | 697 | 675 | 170.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

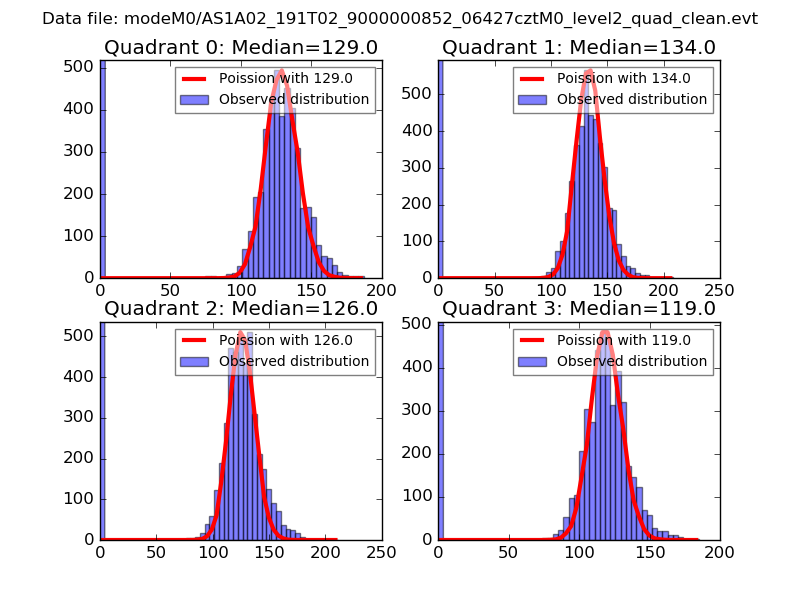

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

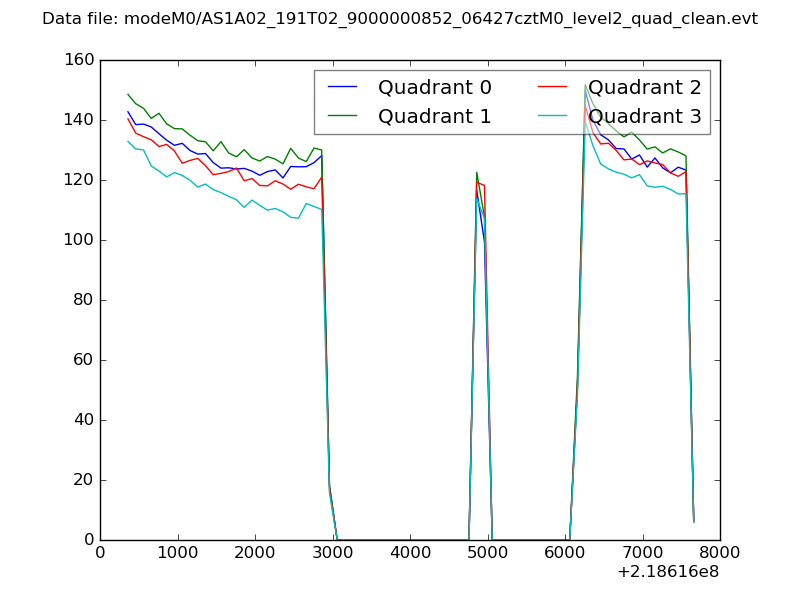

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

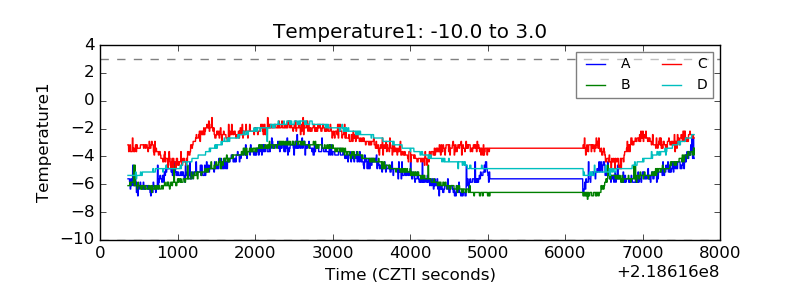

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

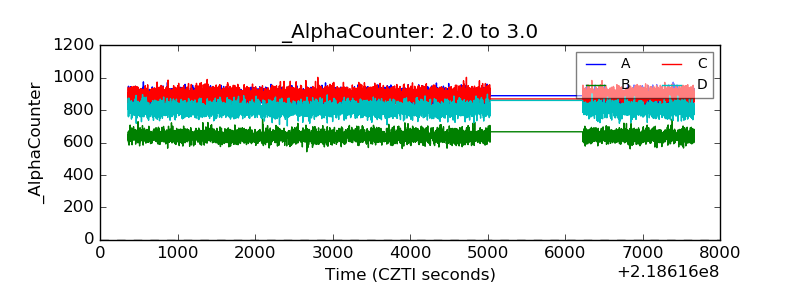

| Alpha Counter |  |

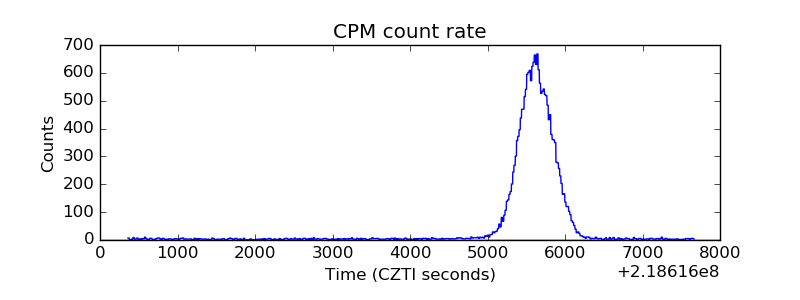

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

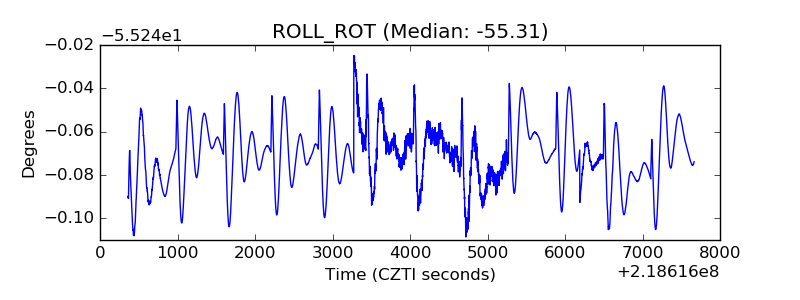

| _ROLL_ROT |  |

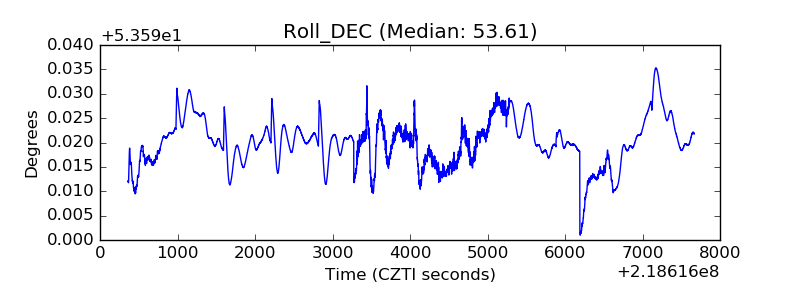

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
