| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_191T02_9000000852_06431cztM0_level2.evt | modeM0/AS1A02_191T02_9000000852_06431cztM0_level2_quad_clean.evt |
| Size (bytes) | 483,462,720 | 92,897,280 |
| Size | 461.1 MB | 88.6 MB |
| Events in quadrant A | 3,366,891 | 580,170 |
| Events in quadrant B | 3,499,868 | 596,524 |
| Events in quadrant C | 3,240,768 | 573,031 |
| Events in quadrant D | 4,030,046 | 547,284 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 152 | 0 |
| B | 0 | 152 | 0 |
| C | 0 | 152 | 0 |
| D | 0 | 152 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15300 | 2 |
| B | 0 | 15368 | 1 |
| C | 0 | 15067 | 1 |
| D | 0 | 17070 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7420 | 73 | 0.983827% |
| B | 7420 | 97 | 1.307278% |
| C | 7420 | 58 | 0.781671% |
| D | 7420 | 109 | 1.469003% |

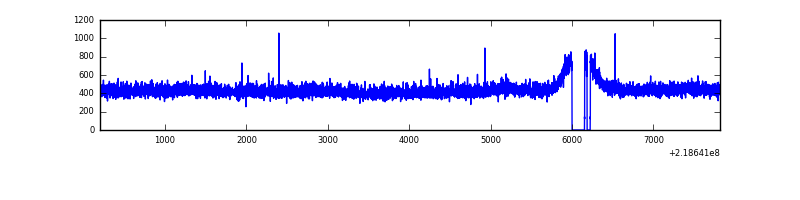

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7615 | 7422 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7615 | 7422 | 13 | 13 | 0.17% | 0.18% |  |
| C | 7615 | 7422 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7615 | 7422 | 27 | 27 | 0.35% | 0.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 239 | 56814 | 320.75 | 852 | 832 | 174.5 |
| A | 10 | 133 | 8555 | 44.25 | 852 | 832 | 174.5 |
| A | 0 | 226 | 8281 | 42.68 | 852 | 832 | 174.5 |
| B | 0 | 219 | 52095 | 312.44 | 859 | 838 | 164.1 |
| B | 4 | 81 | 42039 | 251.14 | 859 | 838 | 164.1 |
| B | 15 | 204 | 38887 | 231.93 | 859 | 838 | 164.1 |
| C | 8 | 128 | 15427 | 76.29 | 823 | 826 | 191.4 |
| C | 8 | 112 | 7045 | 32.49 | 823 | 826 | 191.4 |
| C | 13 | 61 | 6509 | 29.69 | 823 | 826 | 191.4 |
| D | 11 | 241 | 262825 | 1301.82 | 823 | 793 | 201.3 |
| D | 2 | 152 | 190681 | 943.39 | 823 | 793 | 201.3 |
| D | 13 | 105 | 132854 | 656.1 | 823 | 793 | 201.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

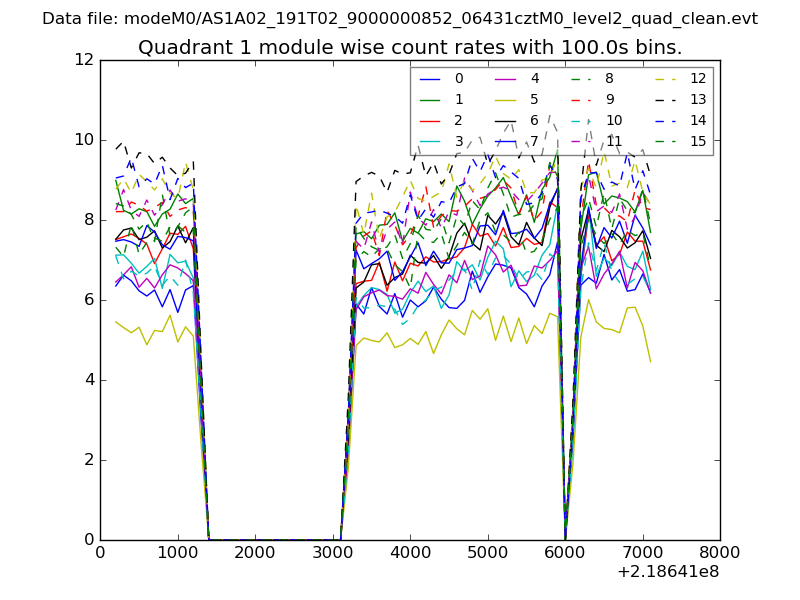

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

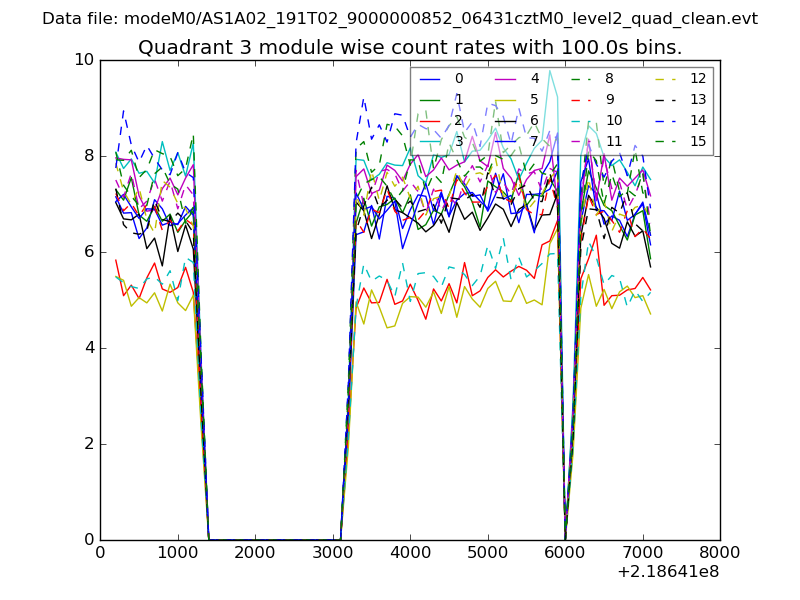

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

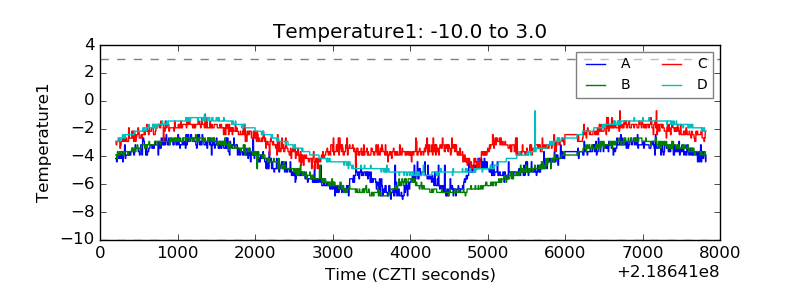

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

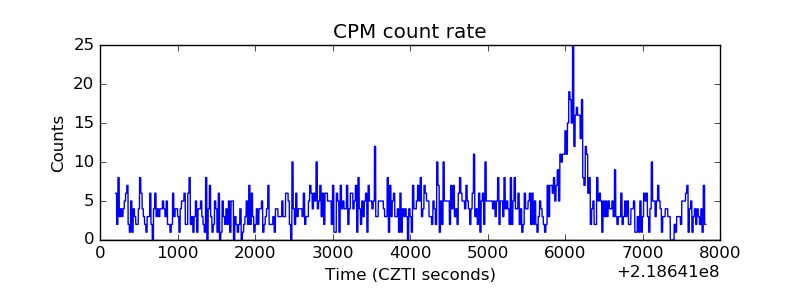

| _CPM_Rate |  |

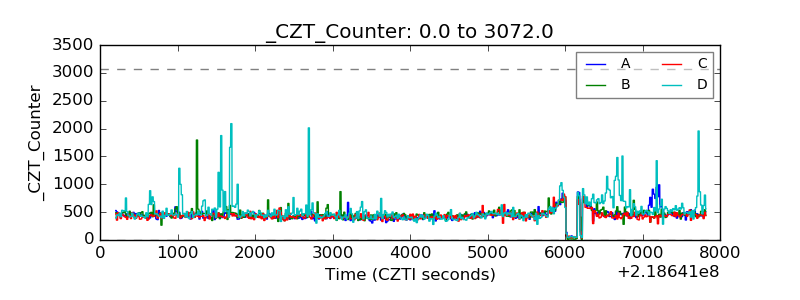

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

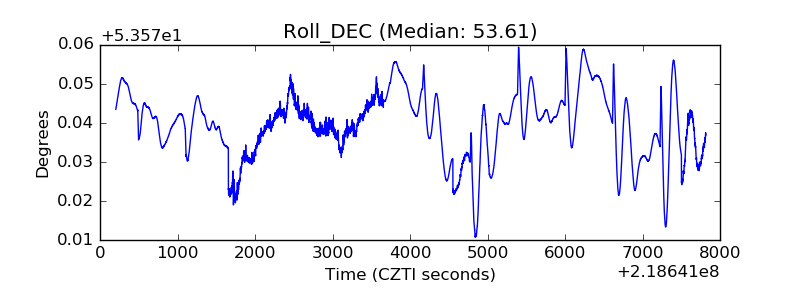

| _Roll_DEC |  |
| _Roll_RA |  |

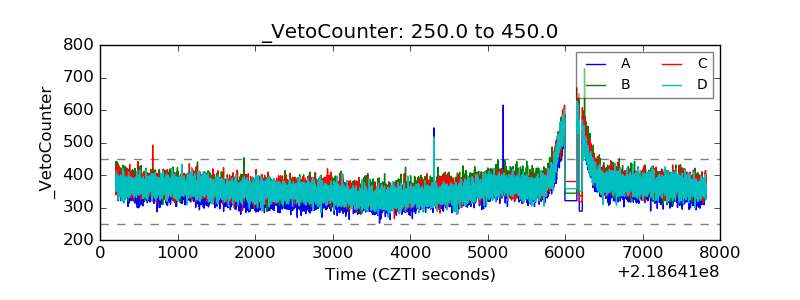

| Veto Counter |  |
