| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_191T01_9000000854_06446cztM0_level2.evt | modeM0/AS1A02_191T01_9000000854_06446cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,042,880 | 85,907,520 |
| Size | 434.0 MB | 81.9 MB |
| Events in quadrant A | 3,230,004 | 531,800 |
| Events in quadrant B | 3,417,818 | 545,088 |
| Events in quadrant C | 3,158,789 | 523,295 |
| Events in quadrant D | 3,486,251 | 501,416 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14616 | 2 |
| B | 0 | 14908 | 1 |
| C | 0 | 14601 | 1 |
| D | 0 | 15220 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7184 | 62 | 0.863029% |
| B | 7184 | 72 | 1.002227% |
| C | 7184 | 45 | 0.626392% |
| D | 7184 | 60 | 0.835189% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7439 | 7186 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7439 | 7186 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7439 | 7186 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7439 | 7186 | 3 | 3 | 0.04% | 0.04% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 10 | 133 | 12849 | 70.41 | 831 | 810 | 171.0 |
| A | 8 | 15 | 10900 | 59.01 | 831 | 810 | 171.0 |
| A | 12 | 194 | 7946 | 41.74 | 831 | 810 | 171.0 |
| B | 0 | 228 | 73847 | 453.38 | 836 | 815 | 161.1 |
| B | 15 | 204 | 69911 | 428.94 | 836 | 815 | 161.1 |
| B | 4 | 81 | 22219 | 132.87 | 836 | 815 | 161.1 |
| C | 10 | 170 | 10706 | 52.96 | 801 | 804 | 187.0 |
| C | 8 | 222 | 9413 | 46.04 | 801 | 804 | 187.0 |
| C | 13 | 61 | 6374 | 29.79 | 801 | 804 | 187.0 |
| D | 2 | 136 | 83669 | 421.69 | 804 | 778 | 196.6 |
| D | 2 | 63 | 78360 | 394.68 | 804 | 778 | 196.6 |
| D | 14 | 173 | 60945 | 306.08 | 804 | 778 | 196.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

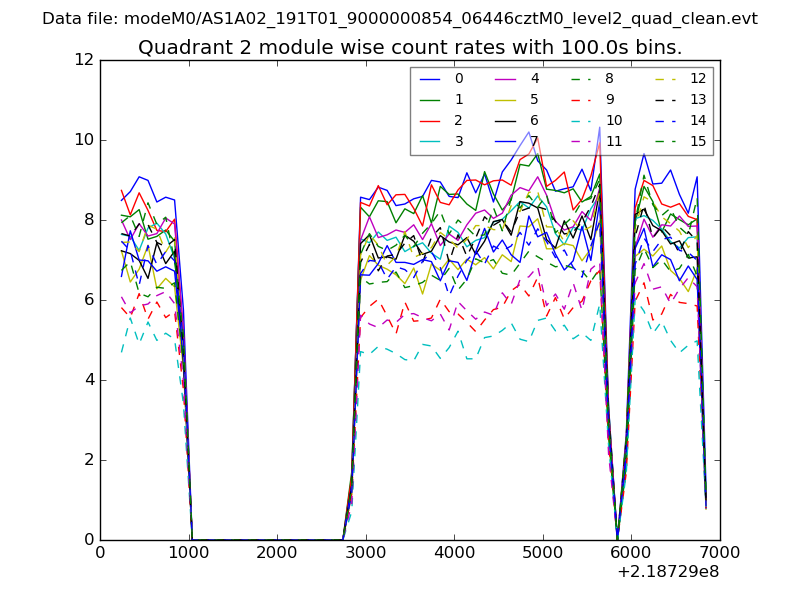

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

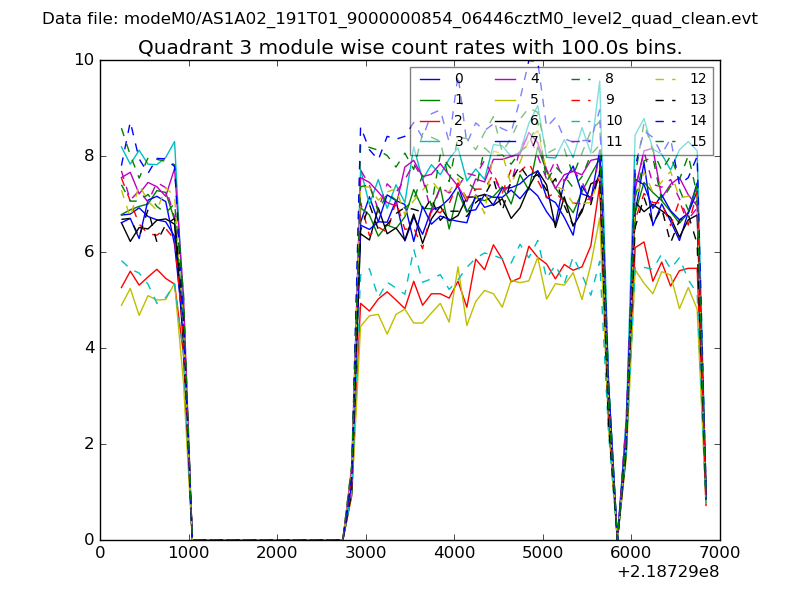

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

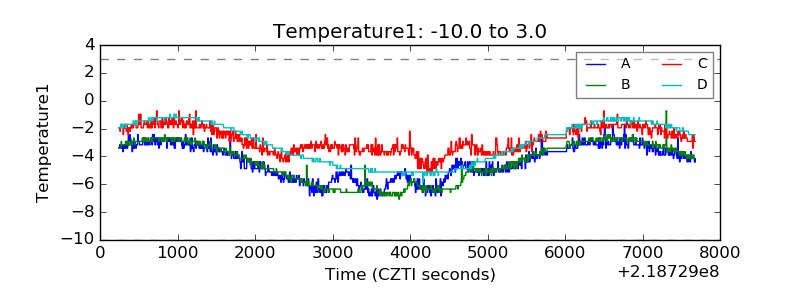

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

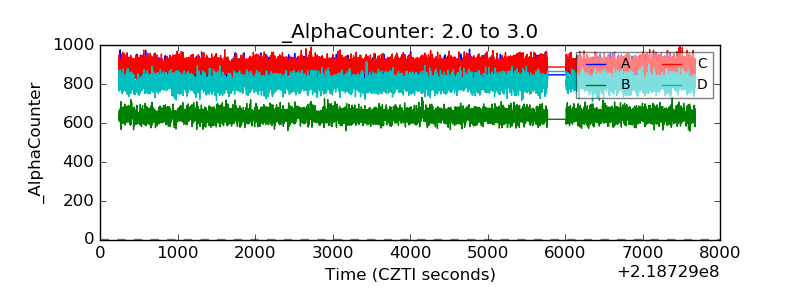

| Alpha Counter |  |

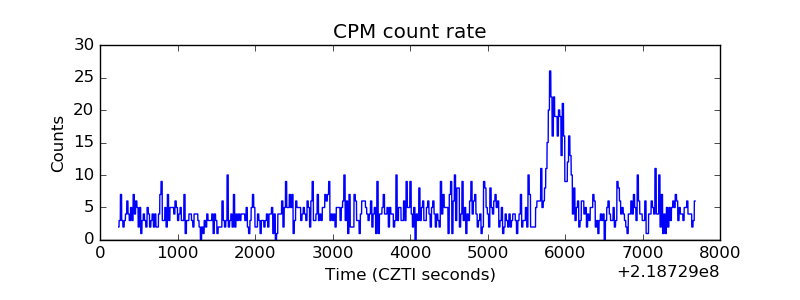

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

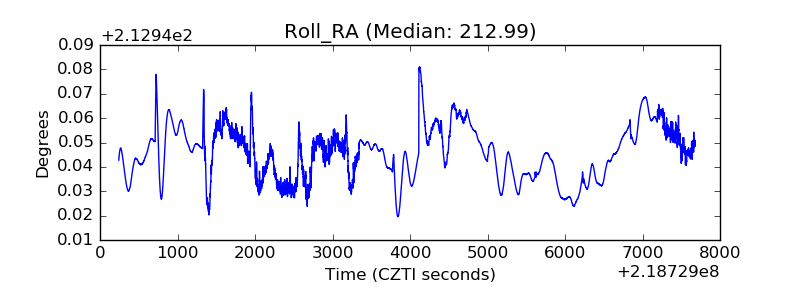

| _Roll_RA |  |

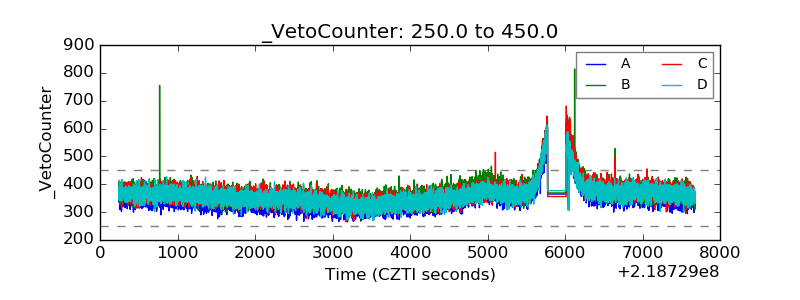

| Veto Counter |  |
