| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_191T01_9000000854_06455cztM0_level2.evt | modeM0/AS1A02_191T01_9000000854_06455cztM0_level2_quad_clean.evt |
| Size (bytes) | 459,915,840 | 103,147,200 |
| Size | 438.6 MB | 98.4 MB |
| Events in quadrant A | 3,069,966 | 678,671 |
| Events in quadrant B | 3,143,886 | 701,330 |
| Events in quadrant C | 2,963,050 | 663,353 |
| Events in quadrant D | 4,308,948 | 625,940 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13377 | 3 |
| B | 0 | 13595 | 2 |
| C | 0 | 13381 | 2 |
| D | 0 | 17308 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6512 | 35 | 0.537469% |
| B | 6512 | 53 | 0.813882% |
| C | 6512 | 6 | 0.092138% |
| D | 6512 | 75 | 1.151720% |

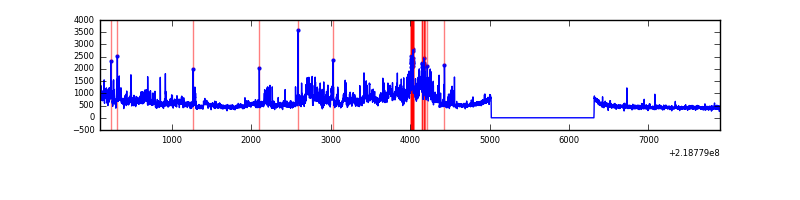

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7807 | 6513 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7807 | 6513 | 5 | 5 | 0.06% | 0.08% |  |
| C | 7807 | 6513 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7807 | 6513 | 34 | 34 | 0.44% | 0.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 19655 | 119.79 | 784 | 770 | 157.7 |
| A | 13 | 14 | 12368 | 73.57 | 784 | 770 | 157.7 |
| A | 15 | 236 | 8944 | 51.85 | 784 | 770 | 157.7 |
| B | 4 | 81 | 33993 | 221.46 | 794 | 776 | 150.0 |
| B | 0 | 229 | 22115 | 142.27 | 794 | 776 | 150.0 |
| B | 12 | 111 | 14855 | 93.87 | 794 | 776 | 150.0 |
| C | 9 | 54 | 21624 | 121.55 | 747 | 752 | 171.7 |
| C | 1 | 16 | 15053 | 83.28 | 747 | 752 | 171.7 |
| C | 14 | 67 | 7320 | 38.25 | 747 | 752 | 171.7 |
| D | 2 | 63 | 1300073 | 7138.08 | 743 | 718 | 182.0 |
| D | 2 | 152 | 82075 | 446.94 | 743 | 718 | 182.0 |
| D | 13 | 105 | 61526 | 334.05 | 743 | 718 | 182.0 |

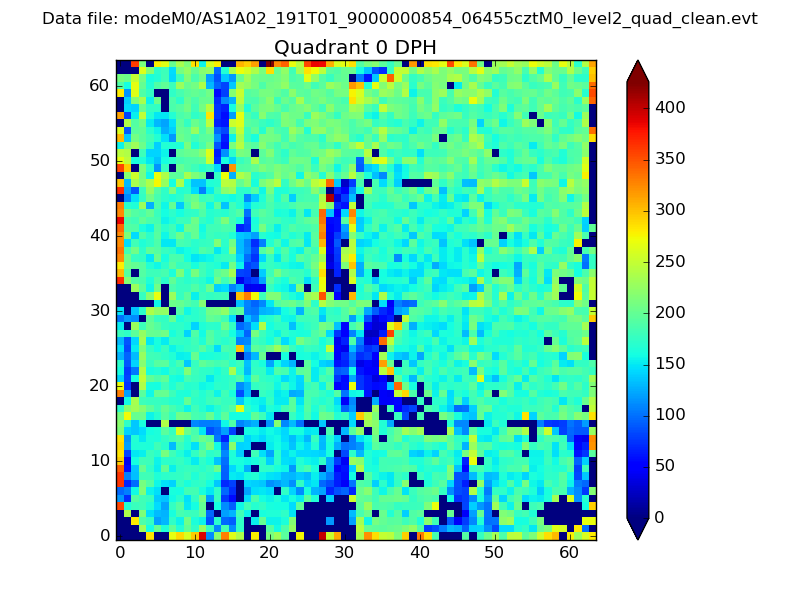

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

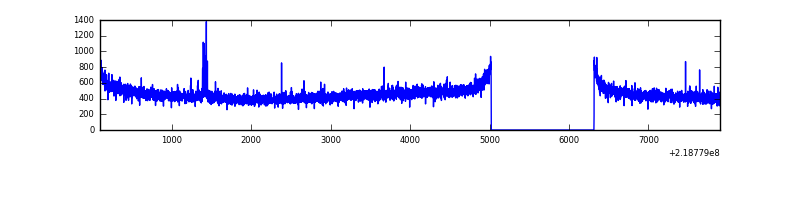

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

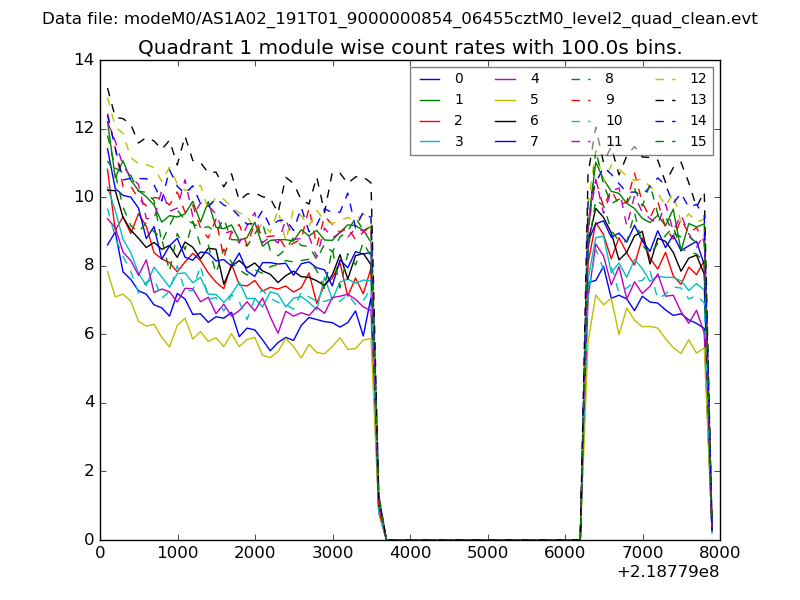

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

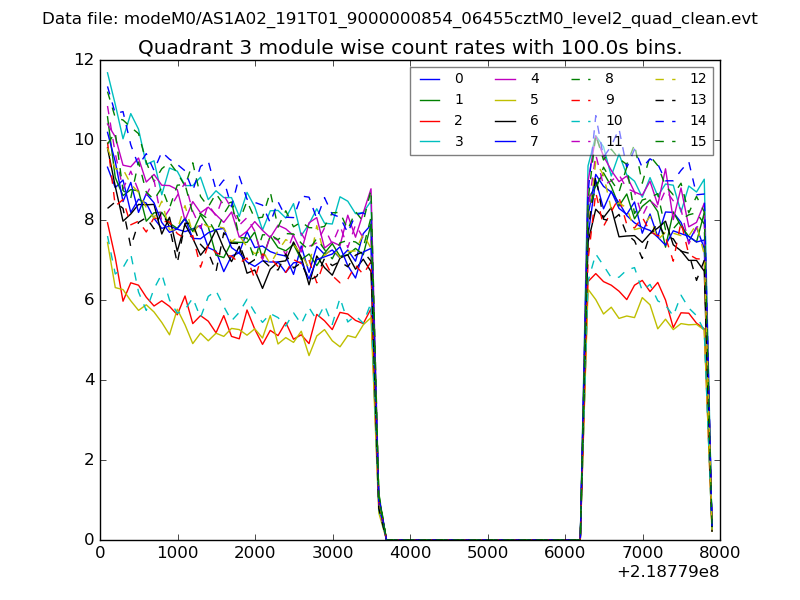

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

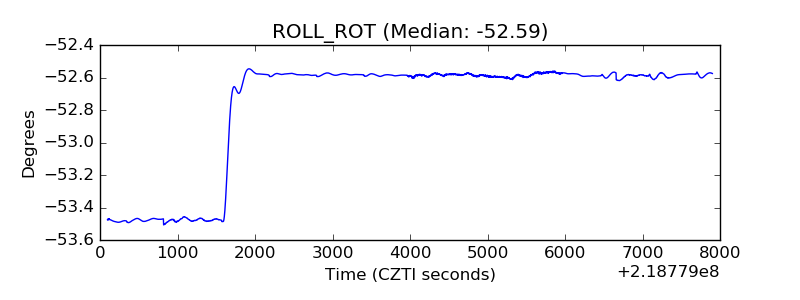

| _ROLL_ROT |  |

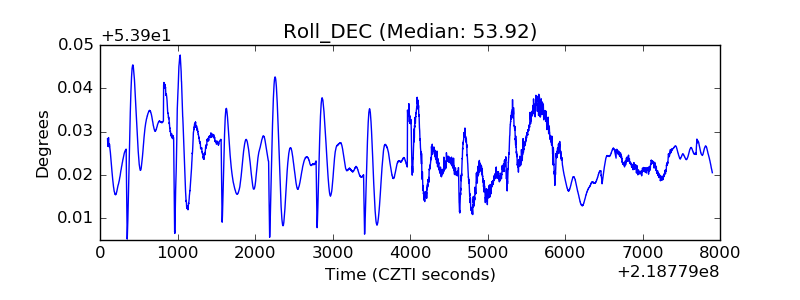

| _Roll_DEC |  |

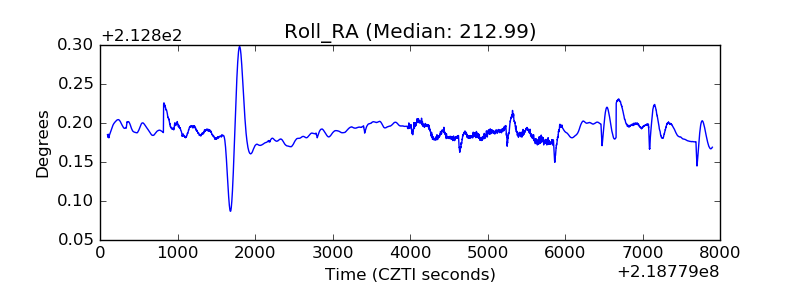

| _Roll_RA |  |
| Veto Counter |  |
