| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_191T01_9000000854_06457cztM0_level2.evt | modeM0/AS1A02_191T01_9000000854_06457cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,412,017,920 | 288,100,800 |
| Size | 1.3 GB | 274.8 MB |
| Events in quadrant A | 9,904,777 | 1,853,519 |
| Events in quadrant B | 9,782,027 | 1,916,293 |
| Events in quadrant C | 9,302,029 | 1,815,790 |
| Events in quadrant D | 12,370,865 | 1,711,163 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 422 | 0 |
| B | 0 | 422 | 0 |
| C | 0 | 422 | 0 |
| D | 0 | 422 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 43431 | 4 |
| B | 0 | 42943 | 3 |
| C | 0 | 42498 | 3 |
| D | 0 | 51049 | 3 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 49 | 0 |
| B | 0 | 49 | 0 |
| C | 0 | 49 | 0 |
| D | 0 | 49 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 20767 | 233 | 1.121972% |
| B | 20767 | 183 | 0.881206% |
| C | 20767 | 42 | 0.202244% |
| D | 20767 | 250 | 1.203833% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 25602 | 20771 | 3 | 3 | 0.01% | 0.01% |  |
| B | 25602 | 20771 | 8 | 8 | 0.03% | 0.04% |  |
| C | 25602 | 20771 | 0 | 0 | 0.00% | 0.00% |  |
| D | 25602 | 20771 | 84 | 84 | 0.33% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 234 | 178468 | 356.8 | 2463 | 2410 | 493.4 |
| A | 15 | 239 | 118524 | 235.32 | 2463 | 2410 | 493.4 |
| A | 8 | 15 | 66939 | 130.78 | 2463 | 2410 | 493.4 |
| B | 0 | 229 | 61868 | 127.64 | 2483 | 2428 | 465.7 |
| B | 4 | 81 | 56195 | 115.46 | 2483 | 2428 | 465.7 |
| B | 12 | 111 | 47025 | 95.77 | 2483 | 2428 | 465.7 |
| C | 1 | 16 | 55951 | 99.62 | 2357 | 2367 | 537.9 |
| C | 9 | 54 | 26582 | 45.02 | 2357 | 2367 | 537.9 |
| C | 13 | 61 | 18658 | 30.29 | 2357 | 2367 | 537.9 |
| D | 2 | 63 | 2519618 | 4380.02 | 2355 | 2277 | 574.7 |
| D | 2 | 152 | 479954 | 831.13 | 2355 | 2277 | 574.7 |
| D | 8 | 195 | 125340 | 214.12 | 2355 | 2277 | 574.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

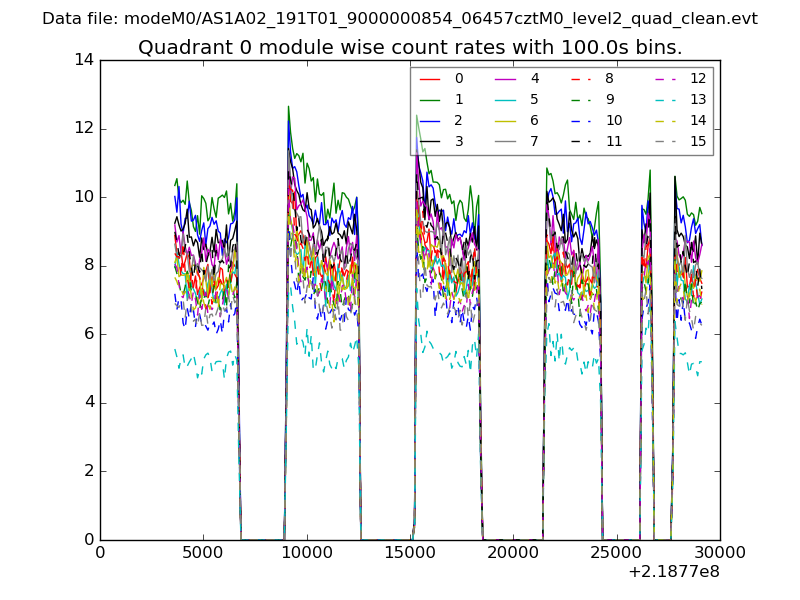

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

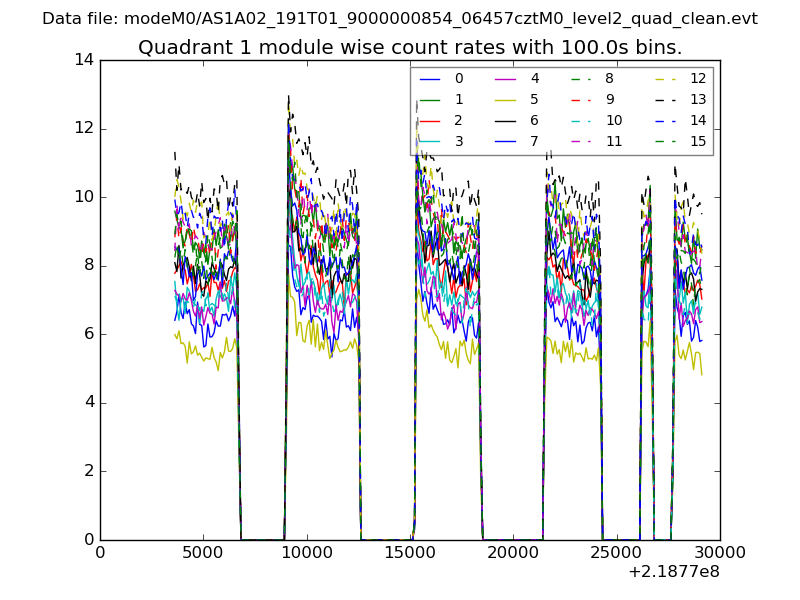

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

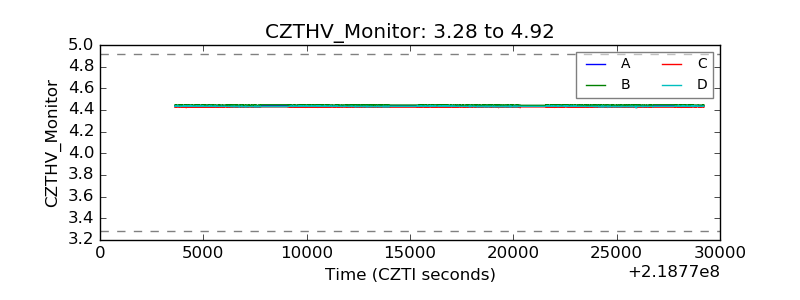

| CZT HV Monitor |  |

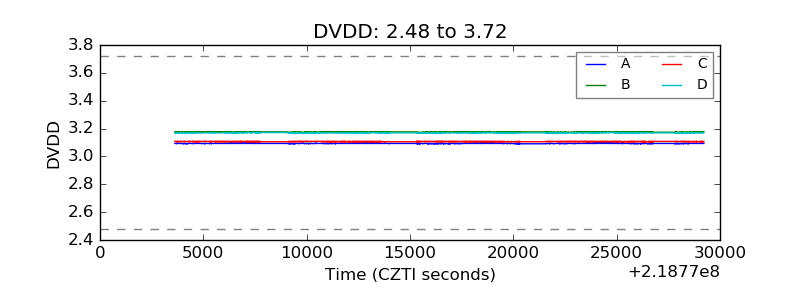

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

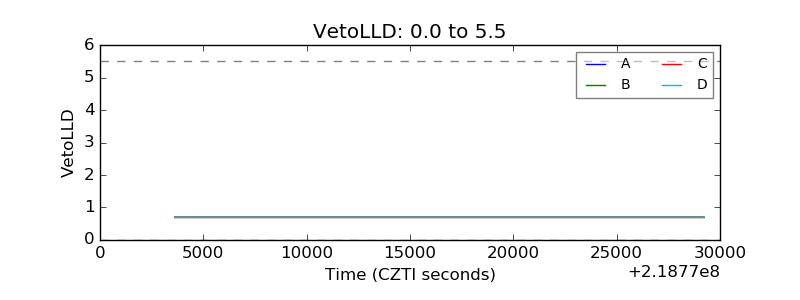

| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

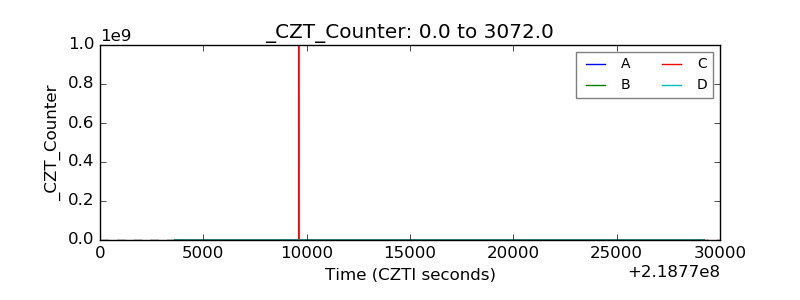

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

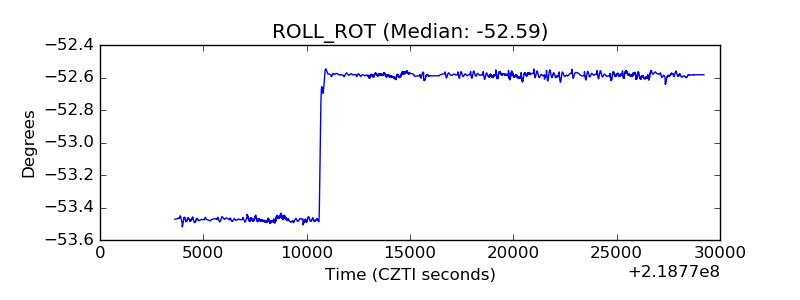

| _ROLL_ROT |  |
| _Roll_DEC |  |

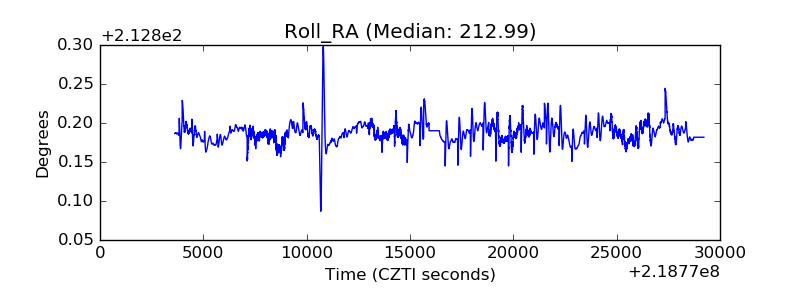

| _Roll_RA |  |
| Veto Counter |  |
