| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_139T02_9000000862_06467cztM0_level2.evt | modeM0/AS1G06_139T02_9000000862_06467cztM0_level2_quad_clean.evt |
| Size (bytes) | 456,471,360 | 82,002,240 |
| Size | 435.3 MB | 78.2 MB |
| Events in quadrant A | 3,436,116 | 510,570 |
| Events in quadrant B | 3,259,890 | 519,760 |
| Events in quadrant C | 3,069,164 | 503,583 |
| Events in quadrant D | 3,603,878 | 482,130 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14495 | 3 |
| B | 0 | 14044 | 2 |
| C | 0 | 13654 | 2 |
| D | 0 | 14981 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6700 | 27 | 0.402985% |
| B | 6700 | 26 | 0.388060% |
| C | 6700 | 10 | 0.149254% |
| D | 6700 | 34 | 0.507463% |

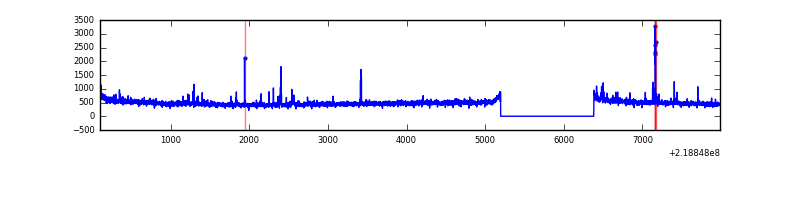

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7885 | 6701 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7885 | 6701 | 6 | 6 | 0.08% | 0.09% |  |
| C | 7885 | 6701 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7885 | 6701 | 14 | 14 | 0.18% | 0.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 337760 | 2068.14 | 797 | 781 | 162.9 |
| A | 8 | 15 | 21870 | 129.43 | 797 | 781 | 162.9 |
| A | 0 | 226 | 7469 | 41.05 | 797 | 781 | 162.9 |
| B | 15 | 35 | 28558 | 180.99 | 808 | 791 | 153.4 |
| B | 4 | 81 | 23442 | 147.65 | 808 | 791 | 153.4 |
| B | 15 | 204 | 21867 | 137.38 | 808 | 791 | 153.4 |
| C | 10 | 170 | 10005 | 50.79 | 779 | 783 | 181.6 |
| C | 12 | 4 | 7885 | 39.12 | 779 | 783 | 181.6 |
| C | 1 | 16 | 7587 | 37.48 | 779 | 783 | 181.6 |
| D | 8 | 195 | 306927 | 1615.48 | 775 | 750 | 189.5 |
| D | 2 | 152 | 212253 | 1115.95 | 775 | 750 | 189.5 |
| D | 13 | 105 | 40132 | 207.79 | 775 | 750 | 189.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

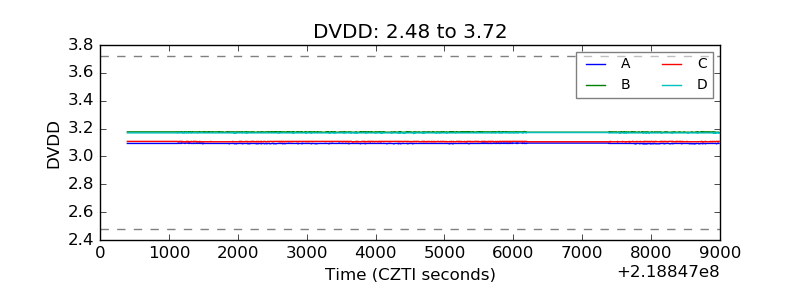

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

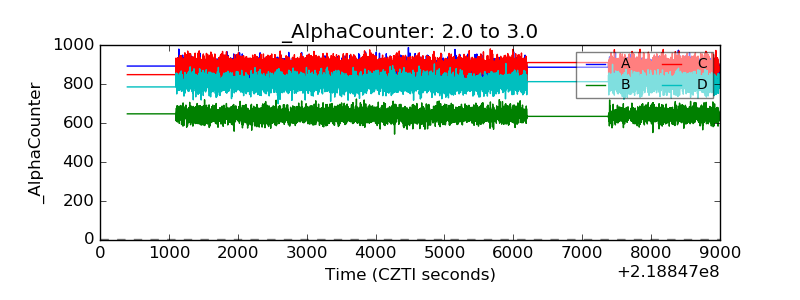

| Alpha Counter |  |

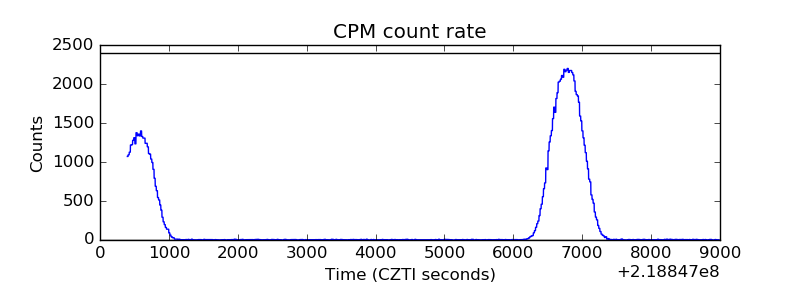

| _CPM_Rate |  |

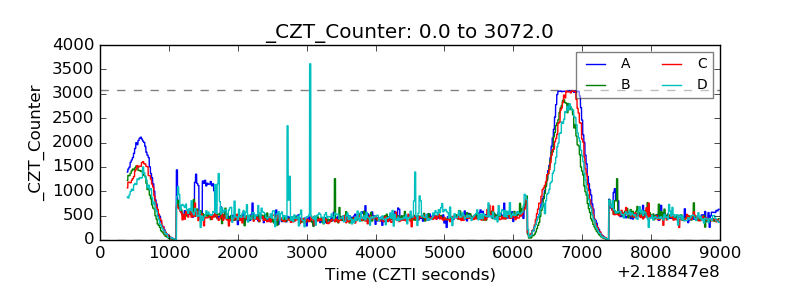

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

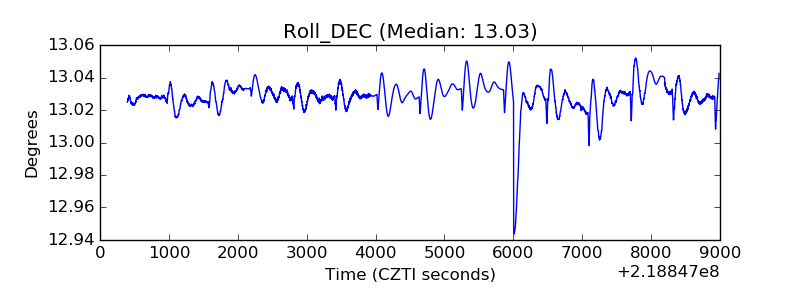

| _ROLL_ROT |  |
| _Roll_DEC |  |

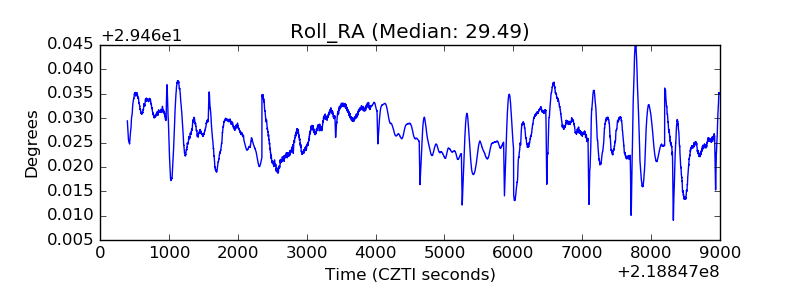

| _Roll_RA |  |

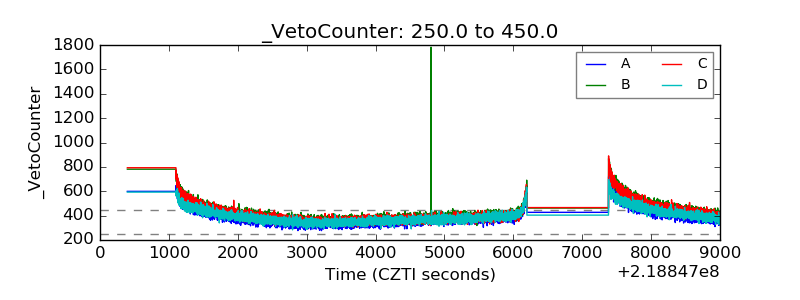

| Veto Counter |  |
