| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_139T02_9000000862_06473cztM0_level2.evt | modeM0/AS1G06_139T02_9000000862_06473cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,204,800 | 82,843,200 |
| Size | 501.8 MB | 79.0 MB |
| Events in quadrant A | 4,371,599 | 498,274 |
| Events in quadrant B | 3,672,322 | 505,495 |
| Events in quadrant C | 3,525,338 | 496,460 |
| Events in quadrant D | 3,854,150 | 483,241 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17949 | 3 |
| B | 0 | 15889 | 2 |
| C | 0 | 15730 | 2 |
| D | 0 | 16609 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7542 | 323 | 4.282684% |
| B | 7542 | 323 | 4.282684% |
| C | 7542 | 204 | 2.704853% |
| D | 7542 | 269 | 3.566693% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

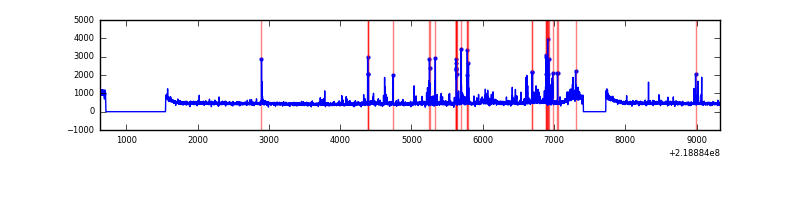

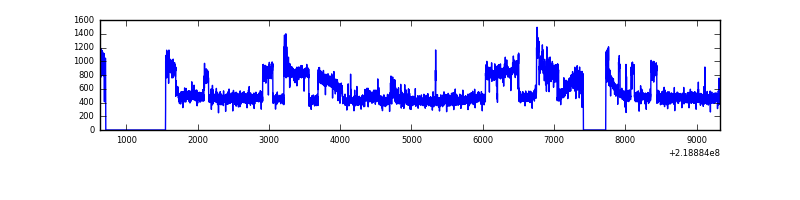

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8697 | 7544 | 0 | 0 | 0.00% | 0.00% |  |
| B | 8697 | 7544 | 1 | 1 | 0.01% | 0.01% |  |
| C | 8697 | 7544 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8697 | 7544 | 33 | 33 | 0.38% | 0.44% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 764684 | 4051.97 | 921 | 899 | 188.5 |
| A | 8 | 15 | 49535 | 258.02 | 921 | 899 | 188.5 |
| A | 12 | 194 | 8702 | 41.4 | 921 | 899 | 188.5 |
| B | 0 | 219 | 31837 | 170.14 | 928 | 905 | 181.8 |
| B | 4 | 81 | 19090 | 100.02 | 928 | 905 | 181.8 |
| B | 12 | 111 | 19008 | 99.57 | 928 | 905 | 181.8 |
| C | 13 | 61 | 7008 | 29.18 | 898 | 902 | 209.3 |
| C | 8 | 128 | 6325 | 25.92 | 898 | 902 | 209.3 |
| C | 1 | 16 | 5743 | 23.13 | 898 | 902 | 209.3 |
| D | 2 | 136 | 182385 | 817.59 | 899 | 870 | 222.0 |
| D | 2 | 152 | 90422 | 403.37 | 899 | 870 | 222.0 |
| D | 14 | 34 | 52908 | 234.39 | 899 | 870 | 222.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

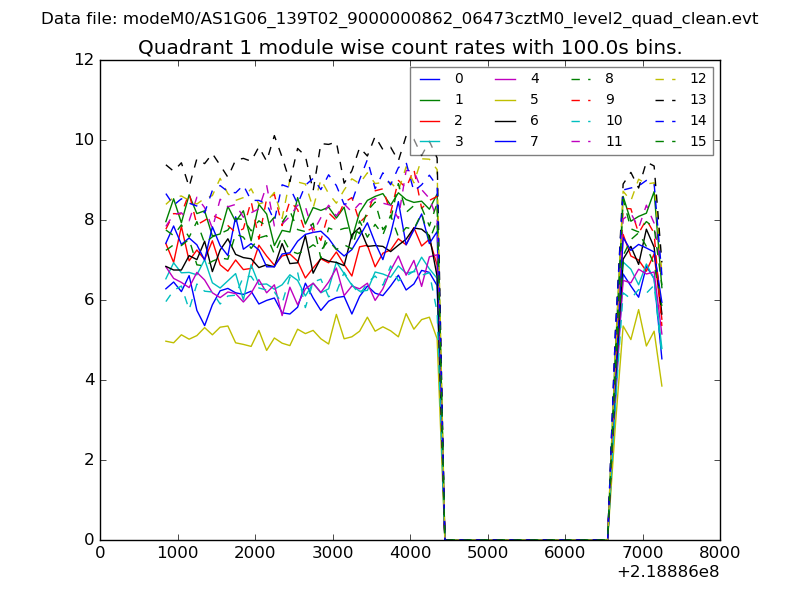

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

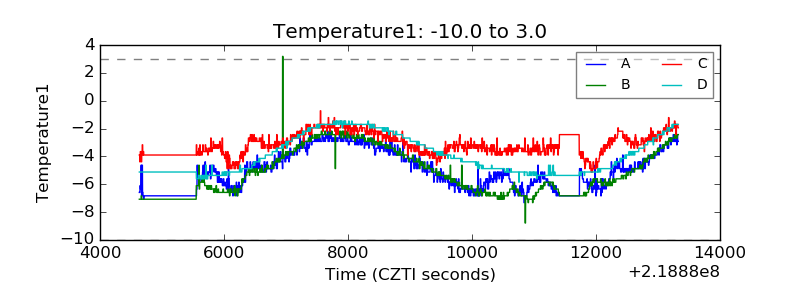

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

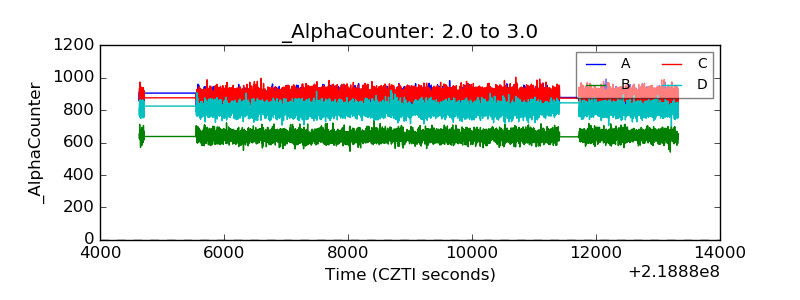

| Alpha Counter |  |
| _CPM_Rate |  |

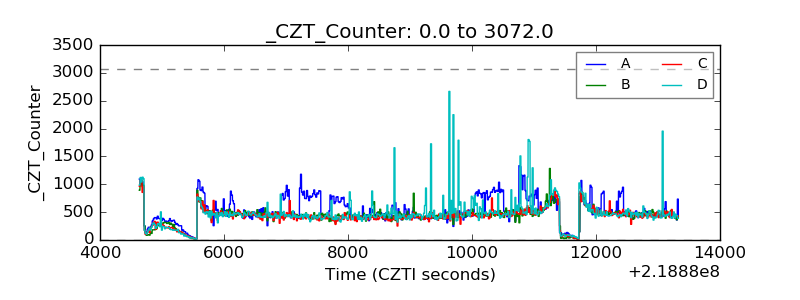

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

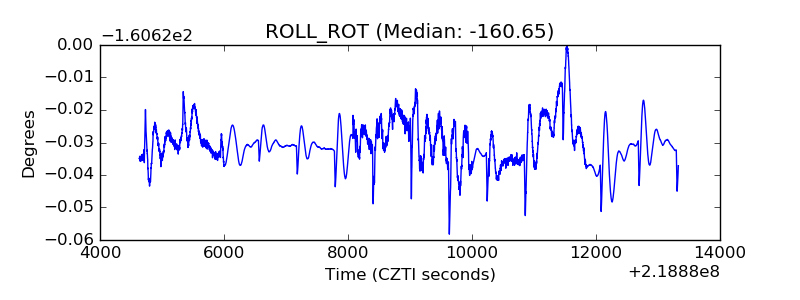

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

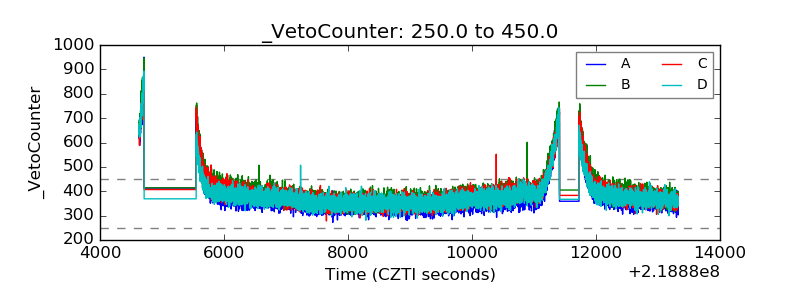

| Veto Counter |  |
