| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_046T01_9000000864_06479cztM0_level2.evt | modeM0/AS1A02_046T01_9000000864_06479cztM0_level2_quad_clean.evt |
| Size (bytes) | 738,529,920 | 210,623,040 |
| Size | 704.3 MB | 200.9 MB |
| Events in quadrant A | 5,282,284 | 1,408,679 |
| Events in quadrant B | 5,450,048 | 1,404,935 |
| Events in quadrant C | 5,066,538 | 1,395,503 |
| Events in quadrant D | 5,765,350 | 1,352,589 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24367 | 3 |
| B | 0 | 24647 | 2 |
| C | 0 | 23922 | 2 |
| D | 0 | 25820 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 240 | 0 |
| B | 0 | 240 | 0 |
| C | 0 | 240 | 0 |
| D | 0 | 240 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 11831 | 37 | 0.312738% |
| B | 11831 | 57 | 0.481785% |
| C | 11831 | 18 | 0.152143% |
| D | 11831 | 65 | 0.549404% |

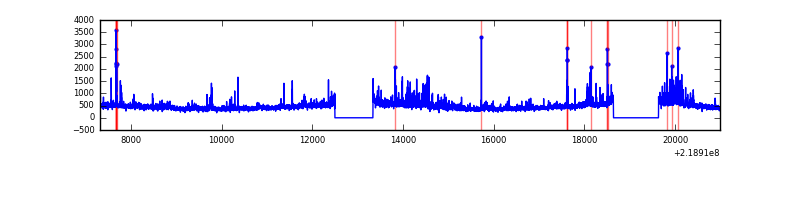

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13666 | 11833 | 15 | 15 | 0.11% | 0.13% |  |
| B | 13666 | 11833 | 15 | 15 | 0.11% | 0.13% |  |
| C | 13666 | 11833 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13666 | 11833 | 18 | 18 | 0.13% | 0.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 174 | 79008 | 285.19 | 1330 | 1299 | 272.5 |
| A | 8 | 15 | 57960 | 207.94 | 1330 | 1299 | 272.5 |
| A | 15 | 234 | 13776 | 45.79 | 1330 | 1299 | 272.5 |
| B | 0 | 219 | 92105 | 356.7 | 1340 | 1308 | 254.5 |
| B | 15 | 204 | 50643 | 193.82 | 1340 | 1308 | 254.5 |
| B | 12 | 111 | 25007 | 93.1 | 1340 | 1308 | 254.5 |
| C | 13 | 61 | 10162 | 29.67 | 1296 | 1300 | 298.7 |
| C | 1 | 16 | 5183 | 13.0 | 1296 | 1300 | 298.7 |
| C | 12 | 4 | 4918 | 12.11 | 1296 | 1300 | 298.7 |
| D | 2 | 152 | 417153 | 1323.37 | 1296 | 1253 | 314.3 |
| D | 8 | 195 | 167071 | 527.62 | 1296 | 1253 | 314.3 |
| D | 2 | 136 | 90969 | 285.47 | 1296 | 1253 | 314.3 |

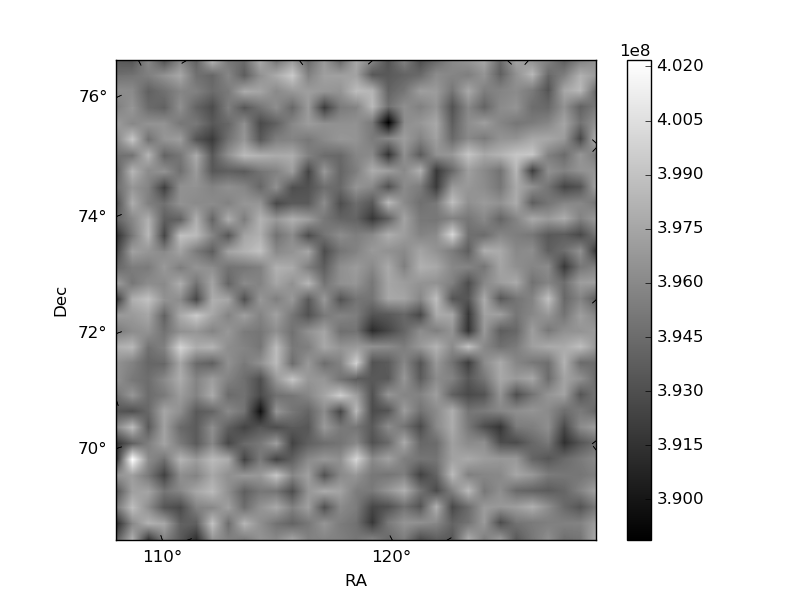

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

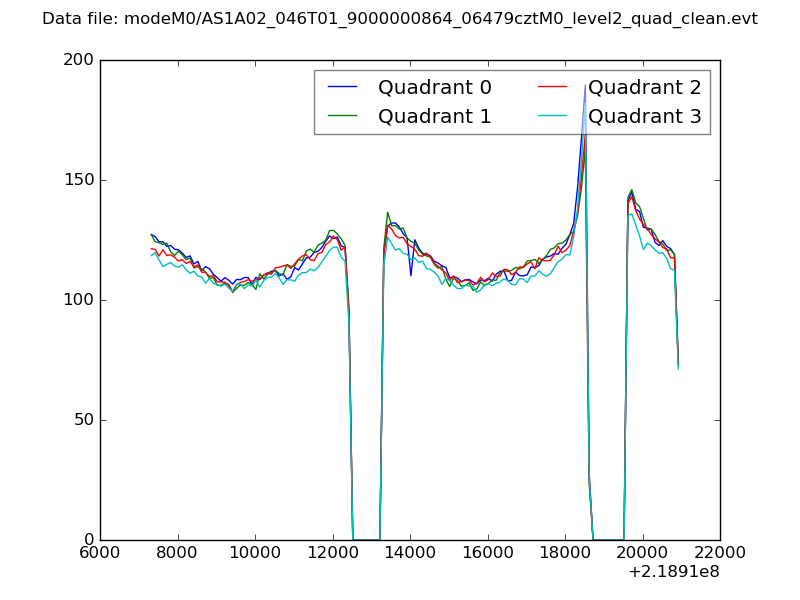

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

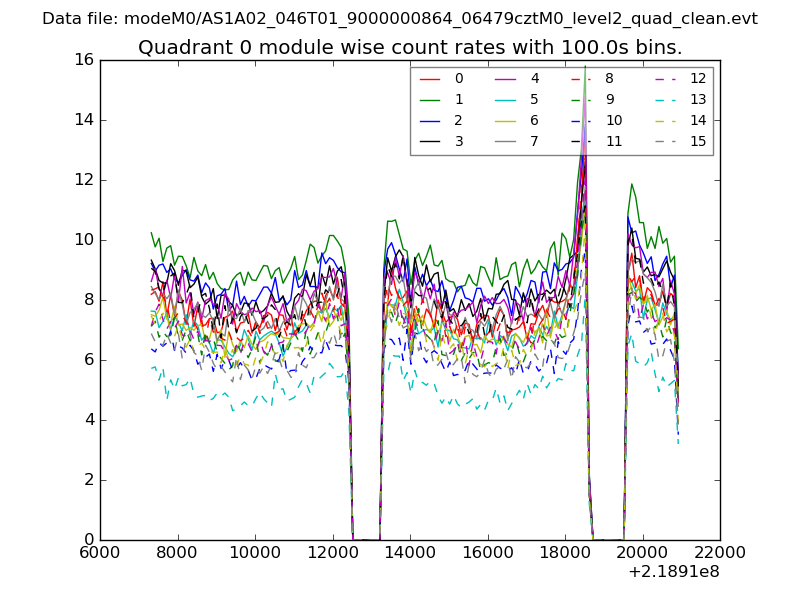

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

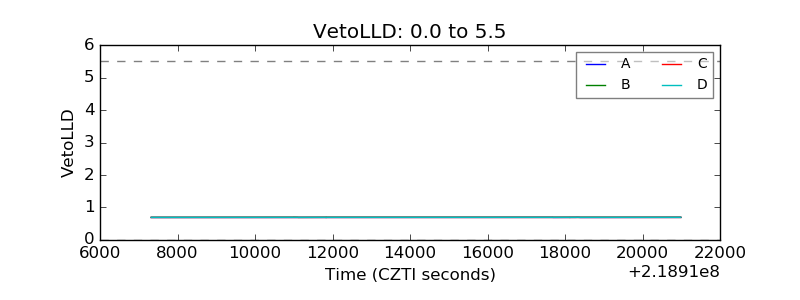

| Veto LLD |  |
| Alpha Counter |  |

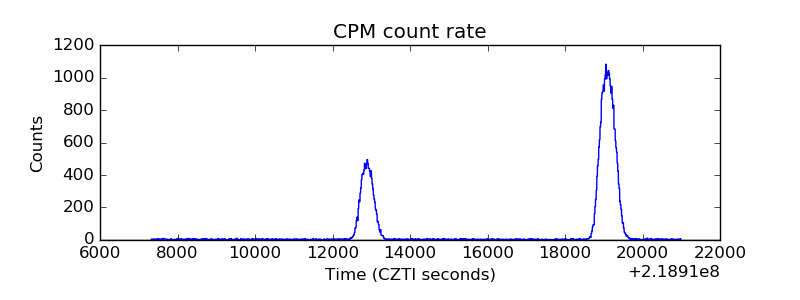

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

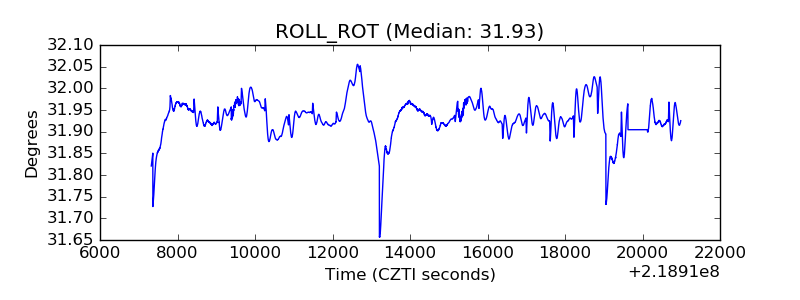

| _ROLL_ROT |  |

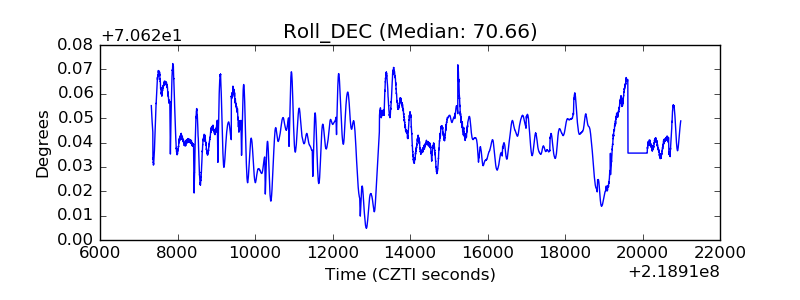

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
