| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_164T01_9000000866_06488cztM0_level2.evt | modeM0/AS1G06_164T01_9000000866_06488cztM0_level2_quad_clean.evt |
| Size (bytes) | 528,900,480 | 106,234,560 |
| Size | 504.4 MB | 101.3 MB |
| Events in quadrant A | 3,759,530 | 676,645 |
| Events in quadrant B | 3,839,983 | 672,592 |
| Events in quadrant C | 3,445,322 | 667,698 |
| Events in quadrant D | 4,438,640 | 653,382 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16736 | 2 |
| B | 0 | 16771 | 1 |
| C | 0 | 16172 | 1 |
| D | 0 | 18217 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 158 | 0 |
| B | 0 | 158 | 0 |
| C | 0 | 158 | 0 |
| D | 0 | 158 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7867 | 303 | 3.851532% |
| B | 7867 | 298 | 3.787975% |
| C | 7867 | 205 | 2.605822% |
| D | 7867 | 285 | 3.622728% |

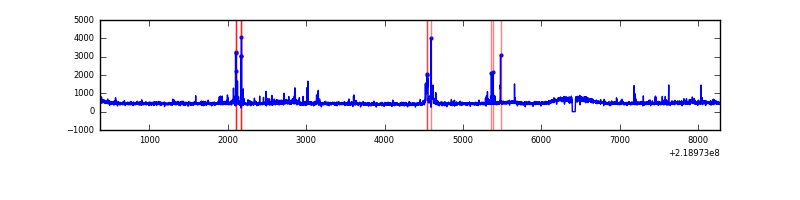

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7907 | 7868 | 29 | 29 | 0.37% | 0.37% |  |
| B | 7907 | 7868 | 12 | 12 | 0.15% | 0.15% |  |
| C | 7907 | 7868 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7907 | 7868 | 40 | 40 | 0.51% | 0.51% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 128836 | 683.21 | 914 | 893 | 187.3 |
| A | 15 | 234 | 76166 | 401.95 | 914 | 893 | 187.3 |
| A | 15 | 174 | 22117 | 113.33 | 914 | 893 | 187.3 |
| B | 3 | 220 | 66274 | 372.37 | 915 | 891 | 175.6 |
| B | 0 | 214 | 57882 | 324.58 | 915 | 891 | 175.6 |
| B | 0 | 228 | 34082 | 189.03 | 915 | 891 | 175.6 |
| C | 12 | 4 | 8450 | 37.58 | 878 | 879 | 201.5 |
| C | 13 | 61 | 7017 | 30.47 | 878 | 879 | 201.5 |
| C | 8 | 128 | 5126 | 21.08 | 878 | 879 | 201.5 |
| D | 8 | 195 | 371700 | 1731.8 | 881 | 851 | 214.1 |
| D | 2 | 152 | 314757 | 1465.88 | 881 | 851 | 214.1 |
| D | 2 | 63 | 233530 | 1086.57 | 881 | 851 | 214.1 |

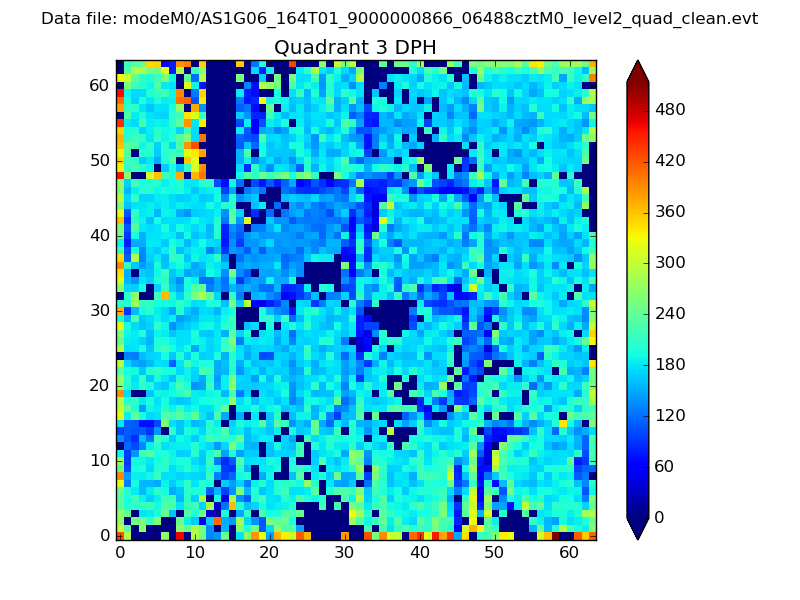

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

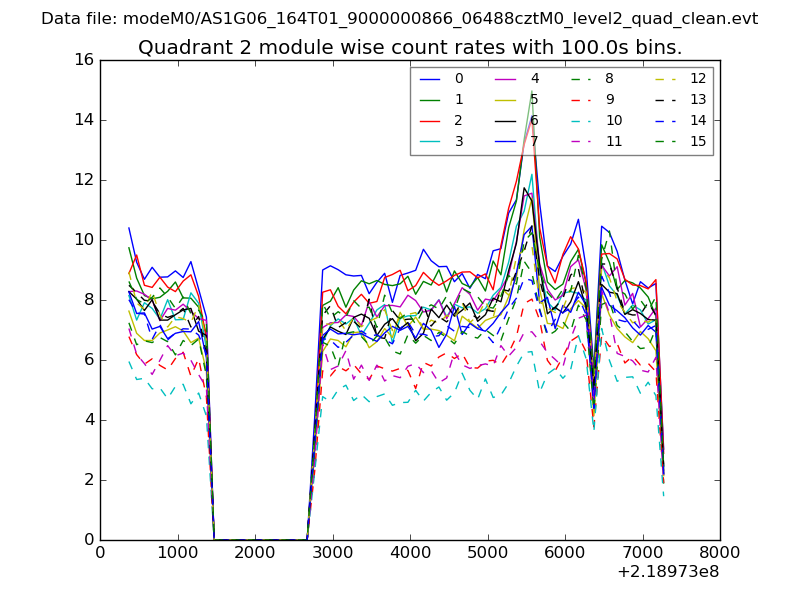

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

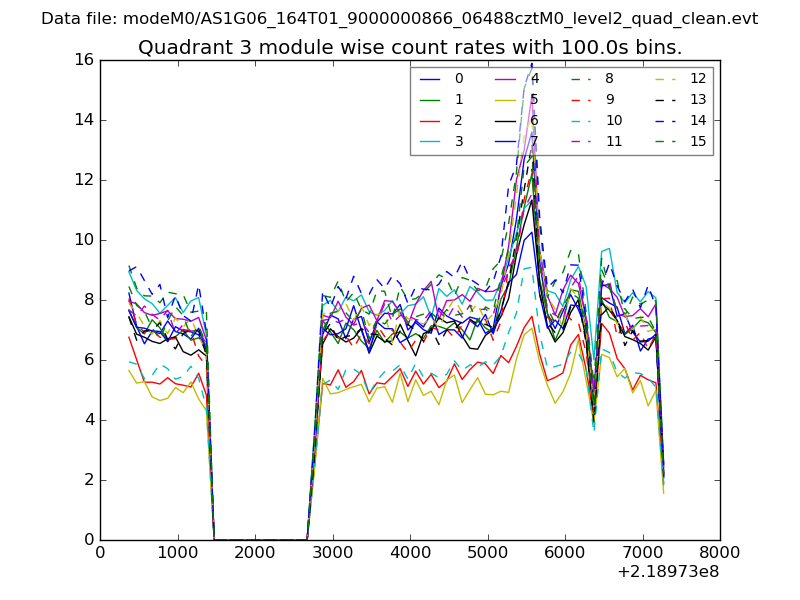

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

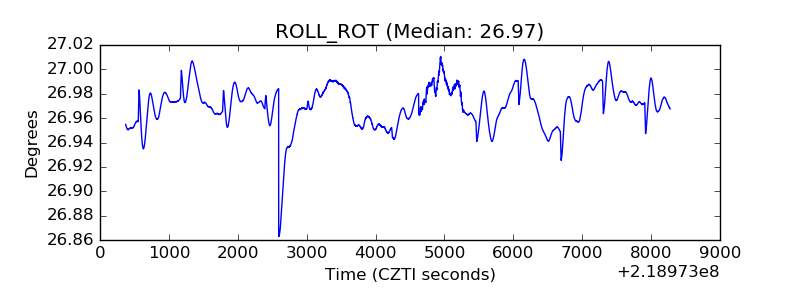

| _ROLL_ROT |  |

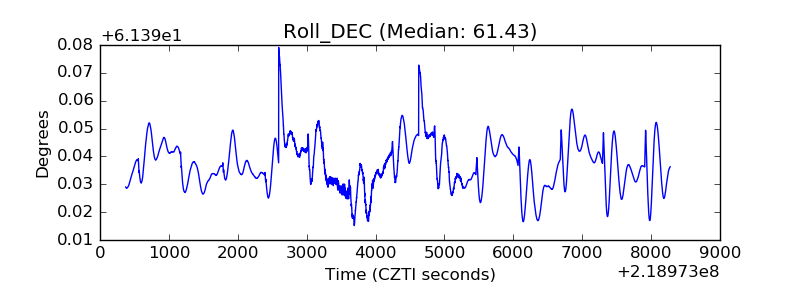

| _Roll_DEC |  |

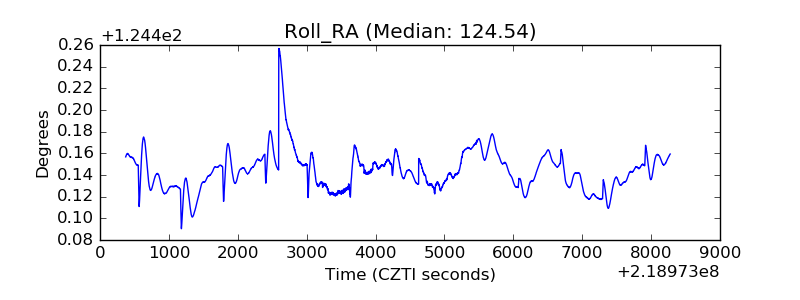

| _Roll_RA |  |

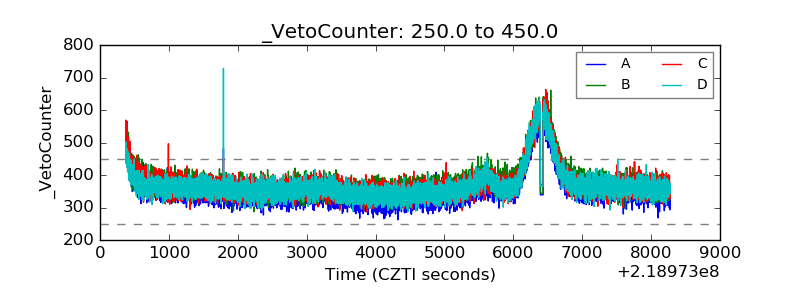

| Veto Counter |  |
