| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_136T02_9000000876_06514cztM0_level2.evt | modeM0/AS1G06_136T02_9000000876_06514cztM0_level2_quad_clean.evt |
| Size (bytes) | 445,340,160 | 88,090,560 |
| Size | 424.7 MB | 84.0 MB |
| Events in quadrant A | 3,643,197 | 548,164 |
| Events in quadrant B | 3,039,168 | 576,635 |
| Events in quadrant C | 2,926,382 | 559,365 |
| Events in quadrant D | 3,438,454 | 531,917 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15194 | 2 |
| B | 0 | 13379 | 1 |
| C | 0 | 13291 | 1 |
| D | 0 | 14747 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6477 | 228 | 3.520148% |
| B | 6477 | 68 | 1.049869% |
| C | 6477 | 24 | 0.370542% |
| D | 6477 | 67 | 1.034430% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7687 | 6478 | 106 | 106 | 1.38% | 1.64% |  |
| B | 7687 | 6478 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7687 | 6478 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7687 | 6478 | 26 | 26 | 0.34% | 0.40% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 354985 | 2310.29 | 756 | 739 | 153.3 |
| A | 15 | 234 | 319134 | 2076.48 | 756 | 739 | 153.3 |
| A | 8 | 15 | 59878 | 385.69 | 756 | 739 | 153.3 |
| B | 12 | 111 | 14755 | 96.7 | 769 | 751 | 144.8 |
| B | 0 | 219 | 14633 | 95.86 | 769 | 751 | 144.8 |
| B | 15 | 204 | 14521 | 95.08 | 769 | 751 | 144.8 |
| C | 4 | 254 | 25701 | 147.76 | 734 | 737 | 168.9 |
| C | 1 | 16 | 17592 | 99.76 | 734 | 737 | 168.9 |
| C | 8 | 128 | 9702 | 53.06 | 734 | 737 | 168.9 |
| D | 2 | 136 | 235394 | 1314.01 | 734 | 712 | 178.6 |
| D | 2 | 152 | 136102 | 758.06 | 734 | 712 | 178.6 |
| D | 11 | 241 | 118959 | 662.08 | 734 | 712 | 178.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

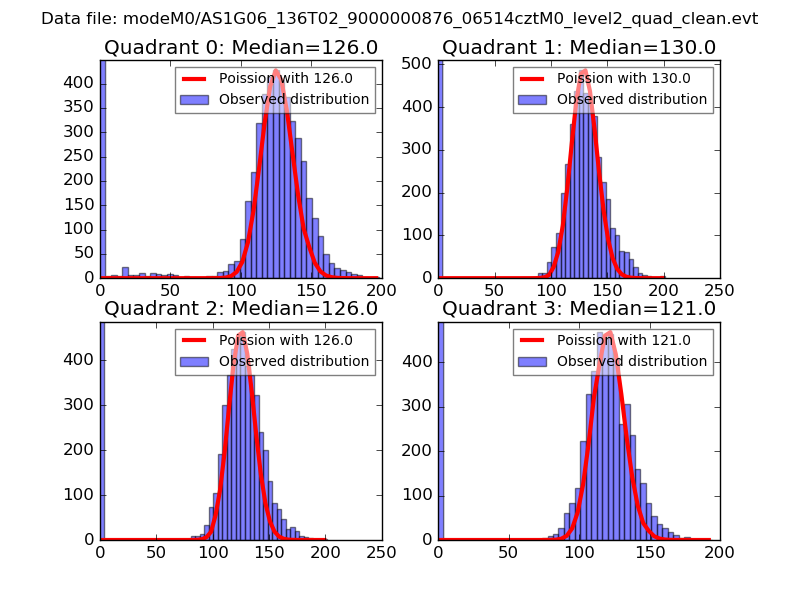

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

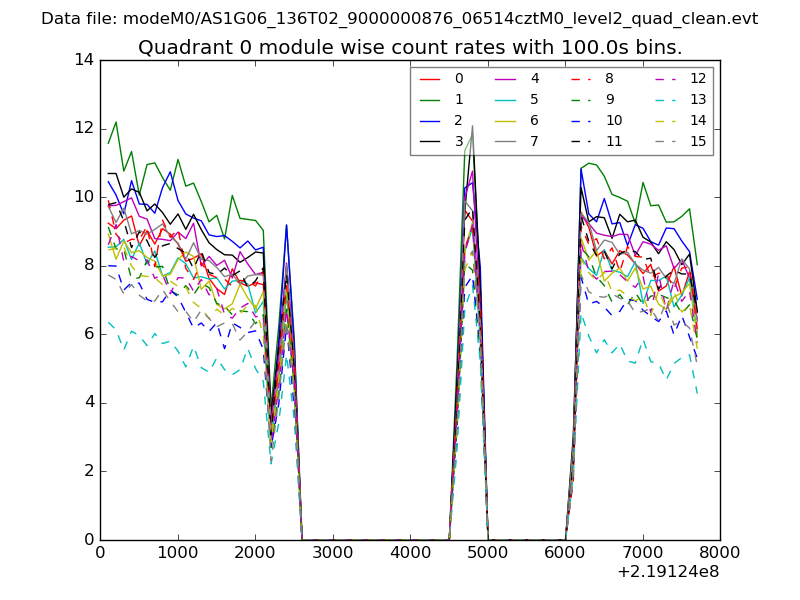

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

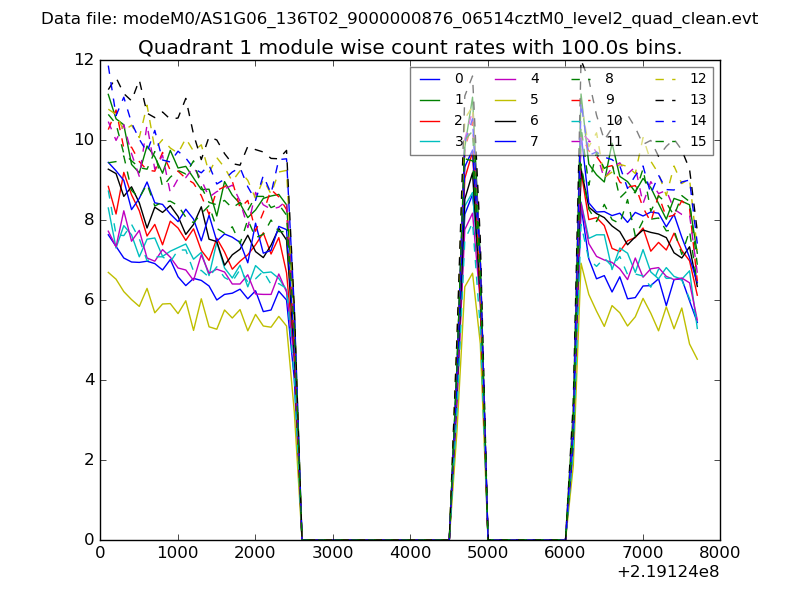

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

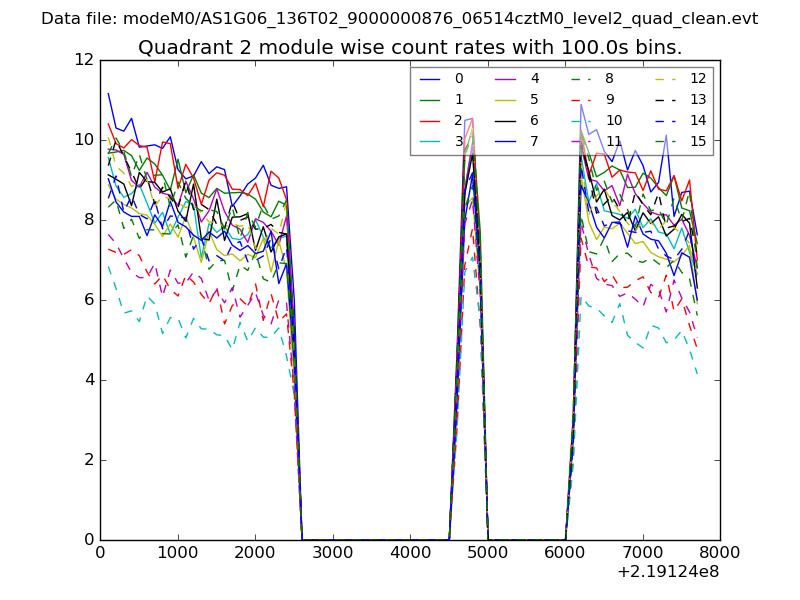

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

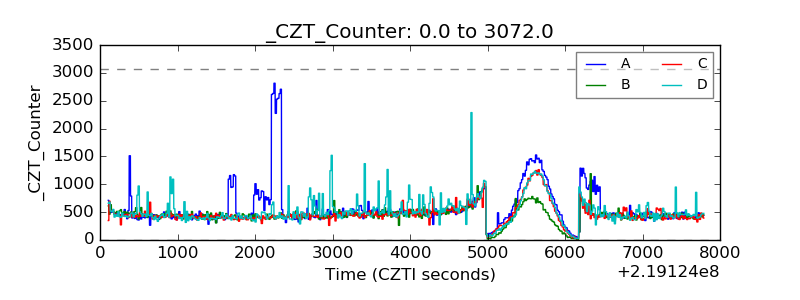

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

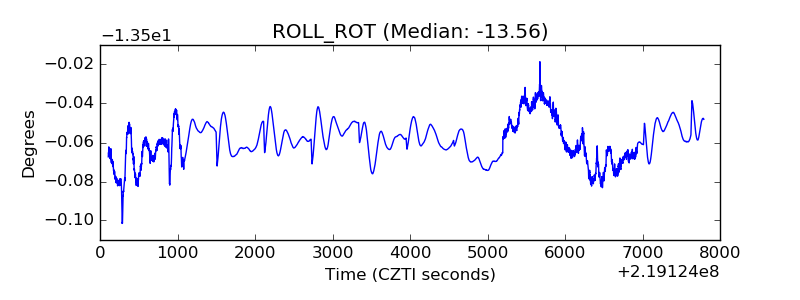

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

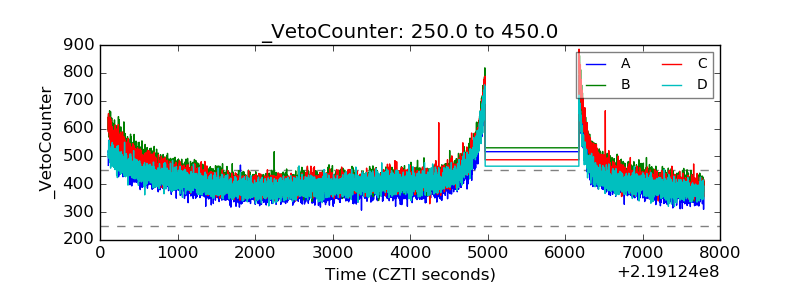

| Veto Counter |  |
