| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_136T02_9000000876_06523cztM0_level2.evt | modeM0/AS1G06_136T02_9000000876_06523cztM0_level2_quad_clean.evt |
| Size (bytes) | 498,240,000 | 85,602,240 |
| Size | 475.2 MB | 81.6 MB |
| Events in quadrant A | 2,951,287 | 542,127 |
| Events in quadrant B | 3,093,181 | 548,542 |
| Events in quadrant C | 2,973,677 | 543,396 |
| Events in quadrant D | 5,630,110 | 504,729 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13448 | 3 |
| B | 0 | 13796 | 2 |
| C | 0 | 13503 | 2 |
| D | 0 | 21221 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6501 | 32 | 0.492232% |
| B | 6501 | 50 | 0.769112% |
| C | 6501 | 26 | 0.399938% |
| D | 6501 | 197 | 3.030303% |

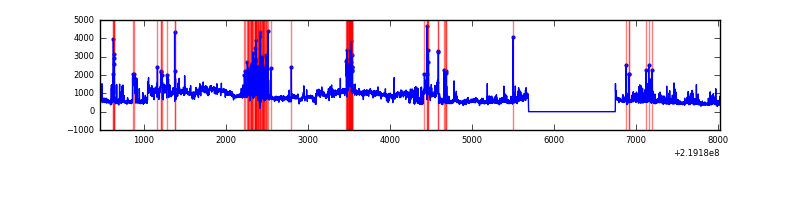

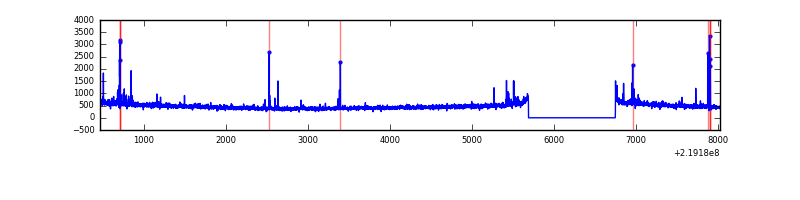

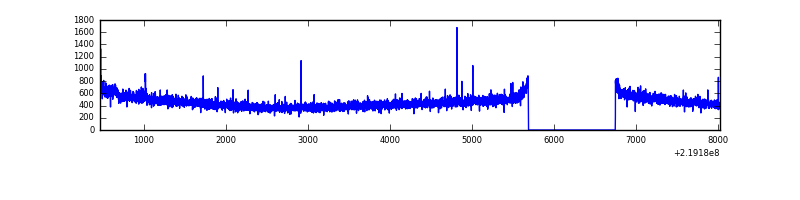

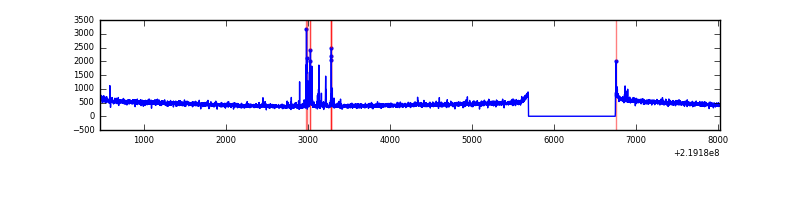

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7561 | 6502 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7561 | 6502 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7561 | 6502 | 8 | 8 | 0.11% | 0.12% |  |
| D | 7561 | 6502 | 122 | 122 | 1.61% | 1.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 28035 | 177.38 | 755 | 735 | 153.9 |
| A | 0 | 226 | 7184 | 41.9 | 755 | 735 | 153.9 |
| A | 12 | 194 | 6841 | 39.67 | 755 | 735 | 153.9 |
| B | 4 | 80 | 34661 | 231.64 | 763 | 744 | 146.4 |
| B | 0 | 219 | 27744 | 184.4 | 763 | 744 | 146.4 |
| B | 4 | 170 | 23282 | 153.92 | 763 | 744 | 146.4 |
| C | 9 | 237 | 88274 | 512.33 | 738 | 742 | 170.9 |
| C | 13 | 61 | 5712 | 29.09 | 738 | 742 | 170.9 |
| C | 14 | 67 | 2923 | 12.77 | 738 | 742 | 170.9 |
| D | 13 | 137 | 2029067 | 11295.59 | 727 | 703 | 179.6 |
| D | 2 | 136 | 423494 | 2354.45 | 727 | 703 | 179.6 |
| D | 12 | 233 | 171574 | 951.55 | 727 | 703 | 179.6 |

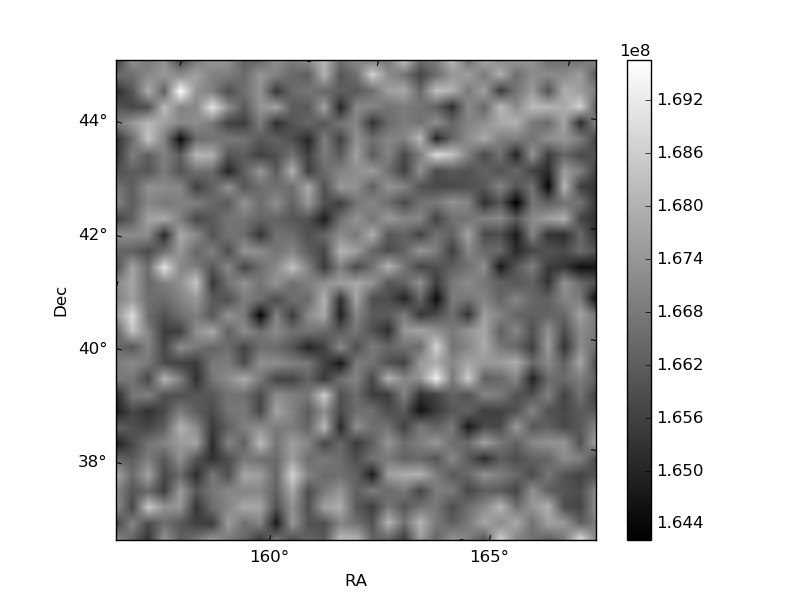

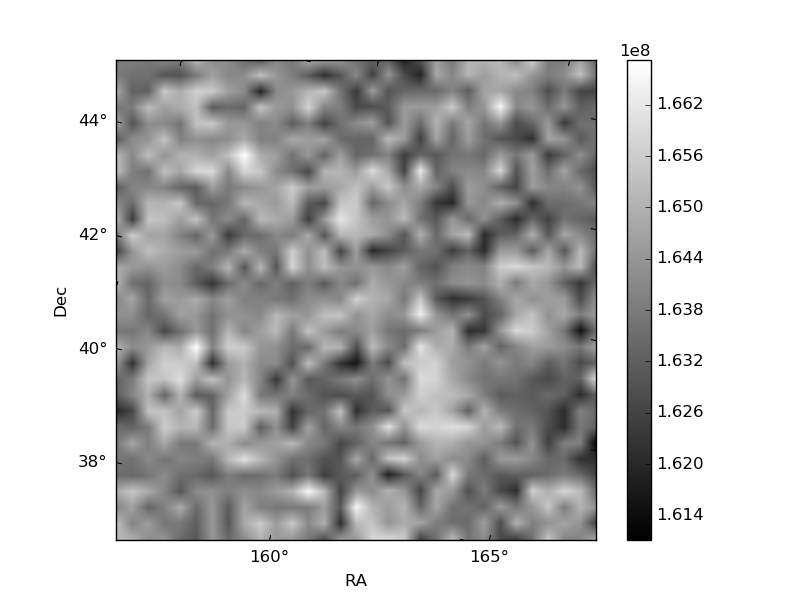

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

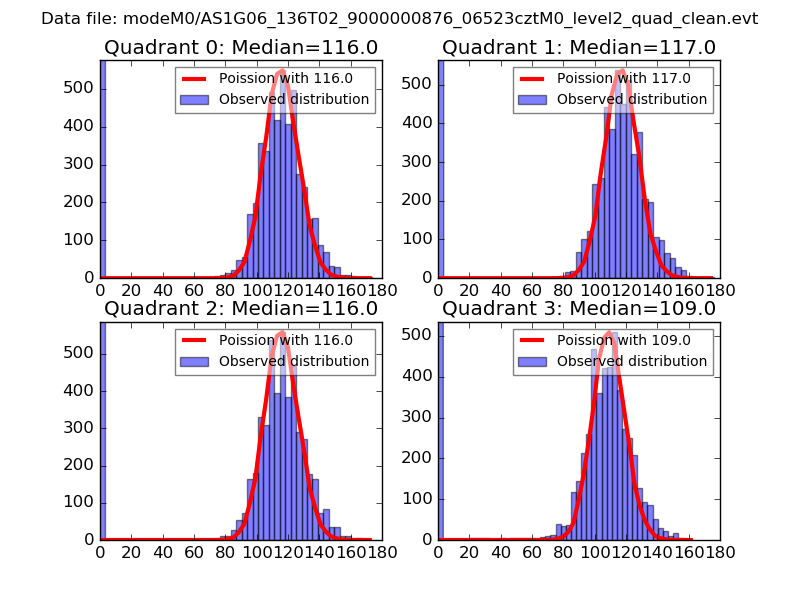

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

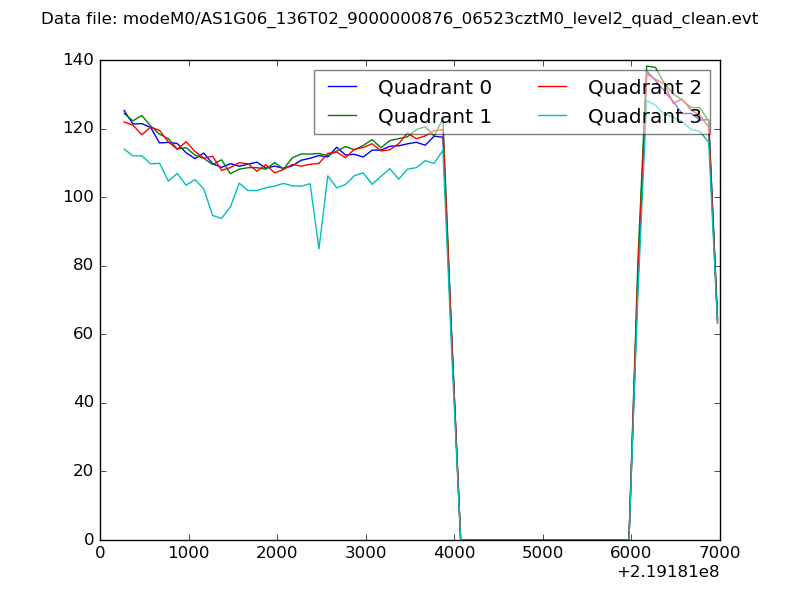

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

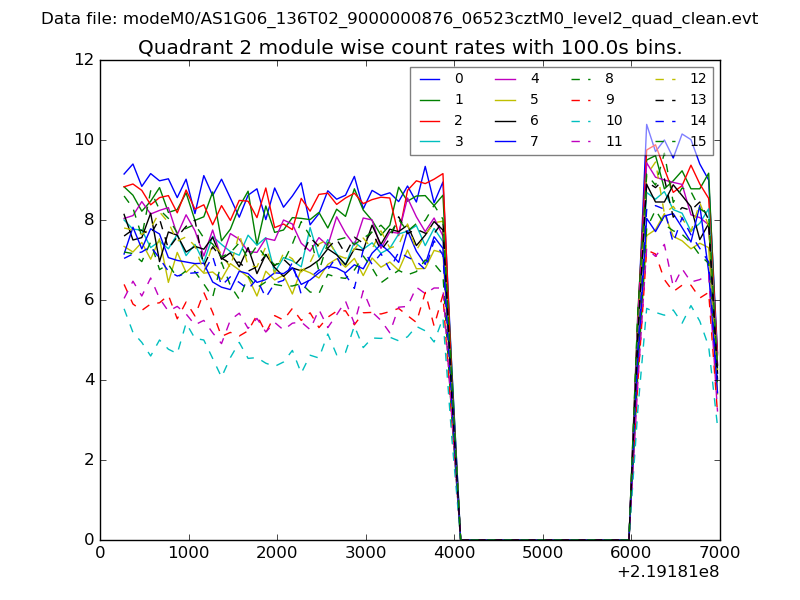

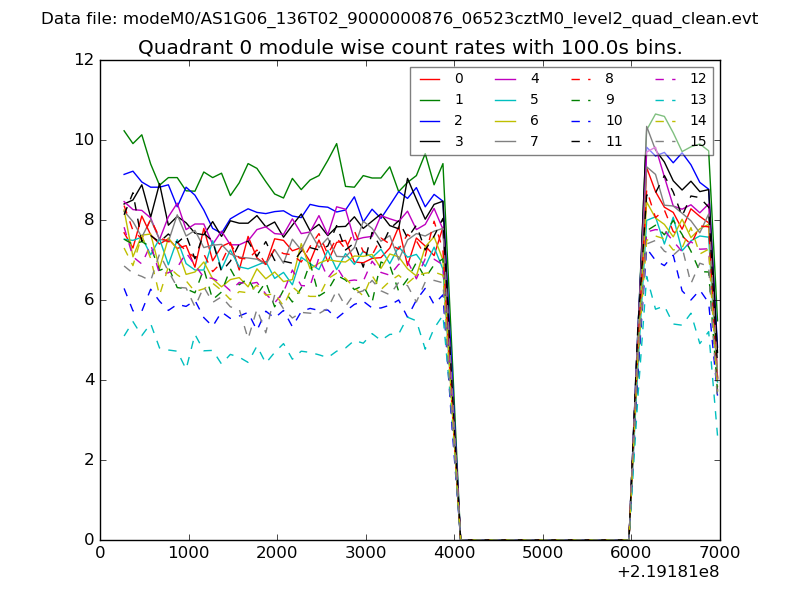

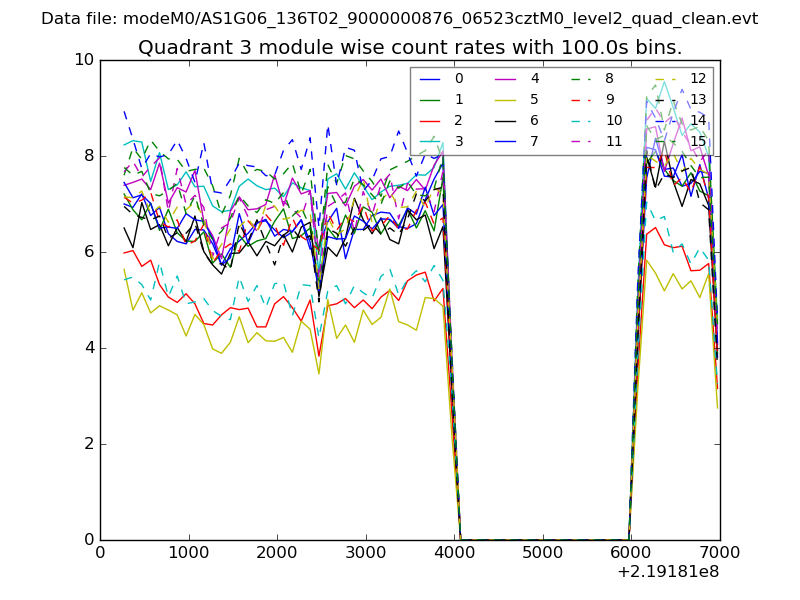

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

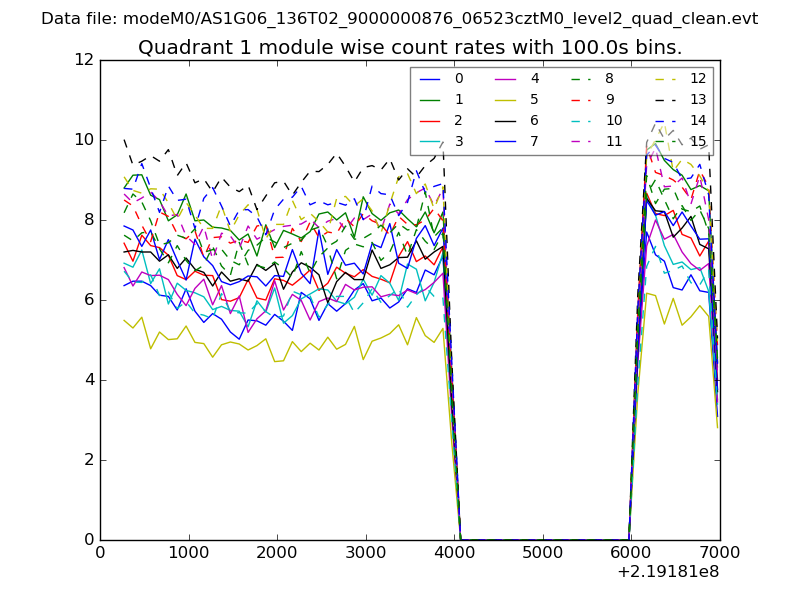

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

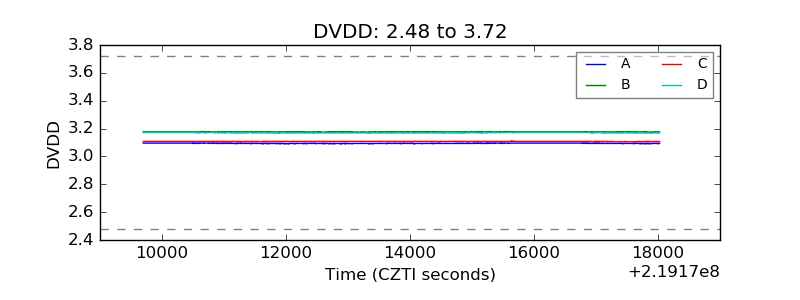

| D_VDD |  |

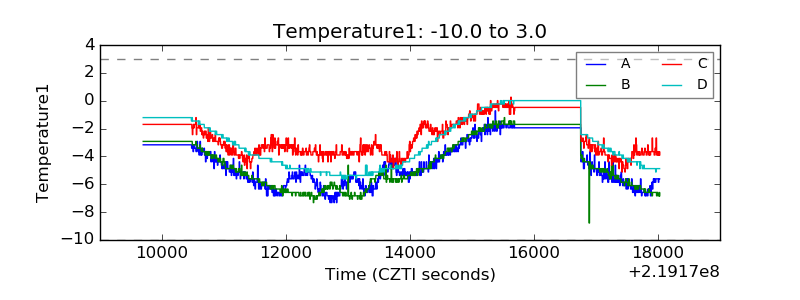

| Temperature 1 |  |

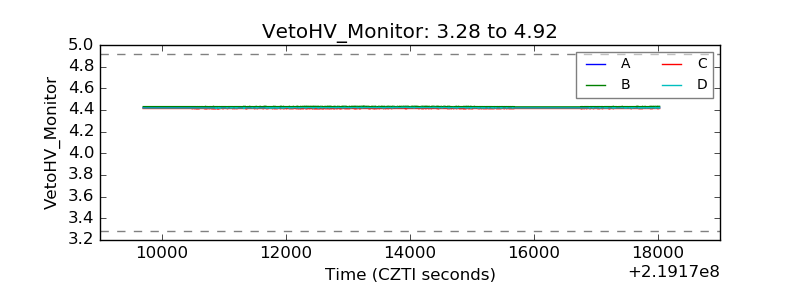

| Veto HV Monitor |  |
| Veto LLD |  |

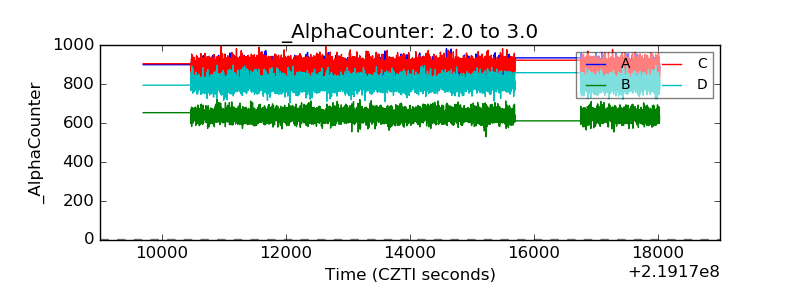

| Alpha Counter |  |

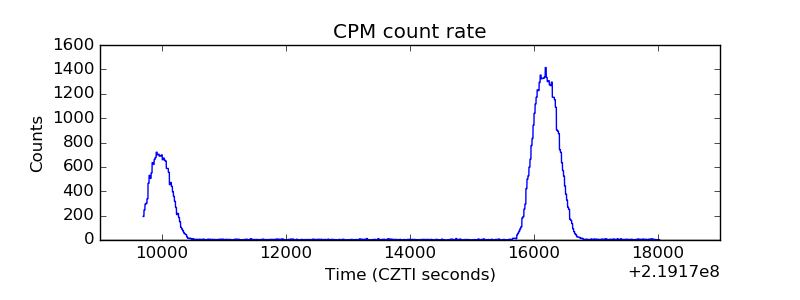

| _CPM_Rate |  |

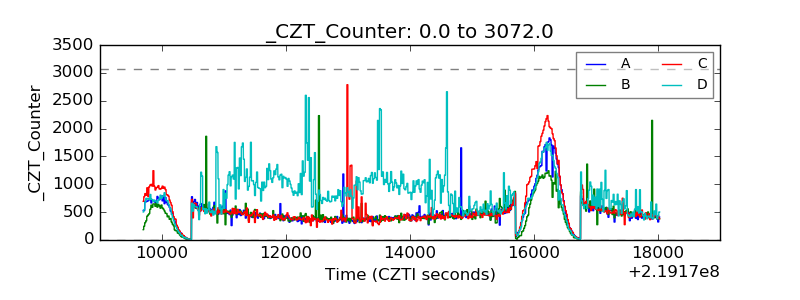

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

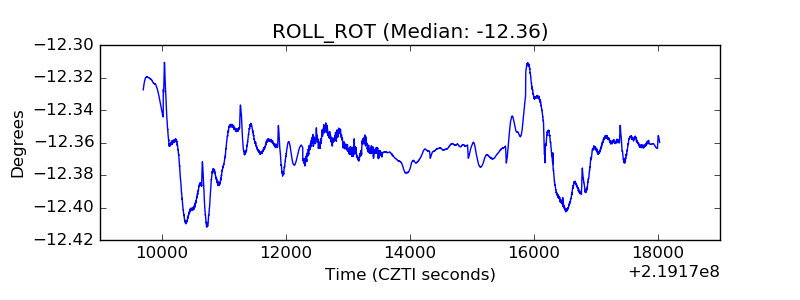

| _ROLL_ROT |  |

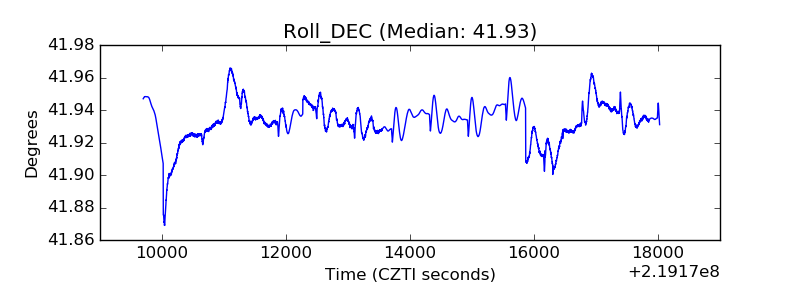

| _Roll_DEC |  |

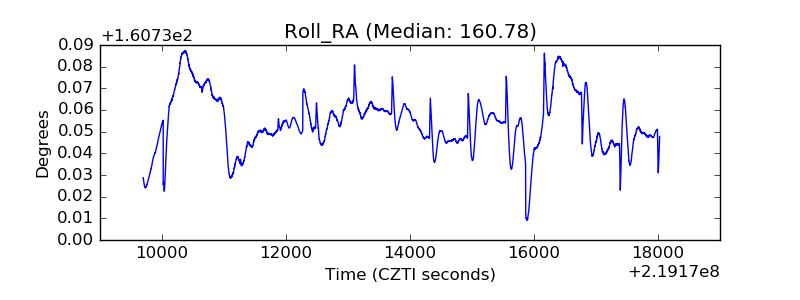

| _Roll_RA |  |

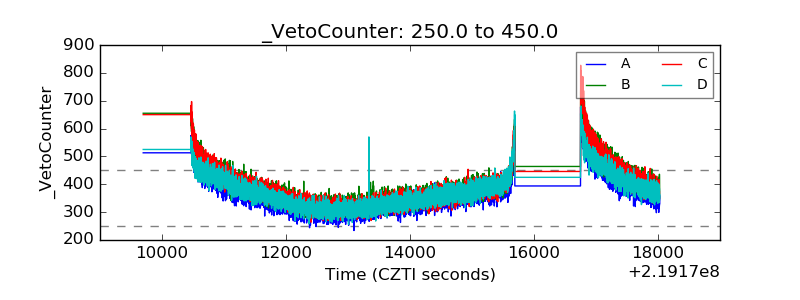

| Veto Counter |  |
