| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_091T01_9000000880_06541cztM0_level2.evt | modeM0/AS1G06_091T01_9000000880_06541cztM0_level2_quad_clean.evt |
| Size (bytes) | 439,053,120 | 112,331,520 |
| Size | 418.7 MB | 107.1 MB |
| Events in quadrant A | 3,332,098 | 736,558 |
| Events in quadrant B | 3,421,536 | 755,969 |
| Events in quadrant C | 3,002,142 | 746,861 |
| Events in quadrant D | 3,097,621 | 708,105 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14224 | 3 |
| B | 0 | 14538 | 2 |
| C | 0 | 13293 | 2 |
| D | 0 | 13829 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6521 | 58 | 0.889434% |
| B | 6521 | 105 | 1.610182% |
| C | 6521 | 10 | 0.153351% |
| D | 6521 | 24 | 0.368042% |

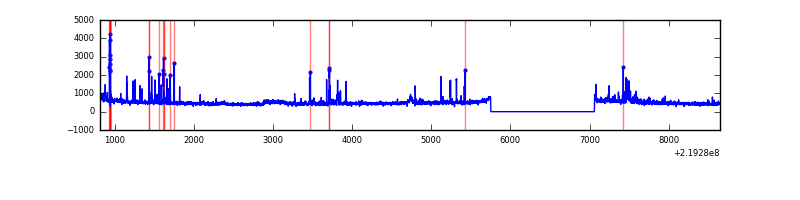

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7831 | 6522 | 21 | 21 | 0.27% | 0.32% |  |
| B | 7831 | 6522 | 47 | 47 | 0.60% | 0.72% |  |
| C | 7831 | 6522 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7831 | 6522 | 9 | 9 | 0.11% | 0.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 236 | 196187 | 1264.95 | 768 | 753 | 154.5 |
| A | 13 | 251 | 79552 | 510.03 | 768 | 753 | 154.5 |
| A | 15 | 249 | 60891 | 389.24 | 768 | 753 | 154.5 |
| B | 4 | 170 | 149067 | 1017.23 | 784 | 768 | 145.8 |
| B | 4 | 48 | 128433 | 875.7 | 784 | 768 | 145.8 |
| B | 0 | 219 | 42671 | 287.43 | 784 | 768 | 145.8 |
| C | 13 | 61 | 6003 | 29.42 | 767 | 771 | 177.8 |
| C | 8 | 128 | 5279 | 25.35 | 767 | 771 | 177.8 |
| C | 8 | 112 | 3000 | 12.53 | 767 | 771 | 177.8 |
| D | 2 | 152 | 121990 | 660.28 | 755 | 735 | 183.6 |
| D | 2 | 33 | 30151 | 160.18 | 755 | 735 | 183.6 |
| D | 2 | 234 | 27888 | 147.86 | 755 | 735 | 183.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

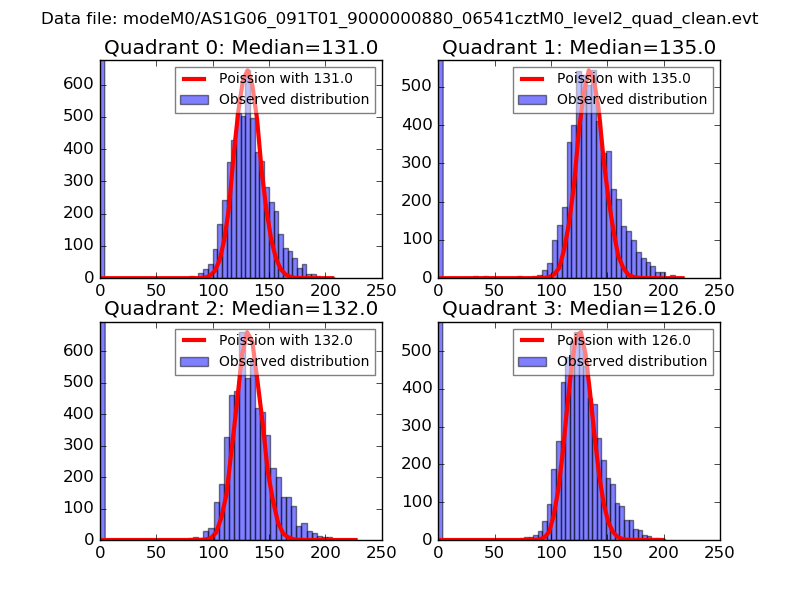

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

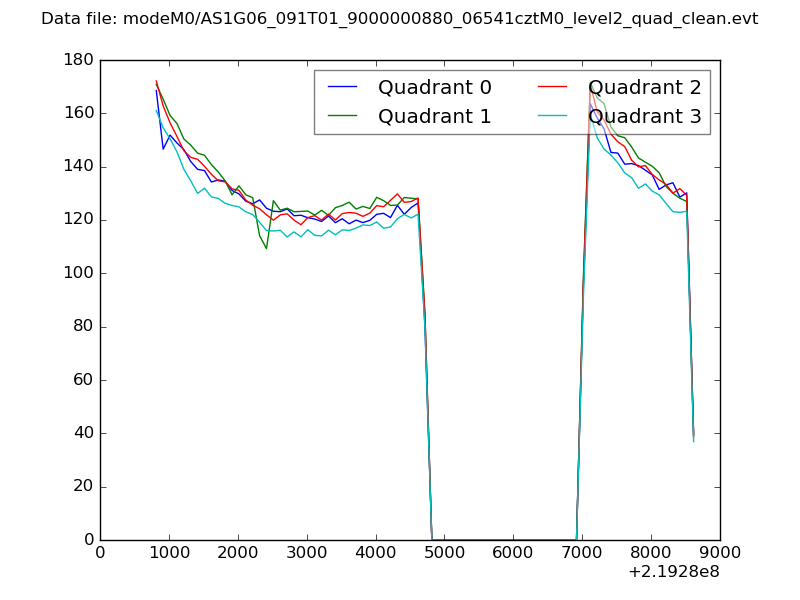

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

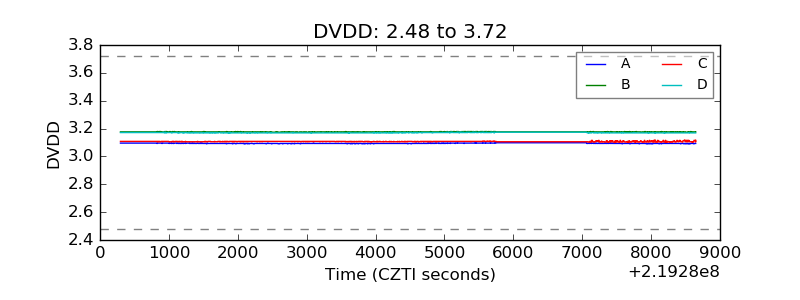

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

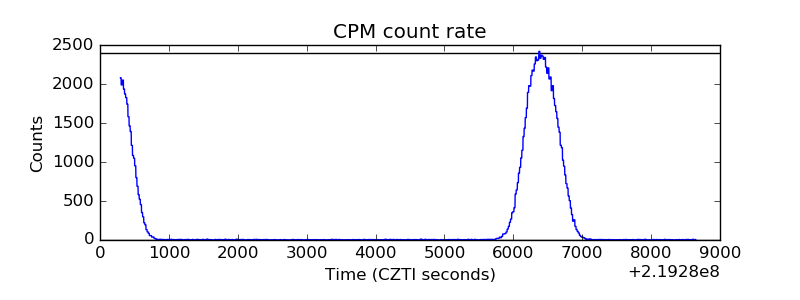

| _CPM_Rate |  |

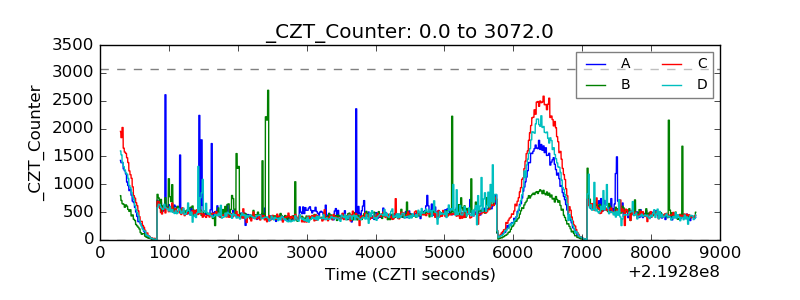

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

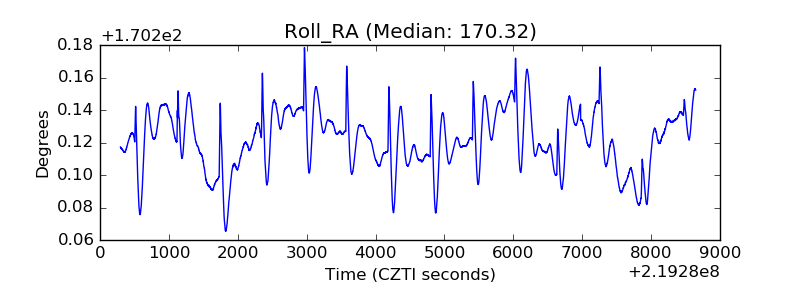

| _Roll_RA |  |

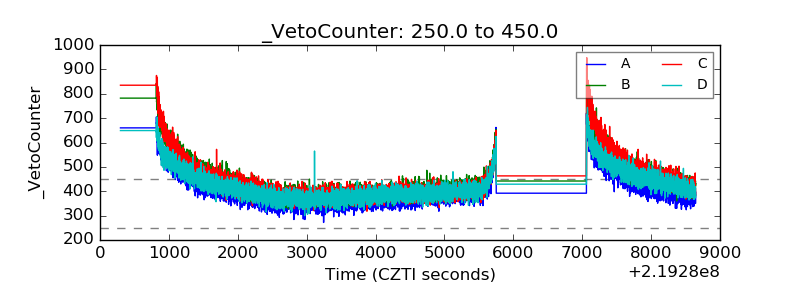

| Veto Counter |  |
