| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_091T01_9000000880_06543cztM0_level2.evt | modeM0/AS1G06_091T01_9000000880_06543cztM0_level2_quad_clean.evt |
| Size (bytes) | 453,242,880 | 103,271,040 |
| Size | 432.2 MB | 98.5 MB |
| Events in quadrant A | 3,422,279 | 662,494 |
| Events in quadrant B | 3,371,613 | 681,554 |
| Events in quadrant C | 2,932,013 | 690,060 |
| Events in quadrant D | 3,565,793 | 647,302 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14554 | 2 |
| B | 0 | 14295 | 1 |
| C | 0 | 13052 | 1 |
| D | 0 | 15000 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6400 | 123 | 1.921875% |
| B | 6400 | 175 | 2.734375% |
| C | 6400 | 19 | 0.296875% |
| D | 6400 | 136 | 2.125000% |

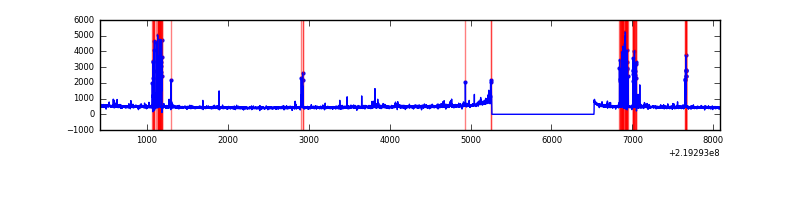

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

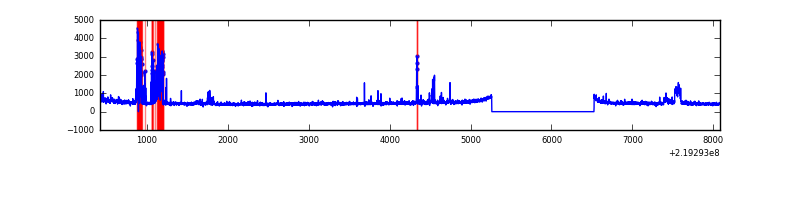

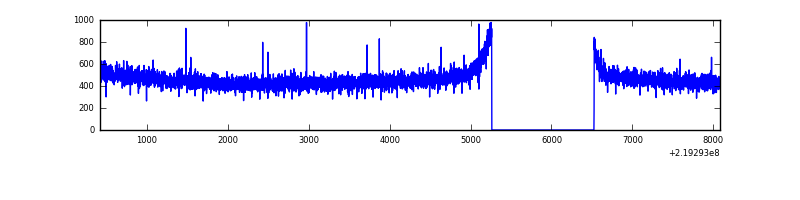

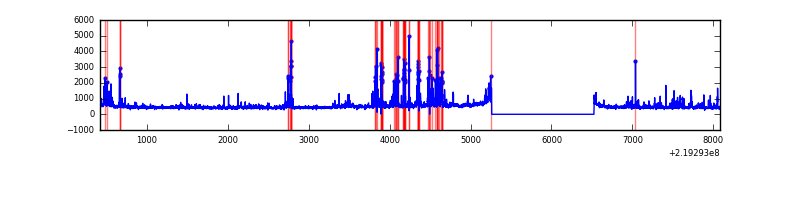

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7665 | 6401 | 84 | 84 | 1.10% | 1.31% |  |
| B | 7665 | 6401 | 95 | 95 | 1.24% | 1.48% |  |
| C | 7665 | 6401 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7665 | 6401 | 73 | 73 | 0.95% | 1.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 360083 | 2398.44 | 738 | 721 | 149.8 |
| A | 15 | 236 | 120975 | 802.59 | 738 | 721 | 149.8 |
| A | 15 | 174 | 45445 | 298.49 | 738 | 721 | 149.8 |
| B | 4 | 48 | 298592 | 2127.98 | 752 | 733 | 140.0 |
| B | 0 | 219 | 40788 | 286.16 | 752 | 733 | 140.0 |
| B | 4 | 81 | 38197 | 267.65 | 752 | 733 | 140.0 |
| C | 13 | 61 | 5911 | 29.68 | 750 | 754 | 173.8 |
| C | 8 | 208 | 2301 | 8.9 | 750 | 754 | 173.8 |
| C | 3 | 202 | 2060 | 7.52 | 750 | 754 | 173.8 |
| D | 2 | 33 | 352974 | 1981.42 | 735 | 714 | 177.8 |
| D | 14 | 34 | 126289 | 706.34 | 735 | 714 | 177.8 |
| D | 2 | 152 | 95948 | 535.68 | 735 | 714 | 177.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

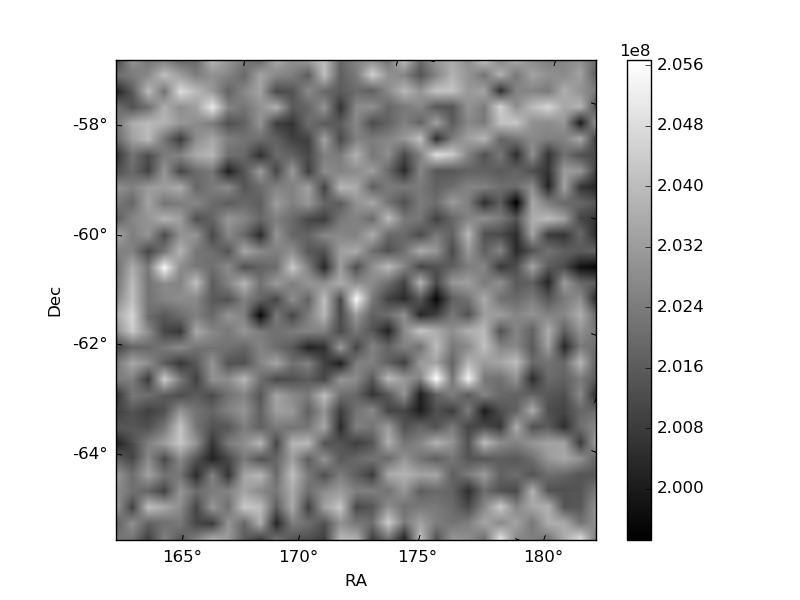

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

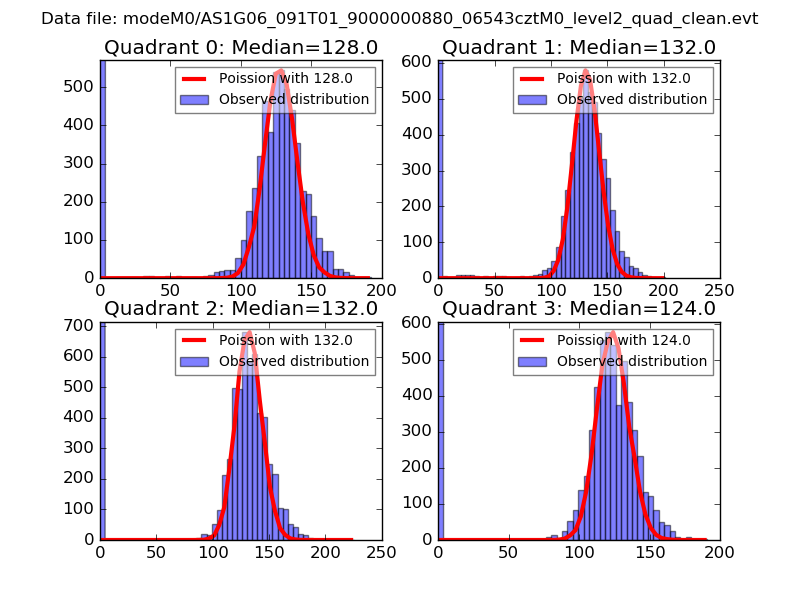

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

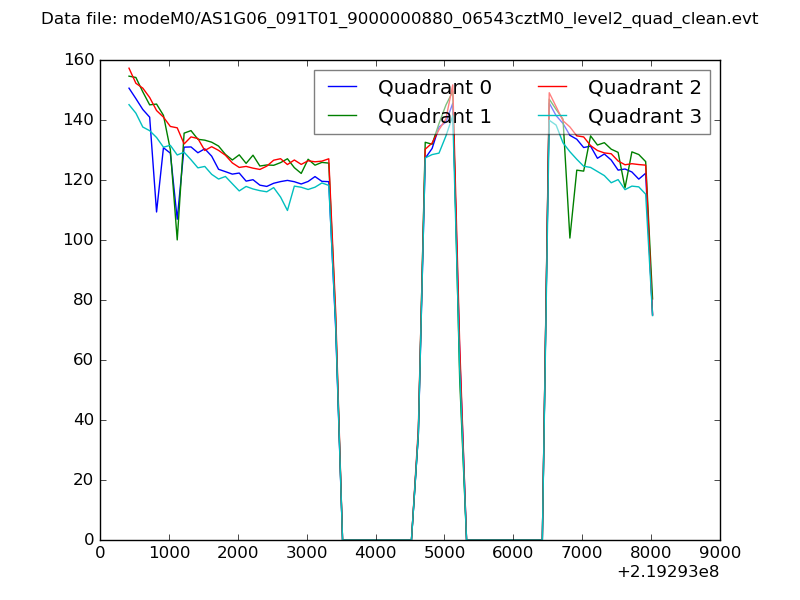

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

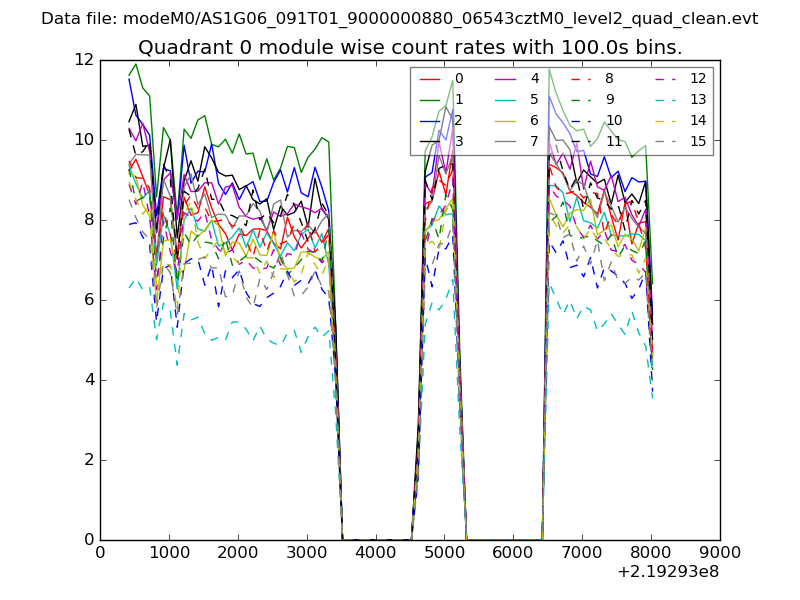

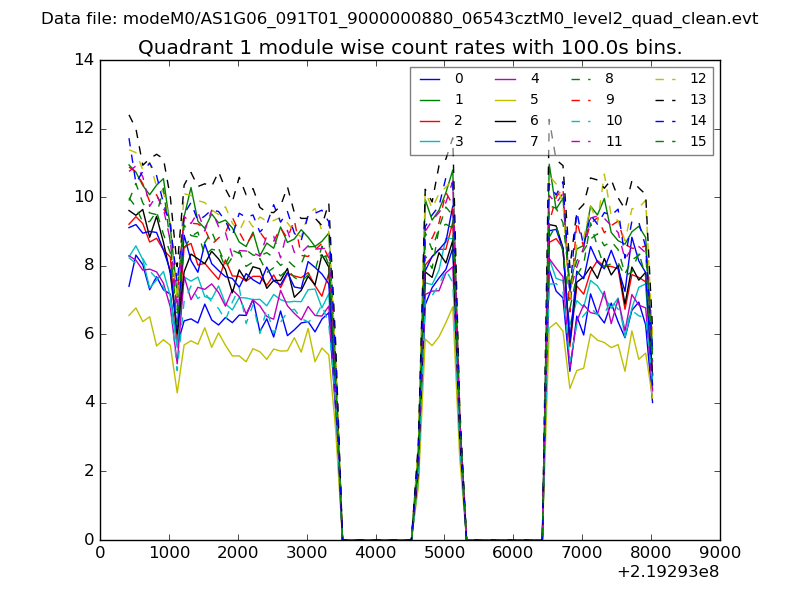

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

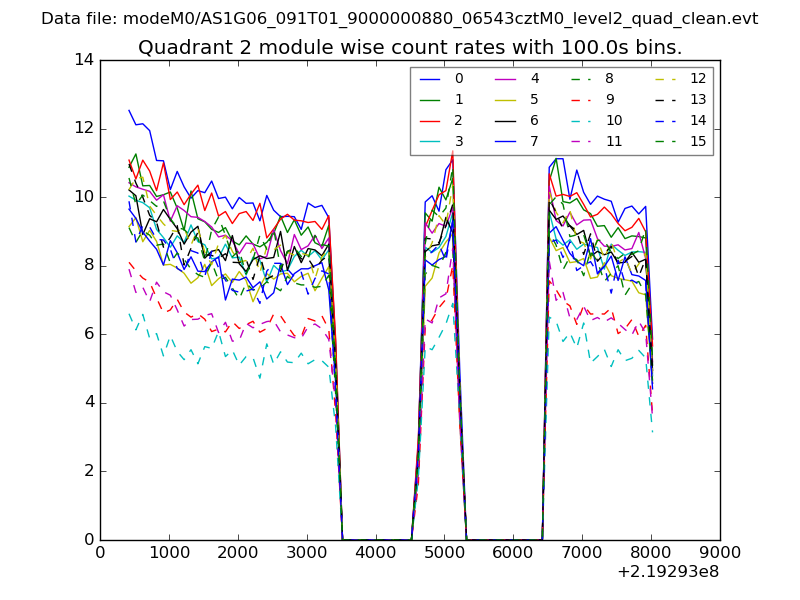

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

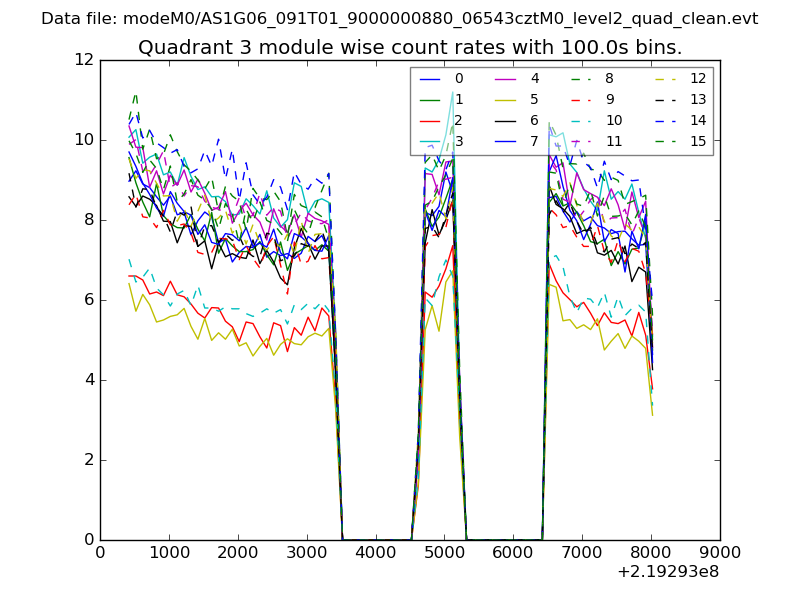

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

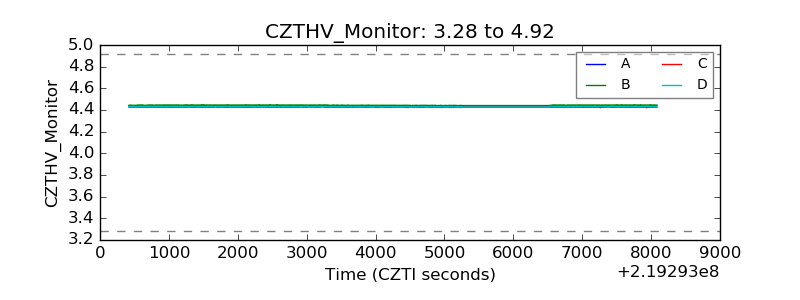

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

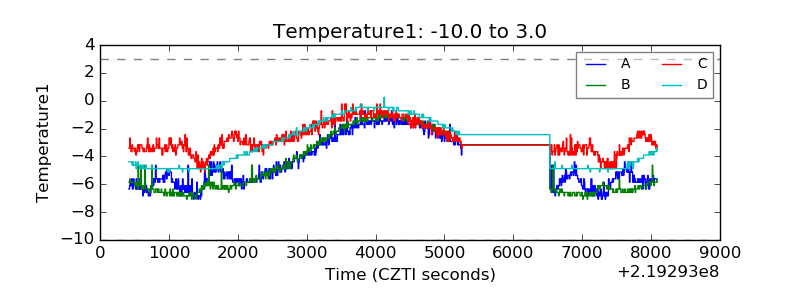

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

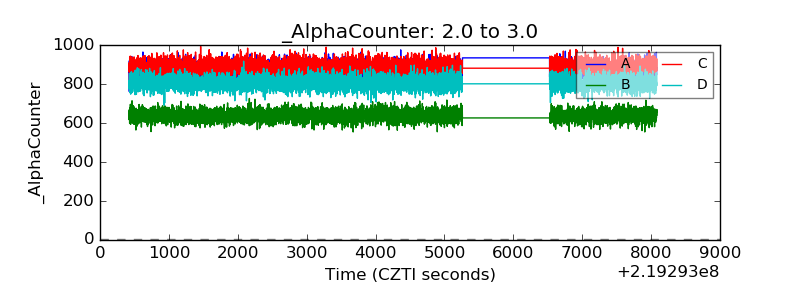

| Alpha Counter |  |
| _CPM_Rate |  |

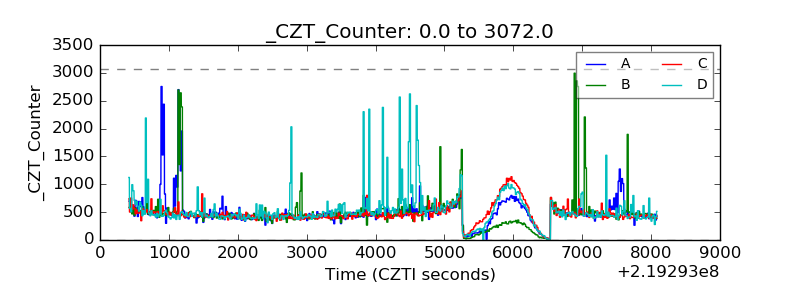

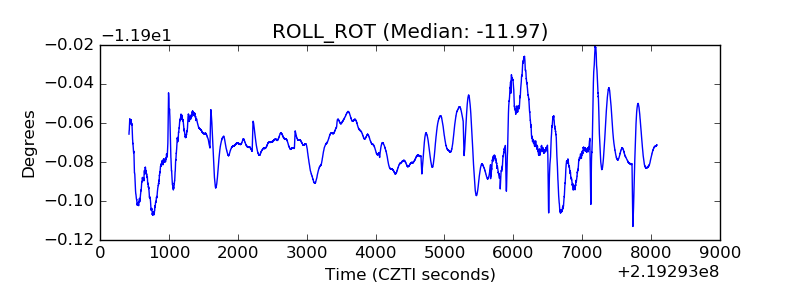

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

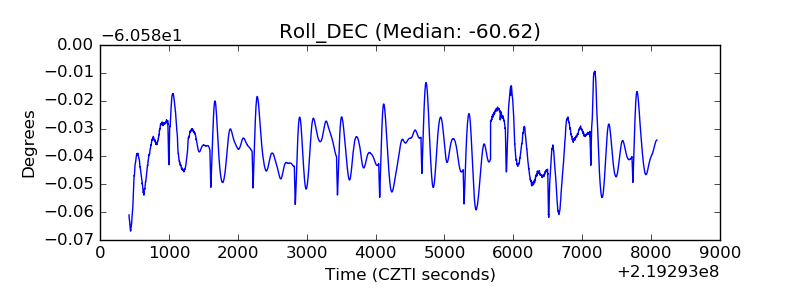

| _Roll_DEC |  |

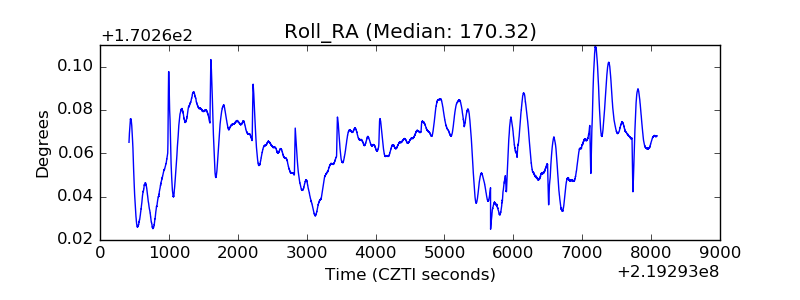

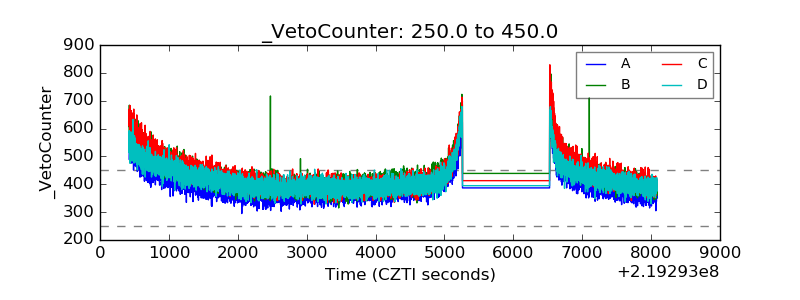

| _Roll_RA |  |
| Veto Counter |  |
