| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_134T06_9000000878_06531cztM0_level2.evt | modeM0/AS1G06_134T06_9000000878_06531cztM0_level2_quad_clean.evt |
| Size (bytes) | 116,187,840 | 8,930,880 |
| Size | 110.8 MB | 8.5 MB |
| Events in quadrant A | 868,419 | 36,197 |
| Events in quadrant B | 908,509 | 37,720 |
| Events in quadrant C | 803,172 | 38,132 |
| Events in quadrant D | 823,821 | 36,267 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3623 | 2 |
| B | 0 | 3774 | 1 |
| C | 0 | 3495 | 1 |
| D | 0 | 3570 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32 | 0 |
| B | 0 | 32 | 0 |
| C | 0 | 32 | 0 |
| D | 0 | 32 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 1652 | 102 | 6.174334% |
| B | 1652 | 141 | 8.535109% |
| C | 1652 | 64 | 3.874092% |
| D | 1652 | 69 | 4.176755% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 1677 | 1653 | 0 | 0 | 0.00% | 0.00% |  |
| B | 1677 | 1653 | 18 | 18 | 1.07% | 1.09% |  |
| C | 1677 | 1653 | 0 | 0 | 0.00% | 0.00% |  |
| D | 1677 | 1653 | 1 | 1 | 0.06% | 0.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 36255 | 807.7 | 204 | 198 | 44.6 |
| A | 8 | 15 | 27454 | 610.55 | 204 | 198 | 44.6 |
| A | 8 | 4 | 13090 | 288.79 | 204 | 198 | 44.6 |
| B | 0 | 219 | 63942 | 1504.76 | 206 | 200 | 42.4 |
| B | 4 | 172 | 22876 | 535.31 | 206 | 200 | 42.4 |
| B | 4 | 81 | 15265 | 355.64 | 206 | 200 | 42.4 |
| C | 8 | 128 | 5255 | 102.01 | 202 | 202 | 49.5 |
| C | 8 | 112 | 2209 | 40.52 | 202 | 202 | 49.5 |
| C | 8 | 144 | 2001 | 36.32 | 202 | 202 | 49.5 |
| D | 2 | 33 | 43194 | 841.68 | 200 | 193 | 51.1 |
| D | 13 | 169 | 7793 | 148.76 | 200 | 193 | 51.1 |
| D | 2 | 206 | 7744 | 147.8 | 200 | 193 | 51.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

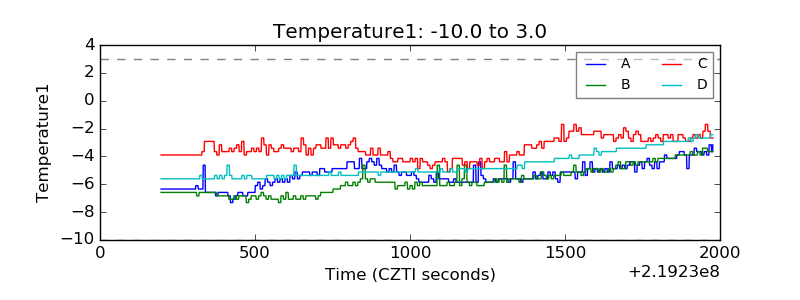

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

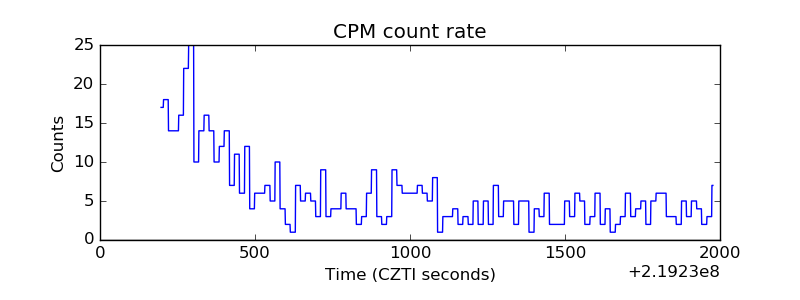

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
