| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T04_9000000882_06550cztM0_level2.evt | modeM0/AS1G05_246T04_9000000882_06550cztM0_level2_quad_clean.evt |
| Size (bytes) | 857,053,440 | 161,850,240 |
| Size | 817.3 MB | 154.4 MB |
| Events in quadrant A | 6,223,031 | 991,263 |
| Events in quadrant B | 6,211,434 | 993,807 |
| Events in quadrant C | 5,624,767 | 996,293 |
| Events in quadrant D | 7,017,423 | 1,024,008 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29911 | 2692 |
| B | 0 | 30322 | 3179 |
| C | 0 | 28918 | 2632 |
| D | 0 | 32703 | 2847 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 292 | 28 |
| B | 0 | 292 | 24 |
| C | 0 | 292 | 24 |
| D | 0 | 292 | 32 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 12962 | 165 | 1.272952% |
| B | 12910 | 182 | 1.409760% |
| C | 12963 | 116 | 0.894855% |
| D | 12961 | 171 | 1.319343% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 15172 | 13732 | 43 | 43 | 0.28% | 0.31% |  |
| B | 15172 | 13680 | 26 | 26 | 0.17% | 0.19% |  |
| C | 15172 | 13740 | 0 | 0 | 0.00% | 0.00% |  |
| D | 15172 | 13735 | 40 | 40 | 0.26% | 0.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 9 | 1 | 217249 | 721.68 | 1470 | 1439 | 299.0 |
| A | 8 | 15 | 171304 | 568.04 | 1470 | 1439 | 299.0 |
| A | 15 | 236 | 107301 | 354.01 | 1470 | 1439 | 299.0 |
| B | 8 | 3 | 181254 | 633.82 | 1479 | 1442 | 283.7 |
| B | 0 | 219 | 99244 | 344.74 | 1479 | 1442 | 283.7 |
| B | 4 | 48 | 61486 | 211.65 | 1479 | 1442 | 283.7 |
| C | 9 | 237 | 15164 | 41.33 | 1432 | 1439 | 332.1 |
| C | 13 | 61 | 11227 | 29.47 | 1432 | 1439 | 332.1 |
| C | 9 | 54 | 8341 | 20.78 | 1432 | 1439 | 332.1 |
| D | 2 | 63 | 1078833 | 3052.86 | 1429 | 1384 | 352.9 |
| D | 14 | 34 | 197228 | 554.91 | 1429 | 1384 | 352.9 |
| D | 2 | 33 | 76153 | 211.85 | 1429 | 1384 | 352.9 |

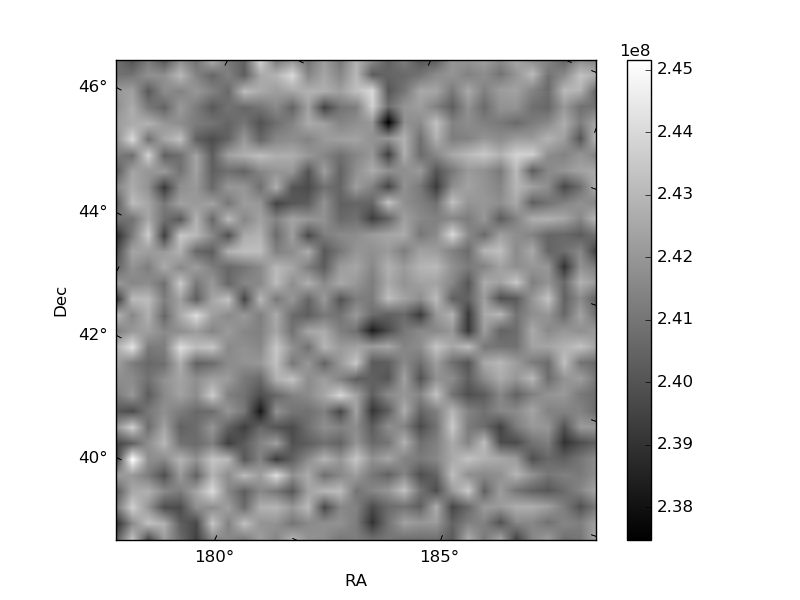

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

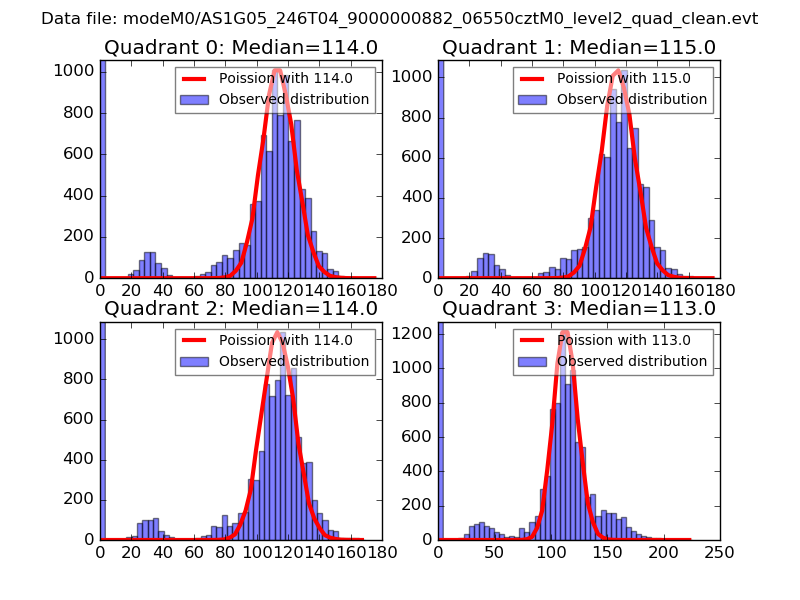

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

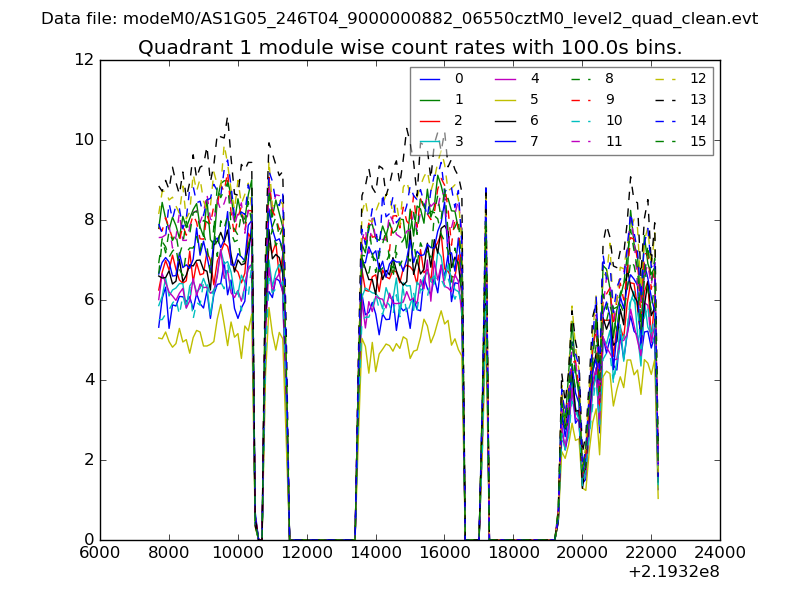

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

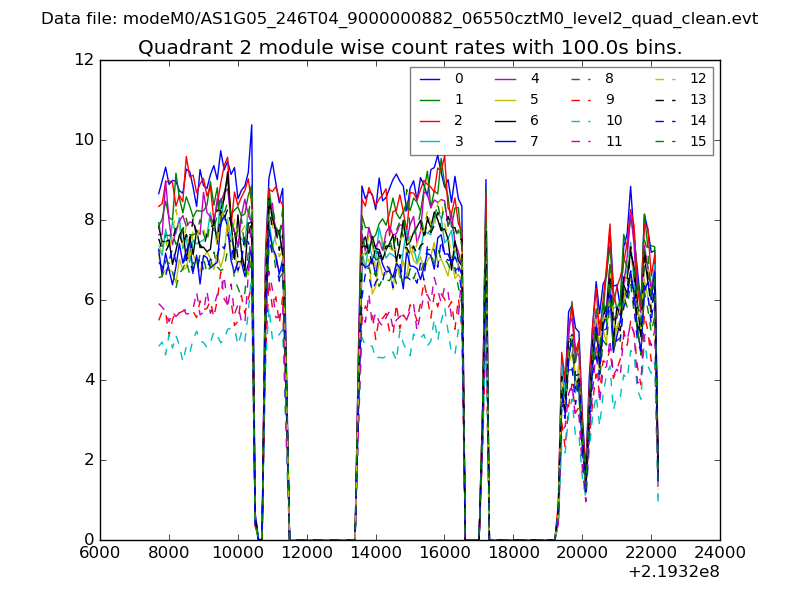

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

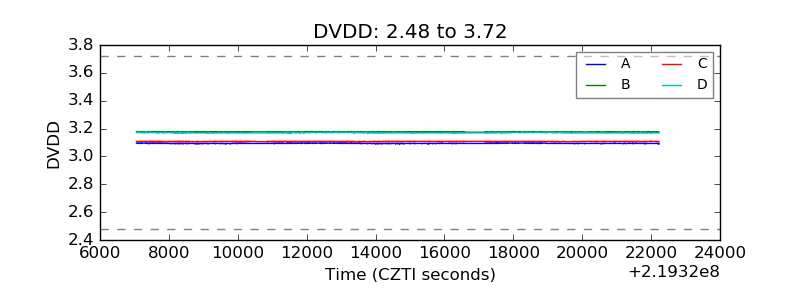

| D_VDD |  |

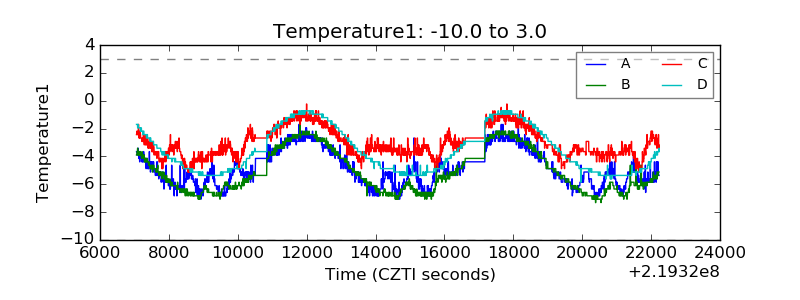

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

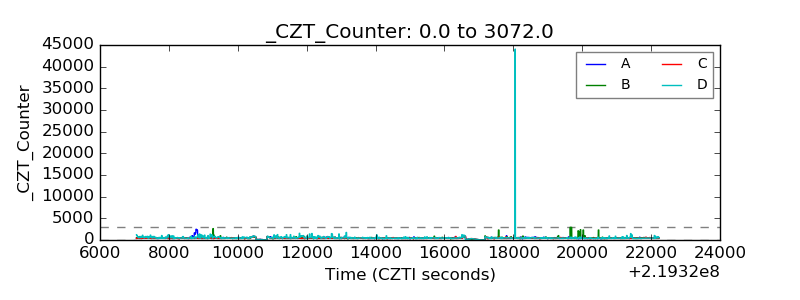

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

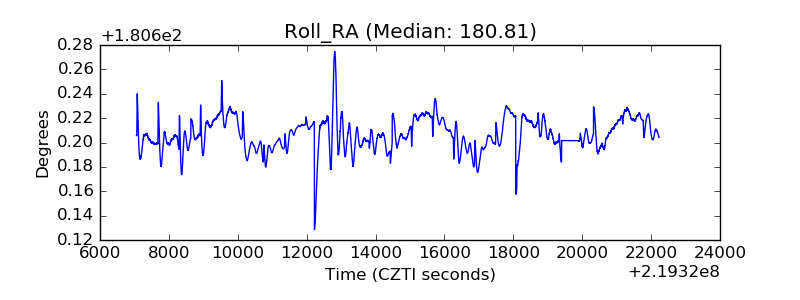

| _Roll_RA |  |
| Veto Counter |  |
