| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T04_9000000882_06555cztM0_level2.evt | modeM0/AS1G05_246T04_9000000882_06555cztM0_level2_quad_clean.evt |
| Size (bytes) | 455,140,800 | 98,755,200 |
| Size | 434.1 MB | 94.2 MB |
| Events in quadrant A | 3,071,281 | 639,326 |
| Events in quadrant B | 3,251,128 | 660,037 |
| Events in quadrant C | 2,867,594 | 651,639 |
| Events in quadrant D | 4,169,222 | 603,485 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13161 | 2 |
| B | 0 | 13863 | 1 |
| C | 0 | 12934 | 1 |
| D | 0 | 16828 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6249 | 26 | 0.416067% |
| B | 6249 | 75 | 1.200192% |
| C | 6249 | 21 | 0.336054% |
| D | 6249 | 143 | 2.288366% |

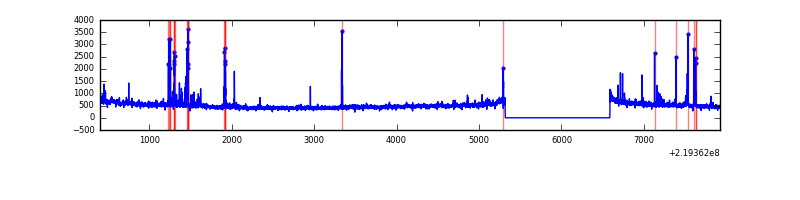

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7519 | 6250 | 10 | 10 | 0.13% | 0.16% |  |
| B | 7519 | 6250 | 25 | 25 | 0.33% | 0.40% |  |
| C | 7519 | 6250 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7519 | 6250 | 118 | 118 | 1.57% | 1.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 136384 | 897.04 | 743 | 729 | 151.2 |
| A | 8 | 15 | 72859 | 476.97 | 743 | 729 | 151.2 |
| A | 0 | 226 | 7178 | 42.65 | 743 | 729 | 151.2 |
| B | 0 | 219 | 130493 | 907.72 | 757 | 738 | 142.9 |
| B | 4 | 172 | 63384 | 438.25 | 757 | 738 | 142.9 |
| B | 15 | 204 | 47704 | 328.55 | 757 | 738 | 142.9 |
| C | 9 | 54 | 9040 | 49.5 | 731 | 735 | 167.8 |
| C | 13 | 61 | 5962 | 31.15 | 731 | 735 | 167.8 |
| C | 9 | 16 | 3952 | 19.17 | 731 | 735 | 167.8 |
| D | 11 | 241 | 888059 | 5079.7 | 716 | 696 | 174.7 |
| D | 2 | 33 | 321220 | 1834.84 | 716 | 696 | 174.7 |
| D | 14 | 34 | 85623 | 486.16 | 716 | 696 | 174.7 |

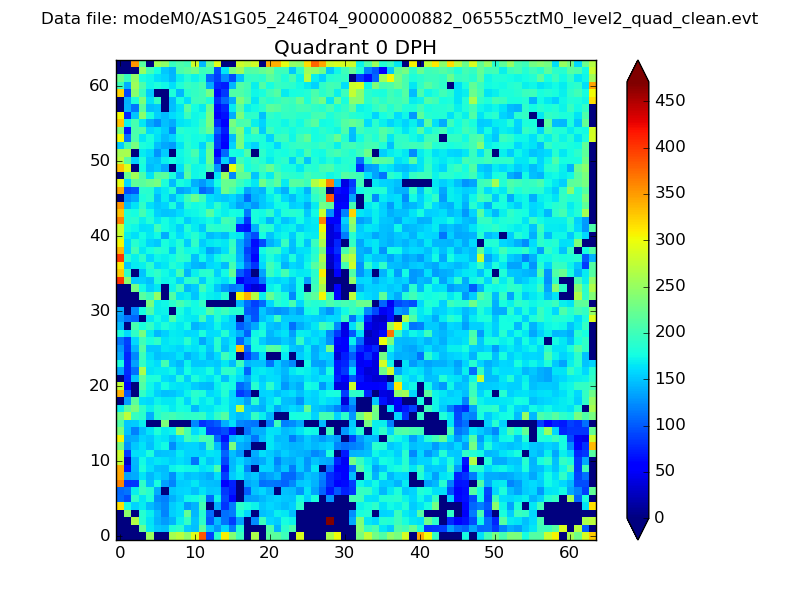

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

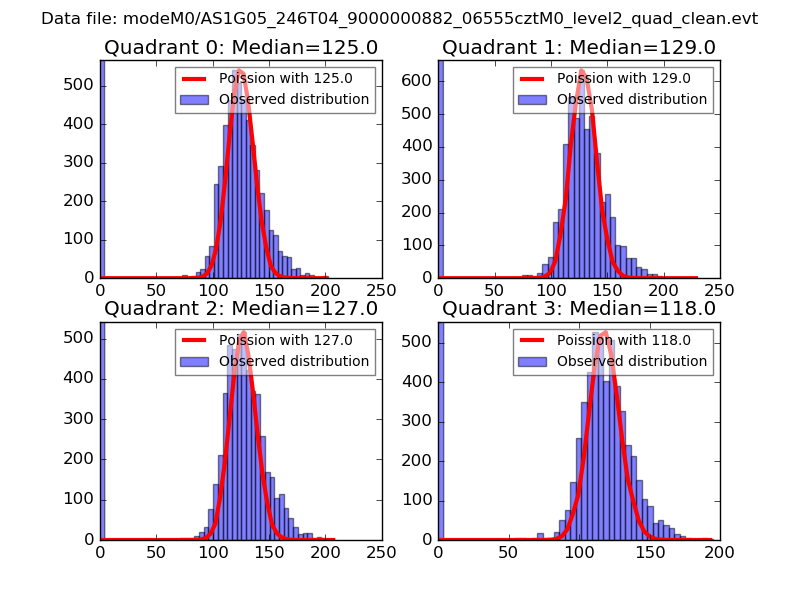

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

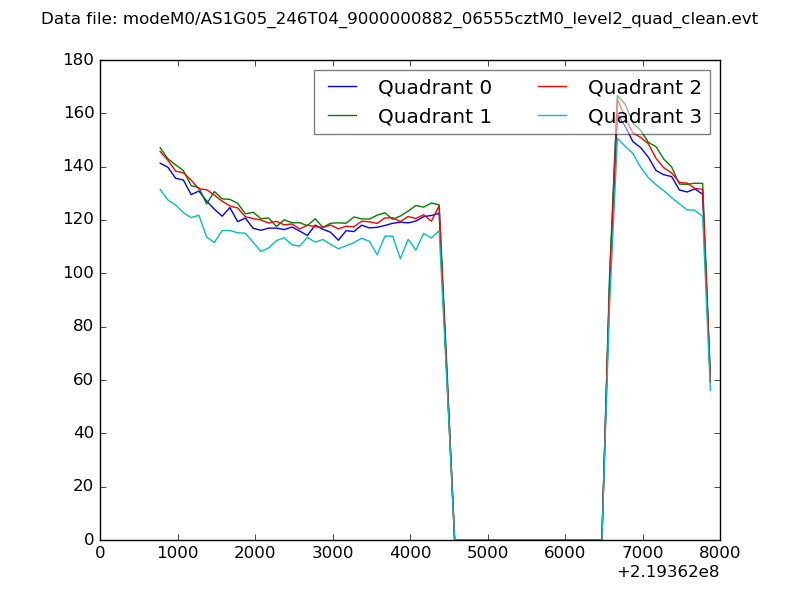

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

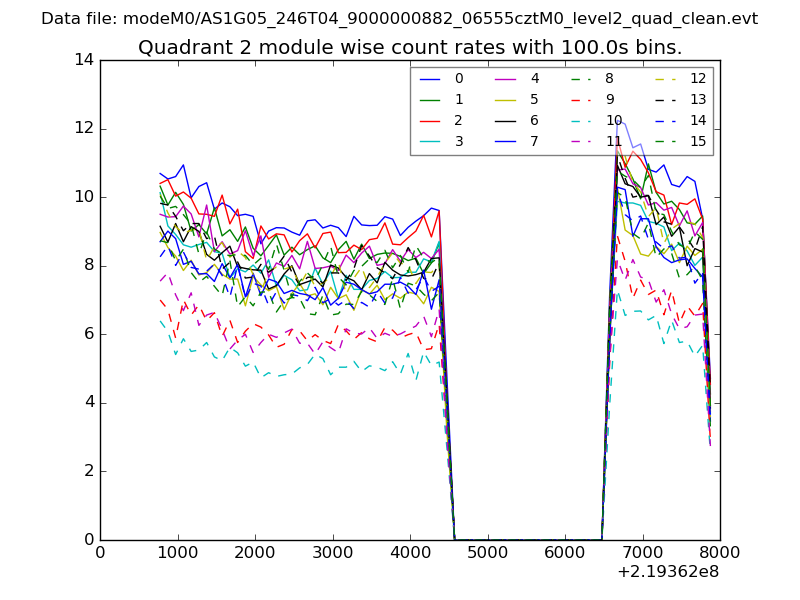

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

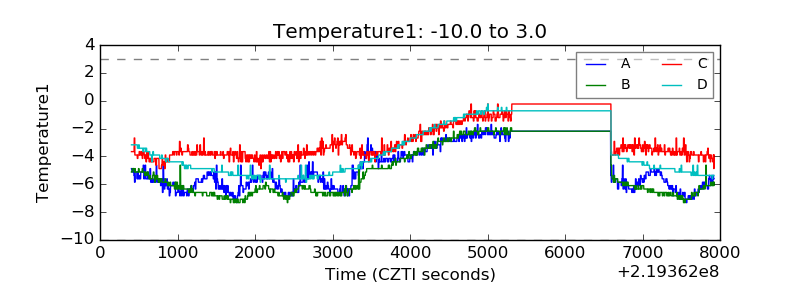

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

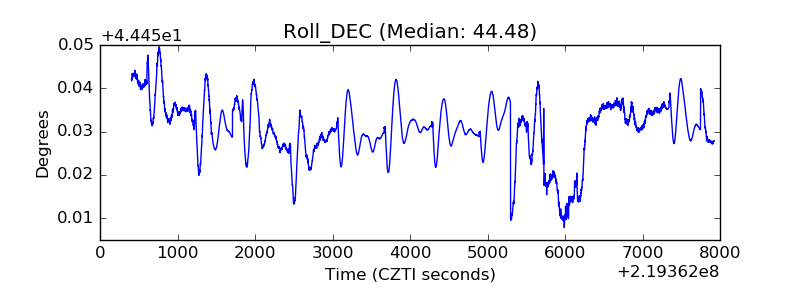

| _Roll_DEC |  |

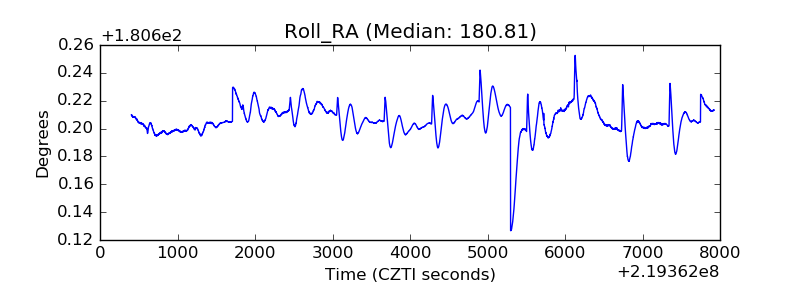

| _Roll_RA |  |
| Veto Counter |  |
