| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T04_9000000882_06558cztM0_level2.evt | modeM0/AS1G05_246T04_9000000882_06558cztM0_level2_quad_clean.evt |
| Size (bytes) | 401,670,720 | 72,486,720 |
| Size | 383.1 MB | 69.1 MB |
| Events in quadrant A | 2,719,730 | 451,980 |
| Events in quadrant B | 2,868,499 | 463,362 |
| Events in quadrant C | 2,548,091 | 454,187 |
| Events in quadrant D | 3,631,619 | 417,887 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12127 | 2 |
| B | 0 | 12562 | 1 |
| C | 0 | 11927 | 1 |
| D | 0 | 14959 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5837 | 30 | 0.513963% |
| B | 5837 | 76 | 1.302039% |
| C | 5837 | 18 | 0.308378% |
| D | 5837 | 222 | 3.803324% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

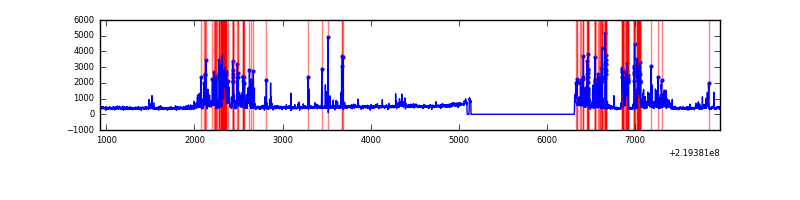

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7037 | 5839 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7037 | 5839 | 24 | 24 | 0.34% | 0.41% |  |
| C | 7037 | 5839 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7037 | 5839 | 195 | 195 | 2.77% | 3.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 94367 | 683.22 | 671 | 656 | 137.2 |
| A | 14 | 111 | 41558 | 298.2 | 671 | 656 | 137.2 |
| A | 0 | 226 | 6330 | 41.37 | 671 | 656 | 137.2 |
| B | 4 | 81 | 82310 | 630.89 | 676 | 659 | 129.4 |
| B | 4 | 170 | 76492 | 585.93 | 676 | 659 | 129.4 |
| B | 0 | 219 | 41669 | 316.87 | 676 | 659 | 129.4 |
| C | 12 | 4 | 5844 | 34.47 | 649 | 652 | 150.6 |
| C | 13 | 61 | 5098 | 29.51 | 649 | 652 | 150.6 |
| C | 1 | 16 | 3735 | 20.47 | 649 | 652 | 150.6 |
| D | 2 | 33 | 1053966 | 6754.8 | 640 | 620 | 155.9 |
| D | 2 | 14 | 53027 | 336.07 | 640 | 620 | 155.9 |
| D | 2 | 63 | 24772 | 154.88 | 640 | 620 | 155.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

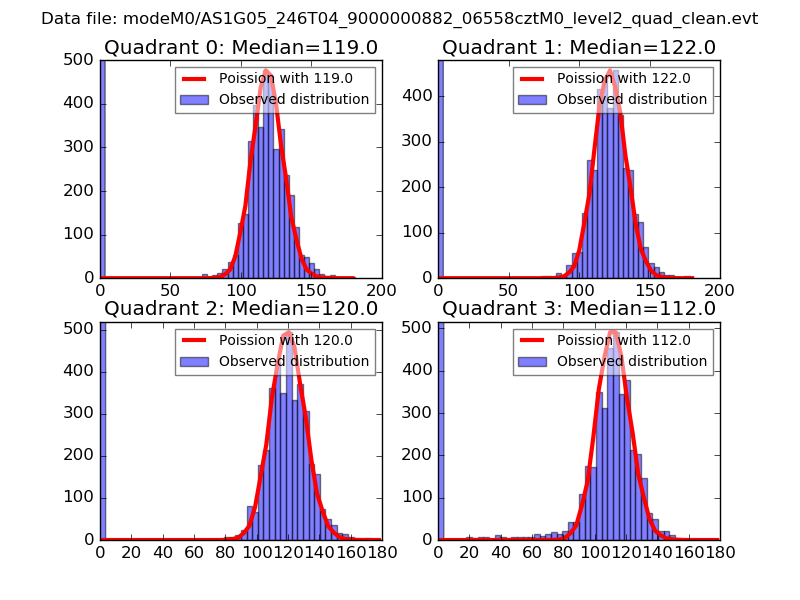

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

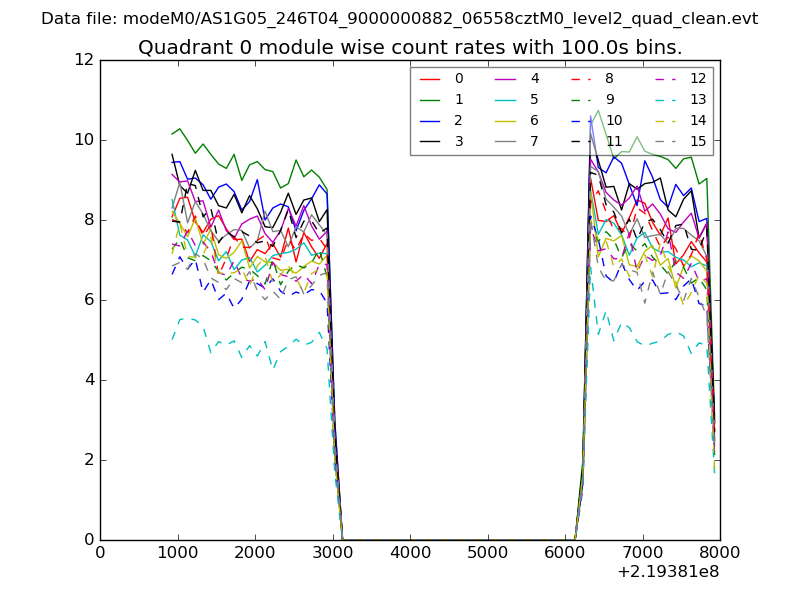

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

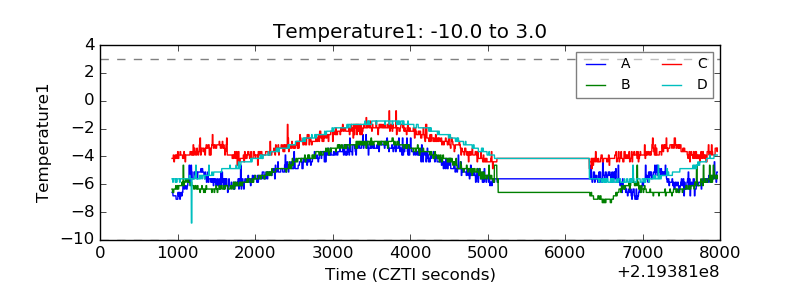

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

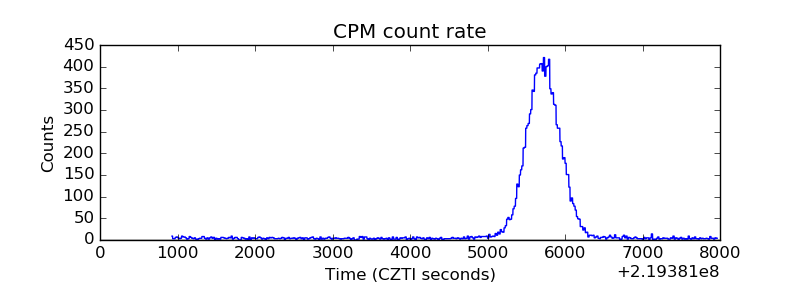

| _CPM_Rate |  |

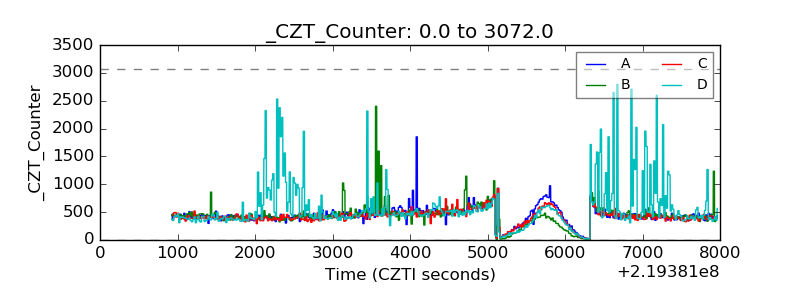

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

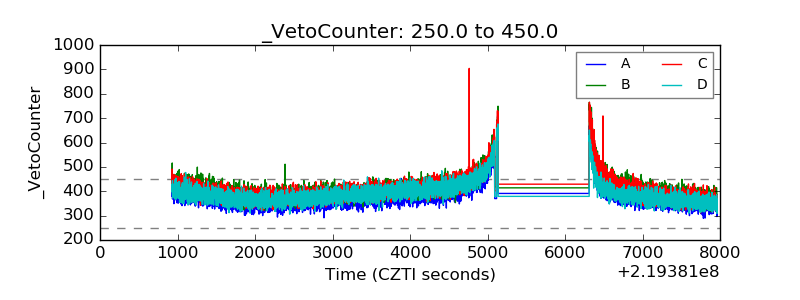

| Veto Counter |  |
