| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T04_9000000882_06560cztM0_level2.evt | modeM0/AS1G05_246T04_9000000882_06560cztM0_level2_quad_clean.evt |
| Size (bytes) | 489,772,800 | 97,070,400 |
| Size | 467.1 MB | 92.6 MB |
| Events in quadrant A | 3,401,731 | 612,007 |
| Events in quadrant B | 3,433,718 | 626,812 |
| Events in quadrant C | 3,311,338 | 616,377 |
| Events in quadrant D | 4,188,049 | 574,508 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15147 | 2 |
| B | 0 | 15298 | 1 |
| C | 0 | 15260 | 1 |
| D | 0 | 17506 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 4 | 0 |
| B | 0 | 4 | 0 |
| C | 0 | 4 | 0 |
| D | 0 | 4 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7328 | 175 | 2.388100% |
| B | 7328 | 163 | 2.224345% |
| C | 7328 | 128 | 1.746725% |
| D | 7328 | 388 | 5.294760% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7614 | 7330 | 4 | 4 | 0.05% | 0.05% |  |
| B | 7614 | 7330 | 11 | 11 | 0.14% | 0.15% |  |
| C | 7614 | 7330 | 14 | 14 | 0.18% | 0.19% |  |
| D | 7614 | 7330 | 216 | 216 | 2.84% | 2.95% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 86817 | 492.4 | 845 | 825 | 174.6 |
| A | 13 | 251 | 49142 | 276.67 | 845 | 825 | 174.6 |
| A | 14 | 111 | 13862 | 74.65 | 845 | 825 | 174.6 |
| B | 4 | 172 | 40456 | 242.16 | 848 | 827 | 163.6 |
| B | 0 | 219 | 21189 | 124.43 | 848 | 827 | 163.6 |
| B | 4 | 48 | 20192 | 118.33 | 848 | 827 | 163.6 |
| C | 9 | 237 | 98713 | 510.54 | 819 | 819 | 191.7 |
| C | 13 | 61 | 6409 | 29.15 | 819 | 819 | 191.7 |
| C | 8 | 128 | 5567 | 24.76 | 819 | 819 | 191.7 |
| D | 2 | 33 | 657213 | 3289.59 | 808 | 781 | 199.5 |
| D | 12 | 221 | 182694 | 911.63 | 808 | 781 | 199.5 |
| D | 2 | 14 | 83587 | 414.97 | 808 | 781 | 199.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

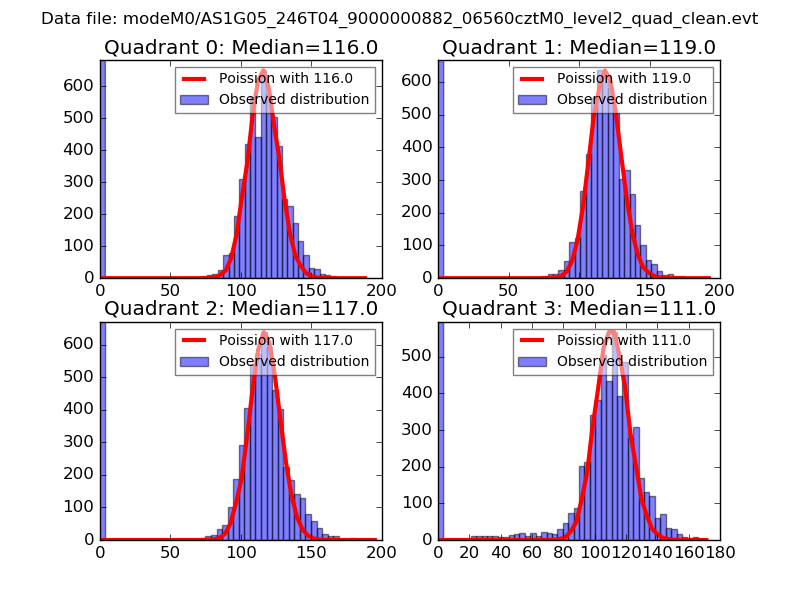

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
