| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G05_246T04_9000000882_06570cztM0_level2.evt | modeM0/AS1G05_246T04_9000000882_06570cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,315,200 | 97,770,240 |
| Size | 470.5 MB | 93.2 MB |
| Events in quadrant A | 2,912,766 | 640,485 |
| Events in quadrant B | 3,367,236 | 653,496 |
| Events in quadrant C | 2,867,386 | 649,504 |
| Events in quadrant D | 5,375,700 | 588,454 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12819 | 3 |
| B | 0 | 14082 | 2 |
| C | 0 | 12780 | 2 |
| D | 0 | 20261 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6149 | 31 | 0.504147% |
| B | 6149 | 128 | 2.081639% |
| C | 6149 | 14 | 0.227679% |
| D | 6149 | 365 | 5.935925% |

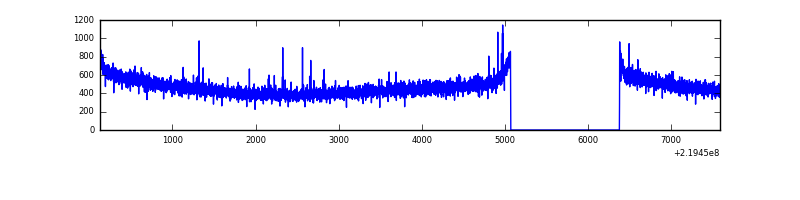

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7459 | 6150 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7459 | 6150 | 59 | 59 | 0.79% | 0.96% |  |
| C | 7459 | 6150 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7459 | 6150 | 342 | 342 | 4.59% | 5.56% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 61880 | 406.82 | 739 | 725 | 150.3 |
| A | 0 | 226 | 7156 | 42.78 | 739 | 725 | 150.3 |
| A | 12 | 194 | 6561 | 38.82 | 739 | 725 | 150.3 |
| B | 0 | 219 | 155244 | 1093.92 | 750 | 737 | 141.2 |
| B | 4 | 48 | 136630 | 962.14 | 750 | 737 | 141.2 |
| B | 5 | 143 | 74367 | 521.31 | 750 | 737 | 141.2 |
| C | 9 | 16 | 7104 | 37.77 | 730 | 737 | 168.6 |
| C | 9 | 237 | 6622 | 34.91 | 730 | 737 | 168.6 |
| C | 13 | 61 | 5791 | 29.98 | 730 | 737 | 168.6 |
| D | 14 | 34 | 1510812 | 8711.44 | 704 | 683 | 173.4 |
| D | 12 | 221 | 629513 | 3627.52 | 704 | 683 | 173.4 |
| D | 2 | 63 | 307417 | 1769.45 | 704 | 683 | 173.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

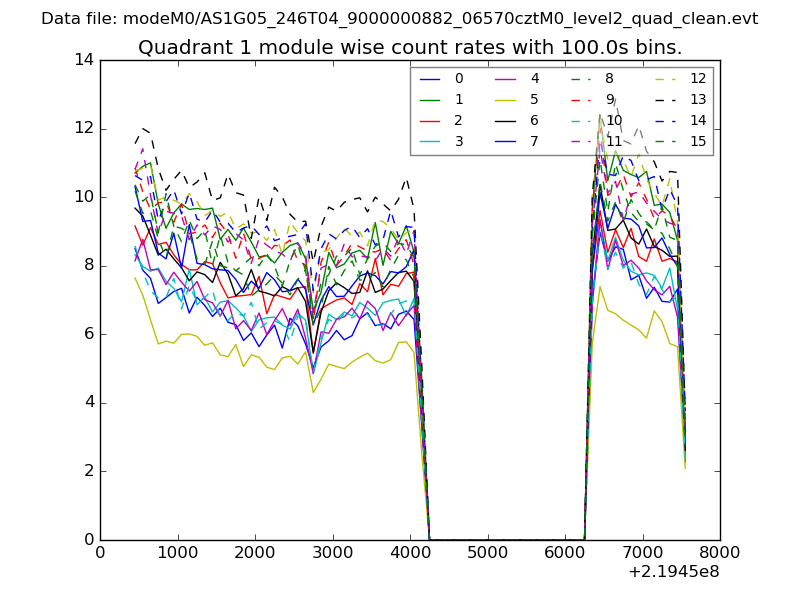

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

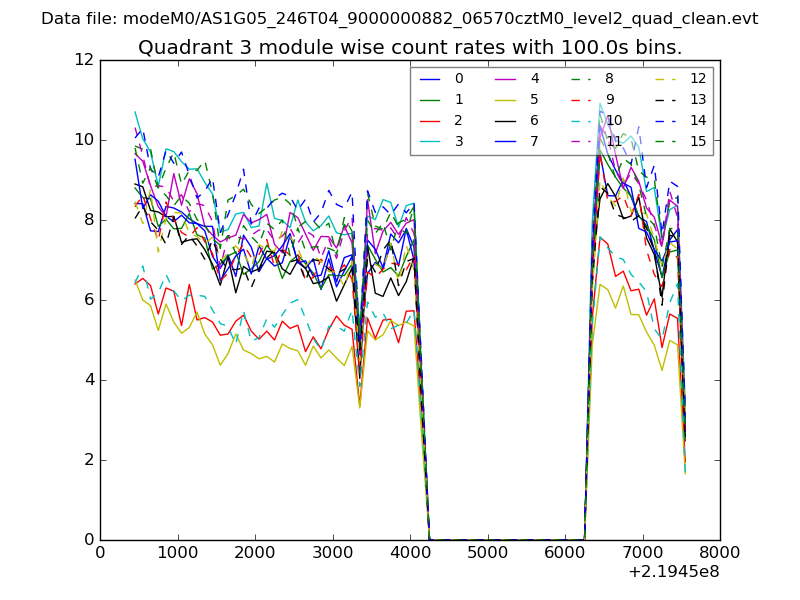

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

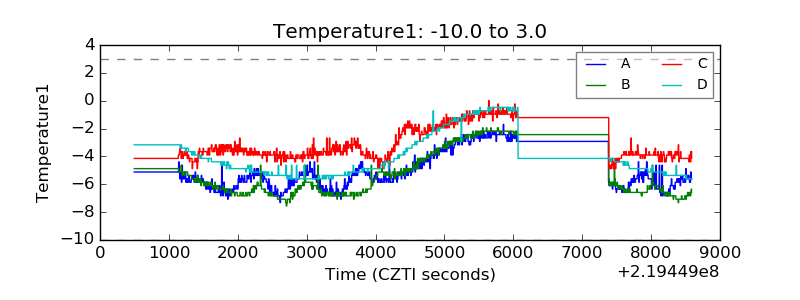

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

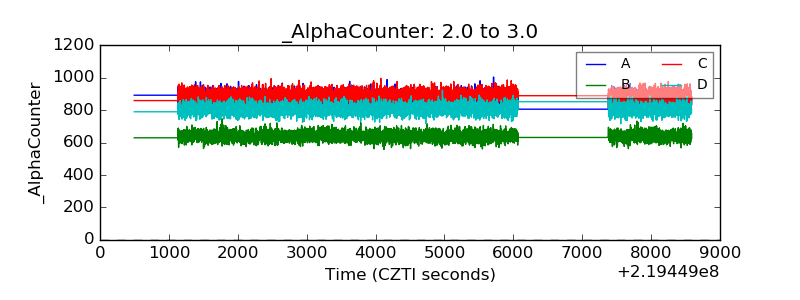

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

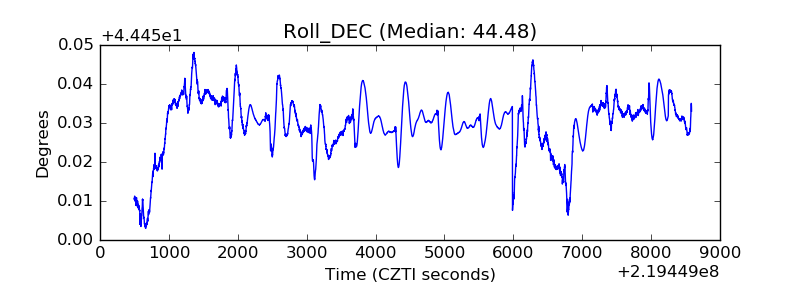

| _Roll_DEC |  |
| _Roll_RA |  |

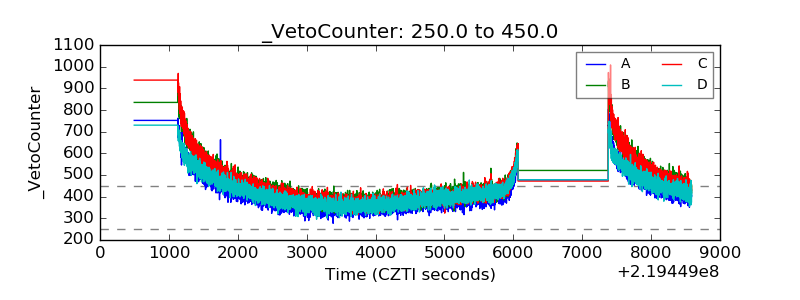

| Veto Counter |  |
