| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_008T01_9000000884_06573cztM0_level2.evt | modeM0/AS1C02_008T01_9000000884_06573cztM0_level2_quad_clean.evt |
| Size (bytes) | 746,510,400 | 101,635,200 |
| Size | 711.9 MB | 96.9 MB |
| Events in quadrant A | 4,501,308 | 612,362 |
| Events in quadrant B | 5,197,739 | 621,189 |
| Events in quadrant C | 4,384,775 | 613,964 |
| Events in quadrant D | 7,879,098 | 568,818 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19639 | 3 |
| B | 0 | 21546 | 2 |
| C | 0 | 19537 | 2 |
| D | 0 | 30342 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24 | 0 |
| B | 0 | 24 | 0 |
| C | 0 | 24 | 0 |
| D | 0 | 24 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 194 | 0 |
| B | 0 | 194 | 0 |
| C | 0 | 194 | 0 |
| D | 0 | 194 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 9540 | 41 | 0.429769% |
| B | 9540 | 105 | 1.100629% |
| C | 9540 | 27 | 0.283019% |
| D | 9540 | 374 | 3.920335% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 11945 | 9542 | 0 | 0 | 0.00% | 0.00% |  |
| B | 11945 | 9542 | 42 | 42 | 0.35% | 0.44% |  |
| C | 11945 | 9542 | 0 | 0 | 0.00% | 0.00% |  |
| D | 11945 | 9542 | 282 | 282 | 2.36% | 2.96% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 111695 | 479.3 | 1134 | 1112 | 230.7 |
| A | 14 | 111 | 11627 | 45.57 | 1134 | 1112 | 230.7 |
| A | 0 | 226 | 10732 | 41.7 | 1134 | 1112 | 230.7 |
| B | 5 | 143 | 405345 | 1835.91 | 1147 | 1119 | 220.2 |
| B | 4 | 172 | 100987 | 453.58 | 1147 | 1119 | 220.2 |
| B | 0 | 219 | 75887 | 339.58 | 1147 | 1119 | 220.2 |
| C | 1 | 16 | 12612 | 44.16 | 1116 | 1120 | 260.2 |
| C | 9 | 237 | 12162 | 42.43 | 1116 | 1120 | 260.2 |
| C | 13 | 61 | 8677 | 29.04 | 1116 | 1120 | 260.2 |
| D | 12 | 221 | 1446517 | 5325.59 | 1094 | 1059 | 271.4 |
| D | 2 | 33 | 809014 | 2976.8 | 1094 | 1059 | 271.4 |
| D | 14 | 34 | 803943 | 2958.11 | 1094 | 1059 | 271.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

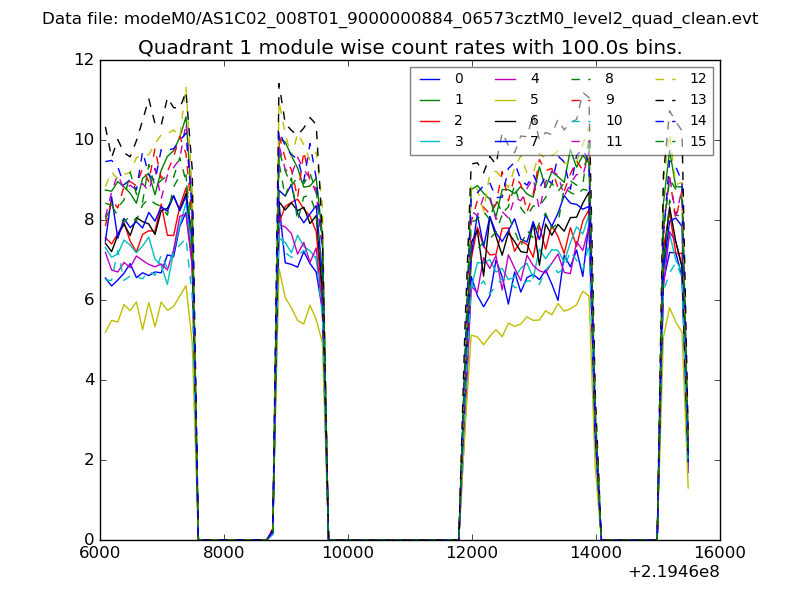

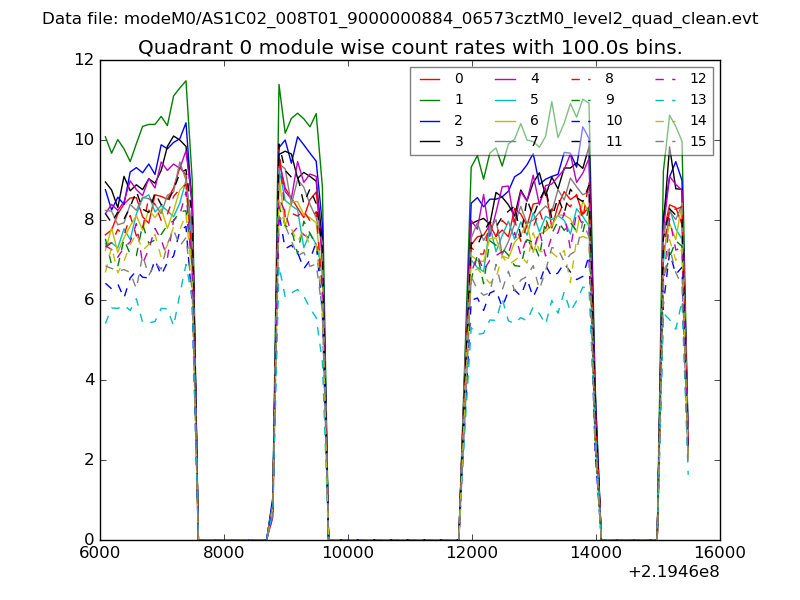

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

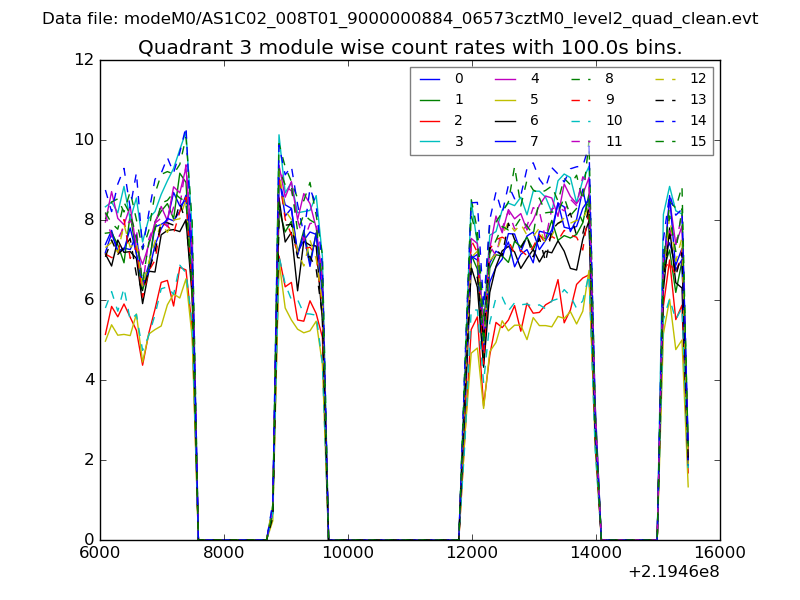

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

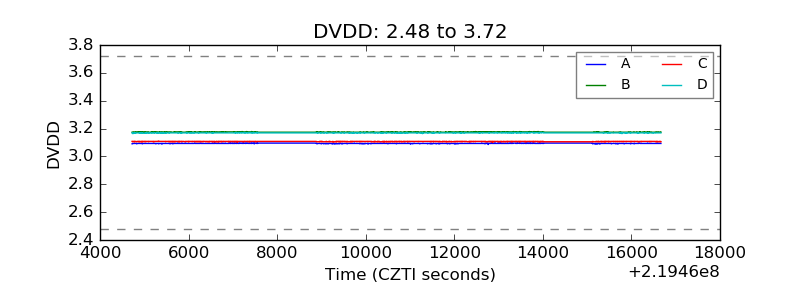

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

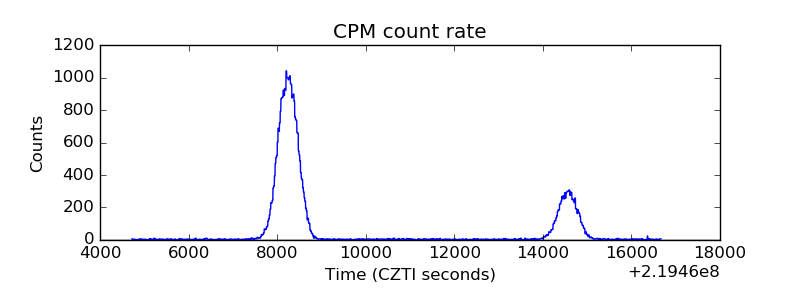

| _CPM_Rate |  |

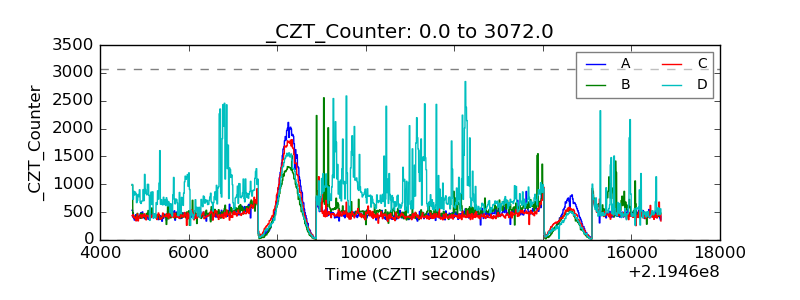

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

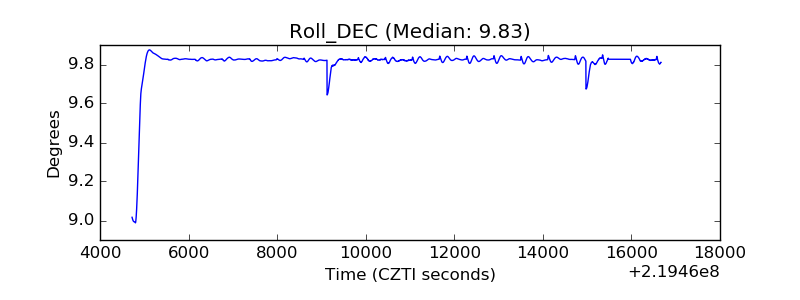

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
