| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_008T01_9000000884_06580cztM0_level2.evt | modeM0/AS1C02_008T01_9000000884_06580cztM0_level2_quad_clean.evt |
| Size (bytes) | 427,907,520 | 89,501,760 |
| Size | 408.1 MB | 85.4 MB |
| Events in quadrant A | 3,068,227 | 569,665 |
| Events in quadrant B | 3,205,799 | 573,336 |
| Events in quadrant C | 2,884,723 | 563,543 |
| Events in quadrant D | 3,353,049 | 545,250 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13602 | 2 |
| B | 0 | 13843 | 1 |
| C | 0 | 13317 | 1 |
| D | 0 | 14397 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 134 | 0 |
| B | 0 | 134 | 0 |
| C | 0 | 134 | 0 |
| D | 0 | 134 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6574 | 59 | 0.897475% |
| B | 6574 | 47 | 0.714938% |
| C | 6574 | 10 | 0.152114% |
| D | 6574 | 48 | 0.730149% |

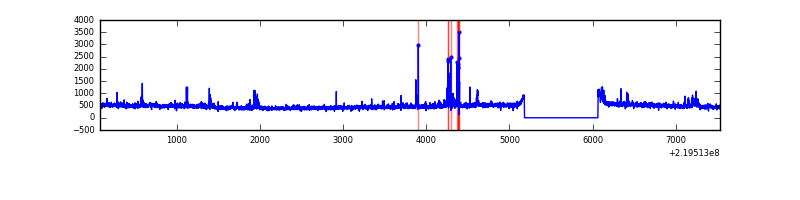

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7459 | 6575 | 20 | 20 | 0.27% | 0.30% |  |
| B | 7459 | 6575 | 10 | 10 | 0.13% | 0.15% |  |
| C | 7459 | 6575 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7459 | 6575 | 17 | 17 | 0.23% | 0.26% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 78735 | 503.88 | 763 | 749 | 154.8 |
| A | 8 | 15 | 39704 | 251.69 | 763 | 749 | 154.8 |
| A | 0 | 226 | 7502 | 43.63 | 763 | 749 | 154.8 |
| B | 4 | 81 | 64121 | 426.19 | 767 | 749 | 148.7 |
| B | 0 | 219 | 61978 | 411.78 | 767 | 749 | 148.7 |
| B | 0 | 198 | 50941 | 337.55 | 767 | 749 | 148.7 |
| C | 1 | 16 | 6986 | 36.24 | 736 | 739 | 172.4 |
| C | 13 | 61 | 5656 | 28.52 | 736 | 739 | 172.4 |
| C | 9 | 54 | 5513 | 27.69 | 736 | 739 | 172.4 |
| D | 2 | 33 | 182937 | 994.12 | 743 | 721 | 183.3 |
| D | 2 | 152 | 97556 | 528.31 | 743 | 721 | 183.3 |
| D | 2 | 136 | 79896 | 431.96 | 743 | 721 | 183.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

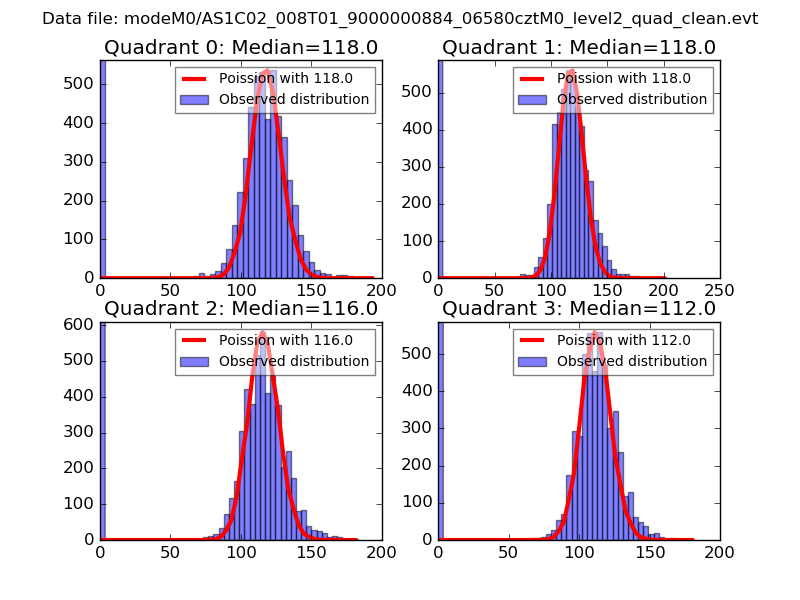

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

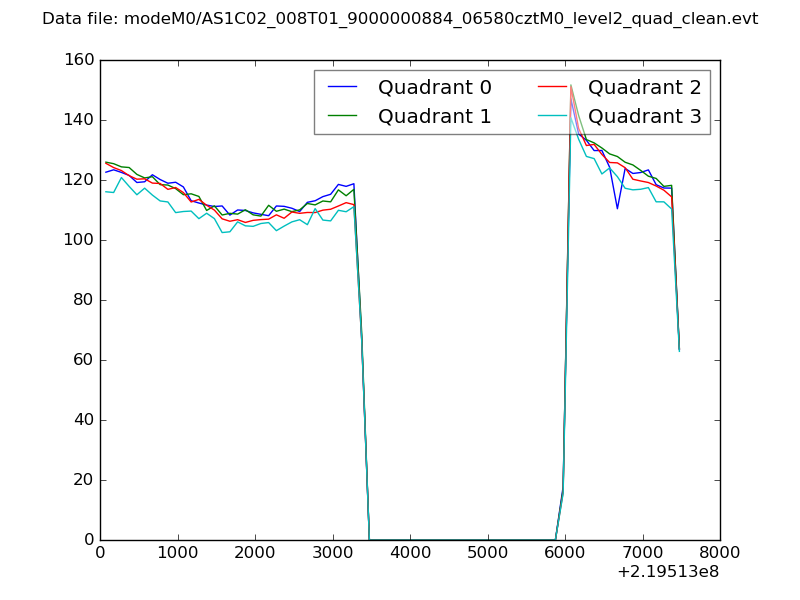

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

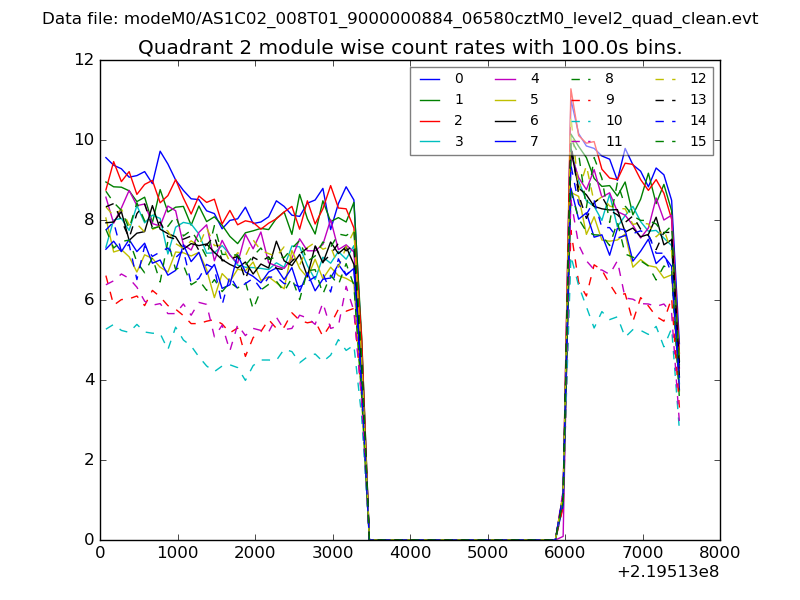

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

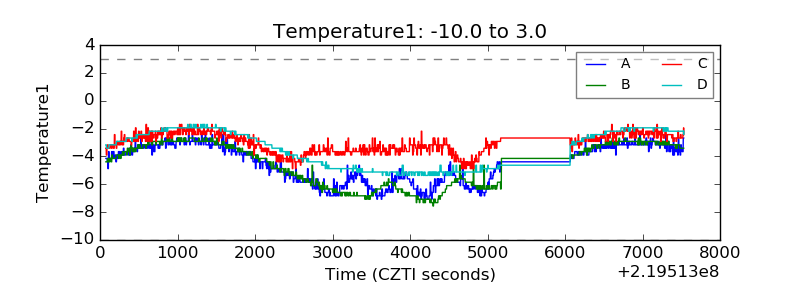

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

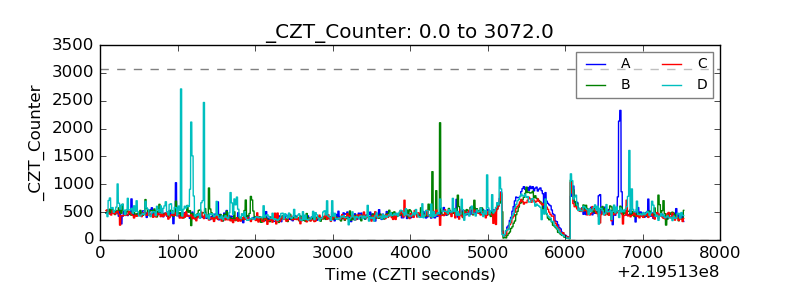

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

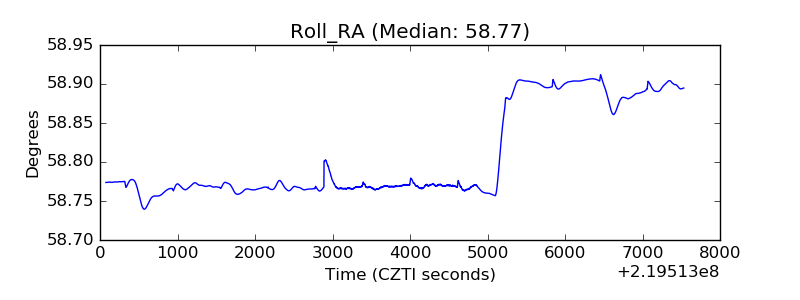

| _Roll_RA |  |

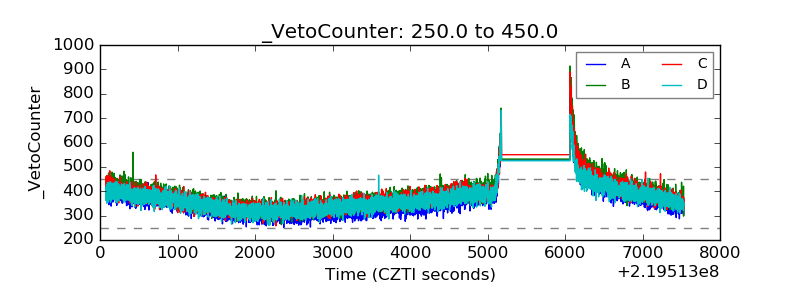

| Veto Counter |  |
