| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_008T01_9000000884_06585cztM0_level2.evt | modeM0/AS1C02_008T01_9000000884_06585cztM0_level2_quad_clean.evt |
| Size (bytes) | 391,717,440 | 73,679,040 |
| Size | 373.6 MB | 70.3 MB |
| Events in quadrant A | 2,756,842 | 465,256 |
| Events in quadrant B | 2,984,732 | 475,626 |
| Events in quadrant C | 2,648,158 | 457,995 |
| Events in quadrant D | 3,085,447 | 433,605 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11895 | 2 |
| B | 0 | 12530 | 2 |
| C | 0 | 11701 | 2 |
| D | 0 | 13119 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5700 | 35 | 0.614035% |
| B | 5700 | 75 | 1.315789% |
| C | 5700 | 24 | 0.421053% |
| D | 5700 | 138 | 2.421053% |

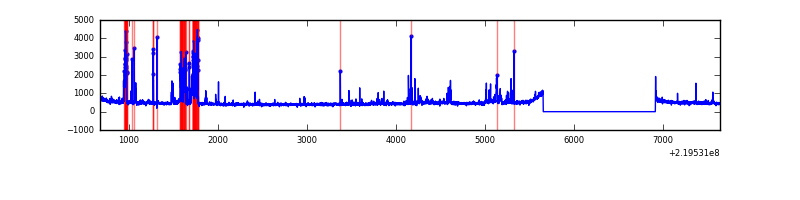

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6960 | 5701 | 0 | 0 | 0.00% | 0.00% |  |
| B | 6960 | 5701 | 27 | 27 | 0.39% | 0.47% |  |
| C | 6960 | 5701 | 1 | 1 | 0.01% | 0.02% |  |
| D | 6960 | 5701 | 87 | 87 | 1.25% | 1.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 58495 | 412.46 | 692 | 679 | 140.2 |
| A | 15 | 234 | 27504 | 191.37 | 692 | 679 | 140.2 |
| A | 0 | 226 | 6647 | 42.58 | 692 | 679 | 140.2 |
| B | 4 | 172 | 112841 | 845.28 | 696 | 680 | 132.7 |
| B | 0 | 219 | 62431 | 465.38 | 696 | 680 | 132.7 |
| B | 4 | 81 | 38693 | 286.48 | 696 | 680 | 132.7 |
| C | 9 | 54 | 26019 | 161.4 | 671 | 676 | 157.0 |
| C | 13 | 61 | 5285 | 29.35 | 671 | 676 | 157.0 |
| C | 9 | 16 | 1975 | 8.27 | 671 | 676 | 157.0 |
| D | 2 | 33 | 474313 | 2902.85 | 667 | 648 | 163.2 |
| D | 12 | 221 | 27444 | 164.22 | 667 | 648 | 163.2 |
| D | 2 | 136 | 24284 | 144.85 | 667 | 648 | 163.2 |

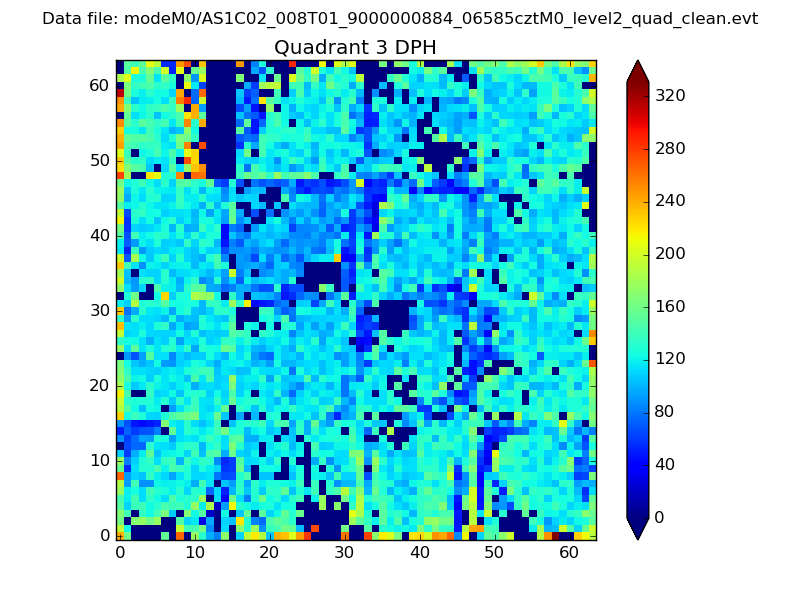

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

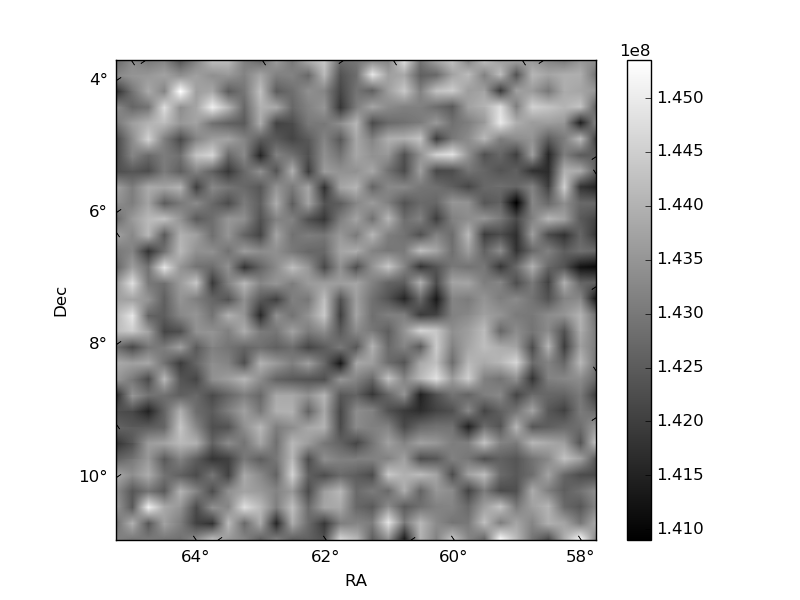

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

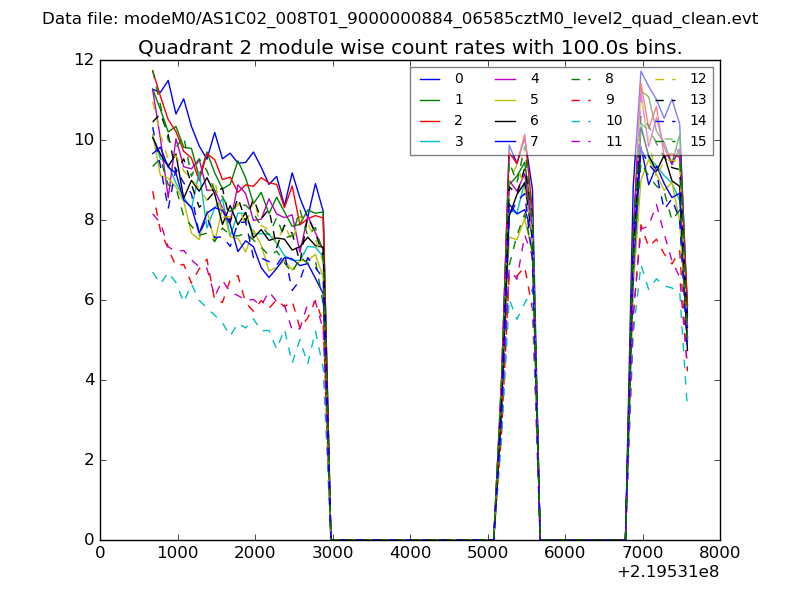

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

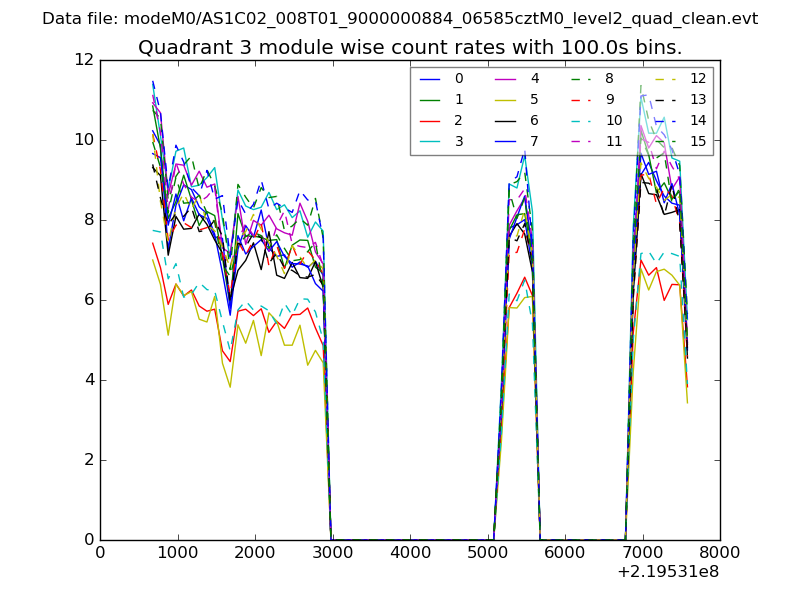

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

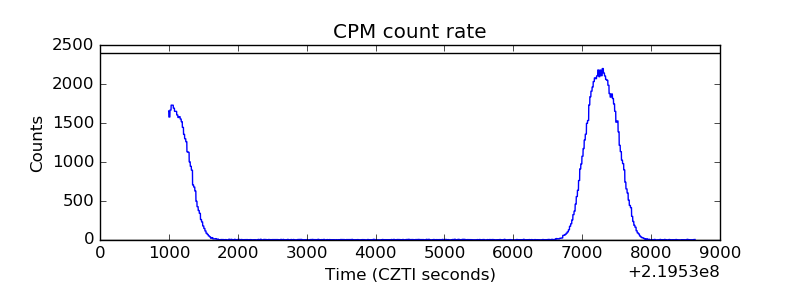

| _CPM_Rate |  |

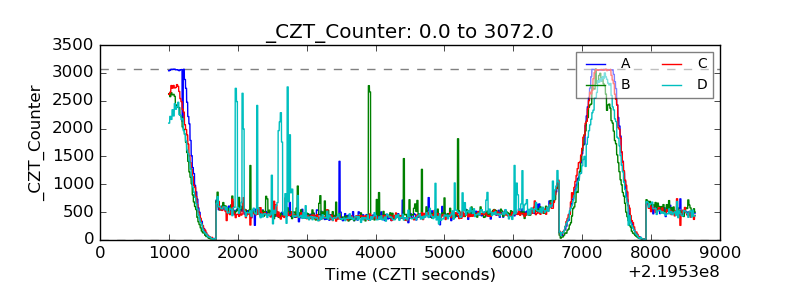

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

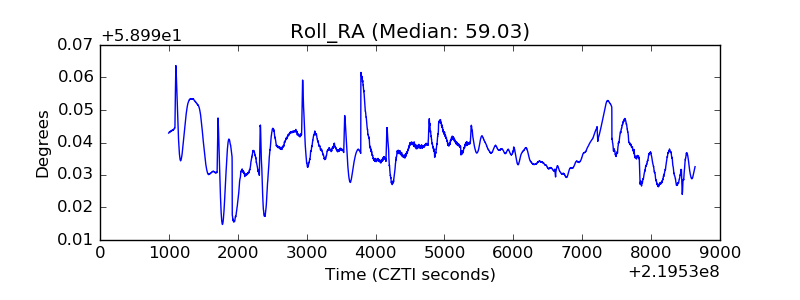

| _Roll_RA |  |
| Veto Counter |  |
