| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_028T01_9000000890_06598cztM0_level2.evt | modeM0/AS1G06_028T01_9000000890_06598cztM0_level2_quad_clean.evt |
| Size (bytes) | 473,806,080 | 79,292,160 |
| Size | 451.9 MB | 75.6 MB |
| Events in quadrant A | 3,177,779 | 490,763 |
| Events in quadrant B | 3,541,524 | 498,839 |
| Events in quadrant C | 3,154,079 | 490,858 |
| Events in quadrant D | 4,030,321 | 463,014 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13690 | 2 |
| B | 0 | 14829 | 1 |
| C | 0 | 13700 | 1 |
| D | 0 | 16457 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6565 | 43 | 0.654989% |
| B | 6565 | 119 | 1.812643% |
| C | 6565 | 54 | 0.822544% |
| D | 6565 | 98 | 1.492765% |

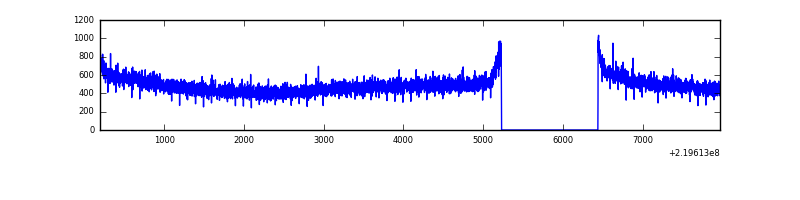

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7775 | 6566 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7775 | 6566 | 51 | 51 | 0.66% | 0.78% |  |
| C | 7775 | 6566 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7775 | 6566 | 30 | 30 | 0.39% | 0.46% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 19397 | 112.13 | 819 | 806 | 165.8 |
| A | 0 | 226 | 7722 | 41.71 | 819 | 806 | 165.8 |
| A | 12 | 194 | 7568 | 40.78 | 819 | 806 | 165.8 |
| B | 3 | 220 | 214577 | 1369.98 | 824 | 806 | 156.0 |
| B | 0 | 219 | 77610 | 492.21 | 824 | 806 | 156.0 |
| B | 4 | 81 | 31583 | 197.24 | 824 | 806 | 156.0 |
| C | 13 | 61 | 6172 | 28.79 | 806 | 814 | 186.1 |
| C | 9 | 16 | 5512 | 25.25 | 806 | 814 | 186.1 |
| C | 14 | 67 | 2787 | 10.6 | 806 | 814 | 186.1 |
| D | 8 | 195 | 438533 | 2238.98 | 801 | 779 | 195.5 |
| D | 13 | 105 | 237422 | 1210.36 | 801 | 779 | 195.5 |
| D | 12 | 233 | 82202 | 416.45 | 801 | 779 | 195.5 |

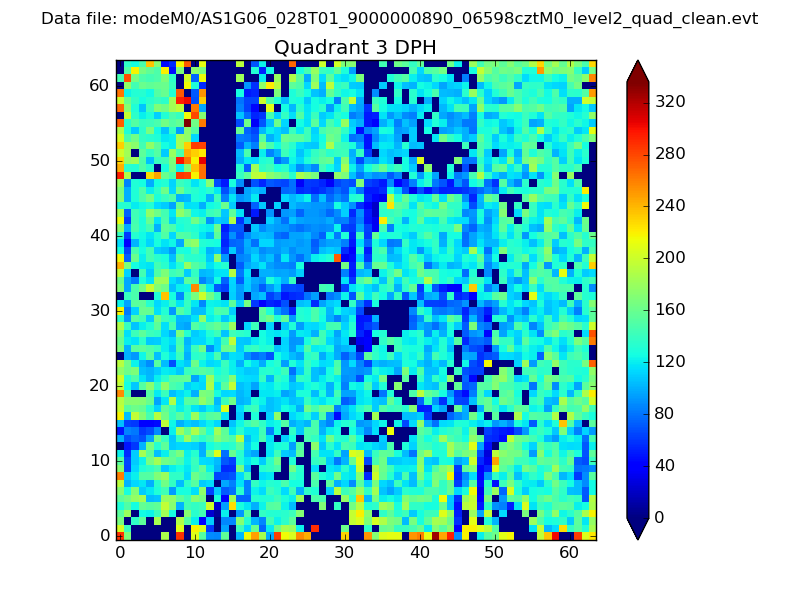

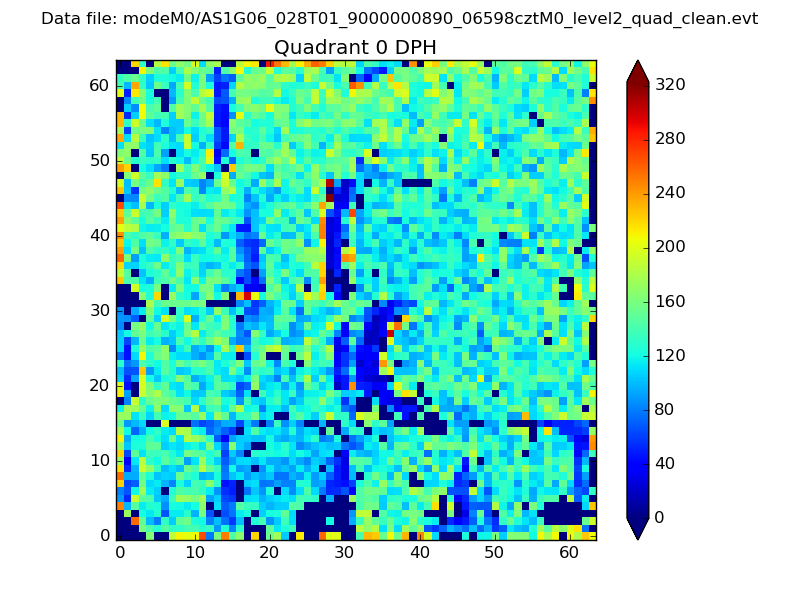

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

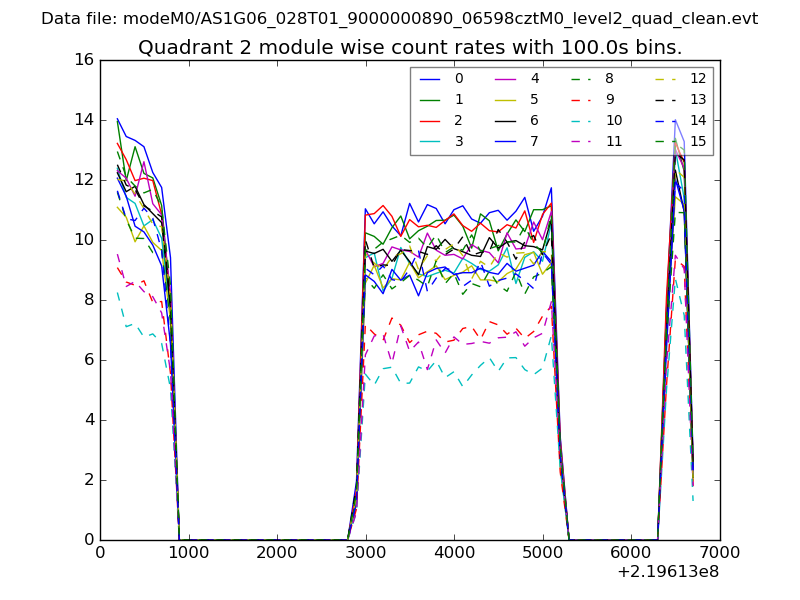

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

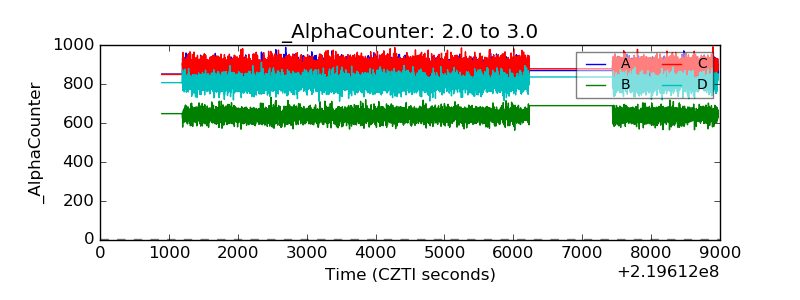

| Alpha Counter |  |

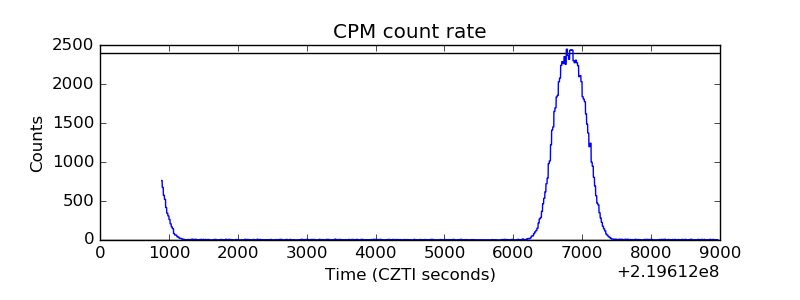

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
