| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_170T02_9000000892_06602cztM0_level2.evt | modeM0/AS1A02_170T02_9000000892_06602cztM0_level2_quad_clean.evt |
| Size (bytes) | 600,148,800 | 86,143,680 |
| Size | 572.3 MB | 82.2 MB |
| Events in quadrant A | 3,095,178 | 551,208 |
| Events in quadrant B | 3,795,668 | 548,691 |
| Events in quadrant C | 3,453,515 | 542,949 |
| Events in quadrant D | 7,367,864 | 488,734 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 22 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14044 | 3 |
| B | 0 | 15850 | 2 |
| C | 0 | 15028 | 2 |
| D | 0 | 26738 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6836 | 93 | 1.360445% |
| B | 6836 | 298 | 4.359274% |
| C | 6836 | 132 | 1.930954% |
| D | 6836 | 770 | 11.263897% |

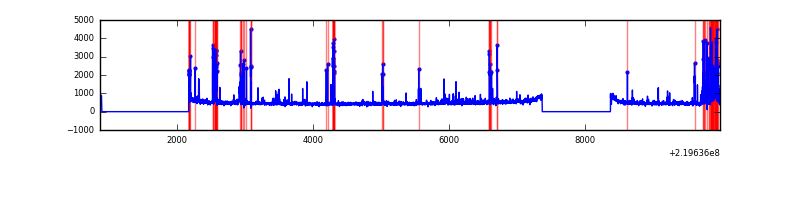

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9121 | 6838 | 0 | 0 | 0.00% | 0.00% |  |
| B | 9121 | 6838 | 123 | 123 | 1.35% | 1.80% |  |
| C | 9121 | 6838 | 38 | 38 | 0.42% | 0.56% |  |
| D | 9121 | 6838 | 608 | 608 | 6.67% | 8.89% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 23615 | 142.15 | 794 | 775 | 160.7 |
| A | 15 | 239 | 16518 | 97.98 | 794 | 775 | 160.7 |
| A | 0 | 226 | 7677 | 42.95 | 794 | 775 | 160.7 |
| B | 4 | 81 | 240106 | 1605.91 | 792 | 773 | 149.0 |
| B | 4 | 48 | 212649 | 1421.68 | 792 | 773 | 149.0 |
| B | 0 | 219 | 194212 | 1297.97 | 792 | 773 | 149.0 |
| C | 9 | 247 | 404908 | 2286.28 | 770 | 773 | 176.8 |
| C | 9 | 54 | 14298 | 76.51 | 770 | 773 | 176.8 |
| C | 3 | 9 | 13819 | 73.8 | 770 | 773 | 176.8 |
| D | 8 | 195 | 2022965 | 11272.37 | 742 | 720 | 179.4 |
| D | 2 | 63 | 855894 | 4766.9 | 742 | 720 | 179.4 |
| D | 13 | 105 | 779649 | 4341.89 | 742 | 720 | 179.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

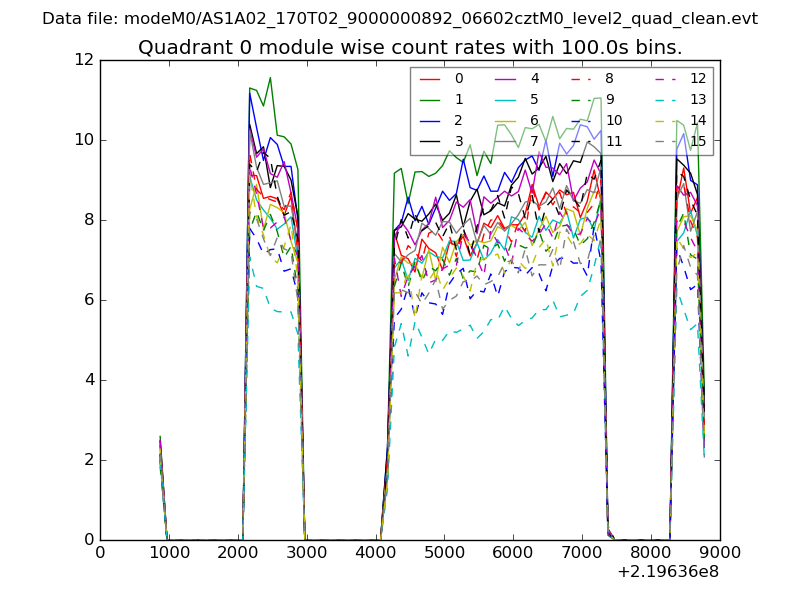

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

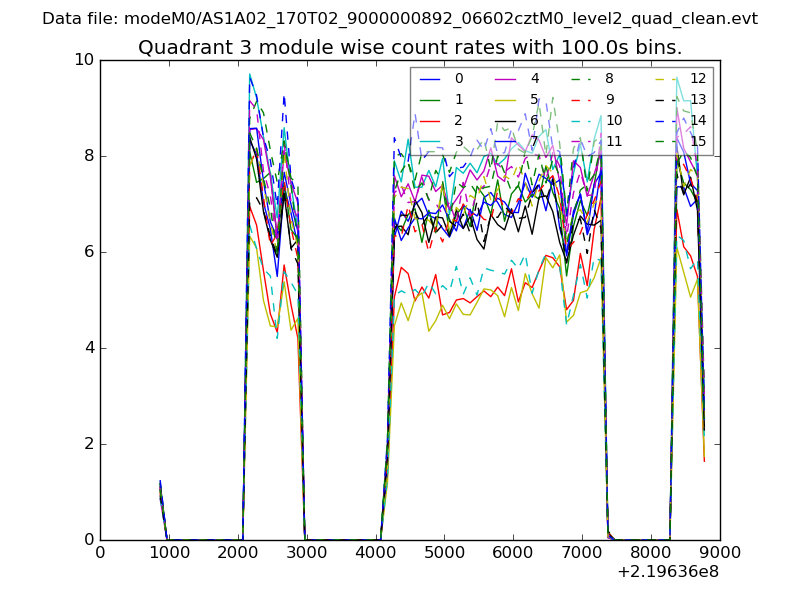

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

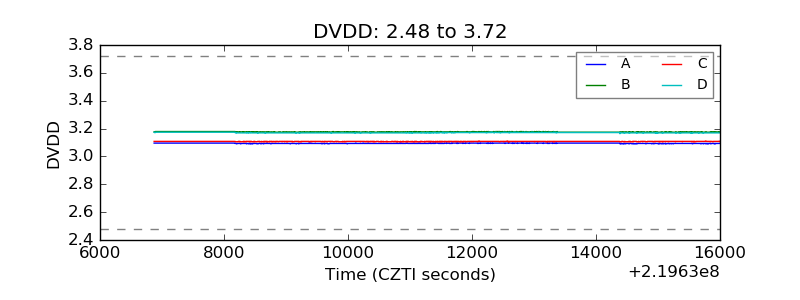

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

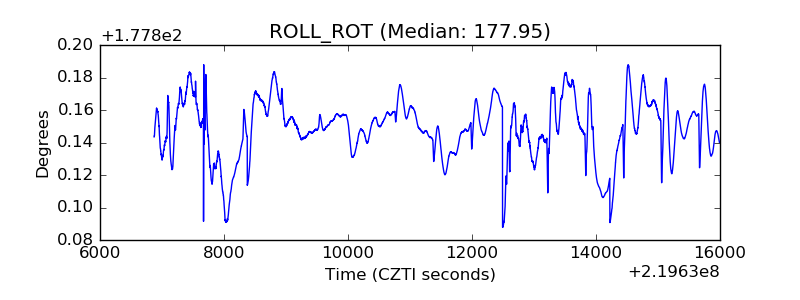

| _ROLL_ROT |  |

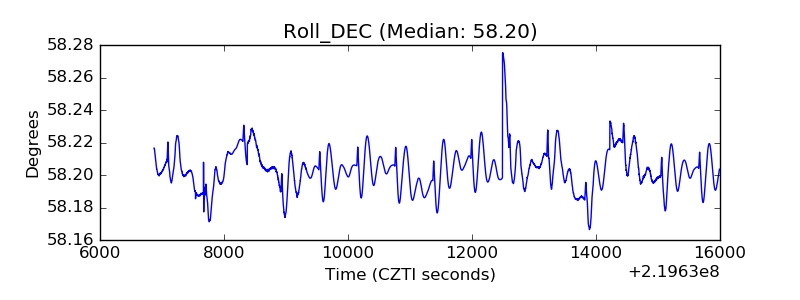

| _Roll_DEC |  |

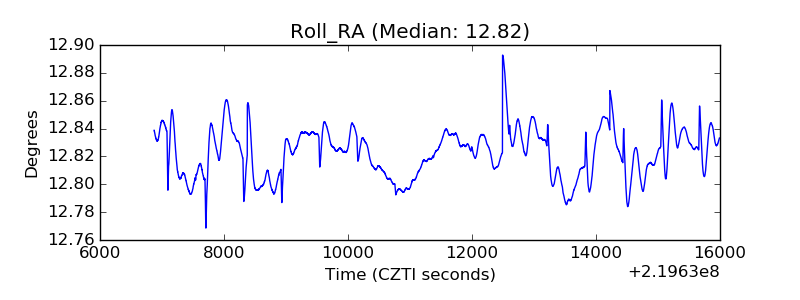

| _Roll_RA |  |
| Veto Counter |  |
