| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_170T02_9000000892_06609cztM0_level2.evt | modeM0/AS1A02_170T02_9000000892_06609cztM0_level2_quad_clean.evt |
| Size (bytes) | 586,817,280 | 125,271,360 |
| Size | 559.6 MB | 119.5 MB |
| Events in quadrant A | 3,578,710 | 826,091 |
| Events in quadrant B | 4,029,065 | 826,946 |
| Events in quadrant C | 3,506,000 | 813,196 |
| Events in quadrant D | 6,104,880 | 761,275 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 166 | 0 |
| B | 0 | 166 | 0 |
| C | 0 | 166 | 0 |
| D | 0 | 166 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 3 | 0 |
| B | 0 | 3 | 0 |
| C | 0 | 3 | 0 |
| D | 0 | 3 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16551 | 1 |
| B | 0 | 17484 | 1 |
| C | 0 | 16530 | 1 |
| D | 0 | 23761 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8149 | 106 | 1.300773% |
| B | 8149 | 123 | 1.509388% |
| C | 8149 | 56 | 0.687201% |
| D | 8149 | 410 | 5.031292% |

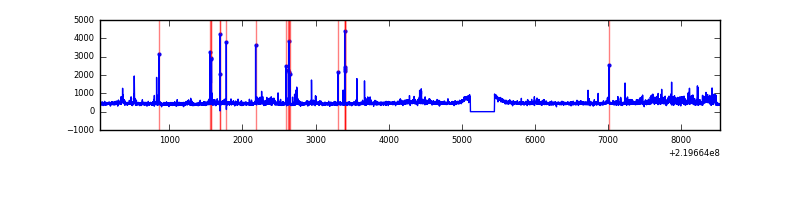

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8479 | 8150 | 2 | 2 | 0.02% | 0.02% |  |
| B | 8479 | 8150 | 19 | 19 | 0.22% | 0.23% |  |
| C | 8479 | 8150 | 1 | 1 | 0.01% | 0.01% |  |
| D | 8479 | 8149 | 262 | 262 | 3.09% | 3.22% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 34173 | 178.18 | 918 | 896 | 186.8 |
| A | 0 | 226 | 8881 | 42.75 | 918 | 896 | 186.8 |
| A | 12 | 194 | 8644 | 41.49 | 918 | 896 | 186.8 |
| B | 4 | 80 | 217489 | 1235.59 | 917 | 894 | 175.3 |
| B | 0 | 219 | 90706 | 512.34 | 917 | 894 | 175.3 |
| B | 0 | 214 | 81704 | 460.99 | 917 | 894 | 175.3 |
| C | 9 | 54 | 12291 | 55.62 | 888 | 890 | 205.0 |
| C | 9 | 16 | 8470 | 36.98 | 888 | 890 | 205.0 |
| C | 8 | 128 | 8352 | 36.4 | 888 | 890 | 205.0 |
| D | 8 | 195 | 1268484 | 5978.03 | 876 | 845 | 212.0 |
| D | 2 | 33 | 853052 | 4018.9 | 876 | 845 | 212.0 |
| D | 2 | 152 | 376683 | 1772.4 | 876 | 845 | 212.0 |

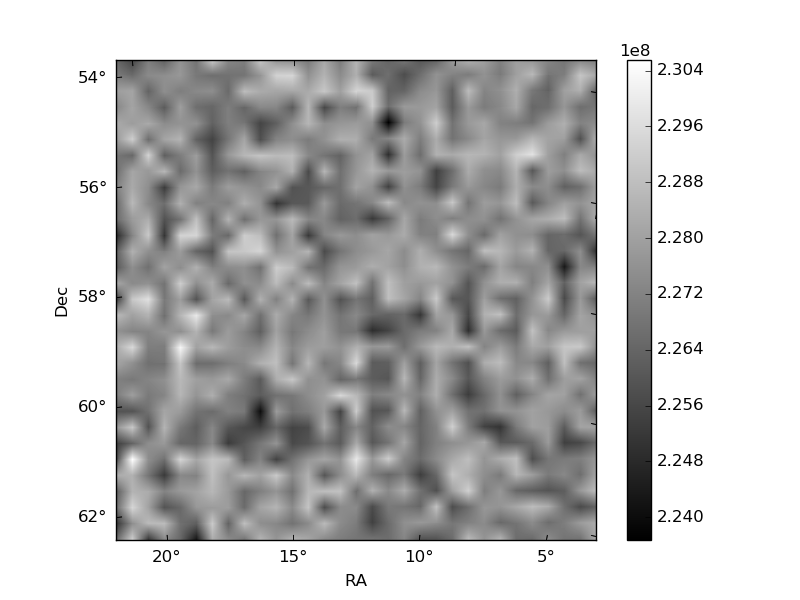

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

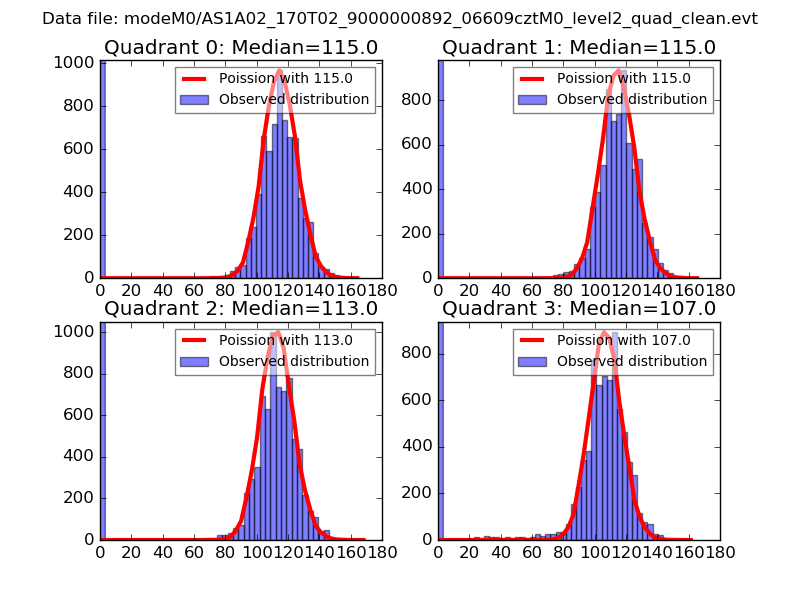

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

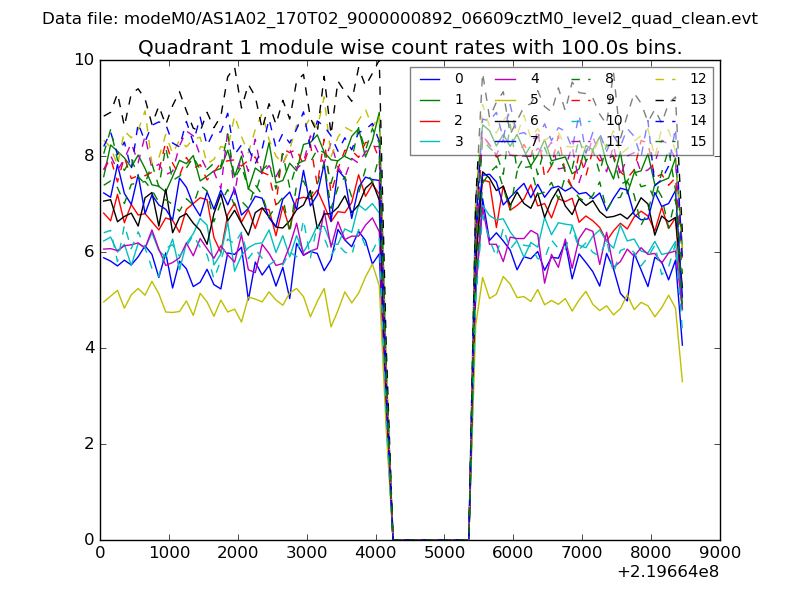

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

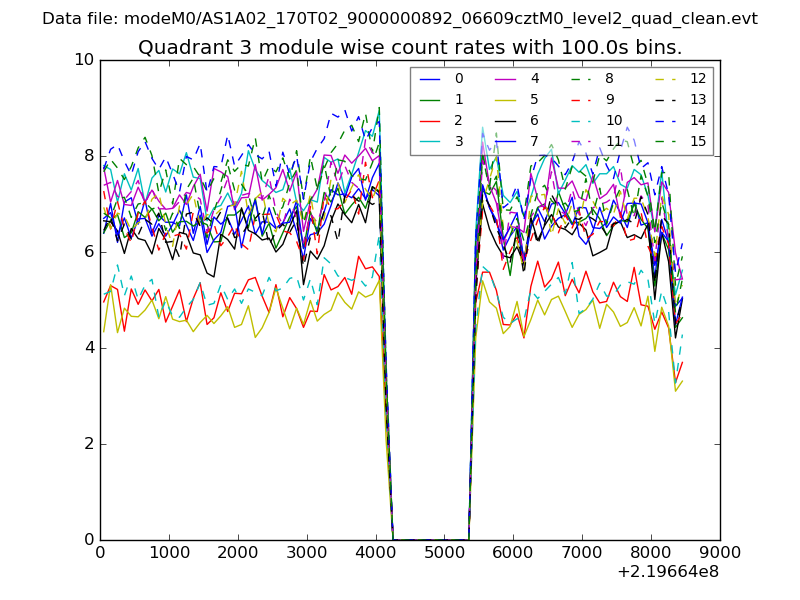

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

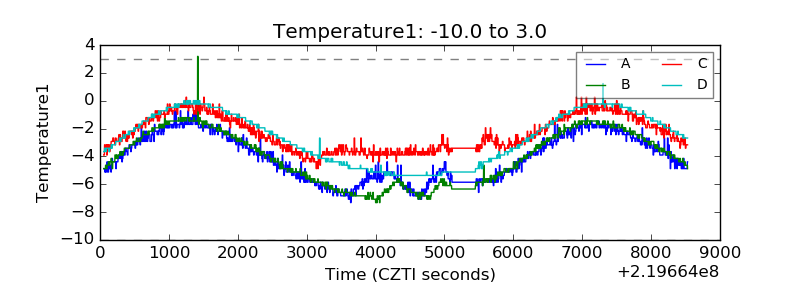

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

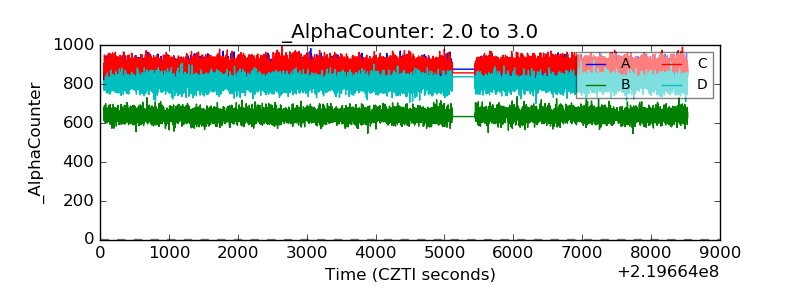

| Alpha Counter |  |

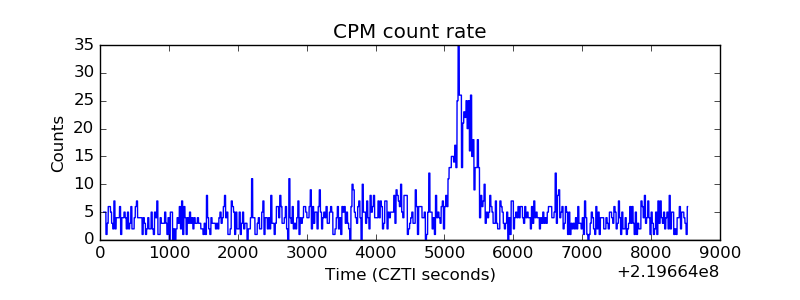

| _CPM_Rate |  |
