| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_082T01_9000000898_06623cztM0_level2.evt | modeM0/AS1A02_082T01_9000000898_06623cztM0_level2_quad_clean.evt |
| Size (bytes) | 437,195,520 | 85,956,480 |
| Size | 416.9 MB | 82.0 MB |
| Events in quadrant A | 2,938,852 | 549,656 |
| Events in quadrant B | 3,215,979 | 543,500 |
| Events in quadrant C | 2,814,314 | 538,163 |
| Events in quadrant D | 3,837,326 | 526,211 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 8 | 0 |
| B | 0 | 8 | 0 |
| C | 0 | 8 | 0 |
| D | 0 | 8 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13041 | 2 |
| B | 0 | 13779 | 1 |
| C | 0 | 12933 | 1 |
| D | 0 | 15716 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6383 | 44 | 0.689331% |
| B | 6383 | 80 | 1.253329% |
| C | 6383 | 34 | 0.532665% |
| D | 6383 | 64 | 1.002663% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7208 | 6384 | 2 | 2 | 0.03% | 0.03% |  |
| B | 7208 | 6384 | 24 | 24 | 0.33% | 0.38% |  |
| C | 7208 | 6384 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7208 | 6384 | 17 | 17 | 0.24% | 0.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 48874 | 315.45 | 745 | 729 | 152.6 |
| A | 8 | 15 | 13975 | 86.79 | 745 | 729 | 152.6 |
| A | 0 | 226 | 7160 | 42.14 | 745 | 729 | 152.6 |
| B | 0 | 219 | 178710 | 1235.57 | 747 | 730 | 144.0 |
| B | 4 | 80 | 54659 | 374.38 | 747 | 730 | 144.0 |
| B | 4 | 48 | 48768 | 333.49 | 747 | 730 | 144.0 |
| C | 12 | 4 | 7700 | 41.45 | 717 | 719 | 168.4 |
| C | 1 | 16 | 6758 | 35.86 | 717 | 719 | 168.4 |
| C | 13 | 61 | 5584 | 28.89 | 717 | 719 | 168.4 |
| D | 8 | 195 | 712395 | 4032.9 | 718 | 696 | 176.5 |
| D | 1 | 239 | 146629 | 826.94 | 718 | 696 | 176.5 |
| D | 2 | 33 | 81295 | 456.72 | 718 | 696 | 176.5 |

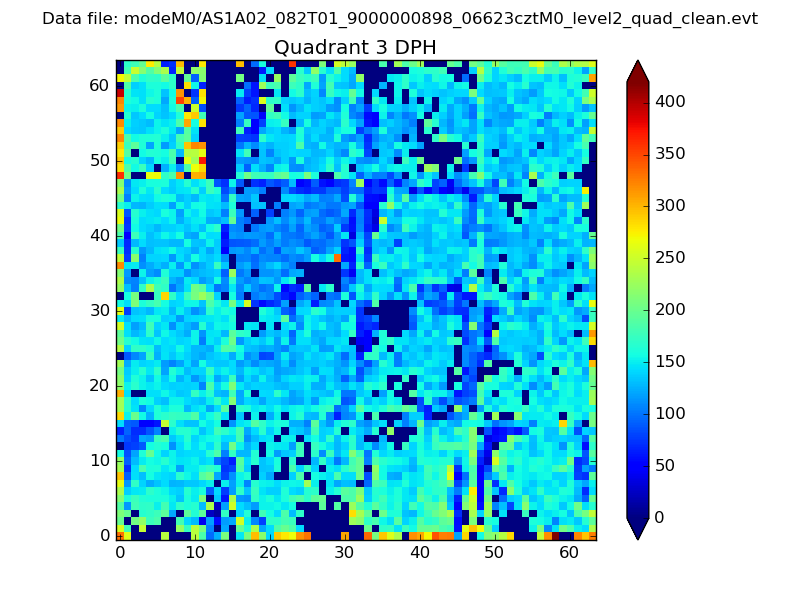

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

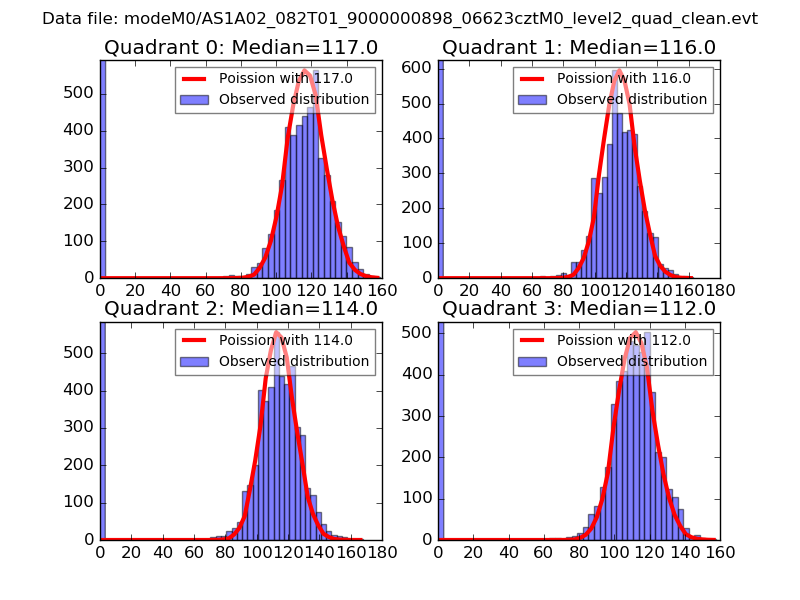

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

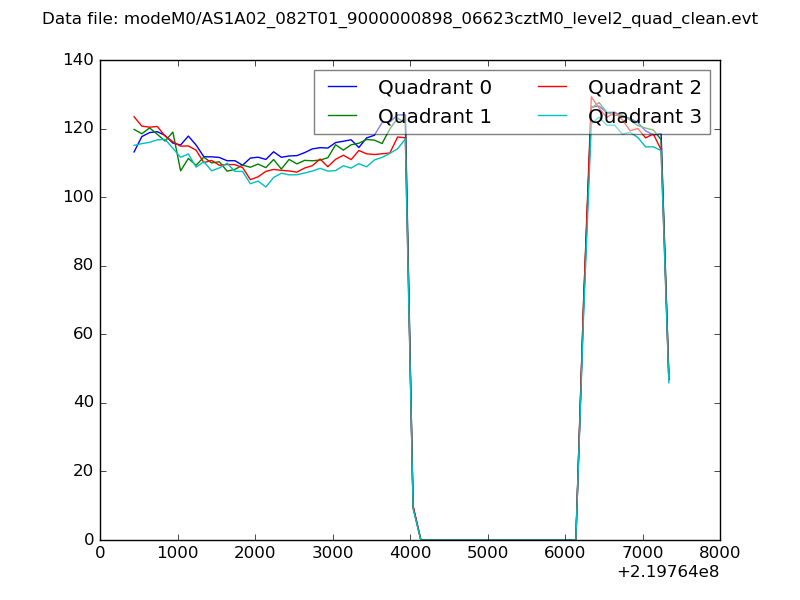

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

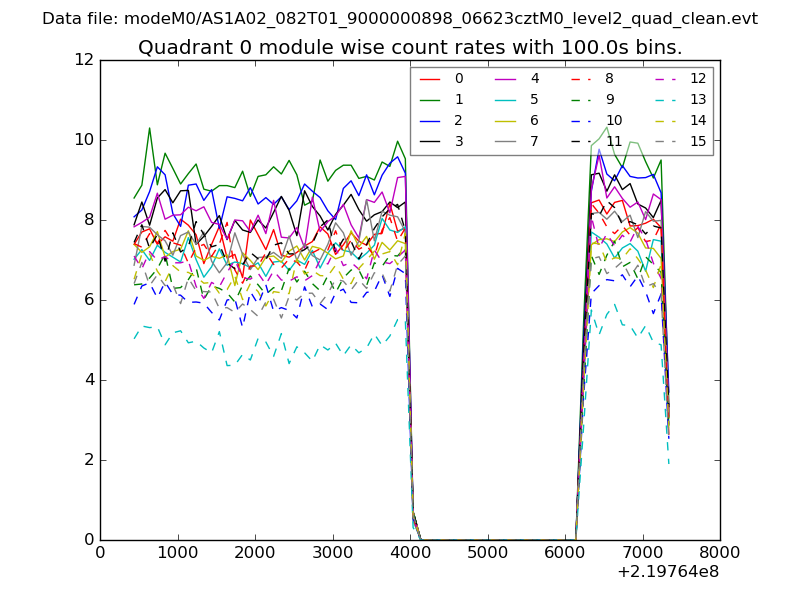

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

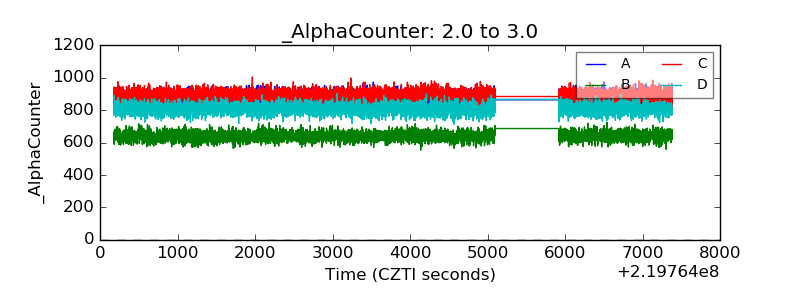

| Alpha Counter |  |
| _CPM_Rate |  |

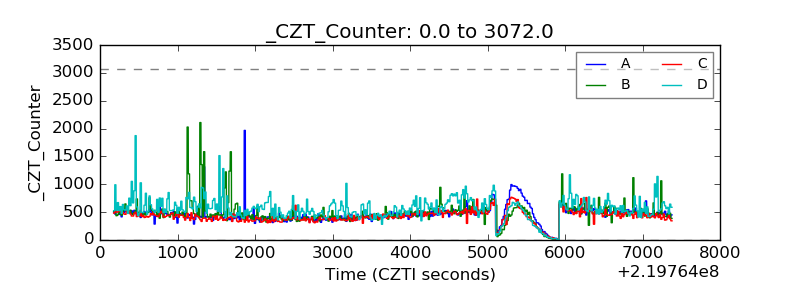

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

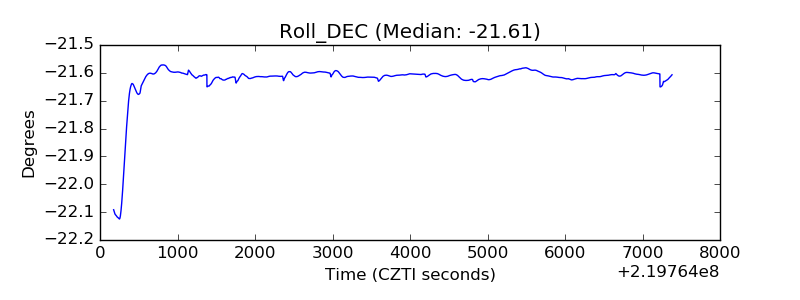

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
