| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_082T01_9000000898_06627cztM0_level2.evt | modeM0/AS1A02_082T01_9000000898_06627cztM0_level2_quad_clean.evt |
| Size (bytes) | 526,973,760 | 95,094,720 |
| Size | 502.6 MB | 90.7 MB |
| Events in quadrant A | 3,457,171 | 614,710 |
| Events in quadrant B | 3,496,930 | 618,419 |
| Events in quadrant C | 3,204,431 | 594,239 |
| Events in quadrant D | 5,327,982 | 566,781 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23 | 0 |
| B | 0 | 23 | 0 |
| C | 0 | 23 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14854 | 3 |
| B | 0 | 14871 | 2 |
| C | 0 | 14319 | 2 |
| D | 0 | 20785 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6971 | 66 | 0.946780% |
| B | 6971 | 86 | 1.233682% |
| C | 6971 | 28 | 0.401664% |
| D | 6971 | 295 | 4.231818% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9286 | 6973 | 1 | 1 | 0.01% | 0.01% |  |
| B | 9286 | 6973 | 7 | 7 | 0.08% | 0.10% |  |
| C | 9286 | 6973 | 0 | 0 | 0.00% | 0.00% |  |
| D | 9286 | 6973 | 154 | 154 | 1.66% | 2.21% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 186710 | 1073.77 | 850 | 835 | 173.1 |
| A | 0 | 226 | 8030 | 41.56 | 850 | 835 | 173.1 |
| A | 12 | 194 | 7947 | 41.08 | 850 | 835 | 173.1 |
| B | 0 | 219 | 87895 | 531.32 | 858 | 839 | 163.8 |
| B | 4 | 81 | 81743 | 493.77 | 858 | 839 | 163.8 |
| B | 12 | 111 | 17656 | 102.64 | 858 | 839 | 163.8 |
| C | 13 | 61 | 6355 | 28.95 | 820 | 826 | 191.0 |
| C | 12 | 4 | 3550 | 14.26 | 820 | 826 | 191.0 |
| C | 9 | 54 | 2643 | 9.51 | 820 | 826 | 191.0 |
| D | 8 | 195 | 1319622 | 6688.31 | 804 | 780 | 197.2 |
| D | 2 | 33 | 495084 | 2506.79 | 804 | 780 | 197.2 |
| D | 2 | 136 | 396888 | 2008.8 | 804 | 780 | 197.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

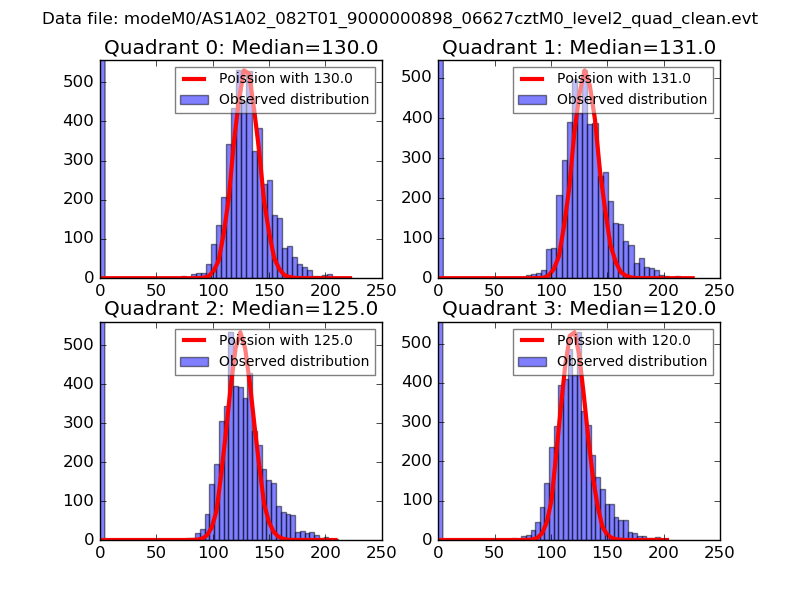

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

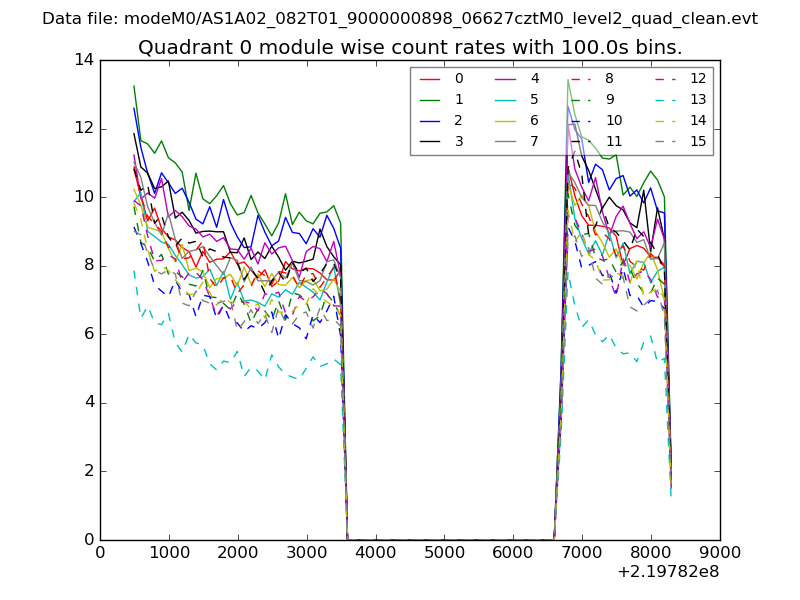

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

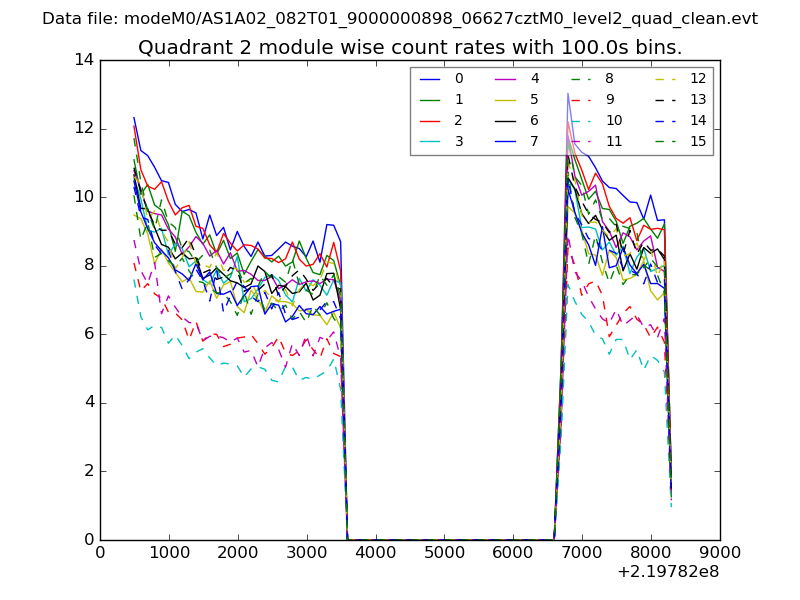

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

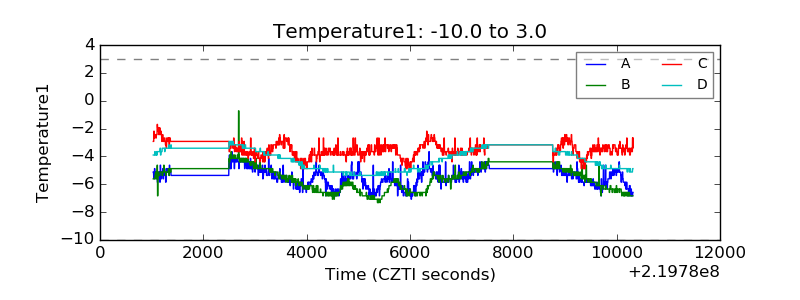

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

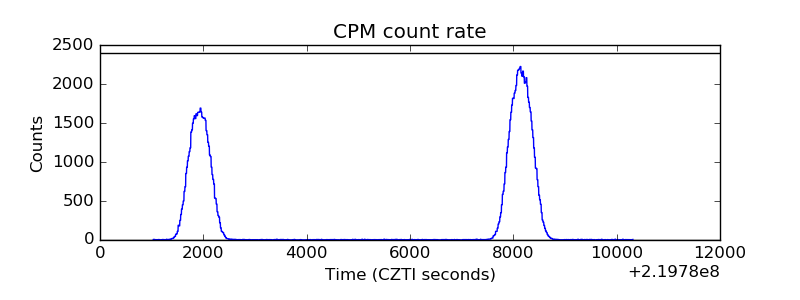

| _CPM_Rate |  |

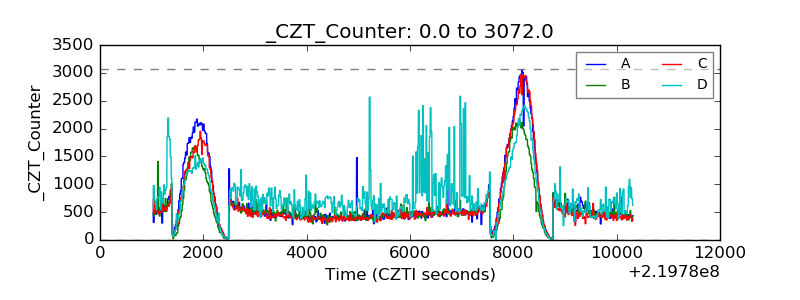

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
