| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_082T01_9000000898_06631cztM0_level2.evt | modeM0/AS1A02_082T01_9000000898_06631cztM0_level2_quad_clean.evt |
| Size (bytes) | 472,965,120 | 82,676,160 |
| Size | 451.1 MB | 78.8 MB |
| Events in quadrant A | 3,019,238 | 521,353 |
| Events in quadrant B | 3,231,785 | 524,015 |
| Events in quadrant C | 2,966,462 | 516,692 |
| Events in quadrant D | 4,665,057 | 488,362 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 12 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13327 | 3 |
| B | 0 | 13763 | 2 |
| C | 0 | 13264 | 2 |
| D | 0 | 18295 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6495 | 25 | 0.384911% |
| B | 6495 | 58 | 0.892995% |
| C | 6495 | 33 | 0.508083% |
| D | 6495 | 309 | 4.757506% |

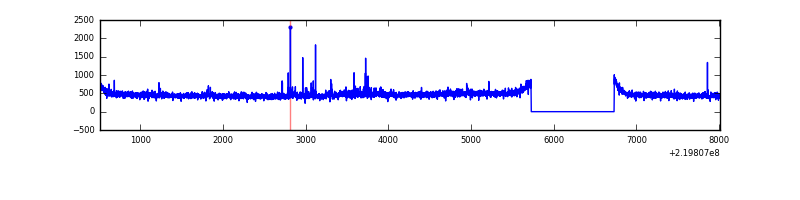

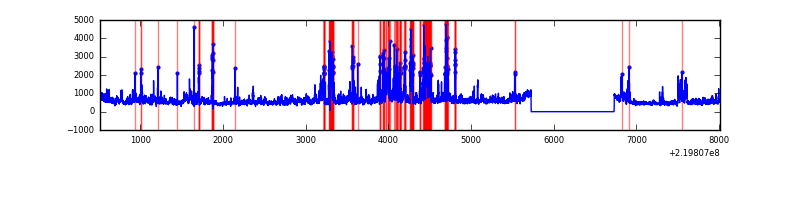

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7500 | 6496 | 1 | 1 | 0.01% | 0.02% |  |
| B | 7500 | 6496 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7500 | 6496 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7500 | 6496 | 210 | 210 | 2.80% | 3.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 67855 | 432.46 | 766 | 748 | 155.2 |
| A | 0 | 226 | 7300 | 42.22 | 766 | 748 | 155.2 |
| A | 12 | 194 | 7123 | 41.08 | 766 | 748 | 155.2 |
| B | 0 | 219 | 132341 | 885.89 | 775 | 758 | 148.5 |
| B | 0 | 198 | 32541 | 213.98 | 775 | 758 | 148.5 |
| B | 3 | 220 | 29538 | 193.76 | 775 | 758 | 148.5 |
| C | 9 | 247 | 16772 | 90.75 | 754 | 756 | 176.5 |
| C | 13 | 61 | 6173 | 30.69 | 754 | 756 | 176.5 |
| C | 12 | 4 | 4954 | 23.79 | 754 | 756 | 176.5 |
| D | 2 | 33 | 1009919 | 5627.19 | 736 | 713 | 179.3 |
| D | 8 | 195 | 805799 | 4489.05 | 736 | 713 | 179.3 |
| D | 2 | 14 | 38042 | 208.14 | 736 | 713 | 179.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

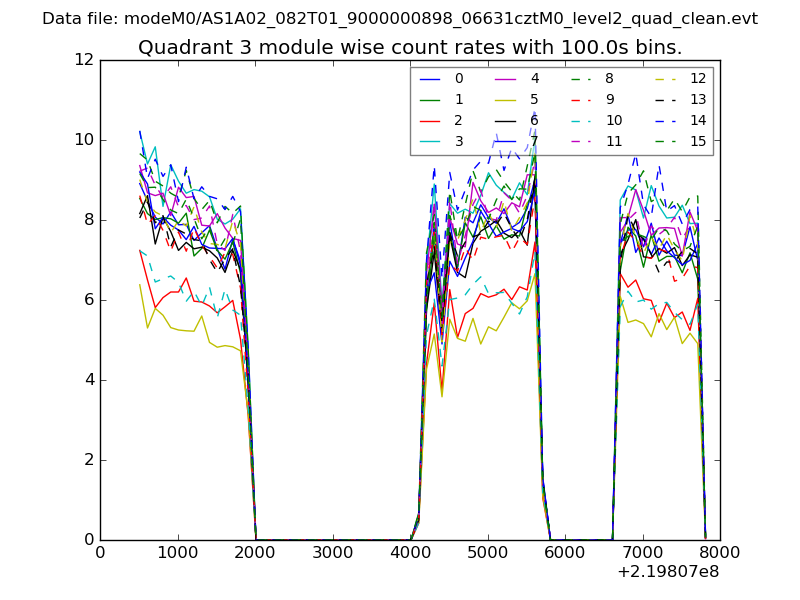

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

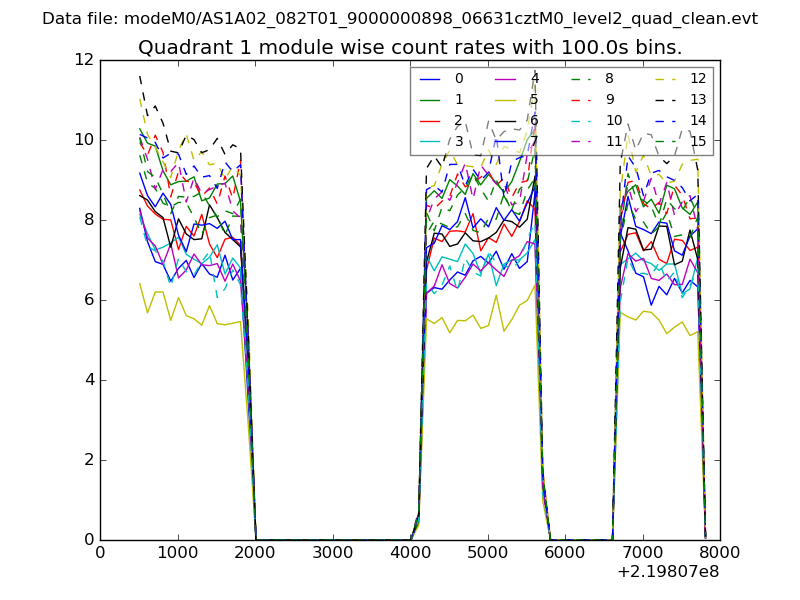

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

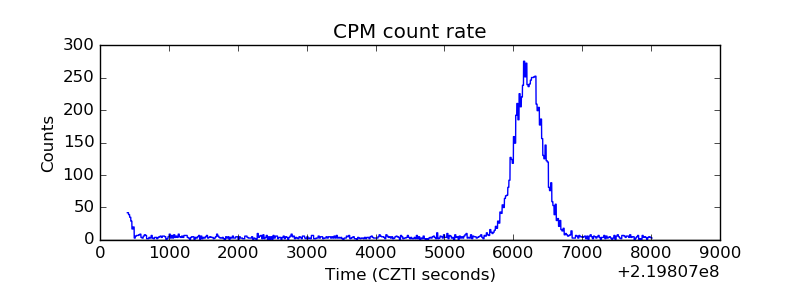

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

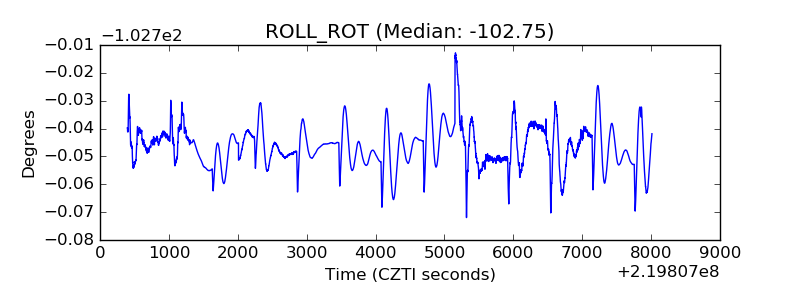

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

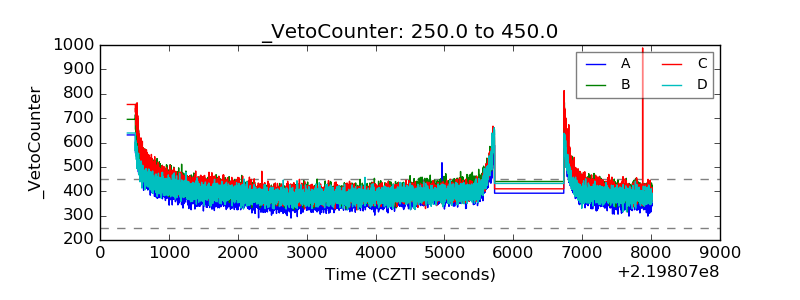

| Veto Counter |  |
