| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_164T01_9000000896_06616cztM0_level2.evt | modeM0/AS1G06_164T01_9000000896_06616cztM0_level2_quad_clean.evt |
| Size (bytes) | 512,697,600 | 95,667,840 |
| Size | 488.9 MB | 91.2 MB |
| Events in quadrant A | 3,018,525 | 624,112 |
| Events in quadrant B | 3,419,436 | 627,849 |
| Events in quadrant C | 2,878,524 | 622,002 |
| Events in quadrant D | 5,759,984 | 560,102 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13677 | 3 |
| B | 0 | 14726 | 2 |
| C | 0 | 13507 | 2 |
| D | 0 | 21774 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6634 | 30 | 0.452216% |
| B | 6634 | 103 | 1.552608% |
| C | 6634 | 8 | 0.120591% |
| D | 6634 | 537 | 8.094664% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7839 | 6635 | 5 | 5 | 0.06% | 0.08% |  |
| B | 7839 | 6635 | 36 | 36 | 0.46% | 0.54% |  |
| C | 7839 | 6635 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7839 | 6635 | 392 | 392 | 5.00% | 5.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 45438 | 292.91 | 760 | 742 | 152.6 |
| A | 14 | 111 | 34895 | 223.82 | 760 | 742 | 152.6 |
| A | 15 | 236 | 9920 | 60.15 | 760 | 742 | 152.6 |
| B | 0 | 219 | 158137 | 1093.11 | 766 | 747 | 144.0 |
| B | 4 | 48 | 100804 | 694.92 | 766 | 747 | 144.0 |
| B | 4 | 81 | 92880 | 639.88 | 766 | 747 | 144.0 |
| C | 1 | 16 | 8091 | 43.7 | 735 | 739 | 168.3 |
| C | 13 | 61 | 5939 | 30.91 | 735 | 739 | 168.3 |
| C | 12 | 4 | 2131 | 8.27 | 735 | 739 | 168.3 |
| D | 8 | 195 | 901980 | 5234.66 | 706 | 683 | 172.2 |
| D | 2 | 33 | 808559 | 4692.08 | 706 | 683 | 172.2 |
| D | 10 | 15 | 718072 | 4166.54 | 706 | 683 | 172.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

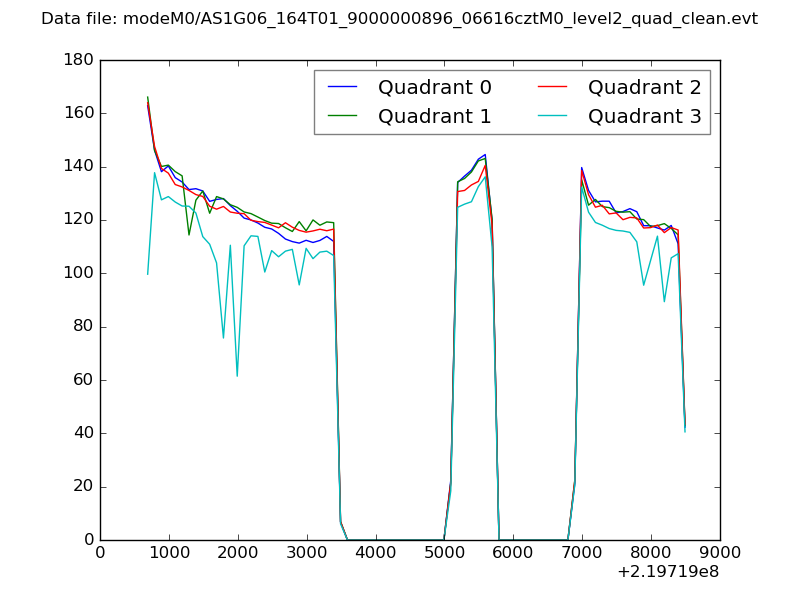

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

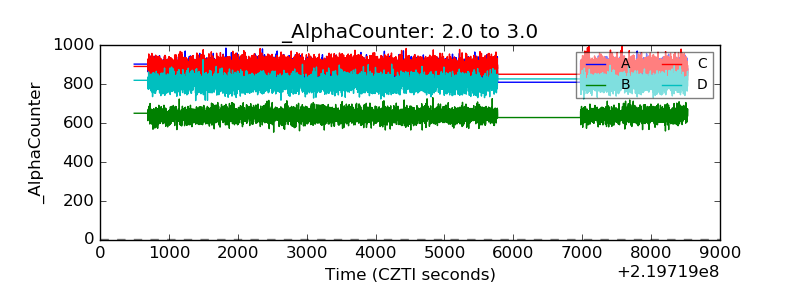

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

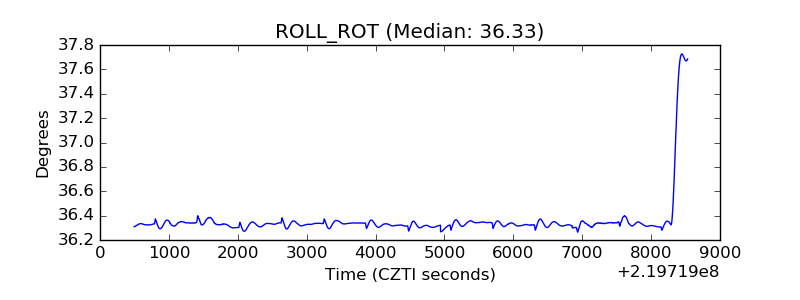

| _ROLL_ROT |  |

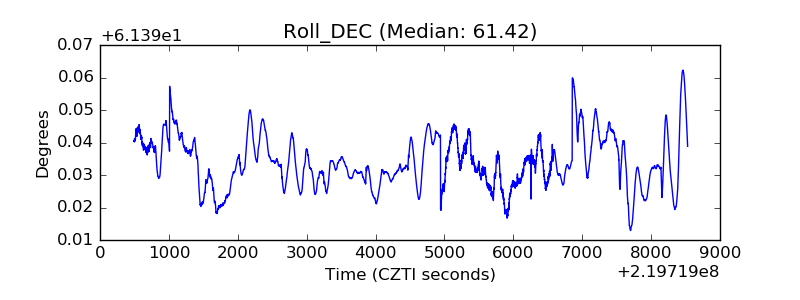

| _Roll_DEC |  |

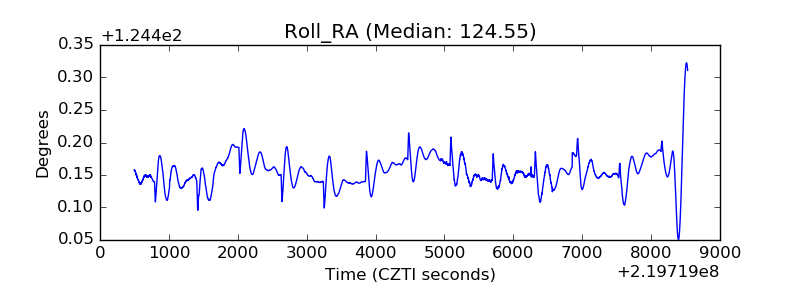

| _Roll_RA |  |

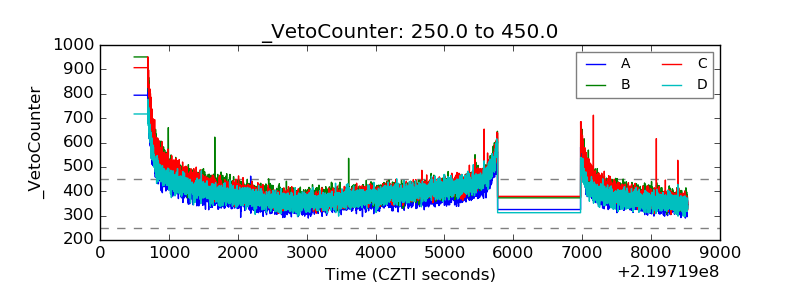

| Veto Counter |  |
