| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_103T01_9000000904_06663cztM0_level2.evt | modeM0/AS1A02_103T01_9000000904_06663cztM0_level2_quad_clean.evt |
| Size (bytes) | 670,282,560 | 98,251,200 |
| Size | 639.2 MB | 93.7 MB |
| Events in quadrant A | 3,525,675 | 623,928 |
| Events in quadrant B | 3,641,815 | 638,211 |
| Events in quadrant C | 3,721,582 | 623,266 |
| Events in quadrant D | 8,886,026 | 551,246 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15980 | 2 |
| B | 0 | 16125 | 1 |
| C | 0 | 16381 | 1 |
| D | 0 | 31786 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 1 | 0 |
| B | 0 | 1 | 0 |
| C | 0 | 1 | 0 |
| D | 0 | 1 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 156 | 0 |
| B | 0 | 156 | 0 |
| C | 0 | 156 | 0 |
| D | 0 | 156 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7740 | 279 | 3.604651% |
| B | 7740 | 270 | 3.488372% |
| C | 7740 | 249 | 3.217054% |
| D | 7740 | 1594 | 20.594315% |

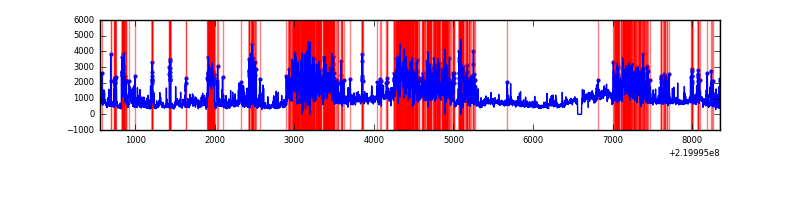

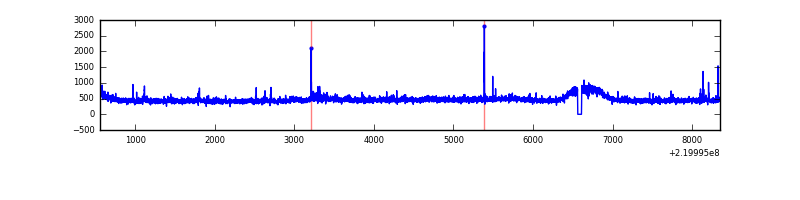

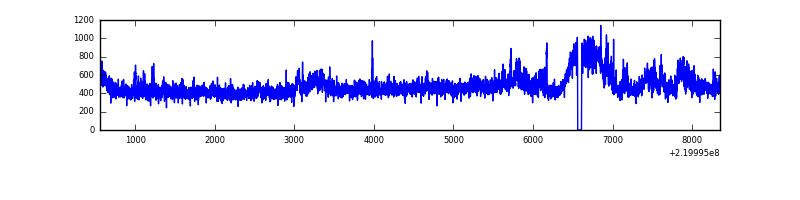

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7790 | 7741 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7790 | 7741 | 2 | 2 | 0.03% | 0.03% |  |
| C | 7790 | 7741 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7790 | 7741 | 1082 | 1082 | 13.89% | 13.98% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 17739 | 90.63 | 908 | 888 | 185.9 |
| A | 0 | 226 | 8811 | 42.61 | 908 | 888 | 185.9 |
| A | 12 | 194 | 8395 | 40.38 | 908 | 888 | 185.9 |
| B | 4 | 81 | 35757 | 196.99 | 912 | 888 | 177.0 |
| B | 4 | 48 | 24205 | 131.73 | 912 | 888 | 177.0 |
| B | 0 | 214 | 17978 | 96.55 | 912 | 888 | 177.0 |
| C | 9 | 247 | 268202 | 1300.62 | 882 | 884 | 205.5 |
| C | 13 | 61 | 6764 | 28.61 | 882 | 884 | 205.5 |
| C | 8 | 128 | 5126 | 20.64 | 882 | 884 | 205.5 |
| D | 2 | 33 | 1994999 | 10012.37 | 811 | 785 | 199.2 |
| D | 2 | 63 | 1657734 | 8319.06 | 811 | 785 | 199.2 |
| D | 8 | 195 | 1284751 | 6446.42 | 811 | 785 | 199.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

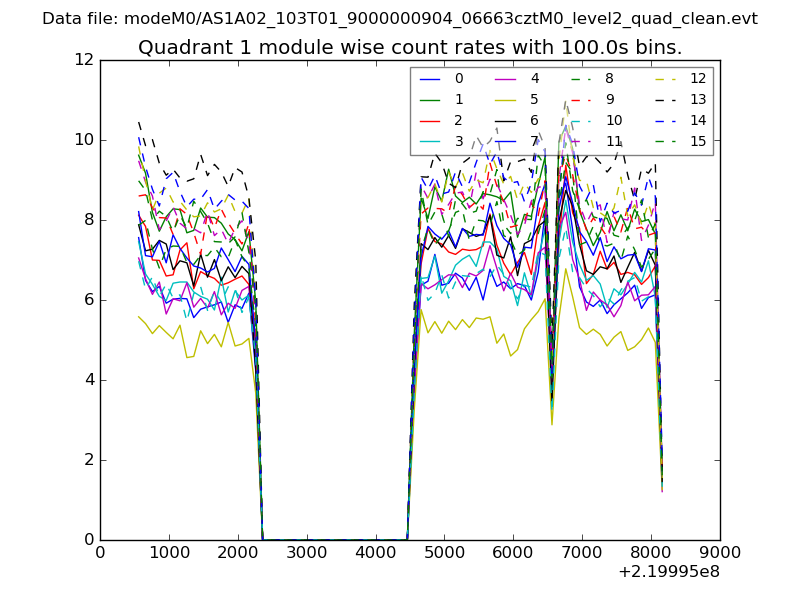

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|

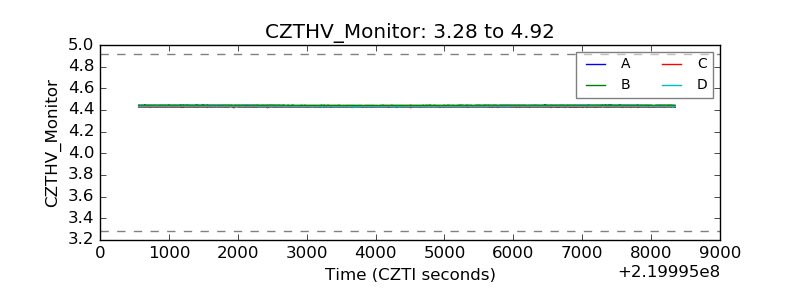

| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

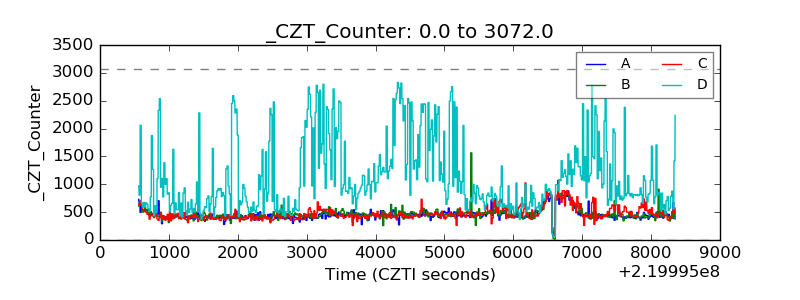

| CZT Counter |  |

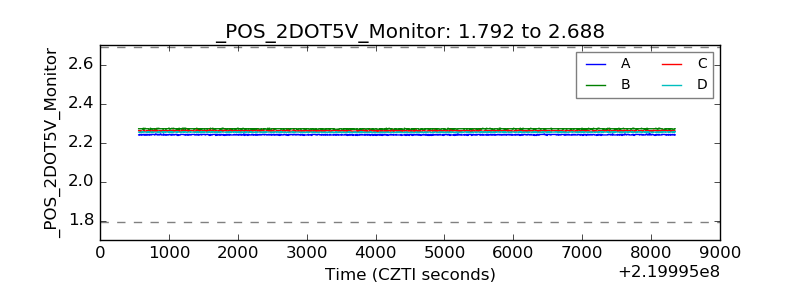

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

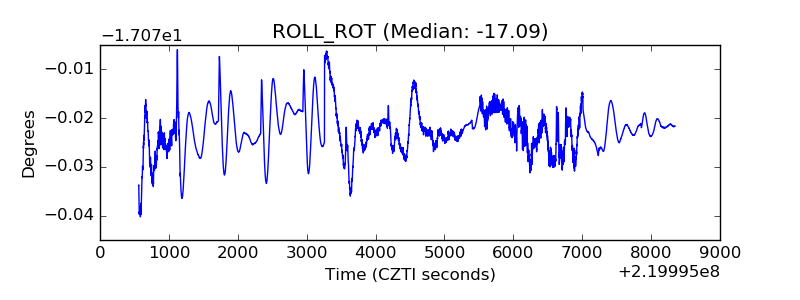

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
