| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_170T03_9000000910_06672cztM0_level2.evt | modeM0/AS1A02_170T03_9000000910_06672cztM0_level2_quad_clean.evt |
| Size (bytes) | 536,878,080 | 85,112,640 |
| Size | 512.0 MB | 81.2 MB |
| Events in quadrant A | 2,907,946 | 574,308 |
| Events in quadrant B | 3,025,045 | 584,257 |
| Events in quadrant C | 2,969,065 | 576,696 |
| Events in quadrant D | 6,937,350 | 409,804 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12892 | 3 |
| B | 0 | 13221 | 2 |
| C | 0 | 13129 | 2 |
| D | 0 | 25051 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6188 | 16 | 0.258565% |
| B | 6188 | 15 | 0.242405% |
| C | 6188 | 17 | 0.274725% |
| D | 6188 | 1810 | 29.250162% |

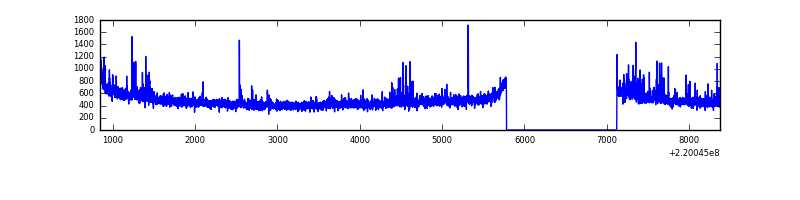

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7528 | 6189 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7528 | 6189 | 0 | 0 | 0.00% | 0.00% |  |
| C | 7528 | 6189 | 1 | 1 | 0.01% | 0.02% |  |
| D | 7528 | 6189 | 1403 | 1403 | 18.64% | 22.67% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 81440 | 548.65 | 729 | 713 | 147.1 |
| A | 3 | 1 | 9413 | 59.13 | 729 | 713 | 147.1 |
| A | 0 | 226 | 7122 | 43.56 | 729 | 713 | 147.1 |
| B | 4 | 81 | 82059 | 586.46 | 741 | 724 | 138.7 |
| B | 4 | 80 | 47809 | 339.5 | 741 | 724 | 138.7 |
| B | 12 | 111 | 13595 | 92.81 | 741 | 724 | 138.7 |
| C | 9 | 247 | 121718 | 731.4 | 722 | 728 | 165.4 |
| C | 1 | 16 | 26144 | 153.64 | 722 | 728 | 165.4 |
| C | 13 | 61 | 5754 | 30.38 | 722 | 728 | 165.4 |
| D | 2 | 33 | 4257125 | 28932.29 | 600 | 581 | 147.1 |
| D | 8 | 195 | 192451 | 1304.17 | 600 | 581 | 147.1 |
| D | 2 | 152 | 71794 | 484.04 | 600 | 581 | 147.1 |

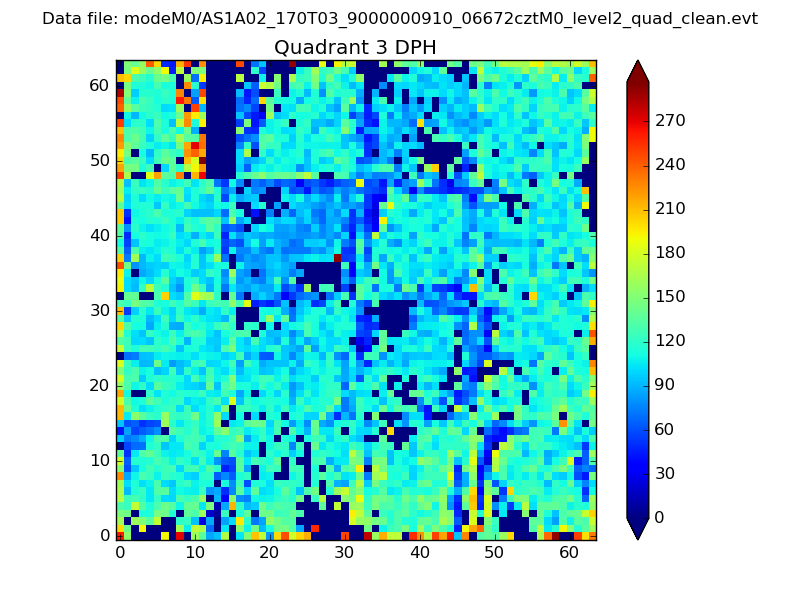

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

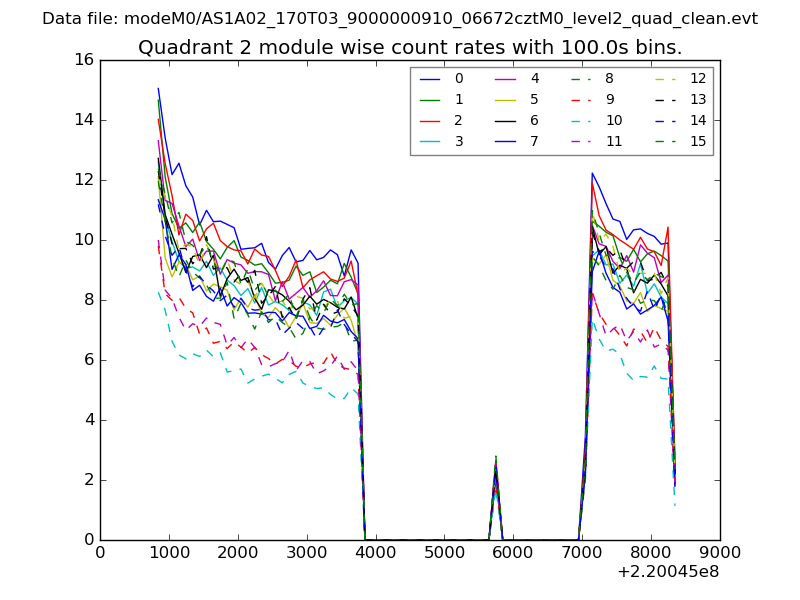

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

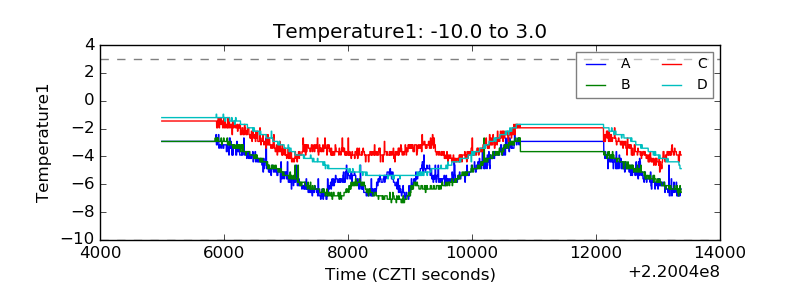

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

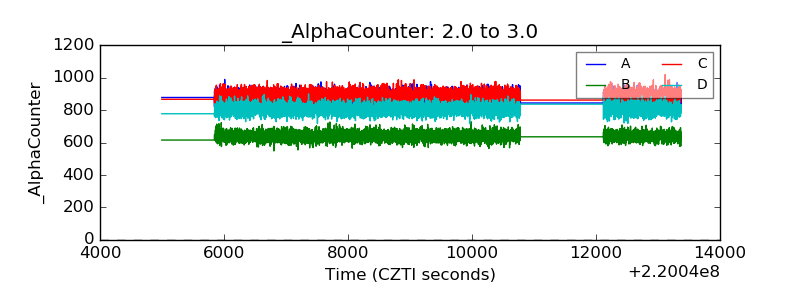

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

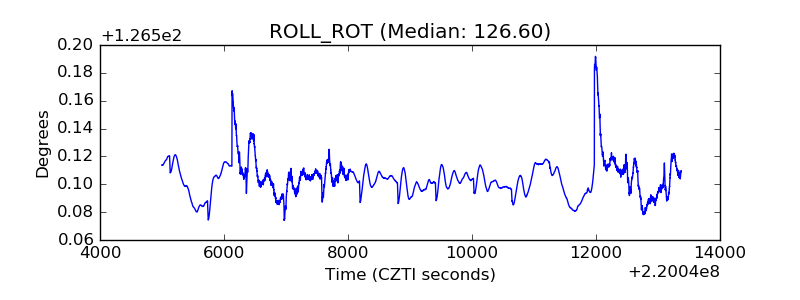

| _ROLL_ROT |  |
| _Roll_DEC |  |

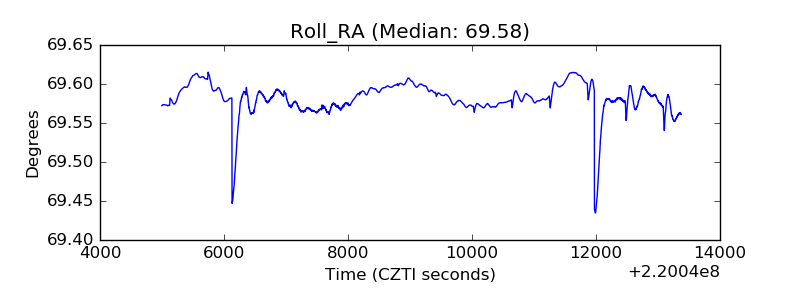

| _Roll_RA |  |

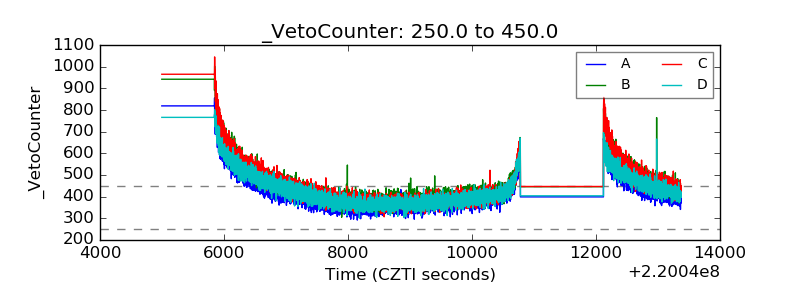

| Veto Counter |  |
