| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_102T01_9000000912_06677cztM0_level2.evt | modeM0/AS1G06_102T01_9000000912_06677cztM0_level2_quad_clean.evt |
| Size (bytes) | 687,044,160 | 112,970,880 |
| Size | 655.2 MB | 107.7 MB |
| Events in quadrant A | 6,011,557 | 712,374 |
| Events in quadrant B | 4,330,231 | 731,271 |
| Events in quadrant C | 4,347,613 | 723,000 |
| Events in quadrant D | 5,560,677 | 682,573 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23601 | 3 |
| B | 0 | 18548 | 2 |
| C | 0 | 19021 | 2 |
| D | 0 | 22494 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8220 | 517 | 6.289538% |
| B | 8220 | 341 | 4.148418% |
| C | 8220 | 276 | 3.357664% |
| D | 8220 | 567 | 6.897810% |

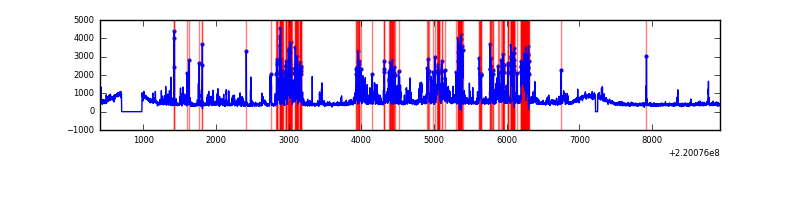

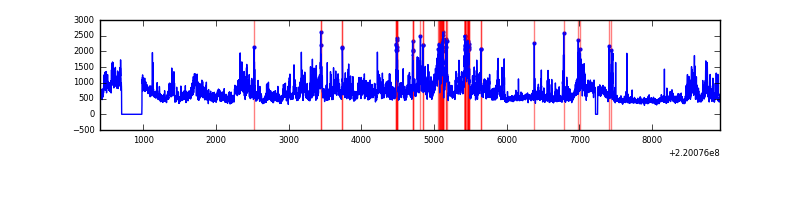

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8530 | 8222 | 66 | 66 | 0.77% | 0.80% |  |
| B | 8530 | 8222 | 26 | 26 | 0.30% | 0.32% |  |
| C | 8530 | 8222 | 68 | 68 | 0.80% | 0.83% |  |
| D | 8530 | 8222 | 298 | 298 | 3.49% | 3.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 2069590 | 10328.28 | 972 | 946 | 200.3 |
| A | 8 | 15 | 129139 | 640.04 | 972 | 946 | 200.3 |
| A | 4 | 2 | 59094 | 290.32 | 972 | 946 | 200.3 |
| B | 0 | 228 | 183253 | 956.47 | 985 | 963 | 190.6 |
| B | 4 | 48 | 144629 | 753.81 | 985 | 963 | 190.6 |
| B | 4 | 81 | 92223 | 478.84 | 985 | 963 | 190.6 |
| C | 9 | 247 | 650809 | 2937.91 | 945 | 949 | 221.2 |
| C | 13 | 61 | 7669 | 30.38 | 945 | 949 | 221.2 |
| C | 8 | 128 | 4972 | 18.19 | 945 | 949 | 221.2 |
| D | 2 | 33 | 1292510 | 5575.18 | 937 | 905 | 231.7 |
| D | 2 | 152 | 571076 | 2461.13 | 937 | 905 | 231.7 |
| D | 8 | 195 | 55776 | 236.85 | 937 | 905 | 231.7 |

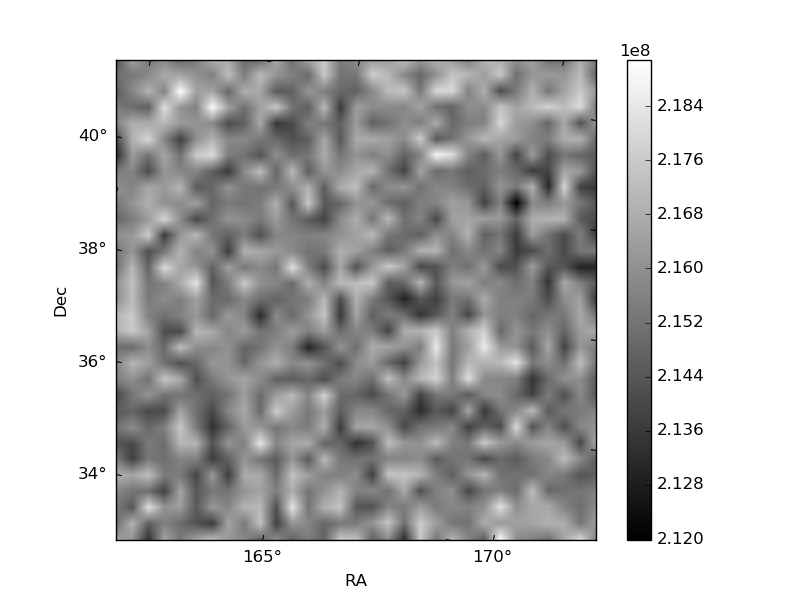

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

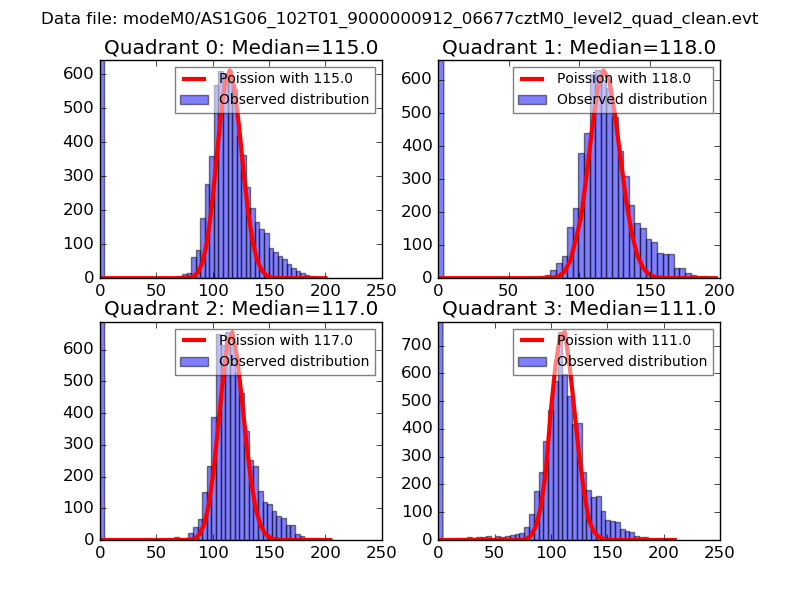

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

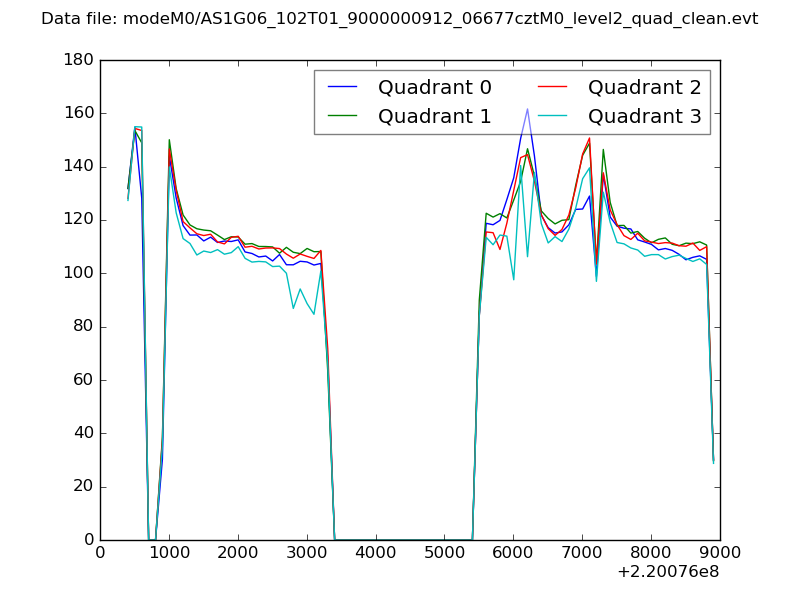

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

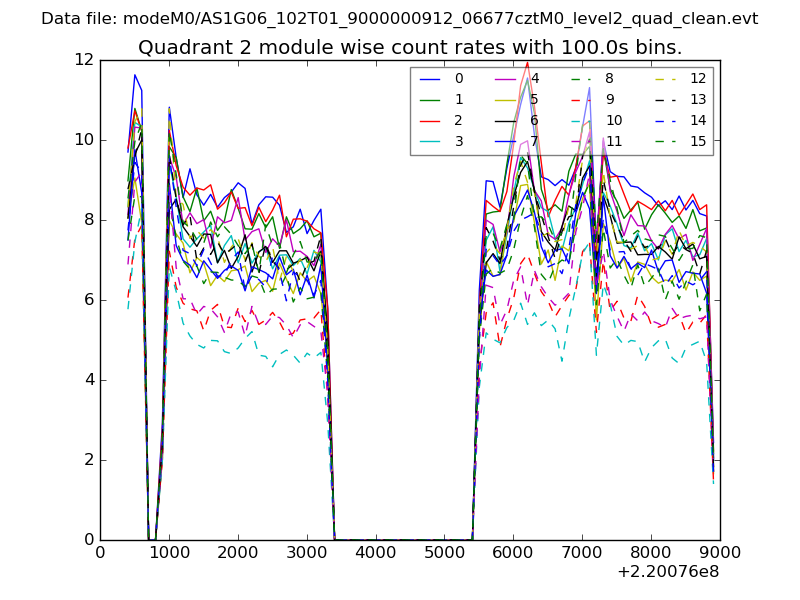

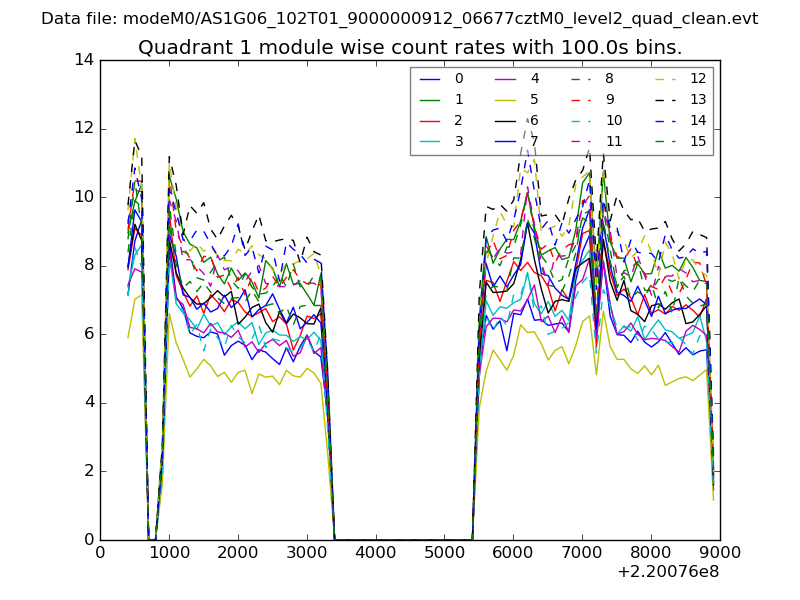

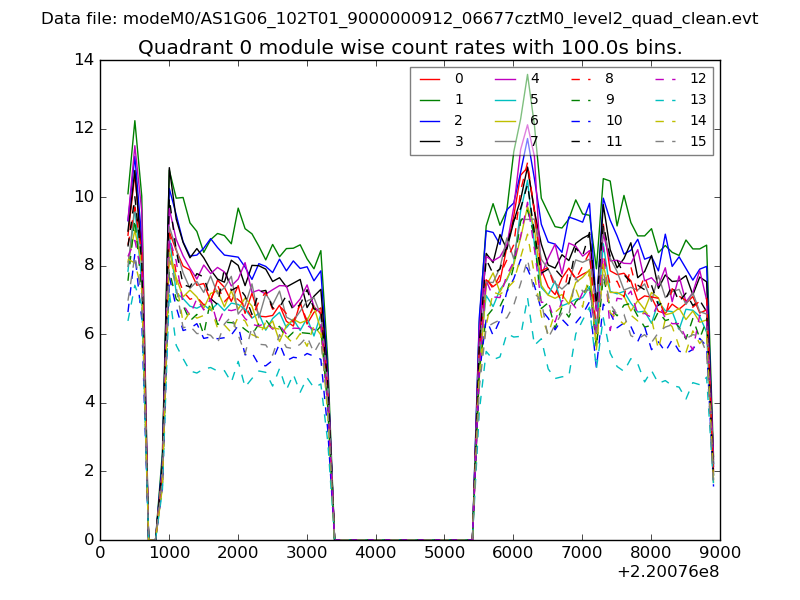

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

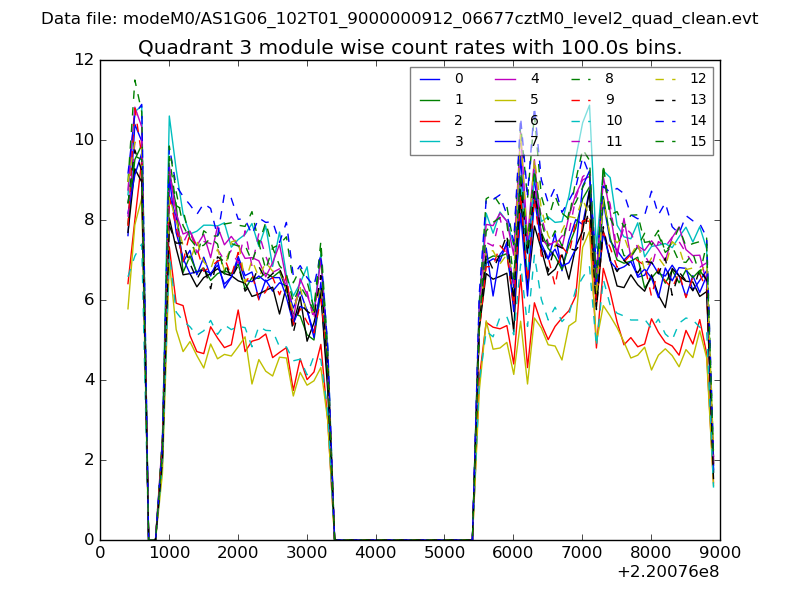

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

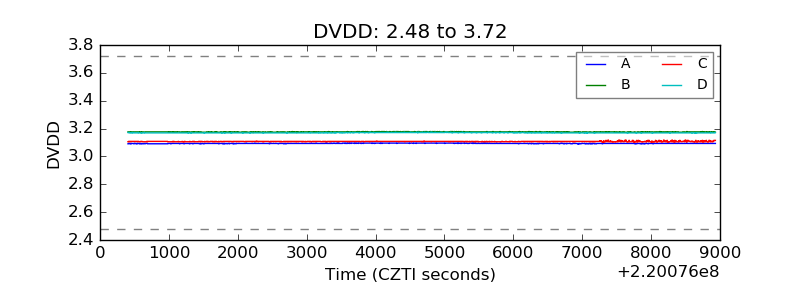

| D_VDD |  |

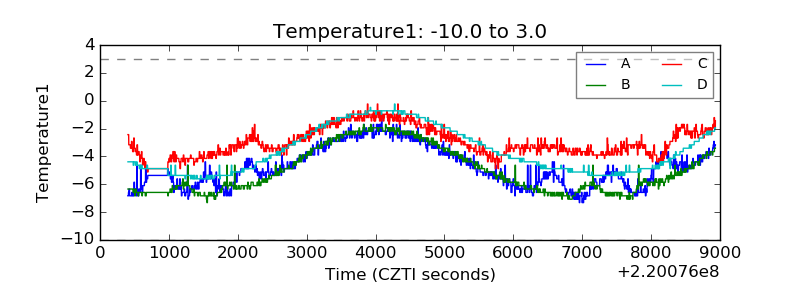

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

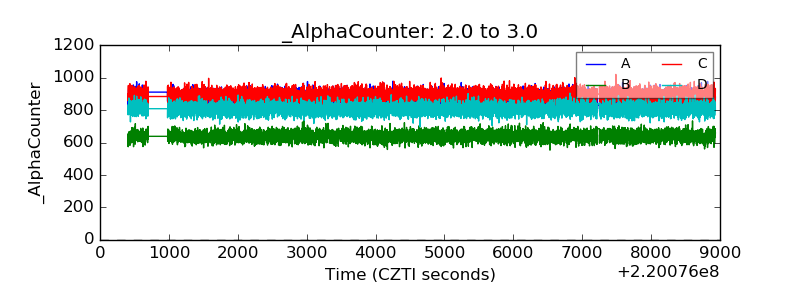

| Alpha Counter |  |

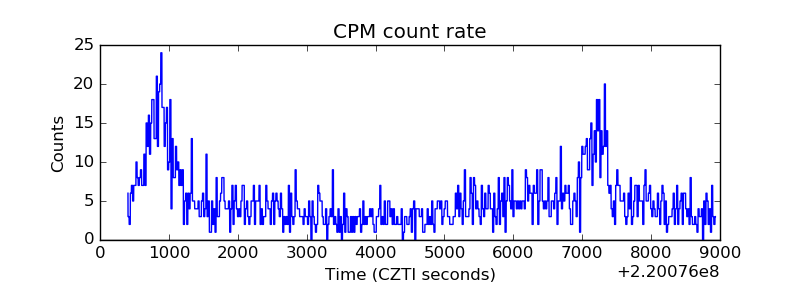

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

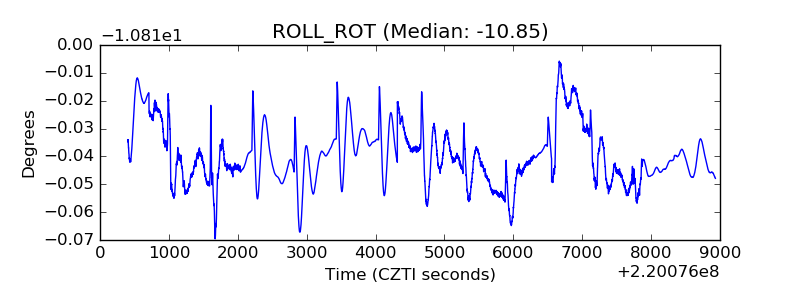

| _ROLL_ROT |  |

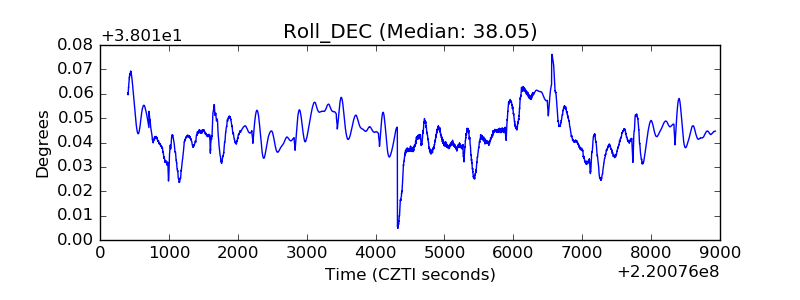

| _Roll_DEC |  |

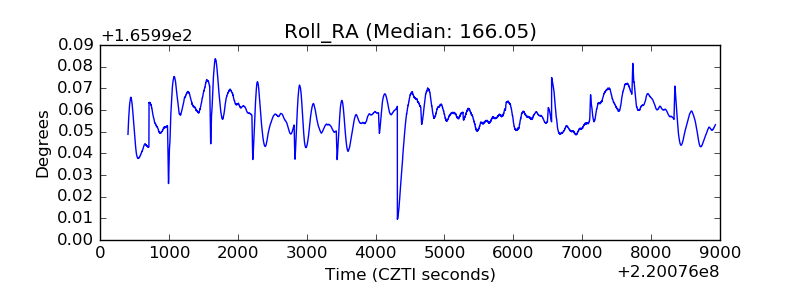

| _Roll_RA |  |

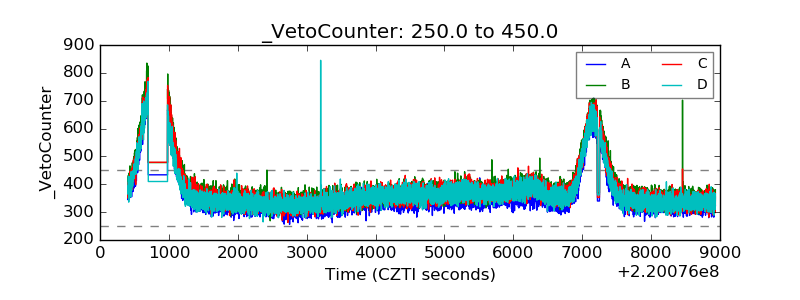

| Veto Counter |  |
