| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_102T01_9000000912_06681cztM0_level2.evt | modeM0/AS1G06_102T01_9000000912_06681cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,530,400,320 | 178,320,960 |
| Size | 1.4 GB | 170.1 MB |
| Events in quadrant A | 9,562,873 | 1,078,816 |
| Events in quadrant B | 9,055,880 | 1,091,061 |
| Events in quadrant C | 7,647,968 | 1,081,515 |
| Events in quadrant D | 18,933,170 | 973,905 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 346 | 0 |
| B | 0 | 346 | 0 |
| C | 0 | 346 | 0 |
| D | 0 | 346 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 39632 | 4 |
| B | 0 | 38066 | 3 |
| C | 0 | 34837 | 3 |
| D | 0 | 68079 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 17035 | 470 | 2.759026% |
| B | 17035 | 322 | 1.890226% |
| C | 17035 | 182 | 1.068389% |
| D | 17035 | 3148 | 18.479601% |

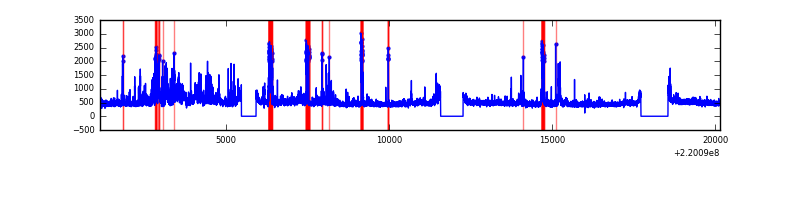

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 19005 | 17038 | 165 | 165 | 0.87% | 0.97% |  |
| B | 19005 | 17038 | 57 | 57 | 0.30% | 0.33% |  |
| C | 19005 | 17038 | 10 | 10 | 0.05% | 0.06% |  |
| D | 19005 | 17038 | 2433 | 2433 | 12.80% | 14.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 251 | 1579610 | 3929.66 | 1968 | 1921 | 401.5 |
| A | 14 | 111 | 255409 | 631.38 | 1968 | 1921 | 401.5 |
| A | 8 | 15 | 94173 | 229.78 | 1968 | 1921 | 401.5 |
| B | 0 | 228 | 635748 | 1671.17 | 1985 | 1937 | 379.3 |
| B | 0 | 219 | 218715 | 571.58 | 1985 | 1937 | 379.3 |
| B | 0 | 214 | 172628 | 450.06 | 1985 | 1937 | 379.3 |
| C | 4 | 254 | 113137 | 249.89 | 1921 | 1929 | 445.0 |
| C | 9 | 16 | 16619 | 33.01 | 1921 | 1929 | 445.0 |
| C | 13 | 61 | 15423 | 30.32 | 1921 | 1929 | 445.0 |
| D | 2 | 33 | 6383833 | 14758.87 | 1764 | 1709 | 432.4 |
| D | 8 | 195 | 2958501 | 6837.68 | 1764 | 1709 | 432.4 |
| D | 2 | 63 | 1442765 | 3332.49 | 1764 | 1709 | 432.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

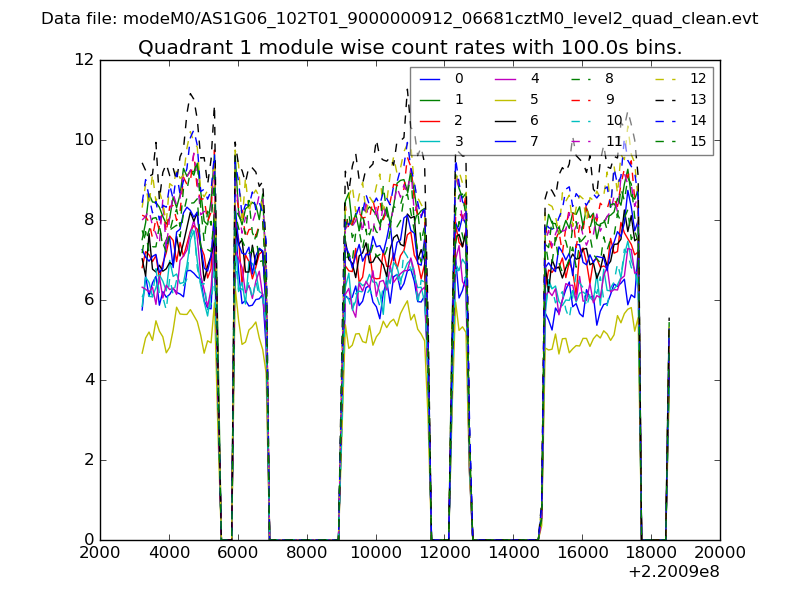

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |

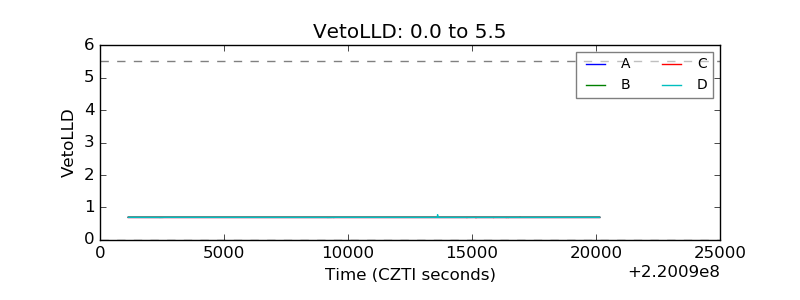

| Veto LLD |  |

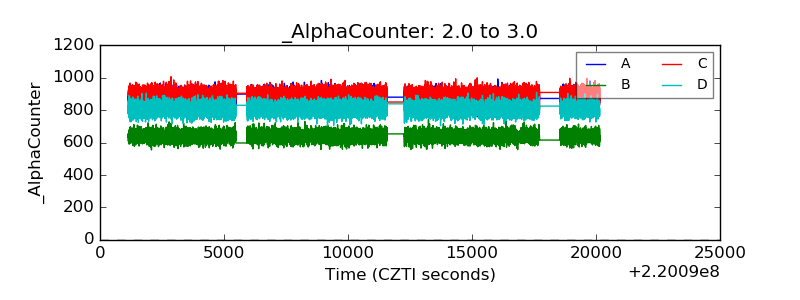

| Alpha Counter |  |

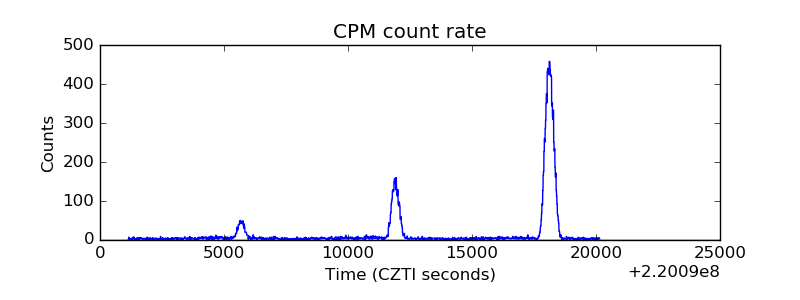

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

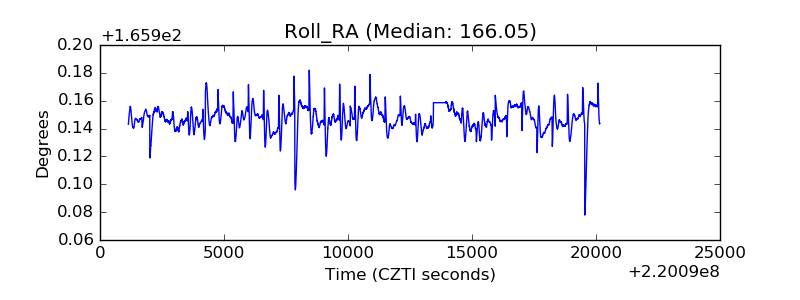

| _Roll_RA |  |

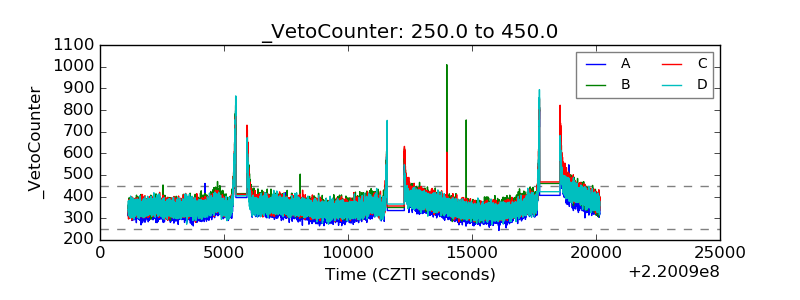

| Veto Counter |  |
