| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_102T01_9000000912_06685cztM0_level2.evt | modeM0/AS1G06_102T01_9000000912_06685cztM0_level2_quad_clean.evt |
| Size (bytes) | 398,096,640 | 58,305,600 |
| Size | 379.7 MB | 55.6 MB |
| Events in quadrant A | 2,215,465 | 369,787 |
| Events in quadrant B | 2,185,926 | 371,351 |
| Events in quadrant C | 2,002,526 | 372,572 |
| Events in quadrant D | 5,358,477 | 347,215 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 88 | 0 |
| B | 0 | 88 | 0 |
| C | 0 | 88 | 0 |
| D | 0 | 88 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9713 | 1 |
| B | 0 | 9494 | 1 |
| C | 0 | 9063 | 1 |
| D | 0 | 19016 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 4325 | 78 | 1.803468% |
| B | 4325 | 52 | 1.202312% |
| C | 4325 | 32 | 0.739884% |
| D | 4325 | 782 | 18.080925% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

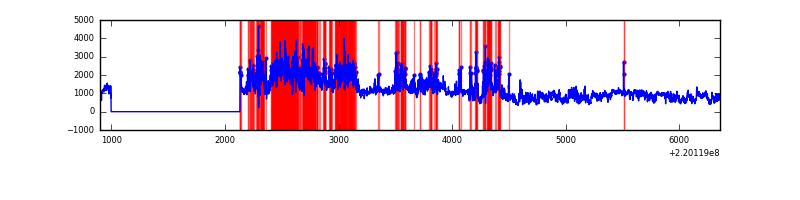

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5460 | 4326 | 9 | 9 | 0.16% | 0.21% |  |
| B | 5460 | 4326 | 2 | 2 | 0.04% | 0.05% |  |
| C | 5460 | 4326 | 0 | 0 | 0.00% | 0.00% |  |
| D | 5460 | 4326 | 568 | 568 | 10.40% | 13.13% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 173727 | 1633.05 | 517 | 508 | 106.1 |
| A | 13 | 251 | 34647 | 321.85 | 517 | 508 | 106.1 |
| A | 3 | 1 | 16401 | 149.83 | 517 | 508 | 106.1 |
| B | 0 | 219 | 32130 | 316.47 | 524 | 512 | 99.9 |
| B | 0 | 214 | 25629 | 251.4 | 524 | 512 | 99.9 |
| B | 11 | 51 | 24810 | 243.2 | 524 | 512 | 99.9 |
| C | 9 | 54 | 13262 | 107.17 | 509 | 511 | 119.0 |
| C | 13 | 61 | 3953 | 28.93 | 509 | 511 | 119.0 |
| C | 14 | 67 | 1608 | 9.22 | 509 | 511 | 119.0 |
| D | 8 | 195 | 2061881 | 18007.73 | 469 | 455 | 114.5 |
| D | 2 | 33 | 1305896 | 11403.77 | 469 | 455 | 114.5 |
| D | 2 | 152 | 137639 | 1198.38 | 469 | 455 | 114.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

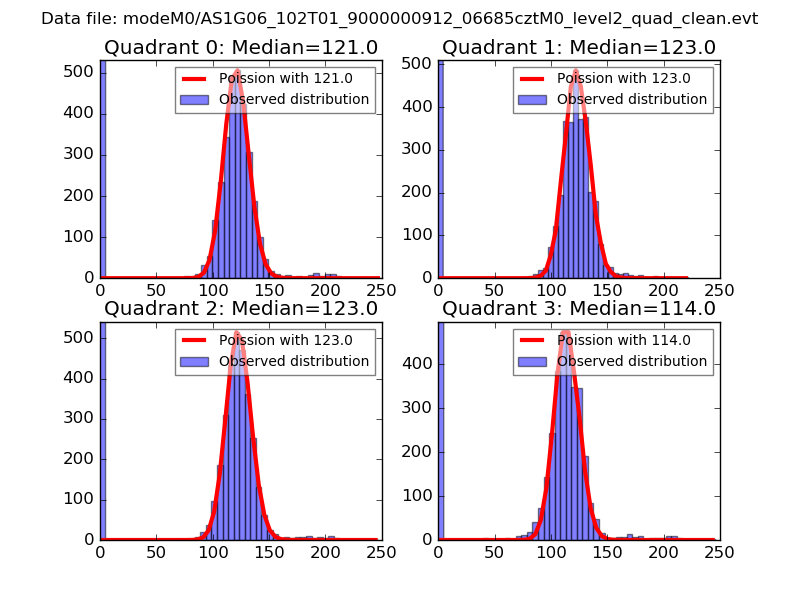

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

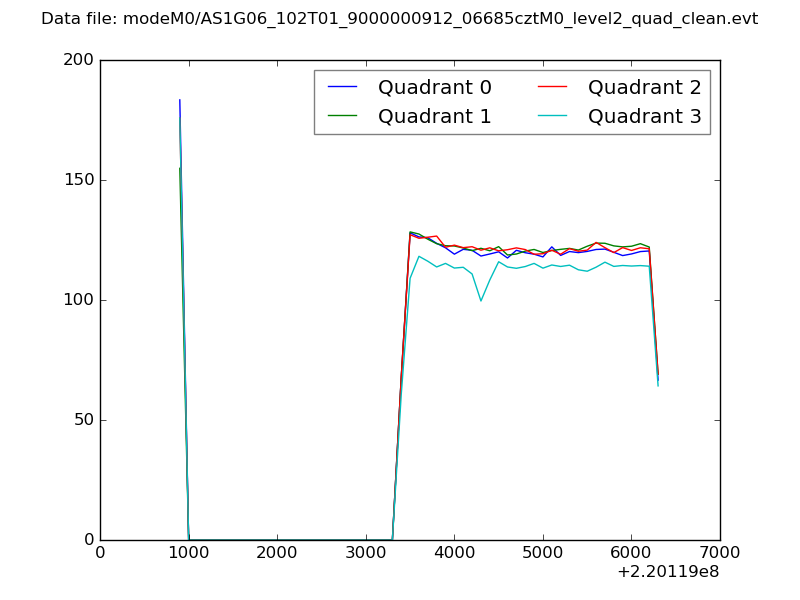

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

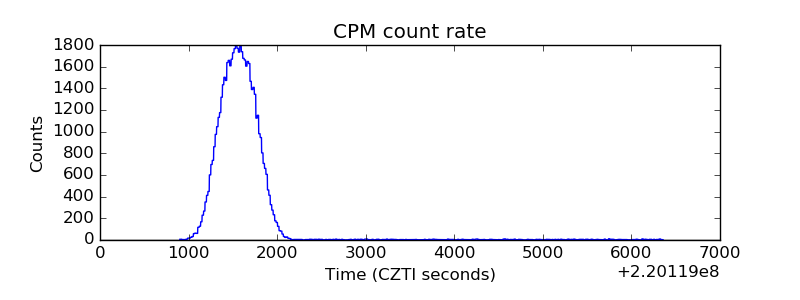

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

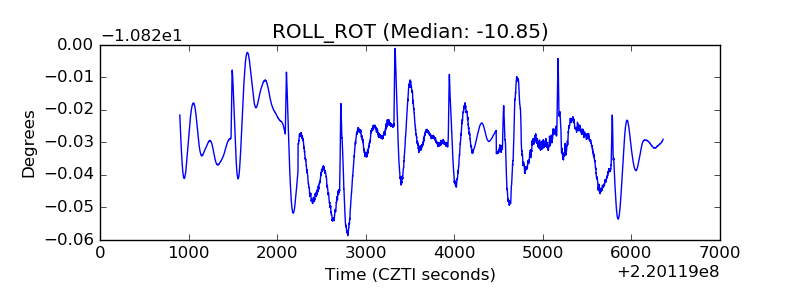

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

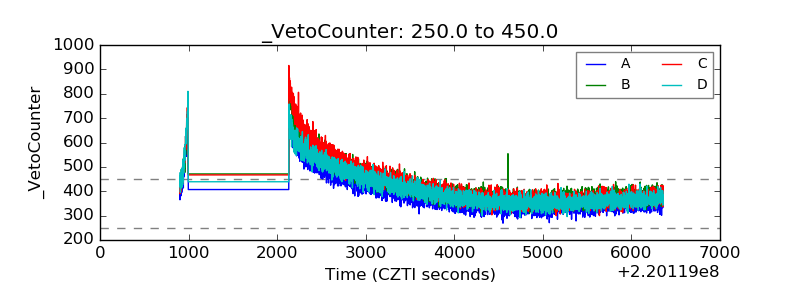

| Veto Counter |  |
