| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_135T01_9000000908_06667cztM0_level2.evt | modeM0/AS1G06_135T01_9000000908_06667cztM0_level2_quad_clean.evt |
| Size (bytes) | 235,535,040 | 37,229,760 |
| Size | 224.6 MB | 35.5 MB |
| Events in quadrant A | 1,477,807 | 236,774 |
| Events in quadrant B | 1,517,497 | 240,665 |
| Events in quadrant C | 1,502,516 | 235,563 |
| Events in quadrant D | 2,426,798 | 197,097 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 6309 | 2 |
| B | 0 | 6371 | 1 |
| C | 0 | 6406 | 1 |
| D | 0 | 9234 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 62 | 0 |
| B | 0 | 62 | 0 |
| C | 0 | 62 | 0 |
| D | 0 | 62 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3043 | 58 | 1.906014% |
| B | 3043 | 60 | 1.971738% |
| C | 3043 | 45 | 1.478804% |
| D | 3043 | 429 | 14.097930% |

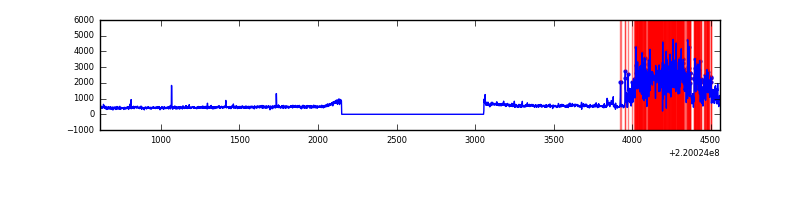

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 3948 | 3044 | 0 | 0 | 0.00% | 0.00% |  |
| B | 3948 | 3044 | 0 | 0 | 0.00% | 0.00% |  |
| C | 3948 | 3044 | 0 | 0 | 0.00% | 0.00% |  |
| D | 3948 | 3044 | 315 | 315 | 7.98% | 10.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 5353 | 63.15 | 379 | 370 | 78.9 |
| A | 0 | 226 | 3673 | 41.86 | 379 | 370 | 78.9 |
| A | 12 | 194 | 3471 | 39.3 | 379 | 370 | 78.9 |
| B | 0 | 214 | 14738 | 191.41 | 380 | 371 | 75.1 |
| B | 4 | 80 | 10726 | 137.95 | 380 | 371 | 75.1 |
| B | 4 | 81 | 8304 | 105.69 | 380 | 371 | 75.1 |
| C | 9 | 247 | 50665 | 573.57 | 369 | 370 | 87.7 |
| C | 1 | 3 | 5385 | 57.19 | 369 | 370 | 87.7 |
| C | 9 | 221 | 3015 | 30.16 | 369 | 370 | 87.7 |
| D | 2 | 33 | 1044770 | 12198.26 | 345 | 333 | 85.6 |
| D | 2 | 152 | 29263 | 337.88 | 345 | 333 | 85.6 |
| D | 2 | 63 | 19329 | 221.86 | 345 | 333 | 85.6 |

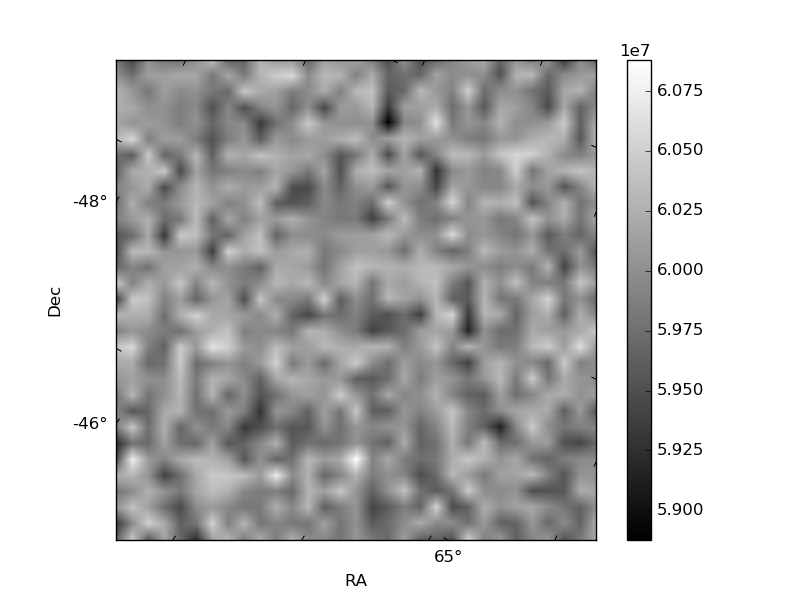

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

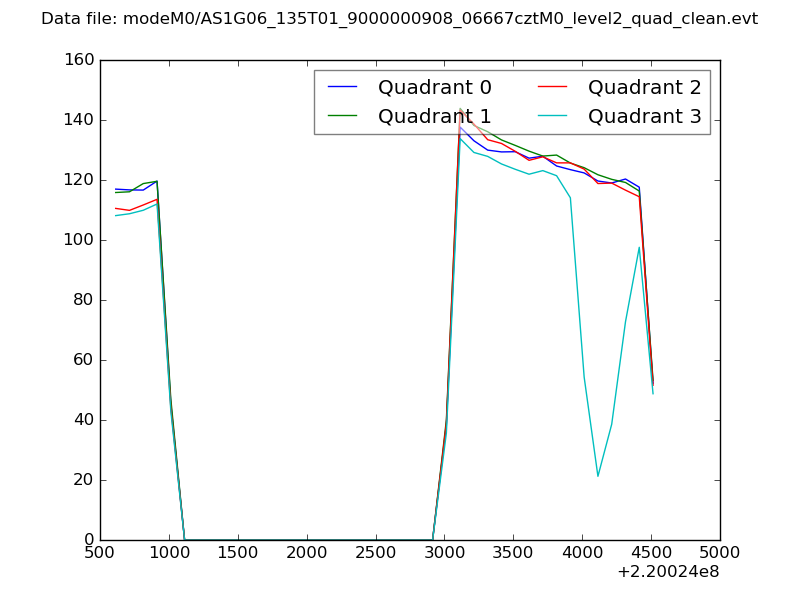

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

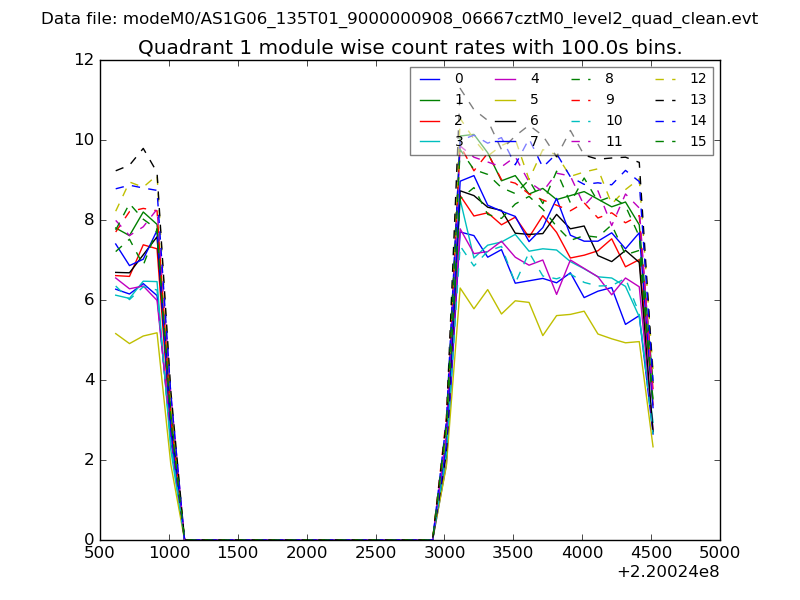

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

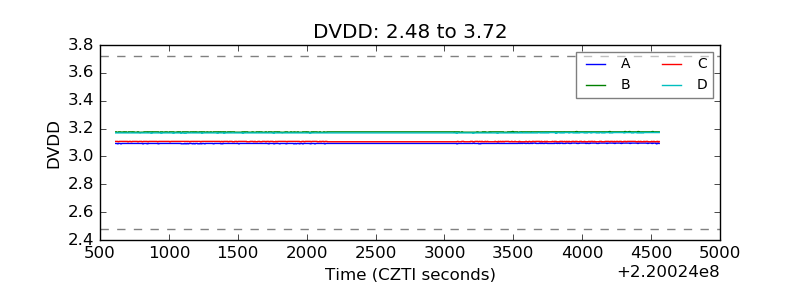

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

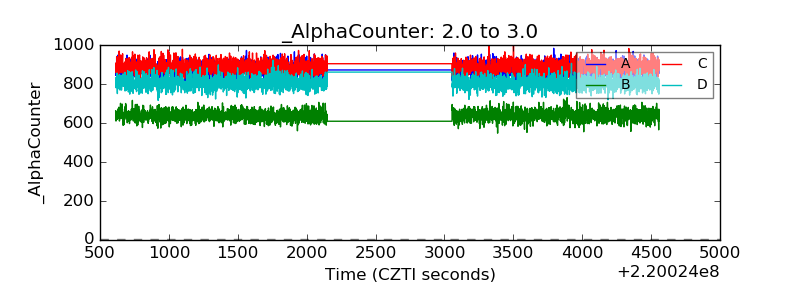

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |

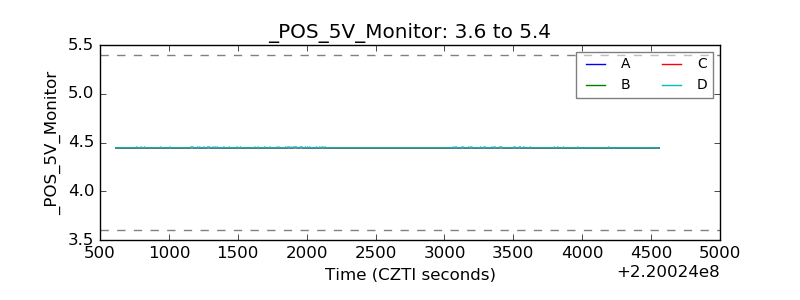

| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

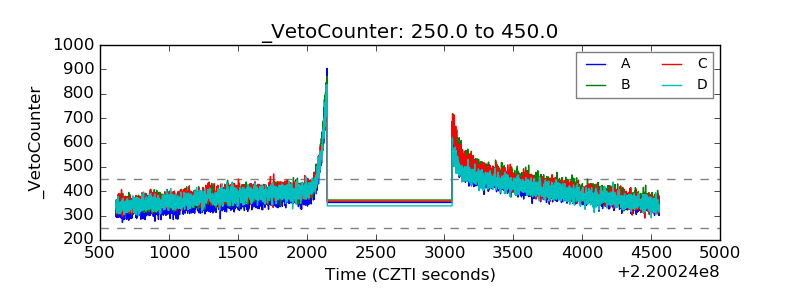

| Veto Counter |  |
