| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_145T01_9000000916_06690cztM0_level2.evt | modeM0/AS1T01_145T01_9000000916_06690cztM0_level2_quad_clean.evt |
| Size (bytes) | 631,736,640 | 123,007,680 |
| Size | 602.5 MB | 117.3 MB |
| Events in quadrant A | 3,291,645 | 858,167 |
| Events in quadrant B | 3,399,896 | 877,057 |
| Events in quadrant C | 3,187,979 | 855,678 |
| Events in quadrant D | 8,755,946 | 624,149 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15206 | 3 |
| B | 0 | 15244 | 2 |
| C | 0 | 15011 | 2 |
| D | 0 | 31193 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 148 | 0 |
| B | 0 | 148 | 0 |
| C | 0 | 148 | 0 |
| D | 0 | 148 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7326 | 118 | 1.610702% |
| B | 7326 | 155 | 2.115752% |
| C | 7326 | 100 | 1.365001% |
| D | 7326 | 2121 | 28.951679% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 8781 | 7328 | 3 | 3 | 0.03% | 0.04% |  |
| B | 8781 | 7328 | 2 | 2 | 0.02% | 0.03% |  |
| C | 8781 | 7328 | 0 | 0 | 0.00% | 0.00% |  |
| D | 8781 | 7328 | 1585 | 1585 | 18.05% | 21.63% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 81746 | 481.57 | 825 | 806 | 168.1 |
| A | 4 | 2 | 10712 | 58.94 | 825 | 806 | 168.1 |
| A | 14 | 111 | 9594 | 52.29 | 825 | 806 | 168.1 |
| B | 0 | 198 | 34244 | 211.19 | 838 | 818 | 158.3 |
| B | 4 | 81 | 30920 | 190.19 | 838 | 818 | 158.3 |
| B | 0 | 214 | 24544 | 149.9 | 838 | 818 | 158.3 |
| C | 9 | 54 | 15438 | 78.13 | 809 | 810 | 187.2 |
| C | 12 | 4 | 8740 | 42.36 | 809 | 810 | 187.2 |
| C | 13 | 61 | 6390 | 29.8 | 809 | 810 | 187.2 |
| D | 2 | 33 | 4488532 | 28868.2 | 634 | 613 | 155.5 |
| D | 8 | 195 | 1599978 | 10287.79 | 634 | 613 | 155.5 |
| D | 2 | 14 | 117601 | 752.52 | 634 | 613 | 155.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

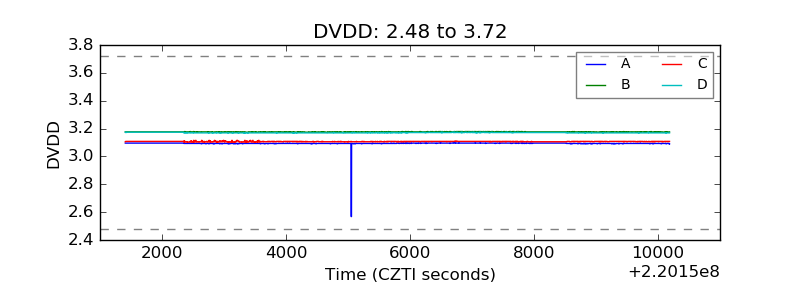

| D_VDD |  |

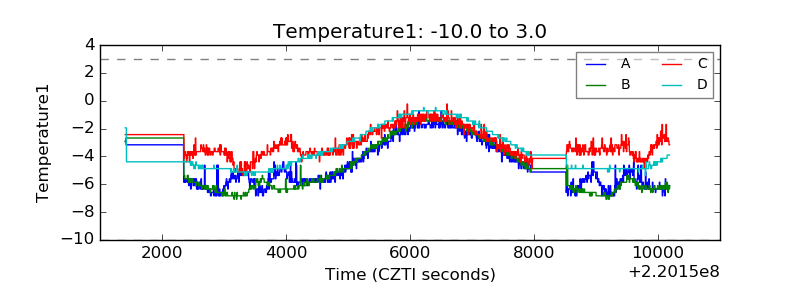

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

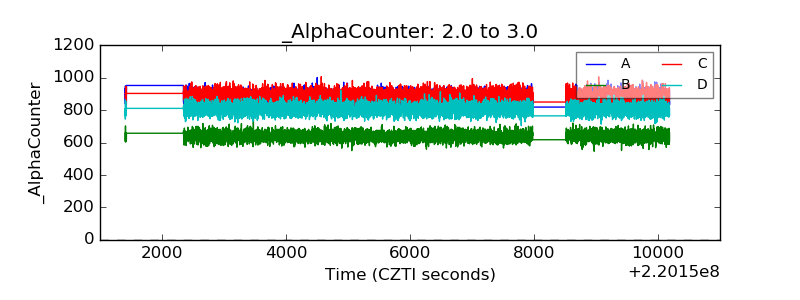

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

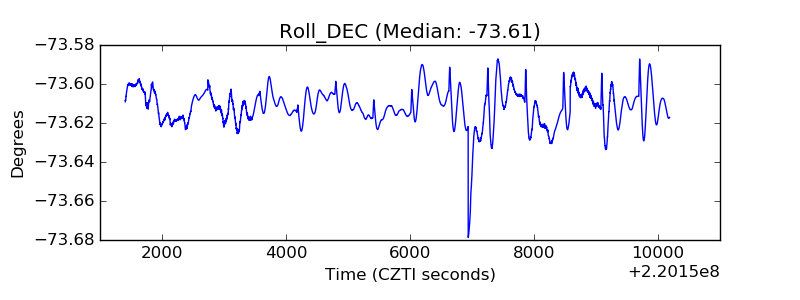

| _Roll_DEC |  |

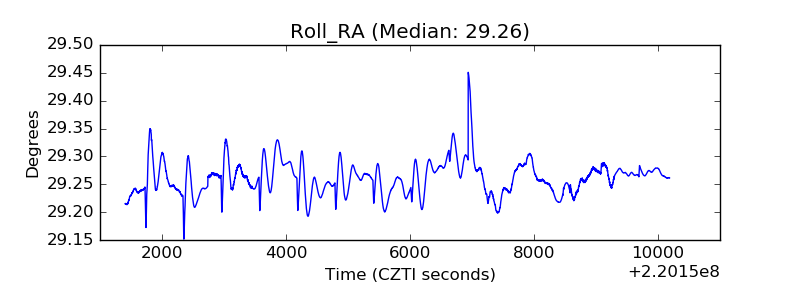

| _Roll_RA |  |

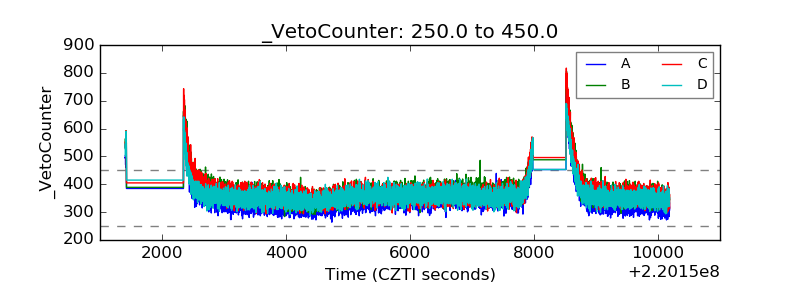

| Veto Counter |  |
