| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1T01_145T01_9000000916_06699cztM0_level2.evt | modeM0/AS1T01_145T01_9000000916_06699cztM0_level2_quad_clean.evt |
| Size (bytes) | 457,367,040 | 112,173,120 |
| Size | 436.2 MB | 107.0 MB |
| Events in quadrant A | 2,951,371 | 760,079 |
| Events in quadrant B | 3,359,895 | 766,059 |
| Events in quadrant C | 2,616,154 | 744,347 |
| Events in quadrant D | 4,508,800 | 700,064 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13058 | 2 |
| B | 0 | 14184 | 1 |
| C | 0 | 12370 | 1 |
| D | 0 | 17582 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6115 | 27 | 0.441537% |
| B | 6115 | 101 | 1.651676% |
| C | 6115 | 9 | 0.147179% |
| D | 6115 | 217 | 3.548651% |

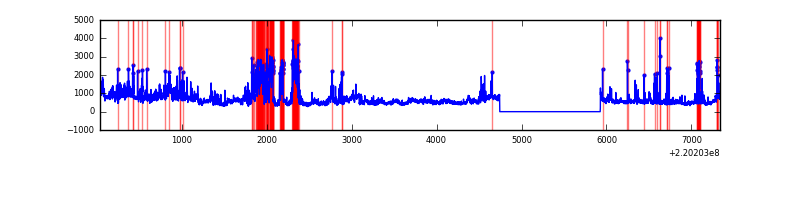

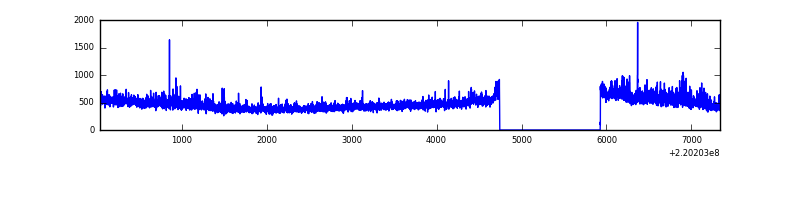

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7300 | 6116 | 0 | 0 | 0.00% | 0.00% |  |
| B | 7300 | 6116 | 50 | 50 | 0.68% | 0.82% |  |
| C | 7300 | 6116 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7300 | 6116 | 216 | 216 | 2.96% | 3.53% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 15 | 194868 | 1357.78 | 699 | 683 | 143.0 |
| A | 13 | 251 | 64680 | 447.48 | 699 | 683 | 143.0 |
| A | 0 | 226 | 6827 | 42.96 | 699 | 683 | 143.0 |
| B | 4 | 80 | 432744 | 3220.18 | 705 | 691 | 134.2 |
| B | 0 | 219 | 58028 | 427.34 | 705 | 691 | 134.2 |
| B | 0 | 228 | 43947 | 322.4 | 705 | 691 | 134.2 |
| C | 13 | 61 | 5378 | 30.47 | 667 | 669 | 154.6 |
| C | 8 | 128 | 3817 | 20.37 | 667 | 669 | 154.6 |
| C | 9 | 54 | 3730 | 19.8 | 667 | 669 | 154.6 |
| D | 8 | 195 | 912177 | 5621.15 | 659 | 637 | 162.2 |
| D | 2 | 33 | 772339 | 4758.82 | 659 | 637 | 162.2 |
| D | 2 | 152 | 87702 | 536.9 | 659 | 637 | 162.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

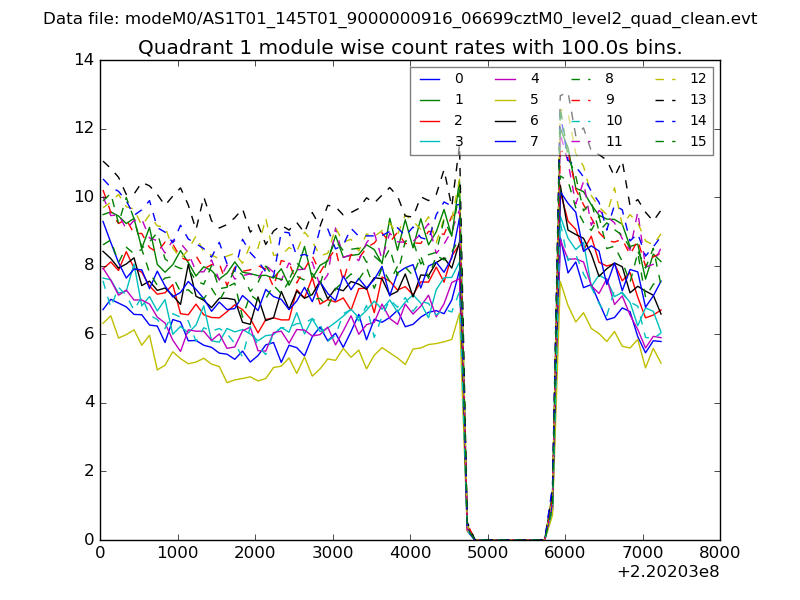

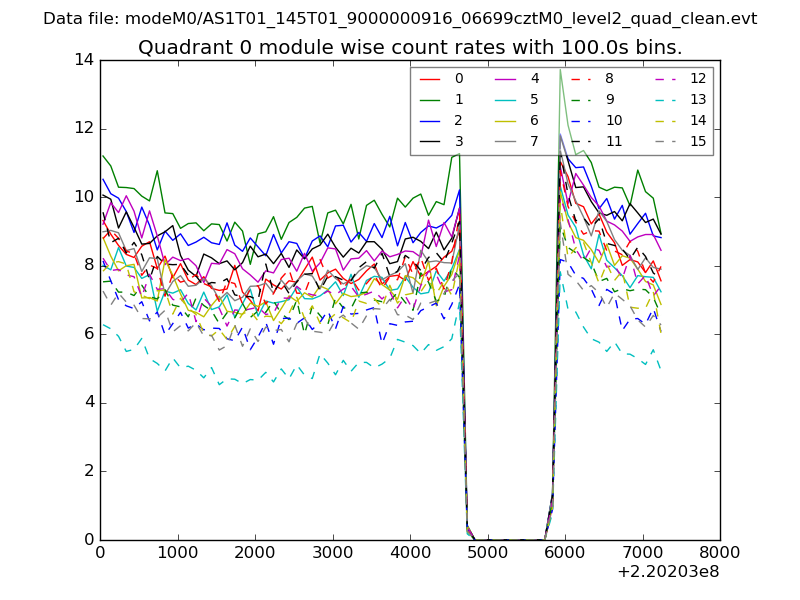

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

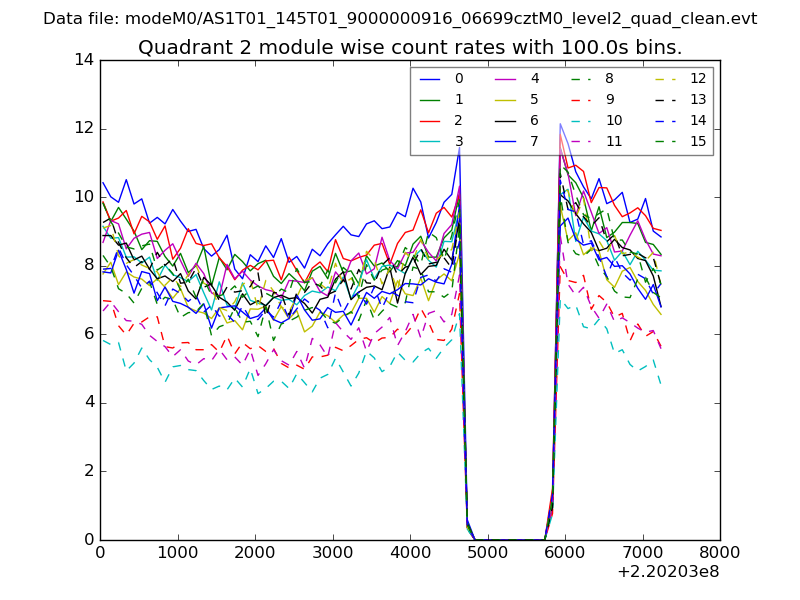

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

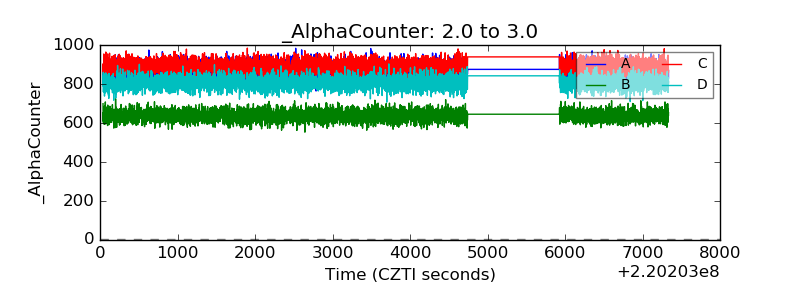

| Alpha Counter |  |
| _CPM_Rate |  |

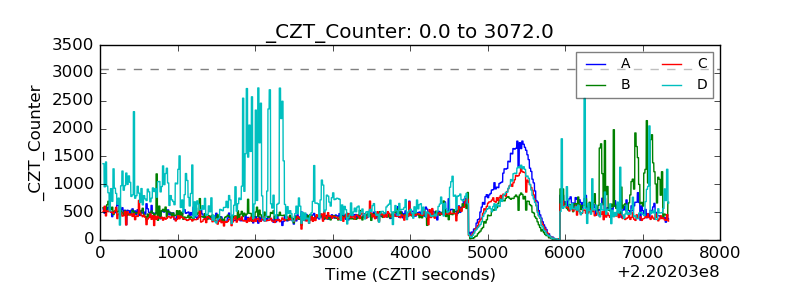

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

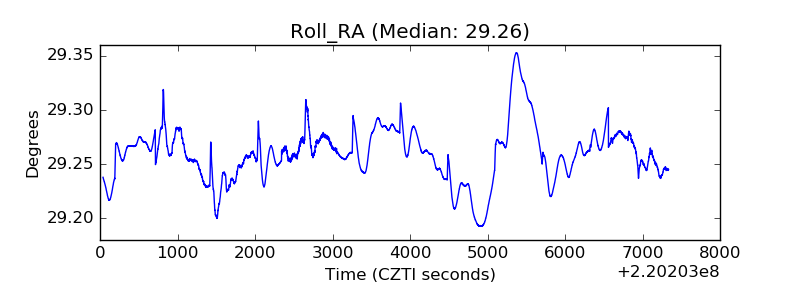

| _Roll_RA |  |
| Veto Counter |  |
