| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C02_003T01_9000000924_06733cztM0_level2.evt | modeM0/AS1C02_003T01_9000000924_06733cztM0_level2_quad_clean.evt |
| Size (bytes) | 514,808,640 | 98,769,600 |
| Size | 491.0 MB | 94.2 MB |
| Events in quadrant A | 3,712,963 | 619,829 |
| Events in quadrant B | 3,662,940 | 627,505 |
| Events in quadrant C | 3,734,458 | 608,086 |
| Events in quadrant D | 3,945,020 | 587,427 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 162 | 0 |
| B | 0 | 162 | 0 |
| C | 0 | 162 | 0 |
| D | 0 | 162 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16681 | 3 |
| B | 0 | 16433 | 2 |
| C | 0 | 16677 | 2 |
| D | 0 | 17075 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7885 | 65 | 0.824350% |
| B | 7885 | 77 | 0.976538% |
| C | 7885 | 28 | 0.355105% |
| D | 7885 | 61 | 0.773621% |

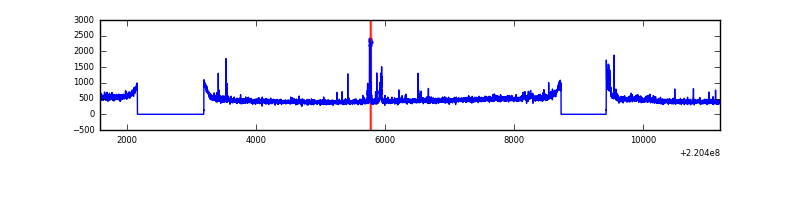

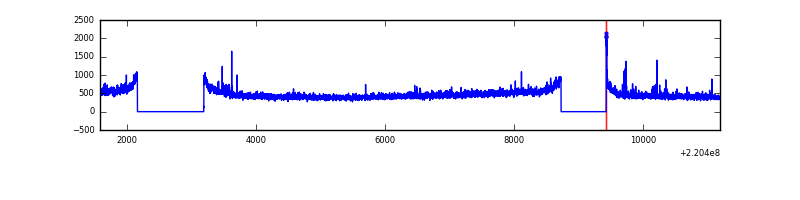

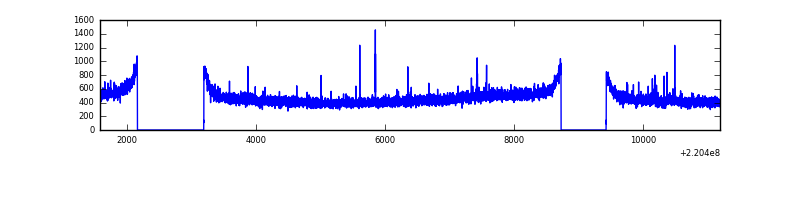

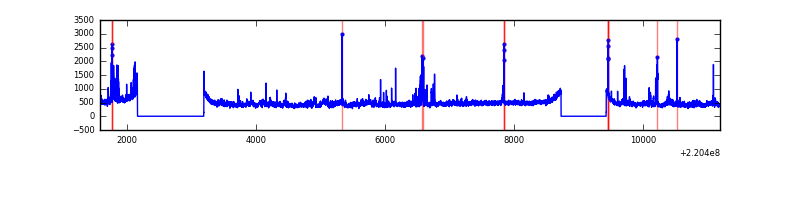

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9615 | 7887 | 3 | 3 | 0.03% | 0.04% |  |
| B | 9615 | 7887 | 0 | 0 | 0.00% | 0.00% |  |
| C | 9615 | 7887 | 4 | 4 | 0.04% | 0.05% |  |
| D | 9615 | 7887 | 15 | 15 | 0.16% | 0.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 57522 | 299.04 | 925 | 903 | 189.3 |
| A | 8 | 15 | 53054 | 275.44 | 925 | 903 | 189.3 |
| A | 3 | 1 | 27253 | 139.17 | 925 | 903 | 189.3 |
| B | 4 | 81 | 30365 | 163.77 | 936 | 912 | 179.8 |
| B | 12 | 111 | 18803 | 99.48 | 936 | 912 | 179.8 |
| B | 11 | 111 | 14960 | 78.11 | 936 | 912 | 179.8 |
| C | 9 | 16 | 107536 | 504.48 | 904 | 907 | 211.4 |
| C | 1 | 3 | 54382 | 253.0 | 904 | 907 | 211.4 |
| C | 12 | 16 | 28851 | 132.21 | 904 | 907 | 211.4 |
| D | 8 | 195 | 262316 | 1182.26 | 898 | 868 | 221.1 |
| D | 2 | 152 | 79145 | 353.97 | 898 | 868 | 221.1 |
| D | 14 | 34 | 44745 | 198.41 | 898 | 868 | 221.1 |

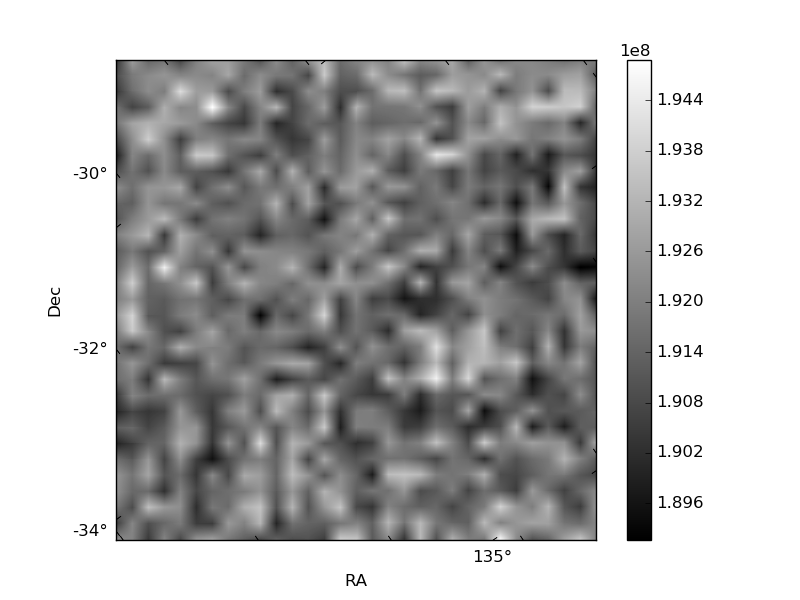

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

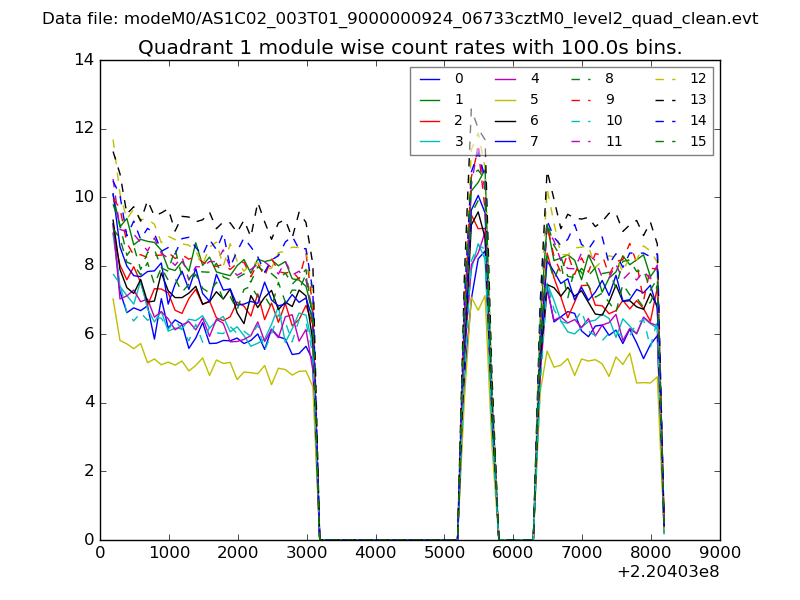

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

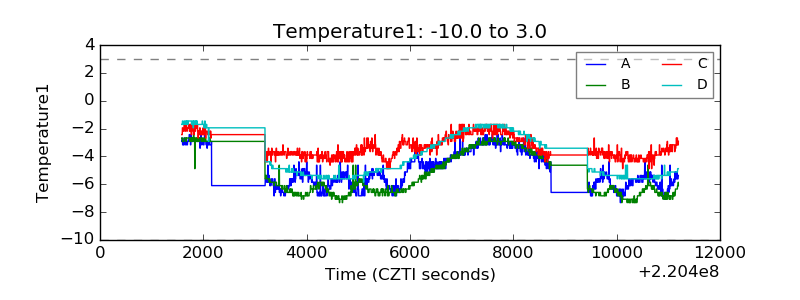

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

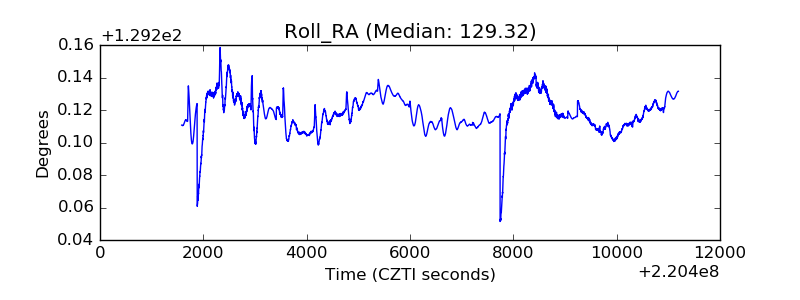

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
