| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_164T01_9000000922_06715cztM0_level2.evt | modeM0/AS1G06_164T01_9000000922_06715cztM0_level2_quad_clean.evt |
| Size (bytes) | 579,476,160 | 97,686,720 |
| Size | 552.6 MB | 93.2 MB |
| Events in quadrant A | 3,908,503 | 633,966 |
| Events in quadrant B | 3,333,748 | 648,616 |
| Events in quadrant C | 3,121,523 | 639,783 |
| Events in quadrant D | 6,728,164 | 565,642 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16270 | 2 |
| B | 0 | 14656 | 1 |
| C | 0 | 14032 | 1 |
| D | 0 | 24766 | 11 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6747 | 241 | 3.571958% |
| B | 6747 | 76 | 1.126427% |
| C | 6747 | 58 | 0.859641% |
| D | 6746 | 1476 | 21.879632% |

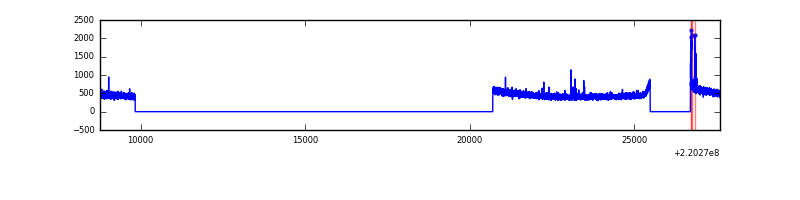

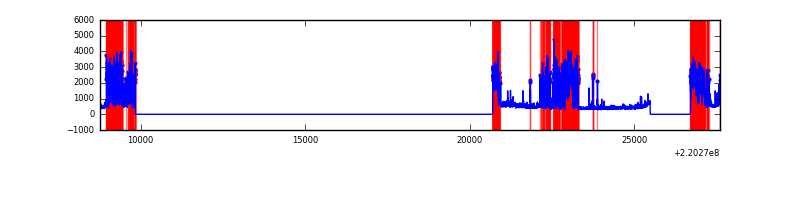

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

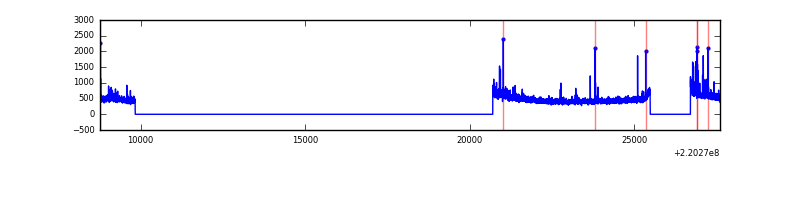

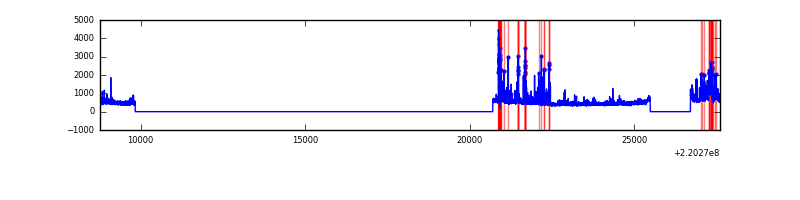

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 18838 | 6749 | 84 | 84 | 0.45% | 1.24% |  |
| B | 18838 | 6749 | 7 | 7 | 0.04% | 0.10% |  |
| C | 18838 | 6749 | 4 | 4 | 0.02% | 0.06% |  |
| D | 18838 | 6748 | 1224 | 1224 | 6.50% | 18.14% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 111 | 398528 | 2493.85 | 791 | 772 | 159.5 |
| A | 13 | 251 | 230440 | 1439.97 | 791 | 772 | 159.5 |
| A | 8 | 15 | 183178 | 1143.65 | 791 | 772 | 159.5 |
| B | 0 | 214 | 72737 | 475.18 | 808 | 789 | 151.4 |
| B | 4 | 81 | 49098 | 319.05 | 808 | 789 | 151.4 |
| B | 4 | 170 | 23819 | 152.1 | 808 | 789 | 151.4 |
| C | 9 | 247 | 45659 | 249.29 | 787 | 793 | 180.0 |
| C | 13 | 61 | 6369 | 30.98 | 787 | 793 | 180.0 |
| C | 1 | 3 | 3154 | 13.12 | 787 | 793 | 180.0 |
| D | 2 | 33 | 3681163 | 21861.45 | 692 | 670 | 168.4 |
| D | 8 | 195 | 219393 | 1299.17 | 692 | 670 | 168.4 |
| D | 2 | 152 | 127362 | 752.53 | 692 | 670 | 168.4 |

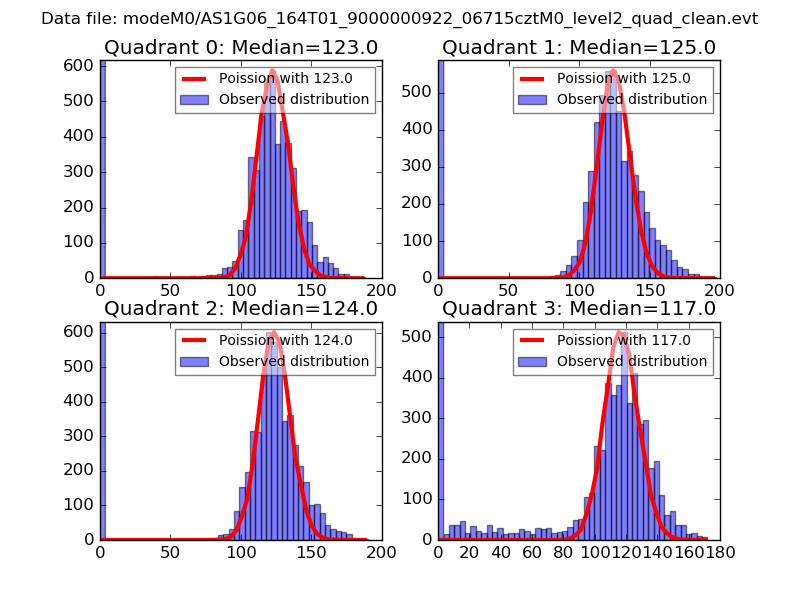

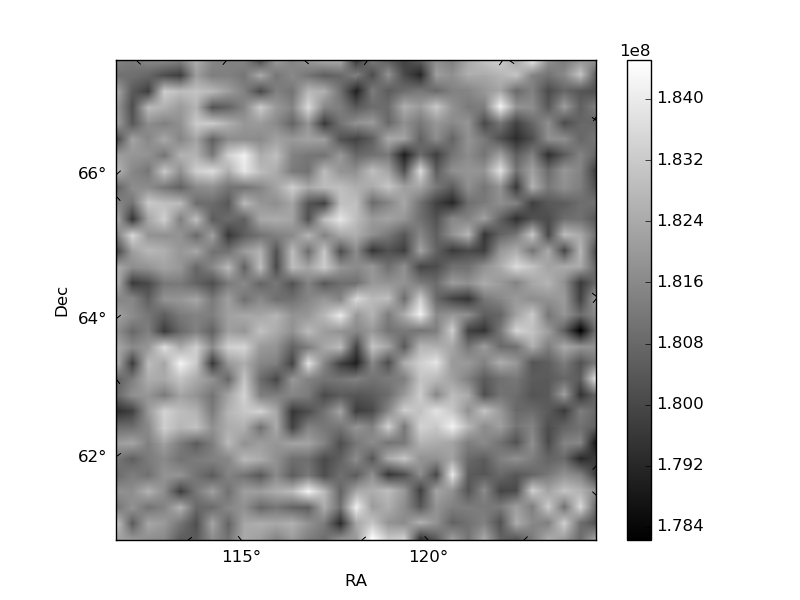

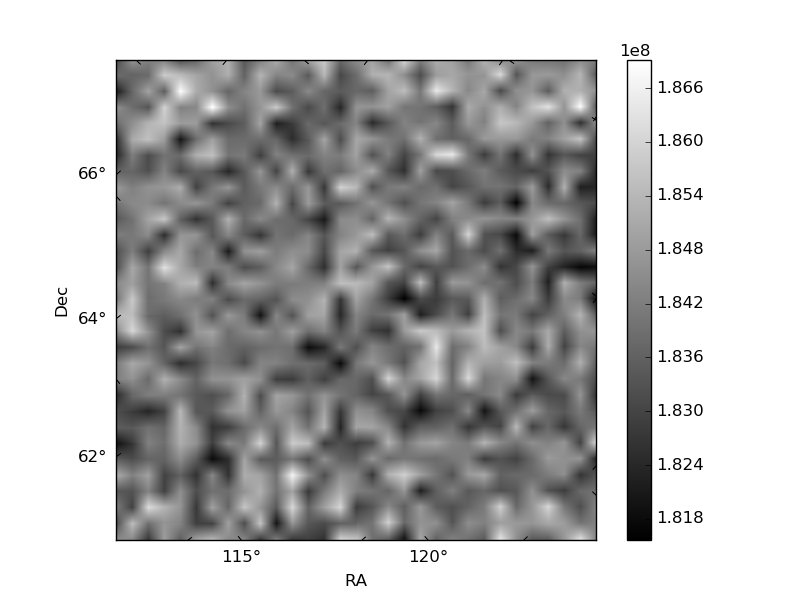

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

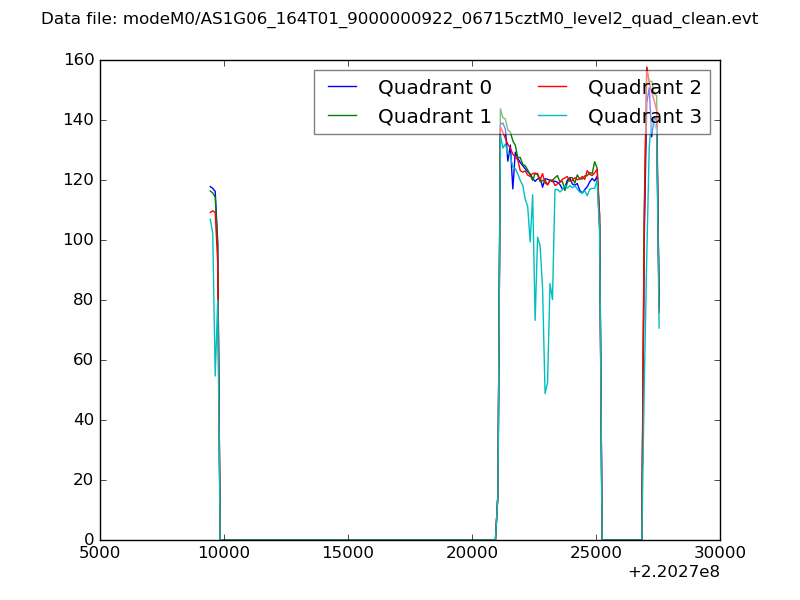

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

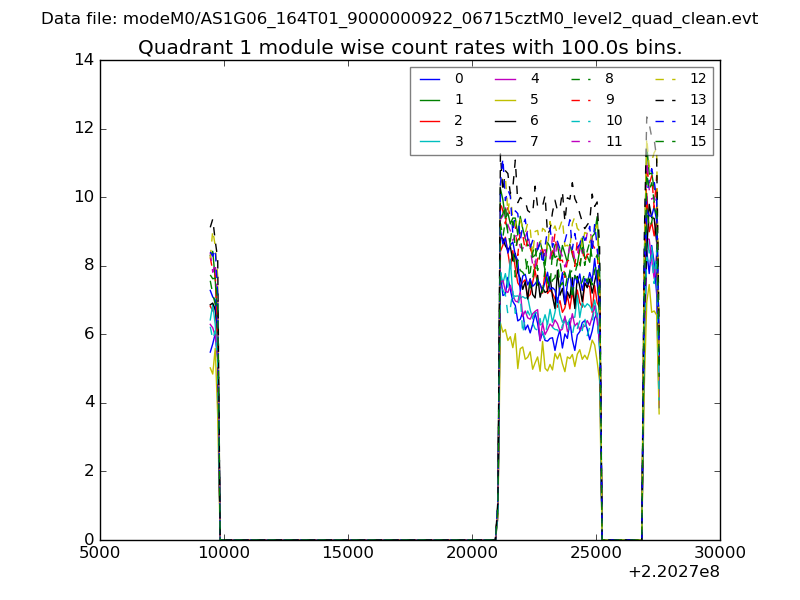

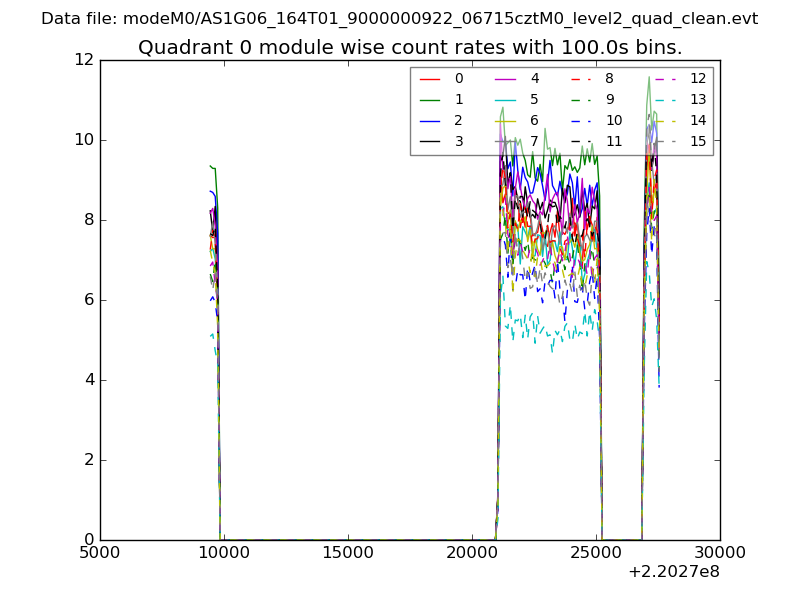

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

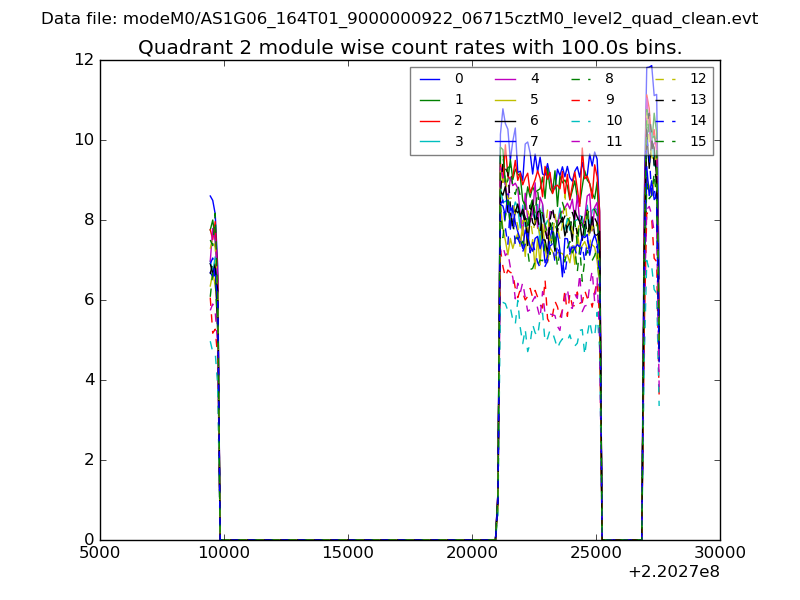

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

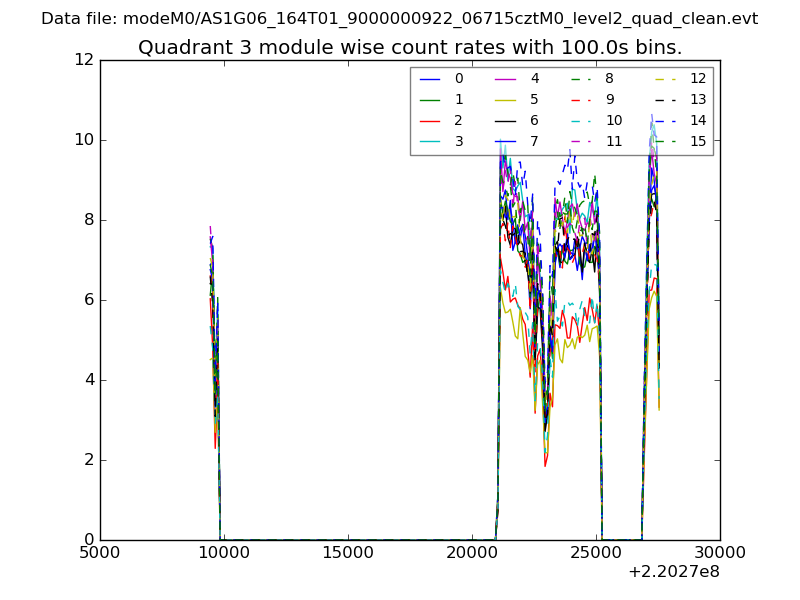

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

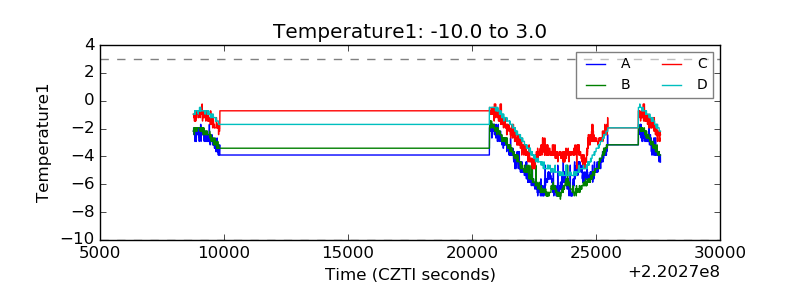

| Temperature 1 |  |
| Veto HV Monitor |  |

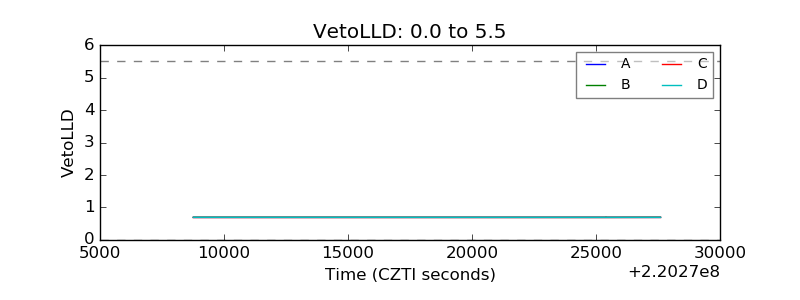

| Veto LLD |  |

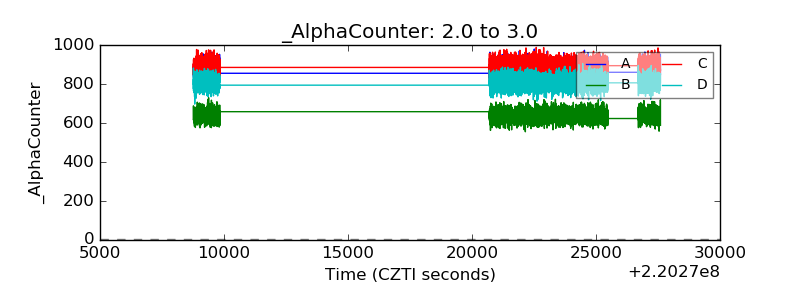

| Alpha Counter |  |

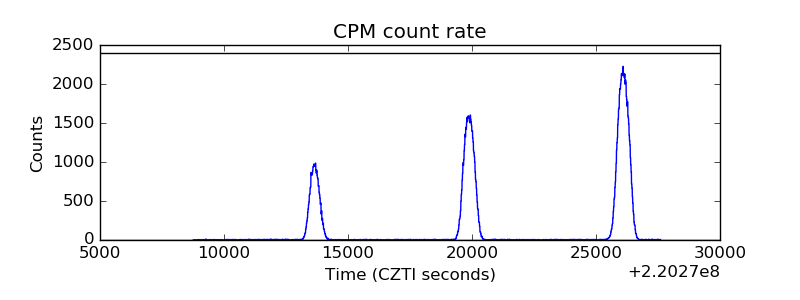

| _CPM_Rate |  |

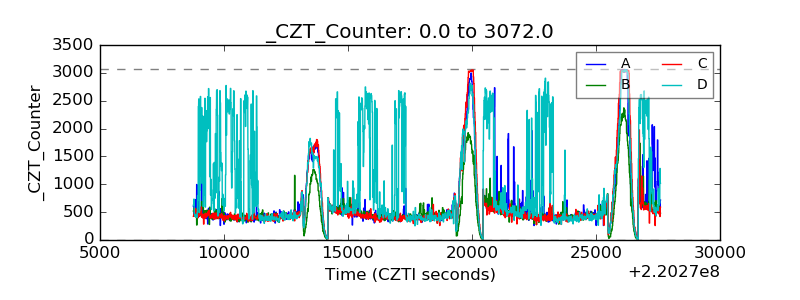

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

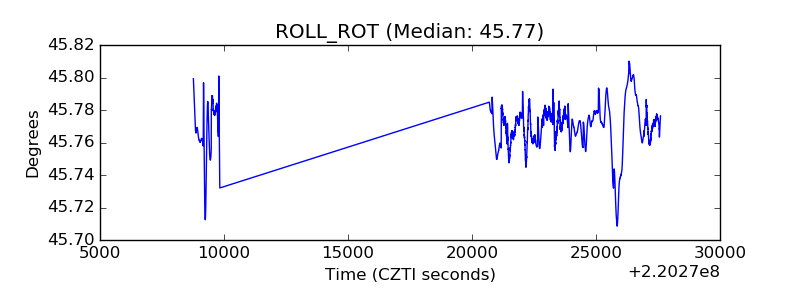

| _ROLL_ROT |  |

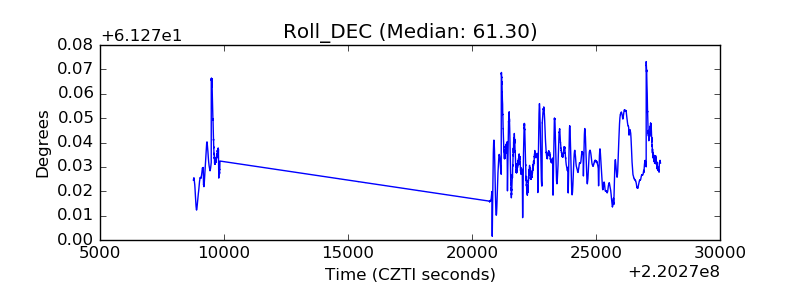

| _Roll_DEC |  |

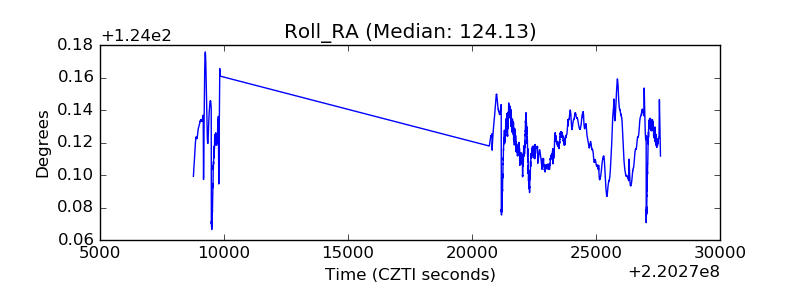

| _Roll_RA |  |

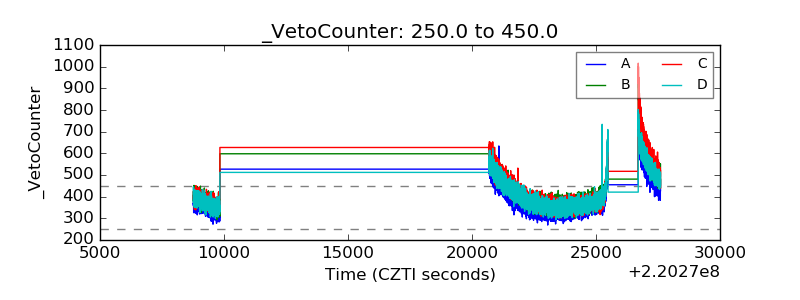

| Veto Counter |  |
