| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_168T10_9000000932_06747cztM0_level2.evt | modeM0/AS1G06_168T10_9000000932_06747cztM0_level2_quad_clean.evt |
| Size (bytes) | 493,176,960 | 92,698,560 |
| Size | 470.3 MB | 88.4 MB |
| Events in quadrant A | 3,167,861 | 591,662 |
| Events in quadrant B | 3,300,846 | 606,086 |
| Events in quadrant C | 3,065,617 | 596,541 |
| Events in quadrant D | 4,943,036 | 542,250 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14181 | 3 |
| B | 0 | 14512 | 2 |
| C | 0 | 13914 | 2 |
| D | 0 | 19192 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6748 | 51 | 0.755779% |
| B | 6748 | 83 | 1.229994% |
| C | 6748 | 32 | 0.474215% |
| D | 6748 | 571 | 8.461766% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

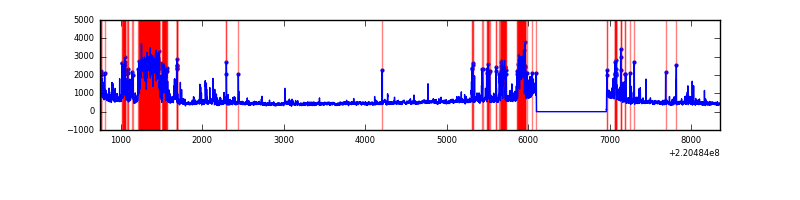

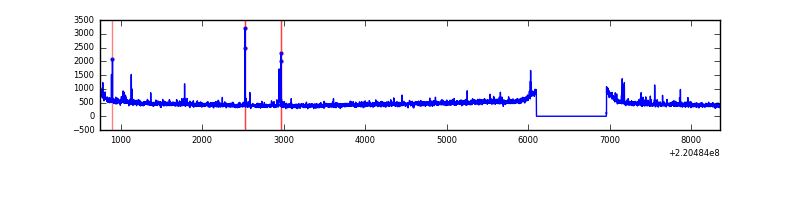

| A | 7608 | 6749 | 5 | 5 | 0.07% | 0.07% |  |
| B | 7608 | 6749 | 5 | 5 | 0.07% | 0.07% |  |
| C | 7608 | 6749 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7608 | 6749 | 430 | 430 | 5.65% | 6.37% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 51977 | 313.34 | 796 | 779 | 163.4 |
| A | 13 | 248 | 22138 | 130.72 | 796 | 779 | 163.4 |
| A | 8 | 15 | 15754 | 91.65 | 796 | 779 | 163.4 |
| B | 3 | 220 | 37647 | 236.64 | 807 | 787 | 155.8 |
| B | 0 | 214 | 36204 | 227.38 | 807 | 787 | 155.8 |
| B | 4 | 48 | 29703 | 185.64 | 807 | 787 | 155.8 |
| C | 9 | 247 | 23272 | 123.49 | 778 | 782 | 182.1 |
| C | 13 | 61 | 6091 | 29.15 | 778 | 782 | 182.1 |
| C | 8 | 222 | 2975 | 12.04 | 778 | 782 | 182.1 |
| D | 2 | 33 | 1315357 | 7205.72 | 740 | 717 | 182.4 |
| D | 8 | 195 | 387290 | 2118.86 | 740 | 717 | 182.4 |
| D | 2 | 152 | 177386 | 968.35 | 740 | 717 | 182.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

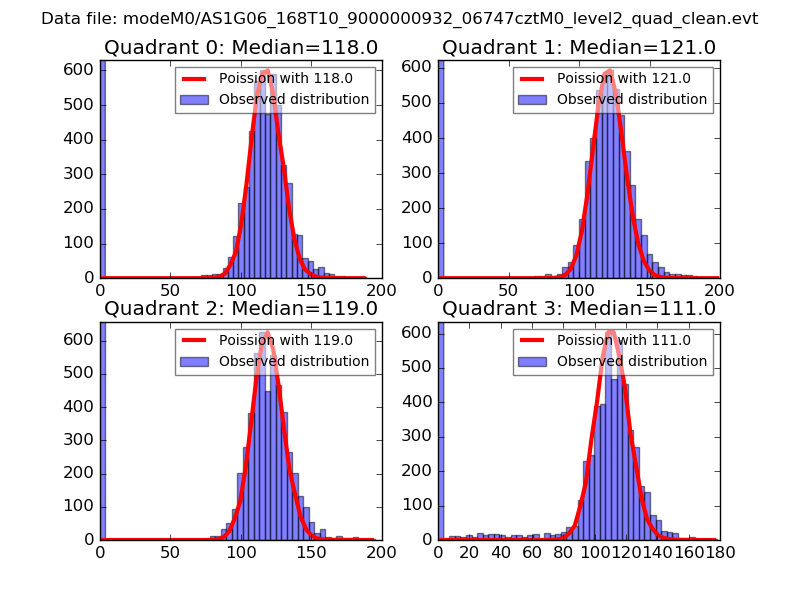

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

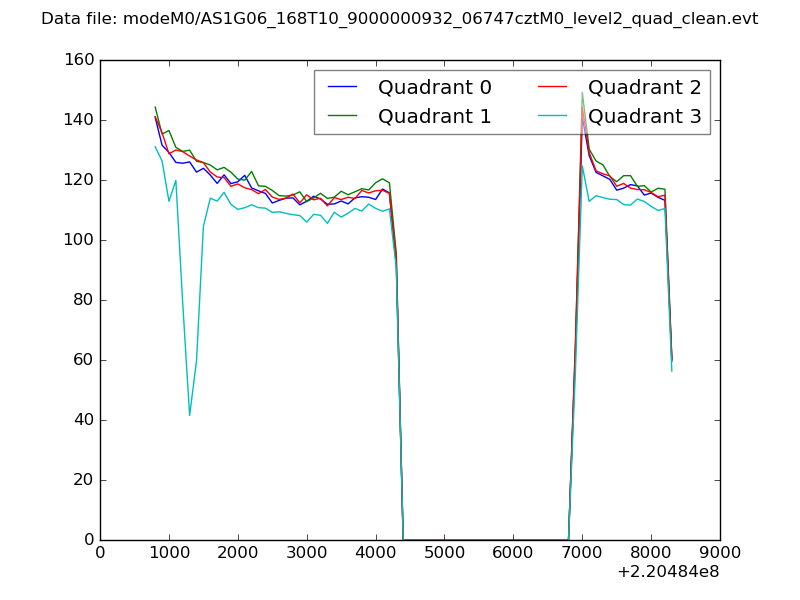

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

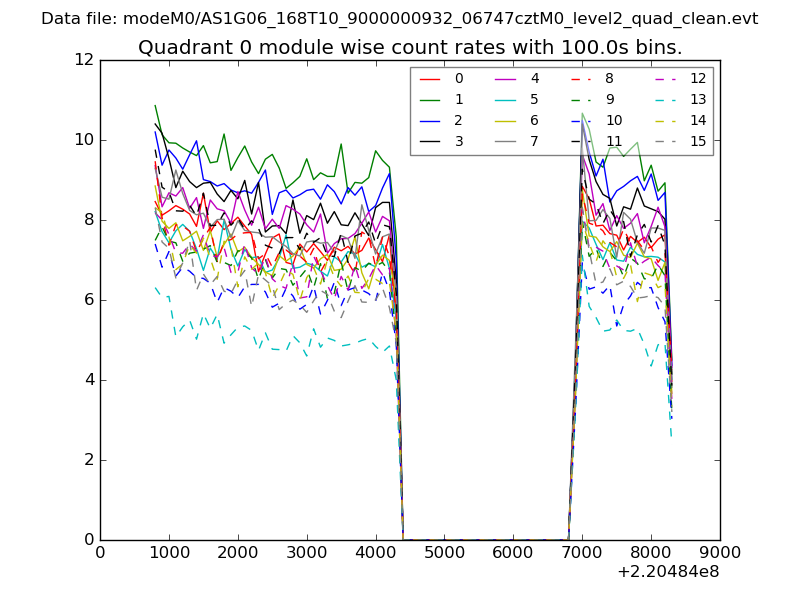

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

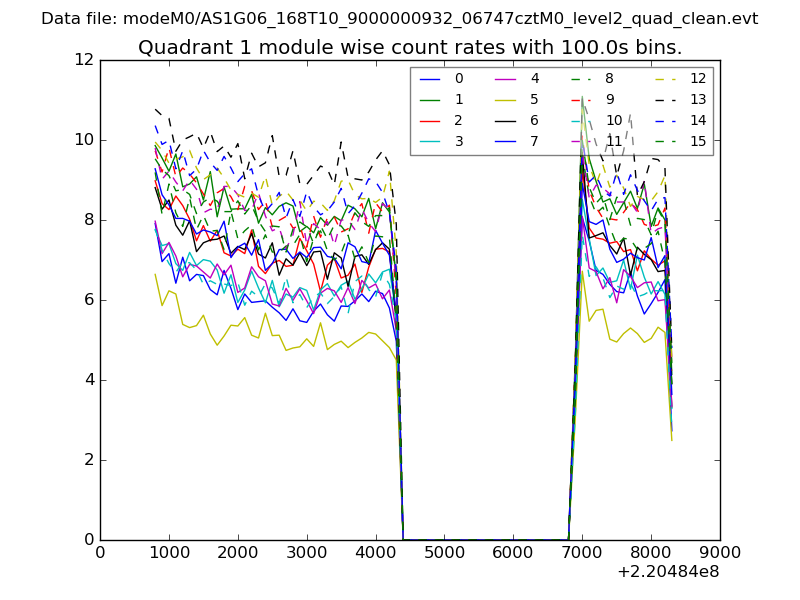

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

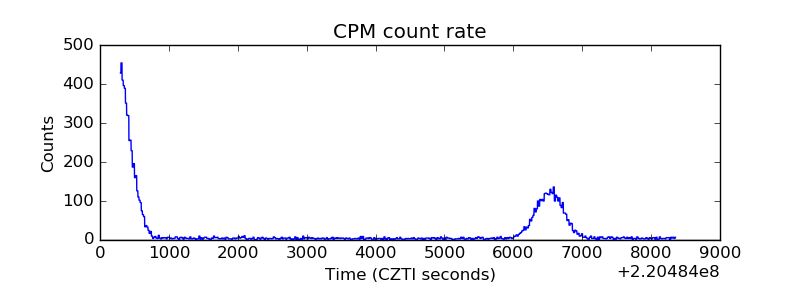

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
