| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_006T01_9000000934_06756cztM0_level2.evt | modeM0/AS1A02_006T01_9000000934_06756cztM0_level2_quad_clean.evt |
| Size (bytes) | 434,062,080 | 95,664,960 |
| Size | 414.0 MB | 91.2 MB |
| Events in quadrant A | 3,171,945 | 617,100 |
| Events in quadrant B | 3,097,015 | 627,197 |
| Events in quadrant C | 2,921,149 | 612,387 |
| Events in quadrant D | 3,513,992 | 587,773 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13855 | 2 |
| B | 0 | 13499 | 1 |
| C | 0 | 13285 | 1 |
| D | 0 | 14844 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6492 | 70 | 1.078250% |
| B | 6492 | 51 | 0.785582% |
| C | 6492 | 30 | 0.462107% |
| D | 6492 | 101 | 1.555761% |

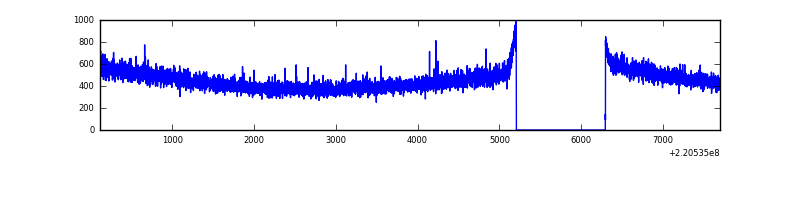

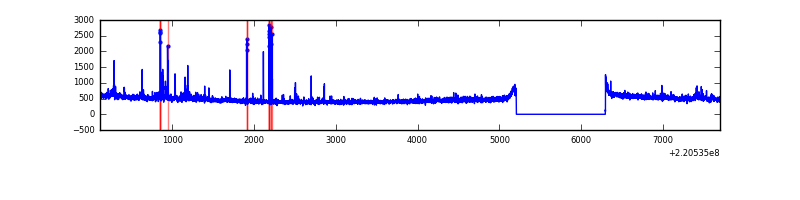

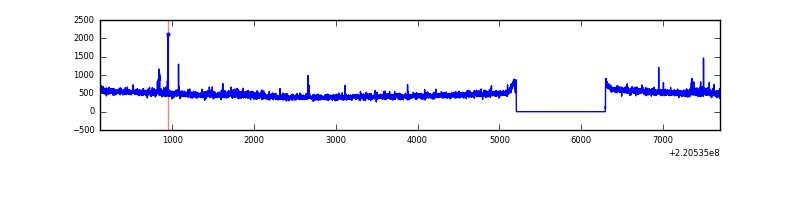

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7582 | 6493 | 16 | 16 | 0.21% | 0.25% |  |
| B | 7582 | 6493 | 1 | 1 | 0.01% | 0.02% |  |
| C | 7582 | 6493 | 0 | 0 | 0.00% | 0.00% |  |
| D | 7582 | 6493 | 49 | 49 | 0.65% | 0.75% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 71899 | 445.32 | 776 | 759 | 159.7 |
| A | 14 | 111 | 36009 | 220.66 | 776 | 759 | 159.7 |
| A | 15 | 234 | 33721 | 206.34 | 776 | 759 | 159.7 |
| B | 0 | 214 | 49405 | 323.61 | 780 | 761 | 150.3 |
| B | 12 | 111 | 14983 | 94.61 | 780 | 761 | 150.3 |
| B | 11 | 111 | 12109 | 75.49 | 780 | 761 | 150.3 |
| C | 13 | 61 | 5850 | 29.42 | 746 | 748 | 173.4 |
| C | 8 | 222 | 3478 | 15.74 | 746 | 748 | 173.4 |
| C | 9 | 247 | 3077 | 13.43 | 746 | 748 | 173.4 |
| D | 8 | 195 | 257024 | 1394.79 | 749 | 725 | 183.8 |
| D | 2 | 216 | 225840 | 1225.08 | 749 | 725 | 183.8 |
| D | 2 | 16 | 52255 | 280.43 | 749 | 725 | 183.8 |

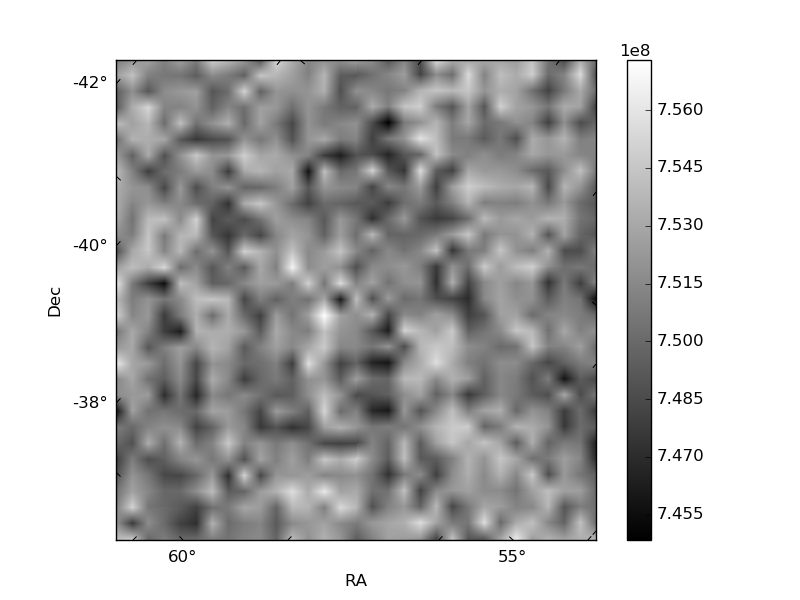

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

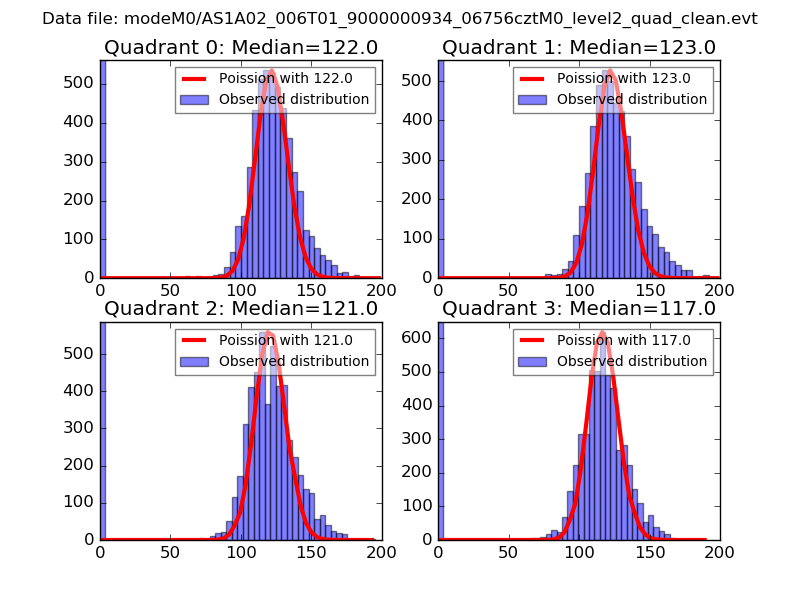

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

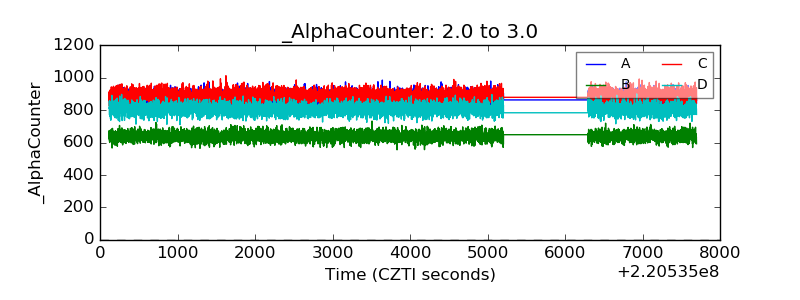

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

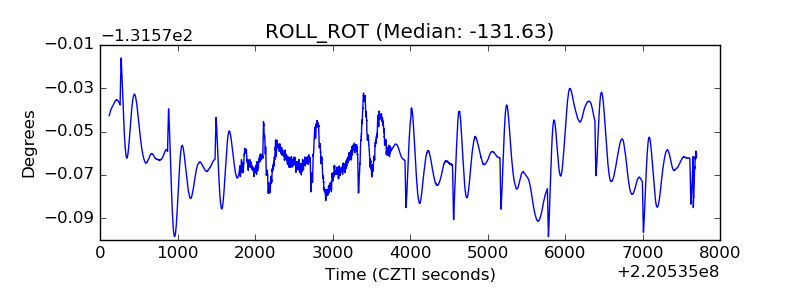

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
