| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1A02_006T01_9000000934_06759cztM0_level2.evt | modeM0/AS1A02_006T01_9000000934_06759cztM0_level2_quad_clean.evt |
| Size (bytes) | 788,875,200 | 150,125,760 |
| Size | 752.3 MB | 143.2 MB |
| Events in quadrant A | 5,066,831 | 976,432 |
| Events in quadrant B | 5,141,019 | 985,683 |
| Events in quadrant C | 4,803,041 | 946,917 |
| Events in quadrant D | 8,150,918 | 891,685 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 26 | 0 |
| B | 0 | 26 | 0 |
| C | 0 | 26 | 0 |
| D | 0 | 26 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22472 | 3 |
| B | 0 | 22572 | 2 |
| C | 0 | 22012 | 2 |
| D | 0 | 31497 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 220 | 0 |
| B | 0 | 220 | 0 |
| C | 0 | 220 | 0 |
| D | 0 | 220 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 10774 | 83 | 0.770373% |
| B | 10774 | 103 | 0.956005% |
| C | 10774 | 30 | 0.278448% |
| D | 10774 | 389 | 3.610544% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 13349 | 10776 | 7 | 7 | 0.05% | 0.06% |  |
| B | 13349 | 10776 | 11 | 11 | 0.08% | 0.10% |  |
| C | 13349 | 10776 | 0 | 0 | 0.00% | 0.00% |  |
| D | 13349 | 10776 | 305 | 305 | 2.28% | 2.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 2 | 78358 | 297.51 | 1281 | 1255 | 259.2 |
| A | 8 | 15 | 28472 | 105.02 | 1281 | 1255 | 259.2 |
| A | 13 | 248 | 25166 | 92.26 | 1281 | 1255 | 259.2 |
| B | 0 | 214 | 70706 | 286.46 | 1292 | 1266 | 242.4 |
| B | 4 | 173 | 32633 | 129.4 | 1292 | 1266 | 242.4 |
| B | 12 | 111 | 23574 | 92.03 | 1292 | 1266 | 242.4 |
| C | 13 | 61 | 9460 | 29.01 | 1227 | 1235 | 283.6 |
| C | 12 | 4 | 8317 | 24.97 | 1227 | 1235 | 283.6 |
| C | 1 | 3 | 3985 | 9.7 | 1227 | 1235 | 283.6 |
| D | 12 | 220 | 2438962 | 8372.1 | 1205 | 1171 | 291.2 |
| D | 8 | 195 | 555368 | 1903.28 | 1205 | 1171 | 291.2 |
| D | 2 | 152 | 213768 | 730.12 | 1205 | 1171 | 291.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

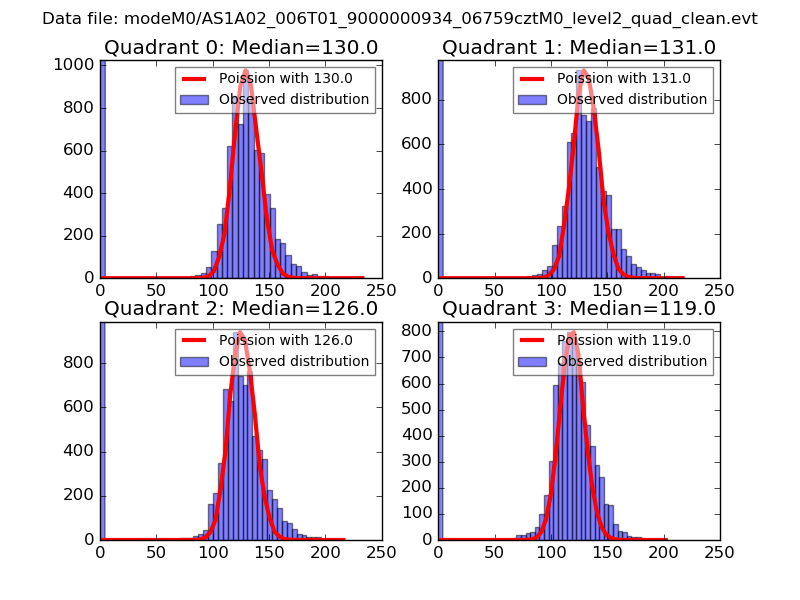

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

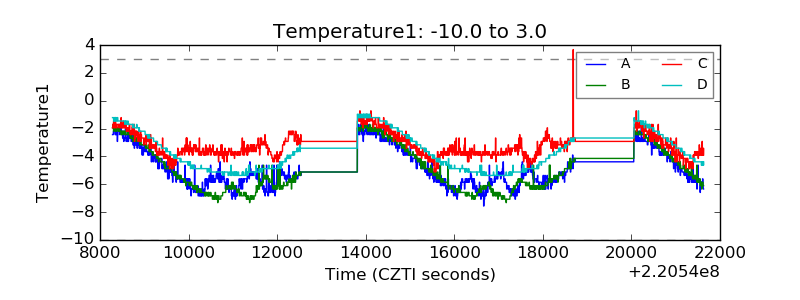

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

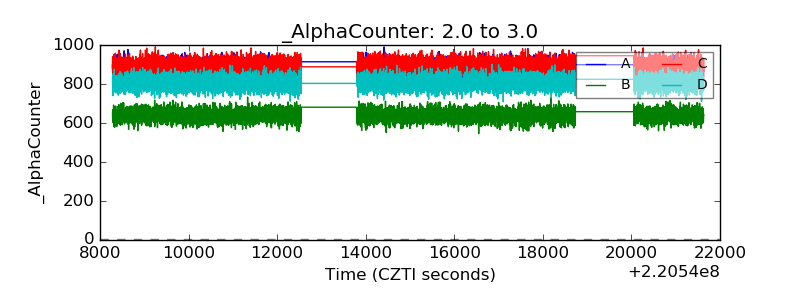

| Alpha Counter |  |

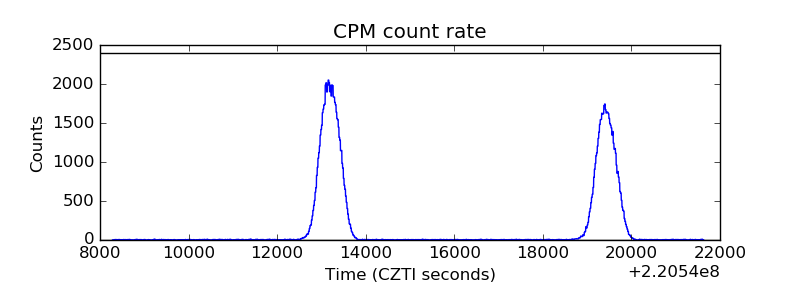

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

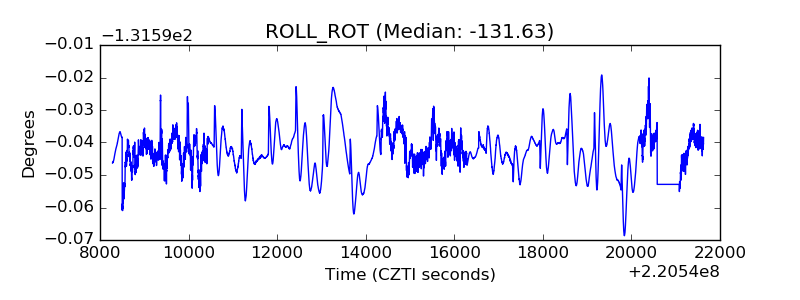

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
