| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1G06_086T02_9000000936_06802cztM0_level2.evt | modeM0/AS1G06_086T02_9000000936_06802cztM0_level2_quad_clean.evt |
| Size (bytes) | 482,808,960 | 68,901,120 |
| Size | 460.4 MB | 65.7 MB |
| Events in quadrant A | 3,278,385 | 416,229 |
| Events in quadrant B | 3,522,891 | 421,809 |
| Events in quadrant C | 3,261,657 | 410,197 |
| Events in quadrant D | 4,124,918 | 391,647 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13839 | 3 |
| B | 0 | 14751 | 2 |
| C | 0 | 13602 | 2 |
| D | 0 | 16658 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6388 | 84 | 1.314966% |
| B | 6388 | 106 | 1.659361% |
| C | 6388 | 53 | 0.829681% |
| D | 6388 | 181 | 2.833438% |

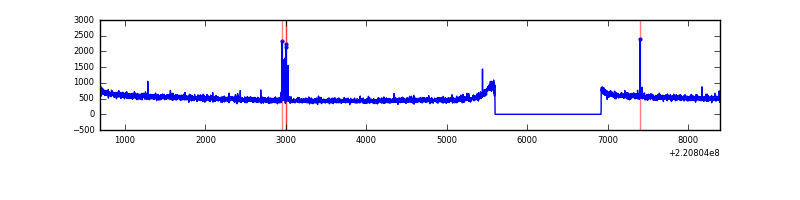

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7708 | 6389 | 4 | 4 | 0.05% | 0.06% |  |
| B | 7708 | 6389 | 7 | 7 | 0.09% | 0.11% |  |
| C | 7708 | 6389 | 2 | 2 | 0.03% | 0.03% |  |
| D | 7708 | 6389 | 83 | 83 | 1.08% | 1.30% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 36931 | 212.75 | 841 | 825 | 169.7 |
| A | 0 | 226 | 8102 | 42.88 | 841 | 825 | 169.7 |
| A | 12 | 194 | 7768 | 40.91 | 841 | 825 | 169.7 |
| B | 11 | 51 | 147304 | 929.89 | 844 | 827 | 157.5 |
| B | 4 | 81 | 56475 | 353.27 | 844 | 827 | 157.5 |
| B | 0 | 228 | 38054 | 236.33 | 844 | 827 | 157.5 |
| C | 9 | 247 | 78244 | 420.74 | 806 | 812 | 184.0 |
| C | 12 | 16 | 37315 | 198.34 | 806 | 812 | 184.0 |
| C | 13 | 61 | 6438 | 30.57 | 806 | 812 | 184.0 |
| D | 8 | 195 | 430298 | 2187.97 | 801 | 776 | 196.3 |
| D | 14 | 34 | 248254 | 1260.64 | 801 | 776 | 196.3 |
| D | 13 | 169 | 200219 | 1015.96 | 801 | 776 | 196.3 |

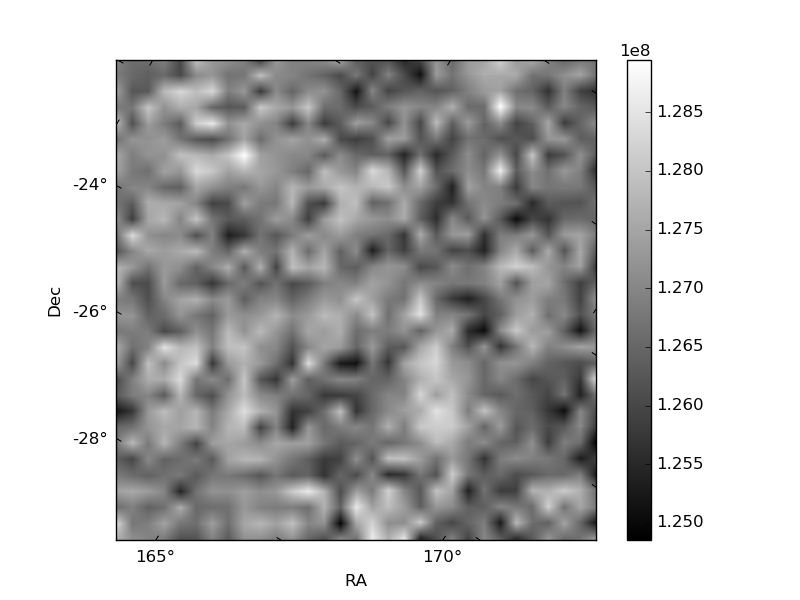

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

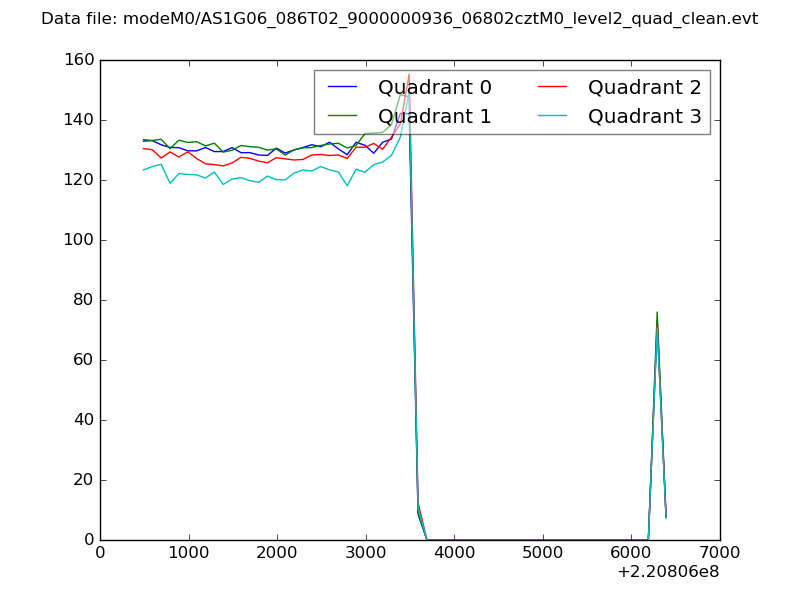

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

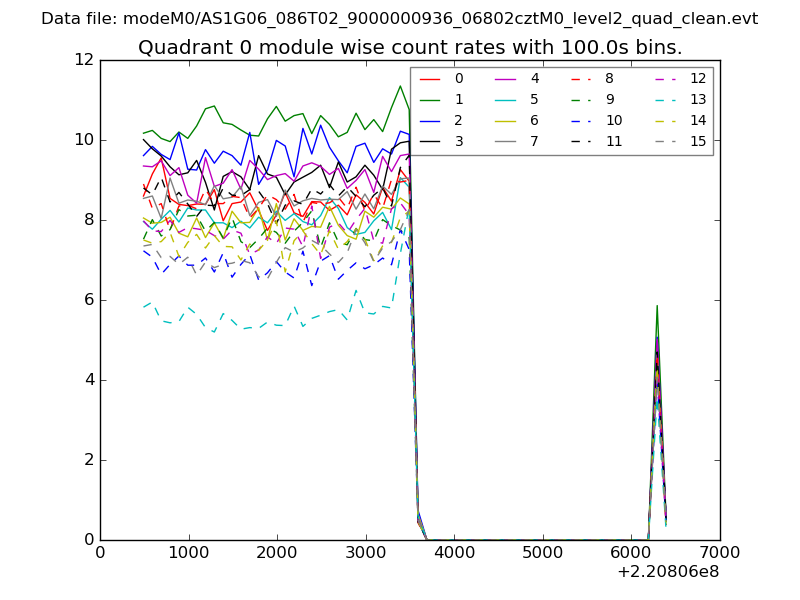

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

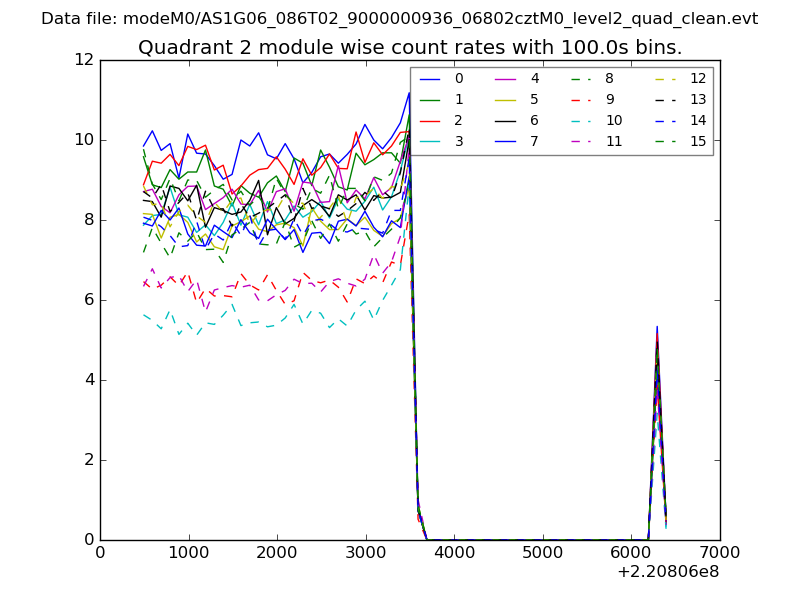

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

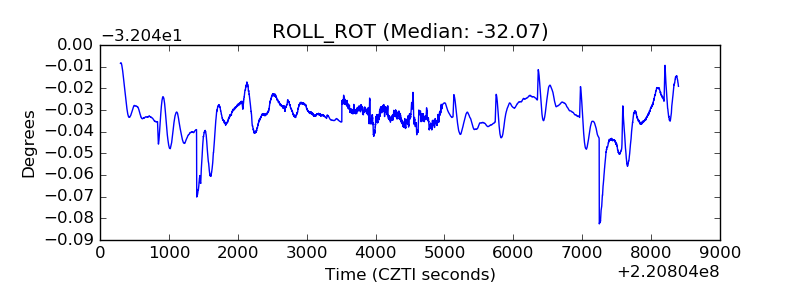

| _ROLL_ROT |  |
| _Roll_DEC |  |

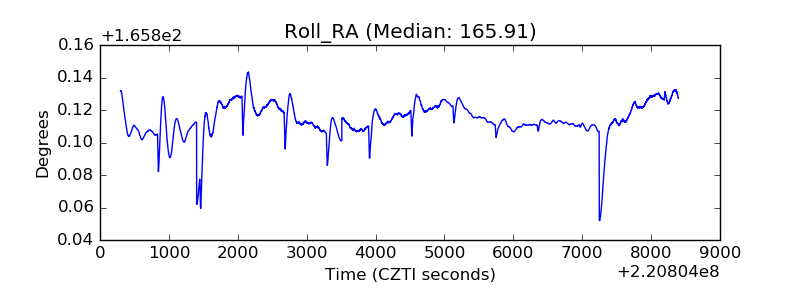

| _Roll_RA |  |

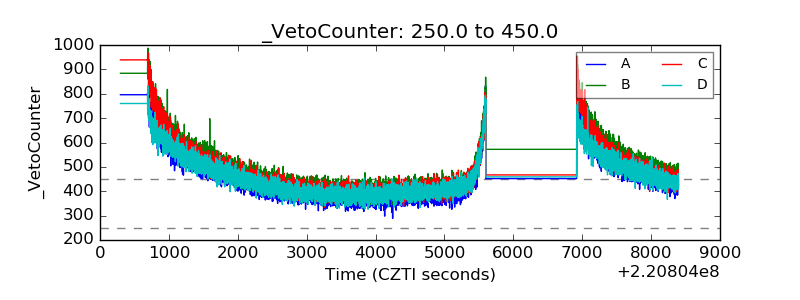

| Veto Counter |  |
